Variants SteREO Discovery.V8 You can customize this list by removing one or more columns. Show all variants (19) Show all Hide all	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0001-000	Stereomicroscope SteREO Discovery.V8 with stand M LED Transmitted light Item no.: 495015-0030-000	Stereomicroscope SteREO Discovery.V8 with stand 300 Item no.: 495015-0021-000	Stereomicroscope SteREO Discovery.V8 with stand N 32/450 Item no.: 495015-0023-000	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0012-000	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0003-000	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0004-000	Stereomicroscope SteREO Discovery.V8 with transillumination base 300 Item no.: 495015-0022-000	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0007-000	Stereomicroscope SteREO Discovery.V8 with transillumination base 300 Item no.: 495015-0031-000	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0008-000	Microscope SteREO Discovery.V8 for reflected light Item no.: 495015-0016-000	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0014-000	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0009-000	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0006-000	Fluorescence stereomicroscope SteREO Discovery.V8 with stand N, Item no.: 495015-0019-000	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0013-000	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0020-000	Microscope SteREO Discovery.V8 Item no.: 495015-0029-000

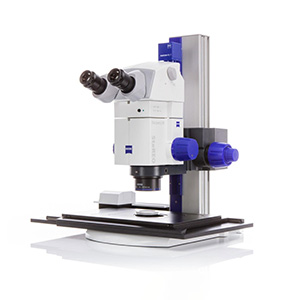

Variants SteREO Discovery.V8 You can customize this list by removing one or more columns. Show all variants (19) Show all Hide all	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0001-000 Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0001-000 Stereomicroscope SteREO Discovery.V8 with stand N 32/450, without illumination Stereomicroscope SteREO Discovery.V8 with stand N 32/450, wi...	example picture Stereomicroscope SteREO Discovery.V8 with stand M LED Transmitted light Item no.: 495015-0030-000 Stereomicroscope SteREO Discovery.V8 with stand M LED Transmitted light Item no.: 495015-0030-000 Stereomicroscope SteREO Discovery.V8 with stand M LED Transmitted light consisting of: - Microscope body SteREO Discovery V8 - Binoc Tube S 35 f/ Discovery - Eyepiece + Eyecups (2x) - Stand M LED - Transillumination Brightfield M LED - Objective Achromat S 0.63x Reo WD=107 Stereomicroscope SteREO Discovery.V8 with stand M LED Transm...	example picture Stereomicroscope SteREO Discovery.V8 with stand 300 Item no.: 495015-0021-000 Stereomicroscope SteREO Discovery.V8 with stand 300 Item no.: 495015-0021-000 Stereomicroscope SteREO Discovery.V8 with stand 300 for epi- illumination, without illumination Stereomicroscope SteREO Discovery.V8 with stand 300 for epi-...	example picture Stereomicroscope SteREO Discovery.V8 with stand N 32/450 Item no.: 495015-0023-000 Stereomicroscope SteREO Discovery.V8 with stand N 32/450 Item no.: 495015-0023-000 Stereomicroscope SteREO Discovery.V8 with stand N 32/450 and LED set for double spot Stereomicroscope SteREO Discovery.V8 with stand N 32/450 and...	example picture Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0012-000 Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0012-000 Stereomicroscope SteREO Discovery.V8 with stand N 32/450 and EasyLED trans- and epi-illumination Stereomicroscope SteREO Discovery.V8 with stand N 32/450 and...	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0003-000 Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0003-000 Stereomicroscope SteREO Discovery.V8 with stand N 32/450 and ECO slit-ring illuminator Stereomicroscope SteREO Discovery.V8 with stand N 32/450 and...	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0004-000 Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0004-000 Stereomicroscope SteREO Discovery.V8 with boom stand B and 2-branch flexible ECO light guide Stereomicroscope SteREO Discovery.V8 with boom stand B and 2...	example picture Stereomicroscope SteREO Discovery.V8 with transillumination base 300 Item no.: 495015-0022-000 Stereomicroscope SteREO Discovery.V8 with transillumination base 300 Item no.: 495015-0022-000 Stereomicroscope SteREO Discovery.V8 with transillumination base 300 Stereomicroscope SteREO Discovery.V8 with transillumination ...	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0007-000 Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0007-000 Stereomicroscope SteREO Discovery.V8 with coarse/fine drive and VisiLED epi- and transillumination Stereomicroscope SteREO Discovery.V8 with coarse/fine drive ...	example picture Stereomicroscope SteREO Discovery.V8 with transillumination base 300 Item no.: 495015-0031-000 Stereomicroscope SteREO Discovery.V8 with transillumination base 300 Item no.: 495015-0031-000 Stereomicroscope SteREO Discovery.V8 with transillumination base 300 consisting of: - Microscope body SteREO Discovery V8 - Binoc Phototube S 20 - Intermediate Tube S - Eyepiece + Eyecups (2x) - Transillumination base 300 - Footswitch S - Coarse/fine drive w/T-column 350mm - Mount S with 76 mm Diameter Support - Objective Achromat S 0.63x Reo WD=107 Stereomicroscope SteREO Discovery.V8 with transillumination ...	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0008-000 Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0008-000 Stereomicroscope SteREO Discovery.V8 with coarse/fine drive and variable transillumination Stereomicroscope SteREO Discovery.V8 with coarse/fine drive ...	example picture Microscope SteREO Discovery.V8 for reflected light Item no.: 495015-0016-000 Microscope SteREO Discovery.V8 for reflected light Item no.: 495015-0016-000 Microscope SteREO Discovery.V8 for reflected light prepared for Linkam Heating/Freezing Stages Microscope SteREO Discovery.V8 for reflected light prepared ...	example picture Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0014-000 Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0014-000 Stereomicroscope SteREO Discovery.V8 with coarse/fine drive and simultaneous transmitted and reflected light due to two CL 4500 LED CRI90 units Stereomicroscope SteREO Discovery.V8 with coarse/fine drive ...	example picture Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0009-000 Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0009-000 Stereomicroscope SteREO Discovery.V8 with coarse/fine drive and coaxial incident-light bright-field illuminator Stereomicroscope SteREO Discovery.V8 with coarse/fine drive ...	Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0006-000 Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0006-000 Stereomicroscope SteREO Discovery.V8 for vertical documentation, with coarse/fine drive and variable incident-light illuminator Stereomicroscope SteREO Discovery.V8 for vertical documentat...	example picture Fluorescence stereomicroscope SteREO Discovery.V8 with stand N, Item no.: 495015-0019-000 Fluorescence stereomicroscope SteREO Discovery.V8 with stand N, Item no.: 495015-0019-000 Fluorescence stereomicroscope SteREO Discovery.V8 with stand N, intermediate LED tube 38HE GFP and EasyLED epi-spot Fluorescence stereomicroscope SteREO Discovery.V8 with stand...	example picture Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0013-000 Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0013-000 Stereomicroscope SteREO Discovery.V8 with drawing tube and phototube Stereomicroscope SteREO Discovery.V8 with drawing tube and p...	example picture Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0020-000 Stereomicroscope SteREO Discovery.V8 Item no.: 495015-0020-000 Stereomicroscope SteREO Discovery.V8 with objective nosepiece S, coax Stereomicroscope SteREO Discovery.V8 with objective nosepiec...	example picture Microscope SteREO Discovery.V8 Item no.: 495015-0029-000 Microscope SteREO Discovery.V8 Item no.: 495015-0029-000 Microscope SteREO Discovery.V8 complete system for Technical Cleanliness Analysis Microscope SteREO Discovery.V8 complete system for Technical...
Eyepieces	Eyepieces Eyepiece PL 10x/21 Br. foc. Eyepiece PL 10x/21 Br. foc. Item no.: 444039-9000-000 Eyepiece PL 10x/21 Br. foc. Item no.: 444039-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/21 Br. foc. Eyepiece PL 10x/21 Br. foc. Item no.: 444039-9000-000 Eyepiece PL 10x/21 Br. foc. Item no.: 444039-9000-000	Eyepieces Eyepiece PL 10x/21 Br. foc. Eyepiece PL 10x/21 Br. foc. Item no.: 444039-9000-000 Eyepiece PL 10x/21 Br. foc. Item no.: 444039-9000-000	Eyepieces Eyepiece PL 10x/21 Br. foc. Eyepiece PL 10x/21 Br. foc. Item no.: 444039-9000-000 Eyepiece PL 10x/21 Br. foc. Item no.: 444039-9000-000	Eyepieces Eyepiece PL 10x/21 Br. foc. Eyepiece PL 10x/21 Br. foc. Item no.: 444039-9000-000 Eyepiece PL 10x/21 Br. foc. Item no.: 444039-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/21 Br. foc. Eyepiece PL 10x/21 Br. foc. Item no.: 444039-9000-000 Eyepiece PL 10x/21 Br. foc. Item no.: 444039-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 16x/16 Br. foc. Eyepiece PL 16x/16 Br. foc. Item no.: 444054-9000-000 Eyepiece PL 16x/16 Br. foc. Item no.: 444054-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000
Eyepiece accessories	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000
Stereomicroscopes	Stereomicroscopes Stemi Mount Column 32 with Drive Stemi Mount Column 32 with Drive Item no.: 435424-9301-000 Stemi Mount Column 32 with Drive - Lifting range +/- 25 mm, load capacity max. 5 kg - 2x M8 thread for adaptation of illuminator carriers - Adjustable ease of motion by twisting the knobs Item no.: 435424-9301-000 SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Achromat S 0.63x FWD 107 mm Objective Achromat S 0.63x FWD 107 mm Item no.: 435216-9901-000 Objective Achromat S 0.63x FWD 107 mm (137 mm parfocal length) Item no.: 435216-9901-000 Stand N with Column 32/450 mm Stand N with Column 32/450 mm Item no.: 435424-9400-000 Stand N with Column 32/450 mm - Stand plate 440x370 mm - B/W plastic plate D=84x4 mm - 2 stage clips, safety-ring Item no.: 435424-9400-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Achromat S 0.63x FWD 107 mm Objective Achromat S 0.63x FWD 107 mm Item no.: 435216-9901-000 Objective Achromat S 0.63x FWD 107 mm (137 mm parfocal length) Item no.: 435216-9901-000 Stand M LED Stand M LED Item no.: 435425-9100-000 Stand M LED - Stand base D340xW300xH35 mm - Working surface W255xD215 mm - Interfaces d=84 mm for stages and d=45 mm for TL polarizer - Central through-hole 40 mm - Column 360 mm with drive, lifting range 190 mm - Stemi mount d=76 mm, load capacity 5 Kg, adjustable friction - Transillumination units M LED retrofittable - 2x sockets for IVI and illuminator K LED - Separate RL/TL controls: 2x rotary push knob for on/off/dimming - 3x Memory button to save/recall three mixed light settings: Save: Long press (2 sec), call: Short press Saves: Currently set values (on/off, brightness) of RL/TL illuminators K/M LED Does not save: Mechanical adjustment of lighting and segment setting and rotation of ring illuminator K LED - Integrated power unit 12V DC 24W/100...240V AC/50...60Hz Additionally included: - Glass and B/W plastic plate D=84x5 mm - Country-specific power cable EURO C8 - Dust cover Item no.: 435425-9100-000 Transilluminator Brightfield M LED Transilluminator Brightfield M LED Item no.: 435525-9130-000 Transilluminator Brightfield M LED - Flat LED transillumination for brightfield and all-sided darkfield, switchable - Integrable into stand M LED, without increasing height of the stand - Easy to assemble, wireless Item no.: 435525-9130-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Achromat S 0.63x FWD 107 mm Objective Achromat S 0.63x FWD 107 mm Item no.: 435216-9901-000 Objective Achromat S 0.63x FWD 107 mm (137 mm parfocal length) Item no.: 435216-9901-000 Base 300 for epi-illumination Base 300 for epi-illumination Item no.: 435433-9401-000 Base 300 for epi-illumination WxDxH 290x353x25mm stand base with 2x M8 threaded holes and b/w plate D=120mm; compatible to T column 350mm and central column S 490mm; VisiLED transmitted light (417095-9400) mountable from below, in addition glass plate D=120mm (435501-0002); stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435433-9401-000 Coarse/Fine Drive, T Column 350 mm Coarse/Fine Drive, T Column 350 mm Item no.: 435433-9002-000 Coarse/Fine Drive, T Column 350 mm - Lifting range 220 mm, load capacity 10 kg - For stand bases 300/450 - Stand base 450 from version -9902, only without nosepiece Item no.: 435433-9002-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000	Stereomicroscopes Stemi Mount Column 32 with Drive Stemi Mount Column 32 with Drive Item no.: 435424-9301-000 Stemi Mount Column 32 with Drive - Lifting range +/- 25 mm, load capacity max. 5 kg - 2x M8 thread for adaptation of illuminator carriers - Adjustable ease of motion by twisting the knobs Item no.: 435424-9301-000 SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Achromat S 1.5x FWD 28 mm Objective Achromat S 1.5x FWD 28 mm Item no.: 435228-9901-000 Objective Achromat S 1.5x FWD 28 mm (93 mm parfocal length) Item no.: 435228-9901-000 Stand N with Column 32/450 mm Stand N with Column 32/450 mm Item no.: 435424-9400-000 Stand N with Column 32/450 mm - Stand plate 440x370 mm - B/W plastic plate D=84x4 mm - 2 stage clips, safety-ring Item no.: 435424-9400-000 Intermediate tube S, fixed 40 mm Intermediate tube S, fixed 40 mm Item no.: 435102-0000-000 Intermediate tube S, fixed 40 mm to increase the viewing height Item no.: 435102-0000-000 LED double spot for column 32 (D) LED double spot for column 32 (D) Item no.: 417040-9450-000 LED double spot for column 32 (D) - LED Hi-Power double spot 5500K - goose-neck branches, 2x 570 mm - clamping ring for column 32 - 2-channel control unit - table-top supply unit 100-250V and country-specific mains cord Item no.: 417040-9450-000	Stereomicroscopes Stemi Mount Column 32 with Drive Stemi Mount Column 32 with Drive Item no.: 435424-9301-000 Stemi Mount Column 32 with Drive - Lifting range +/- 25 mm, load capacity max. 5 kg - 2x M8 thread for adaptation of illuminator carriers - Adjustable ease of motion by twisting the knobs Item no.: 435424-9301-000 SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Achromat S 0.63x FWD 107 mm Objective Achromat S 0.63x FWD 107 mm Item no.: 435216-9901-000 Objective Achromat S 0.63x FWD 107 mm (137 mm parfocal length) Item no.: 435216-9901-000 Stand N with Column 32/450 mm Stand N with Column 32/450 mm Item no.: 435424-9400-000 Stand N with Column 32/450 mm - Stand plate 440x370 mm - B/W plastic plate D=84x4 mm - 2 stage clips, safety-ring Item no.: 435424-9400-000 EasyLED transillumination H, D=84 mm (D) EasyLED transillumination H, D=84 mm (D) Item no.: 417096-9400-000 EasyLED transillumination H, D=84 mm (D) - bright field with D=50 mm - dimmer and on/off switch integrated - plug-in power unit 12V DC incl. mains input plug EU, GB, US/JP, AU Item no.: 417096-9400-000 High Power LED Ring Illuminator, segmentable (HPRL) (D) High Power LED Ring Illuminator, segmentable (HPRL) (D) Item no.: 417040-9300-000 High Power LED Ring Illuminator, segmentable (HPRL) (D) - 8 High Power LEDs with ring optics, optics mountable for near- or far WD range - Near WD range position: FWD 45-130 mm, Illuminance typ. 220 klx (@ FWD 50 mm) - Far WD range position: FWD 80-300 mm, Illuminance typ. 170 klx (@ FWD 90 mm) - Correlated color temperature ca. 5800 K, lifetime ca. 25.000 h (lumen maintenance 70 %) - Ergonomic operation integrated in housing: no controller box needed - Encoder 1 for setting of segment modes, turning in 45° steps and auto rotation - Encoder 2 for dimming, storage and recall of one illumination setting - Separate On/Off switch - Segment modes: full, half, quarter circle, two opposite quarter circles - Interface to objective: D=66 mm - ESD socket for controlled discharge of electrostatic load - Thread to mount accessories (Polarization Filter Set, Diffusor) - incl. wide-range power supply and 4 adapters EU, US, CH, JP Item no.: 417040-9300-000 Spacing ring S, d=66 x 40 mm Spacing ring S, d=66 x 40 mm Item no.: 435449-0000-000 Spacing ring S, d=66 x 40 mm elongates the diam. 66 mm objective barrel by 40 mm, e.g. for mounting of dark-field ring illuminator on Discovery objective Achromat 1x or 1.25x or Plan Apo 1x or twice used on Achromat 0.63x Item no.: 435449-0000-000	Stereomicroscopes Stemi Mount Column 32 with Drive Stemi Mount Column 32 with Drive Item no.: 435424-9301-000 Stemi Mount Column 32 with Drive - Lifting range +/- 25 mm, load capacity max. 5 kg - 2x M8 thread for adaptation of illuminator carriers - Adjustable ease of motion by twisting the knobs Item no.: 435424-9301-000 SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Achromat S 1.0x FWD 63 mm Objective Achromat S 1.0x FWD 63 mm Item no.: 435217-9901-000 Objective Achromat S 1.0x FWD 63 mm (93 mm parfocal length) Item no.: 435217-9901-000 Stand N with Column 32/450 mm Stand N with Column 32/450 mm Item no.: 435424-9400-000 Stand N with Column 32/450 mm - Stand plate 440x370 mm - B/W plastic plate D=84x4 mm - 2 stage clips, safety-ring Item no.: 435424-9400-000 Intermediate tube S, fixed 40 mm Intermediate tube S, fixed 40 mm Item no.: 435102-0000-000 Intermediate tube S, fixed 40 mm to increase the viewing height Item no.: 435102-0000-000	Stereomicroscopes Stemi Mount Column 32 with Drive Stemi Mount Column 32 with Drive Item no.: 435424-9301-000 Stemi Mount Column 32 with Drive - Lifting range +/- 25 mm, load capacity max. 5 kg - 2x M8 thread for adaptation of illuminator carriers - Adjustable ease of motion by twisting the knobs Item no.: 435424-9301-000 SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Achromat S 0.5x FWD 134 mm Objective Achromat S 0.5x FWD 134 mm Item no.: 435215-9901-000 Objective Achromat S 0.5x FWD 134 mm (164 mm transfer length) Item no.: 435215-9901-000 Stand Base B 32 Stand Base B 32 Item no.: 435424-9221-000 Stand Base B 32 - Massive stand base 200x280 mm, 20 Kg - For column 32/450 mm or 32/650 mm Item no.: 435424-9221-000 Focusing attachment d=6 mm without filters Focusing attachment d=6 mm without filters Item no.: 435540-9003-000 Focusing attachment d=6 mm without filters Item no.: 435540-9003-000 Illuminator carrier S, M8-M8 (D) Illuminator carrier S, M8-M8 (D) Item no.: 435441-0000-000 Illuminator carrier S, M8-M8 (D) Item no.: 435441-0000-000 Mounting Set Boom Stand B Mounting Set Boom Stand B Item no.: 435424-9200-000 Mounting Set Boom Stand B - Tilting head B 32/115 mm - Adapter B 32-BMS 90° - Crosspiece B 32 - Safetyring B 32 Item no.: 435424-9200-000 Column 32/650 Column 32/650 Item no.: 475119-0000-000 Column 32/650 Item no.: 475119-0000-000 Column 32/450 Column 32/450 Item no.: 475120-0000-000 Column 32/450 Item no.: 475120-0000-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Achromat S 1.0x FWD 63 mm Objective Achromat S 1.0x FWD 63 mm Item no.: 435217-9901-000 Objective Achromat S 1.0x FWD 63 mm (93 mm parfocal length) Item no.: 435217-9901-000 Coarse/Fine Drive, T Column 350 mm Coarse/Fine Drive, T Column 350 mm Item no.: 435433-9002-000 Coarse/Fine Drive, T Column 350 mm - Lifting range 220 mm, load capacity 10 kg - For stand bases 300/450 - Stand base 450 from version -9902, only without nosepiece Item no.: 435433-9002-000 Transillumination base 300 Transillumination base 300 Item no.: 435533-9500-000 Transillumination base 300 WxDxH 322x373x42mm stand base with 2x M8 threaded holes, 90 white-light LED transmitted light, brightness knob, socket for footswitch S, straightly movable diaphragm and 3 position turret for: 1. Bright Field plus and oblique-light contrast by shiftable diaphragm 2. homogenous bright field with 67mm dia. 3. all-side dark field, also unilateral by movable diaphragm; incl. glass plate D=120mm, DF insert diaphragm 28/84, table-top supply 24V 60W and country-specific mains cord; compatible to T column 350mm and central profile column 490mm; stage d=84mm or d=120mm needs additionally adapter 84+120 (435533-9510) except gliding stage S 110x110 Item no.: 435533-9500-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Intermediate tube S, fixed 40 mm Intermediate tube S, fixed 40 mm Item no.: 435102-0000-000 Intermediate tube S, fixed 40 mm to increase the viewing height Item no.: 435102-0000-000 Foot button S (D) Foot button S (D) Item no.: 417095-9020-000 Foot button S (D) - 3 m connection cable, 2.5 mm mono jack - Switches LED light sources between ON/Standby mode - compatible with: Light Sources CL 4500/6000/9000 LED, Controller MC 1500 for VisiLED, Transillumination base 300 Item no.: 417095-9020-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Plan S 1.0x FWD 81 mm Objective Plan S 1.0x FWD 81 mm Item no.: 435200-0000-000 Objective Plan S 1.0x FWD 81 mm (137 mm parfocal length) Item no.: 435200-0000-000 Base 300 for epi-illumination Base 300 for epi-illumination Item no.: 435433-9401-000 Base 300 for epi-illumination WxDxH 290x353x25mm stand base with 2x M8 threaded holes and b/w plate D=120mm; compatible to T column 350mm and central column S 490mm; VisiLED transmitted light (417095-9400) mountable from below, in addition glass plate D=120mm (435501-0002); stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435433-9401-000 Coarse/Fine Drive, T Column 350 mm Coarse/Fine Drive, T Column 350 mm Item no.: 435433-9002-000 Coarse/Fine Drive, T Column 350 mm - Lifting range 220 mm, load capacity 10 kg - For stand bases 300/450 - Stand base 450 from version -9902, only without nosepiece Item no.: 435433-9002-000 VisiLED transillumination H, D=84 mm (D) VisiLED transillumination H, D=84 mm (D) Item no.: 417095-9400-000 VisiLED transillumination H, D=84 mm (D) for homogeneous bright field with dia. 50 mm and high illumination intensity Item no.: 417095-9400-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 VisiLED ring light S 80-55 BF, d=66 mm (D) VisiLED ring light S 80-55 BF, d=66 mm (D) Item no.: 417095-9255-000 VisiLED ring light S 80-55 BF, d=66 mm (D) for bright field, working distance 45...95 mm Item no.: 417095-9255-000 Clear glass plate, D=120 mm Clear glass plate, D=120 mm Item no.: 435501-0002-000 Clear glass plate, D=120 mm Item no.: 435501-0002-000 Multiple Controller MC 1500 for VisiLED (D) Multiple Controller MC 1500 for VisiLED (D) Item no.: 417095-9000-000 Multiple Controller MC 1500 for VisiLED (D) for 2 VisiLED illuminators, foot switch and RS232 adapter, with 5 segment modes, 4 memory keys, continuous dimming and integrated LED temperature control Item no.: 417095-9000-000 Foot button S (D) Foot button S (D) Item no.: 417095-9020-000 Foot button S (D) - 3 m connection cable, 2.5 mm mono jack - Switches LED light sources between ON/Standby mode - compatible with: Light Sources CL 4500/6000/9000 LED, Controller MC 1500 for VisiLED, Transillumination base 300 Item no.: 417095-9020-000 Power supply 100...240V, 50...60Hz (D) Power supply 100...240V, 50...60Hz (D) Item no.: 417095-9050-000 Power supply 100...240V, 50...60Hz (D) for VisiLED Item no.: 417095-9050-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular phototube S 20° Binocular phototube S 20° Item no.: 435107-0000-000 Binocular phototube S 20° for 51-75mm eye distance and with 100/100 switchover of the right channel to interface 60N Item no.: 435107-0000-000 Objective Achromat S 0.63x FWD 107 mm Objective Achromat S 0.63x FWD 107 mm Item no.: 435216-9901-000 Objective Achromat S 0.63x FWD 107 mm (137 mm parfocal length) Item no.: 435216-9901-000 Coarse/Fine Drive, T Column 350 mm Coarse/Fine Drive, T Column 350 mm Item no.: 435433-9002-000 Coarse/Fine Drive, T Column 350 mm - Lifting range 220 mm, load capacity 10 kg - For stand bases 300/450 - Stand base 450 from version -9902, only without nosepiece Item no.: 435433-9002-000 Transillumination base 300 Transillumination base 300 Item no.: 435533-9500-000 Transillumination base 300 WxDxH 322x373x42mm stand base with 2x M8 threaded holes, 90 white-light LED transmitted light, brightness knob, socket for footswitch S, straightly movable diaphragm and 3 position turret for: 1. Bright Field plus and oblique-light contrast by shiftable diaphragm 2. homogenous bright field with 67mm dia. 3. all-side dark field, also unilateral by movable diaphragm; incl. glass plate D=120mm, DF insert diaphragm 28/84, table-top supply 24V 60W and country-specific mains cord; compatible to T column 350mm and central profile column 490mm; stage d=84mm or d=120mm needs additionally adapter 84+120 (435533-9510) except gliding stage S 110x110 Item no.: 435533-9500-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Intermediate tube S, fixed 40 mm Intermediate tube S, fixed 40 mm Item no.: 435102-0000-000 Intermediate tube S, fixed 40 mm to increase the viewing height Item no.: 435102-0000-000 Foot button S (D) Foot button S (D) Item no.: 417095-9020-000 Foot button S (D) - 3 m connection cable, 2.5 mm mono jack - Switches LED light sources between ON/Standby mode - compatible with: Light Sources CL 4500/6000/9000 LED, Controller MC 1500 for VisiLED, Transillumination base 300 Item no.: 417095-9020-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Plan S 1.0x FWD 81 mm Objective Plan S 1.0x FWD 81 mm Item no.: 435200-0000-000 Objective Plan S 1.0x FWD 81 mm (137 mm parfocal length) Item no.: 435200-0000-000 Stand base 450 Stand base 450 Item no.: 435430-9903-000 Stand base 450 WxDxH 449x346x30mm stand base with 3x M8 threaded holes, insert plate 450 and b/w plate D=120mm; compatible with column S 490/800 mm or T column 350mm and with transmitted light unit 450 or 450 mot or VisiLED transmitted light; stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435430-9903-000 Transmitted-light equipment S Transmitted-light equipment S Item no.: 435501-0000-000 Transmitted-light equipment S ergonomic console with light guide and 2 shiftable and tiltable reflectors for bright field/dark field and for variable oblique light, usable on stand base 450 Item no.: 435501-0000-000 Coarse/fine drive with column S 490mm Coarse/fine drive with column S 490mm Item no.: 435400-9901-000 Coarse/fine drive with column S 490mm - Lifting range 340 mm, load capacity 10 kg - For stand bases 300/450 Item no.: 435400-9901-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Plan S 1.0x FWD 81 mm Objective Plan S 1.0x FWD 81 mm Item no.: 435200-0000-000 Objective Plan S 1.0x FWD 81 mm (137 mm parfocal length) Item no.: 435200-0000-000 Stand base 450 Stand base 450 Item no.: 435430-9903-000 Stand base 450 WxDxH 449x346x30mm stand base with 3x M8 threaded holes, insert plate 450 and b/w plate D=120mm; compatible with column S 490/800 mm or T column 350mm and with transmitted light unit 450 or 450 mot or VisiLED transmitted light; stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435430-9903-000 Coarse/fine drive with column S 490mm Coarse/fine drive with column S 490mm Item no.: 435400-9901-000 Coarse/fine drive with column S 490mm - Lifting range 340 mm, load capacity 10 kg - For stand bases 300/450 Item no.: 435400-9901-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Focusing attachment d=6 mm without filters Focusing attachment d=6 mm without filters Item no.: 435540-9003-000 Focusing attachment d=6 mm without filters Item no.: 435540-9003-000 Intermediate phototube S, left 100/100 Intermediate phototube S, left 100/100 Item no.: 435108-9901-000 Intermediate phototube S, left 100/100 compatible with co-observer equipment S Item no.: 435108-9901-000 Stage carrier S, 85mm high, d=120mm Stage carrier S, 85mm high, d=120mm Item no.: 435498-0000-000 Stage carrier S, 85mm high, d=120mm for Axio Imager stages, VisiLED transillumination BF (417095-9400) insertable Item no.: 435498-0000-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Achromat S 1.0x FWD 63 mm Objective Achromat S 1.0x FWD 63 mm Item no.: 435217-9901-000 Objective Achromat S 1.0x FWD 63 mm (93 mm parfocal length) Item no.: 435217-9901-000 Stand base 450 Stand base 450 Item no.: 435430-9903-000 Stand base 450 WxDxH 449x346x30mm stand base with 3x M8 threaded holes, insert plate 450 and b/w plate D=120mm; compatible with column S 490/800 mm or T column 350mm and with transmitted light unit 450 or 450 mot or VisiLED transmitted light; stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435430-9903-000 Transmitted-light equipment S Transmitted-light equipment S Item no.: 435501-0000-000 Transmitted-light equipment S ergonomic console with light guide and 2 shiftable and tiltable reflectors for bright field/dark field and for variable oblique light, usable on stand base 450 Item no.: 435501-0000-000 Coarse/fine drive with column S 490mm Coarse/fine drive with column S 490mm Item no.: 435400-9901-000 Coarse/fine drive with column S 490mm - Lifting range 340 mm, load capacity 10 kg - For stand bases 300/450 Item no.: 435400-9901-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Focusing attachment d=6 mm without filters Focusing attachment d=6 mm without filters Item no.: 435540-9003-000 Focusing attachment d=6 mm without filters Item no.: 435540-9003-000 Illuminator carrier S, M8-M8 (D) Illuminator carrier S, M8-M8 (D) Item no.: 435441-0000-000 Illuminator carrier S, M8-M8 (D) Item no.: 435441-0000-000 Spacing rod S Spacing rod S Item no.: 435440-0000-000 Spacing rod S Item no.: 435440-0000-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Plan Apo S 1.0x FWD 60 mm Objective Plan Apo S 1.0x FWD 60 mm Item no.: 435203-0000-000 Objective Plan Apo S 1.0x FWD 60 mm (137 mm parfocal length) Item no.: 435203-0000-000 Base 300 for epi-illumination Base 300 for epi-illumination Item no.: 435433-9401-000 Base 300 for epi-illumination WxDxH 290x353x25mm stand base with 2x M8 threaded holes and b/w plate D=120mm; compatible to T column 350mm and central column S 490mm; VisiLED transmitted light (417095-9400) mountable from below, in addition glass plate D=120mm (435501-0002); stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435433-9401-000 Coarse/Fine Drive, T Column 350 mm Coarse/Fine Drive, T Column 350 mm Item no.: 435433-9002-000 Coarse/Fine Drive, T Column 350 mm - Lifting range 220 mm, load capacity 10 kg - For stand bases 300/450 - Stand base 450 from version -9902, only without nosepiece Item no.: 435433-9002-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Coaxial epi-illumination S Coaxial epi-illumination S Item no.: 435112-0000-000 Coaxial epi-illumination S mountable at mount S with diam. 76 mm support (435402), recommended for objective Plan Apo S 1,0x (435203), further combinations of objectives S >=1,0x and eyepieces possible Item no.: 435112-0000-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Plan S 1.0x FWD 81 mm Objective Plan S 1.0x FWD 81 mm Item no.: 435200-0000-000 Objective Plan S 1.0x FWD 81 mm (137 mm parfocal length) Item no.: 435200-0000-000 Coarse/Fine Drive, T Column 350 mm Coarse/Fine Drive, T Column 350 mm Item no.: 435433-9002-000 Coarse/Fine Drive, T Column 350 mm - Lifting range 220 mm, load capacity 10 kg - For stand bases 300/450 - Stand base 450 from version -9902, only without nosepiece Item no.: 435433-9002-000 Base 300 for epi-illumination Base 300 for epi-illumination Item no.: 435433-9401-000 Base 300 for epi-illumination WxDxH 290x353x25mm stand base with 2x M8 threaded holes and b/w plate D=120mm; compatible to T column 350mm and central column S 490mm; VisiLED transmitted light (417095-9400) mountable from below, in addition glass plate D=120mm (435501-0002); stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435433-9401-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Focusing attachment d=6 mm without filters Focusing attachment d=6 mm without filters Item no.: 435540-9003-000 Focusing attachment d=6 mm without filters Item no.: 435540-9003-000 Illuminator carrier S, M8-M8 (D) Illuminator carrier S, M8-M8 (D) Item no.: 435441-0000-000 Illuminator carrier S, M8-M8 (D) Item no.: 435441-0000-000 Spacing rod S Spacing rod S Item no.: 435440-0000-000 Spacing rod S Item no.: 435440-0000-000 Foot button S (D) Foot button S (D) Item no.: 417095-9020-000 Foot button S (D) - 3 m connection cable, 2.5 mm mono jack - Switches LED light sources between ON/Standby mode - compatible with: Light Sources CL 4500/6000/9000 LED, Controller MC 1500 for VisiLED, Transillumination base 300 Item no.: 417095-9020-000 Intermediate phototube S, left 100/100 Intermediate phototube S, left 100/100 Item no.: 435108-9901-000 Intermediate phototube S, left 100/100 compatible with co-observer equipment S Item no.: 435108-9901-000 Objective slider S /doc (D) Objective slider S /doc (D) Item no.: 435301-0000-000 Objective slider S /doc (D) on SteREO Discovery for vertical imaging through right (axial mode) or left channel with one tandem mono or one stereo objective and for stereo observation with last mentioned one in central position of slider Item no.: 435301-0000-000	Stereomicroscopes Stemi Mount Column 32 with Drive Stemi Mount Column 32 with Drive Item no.: 435424-9301-000 Stemi Mount Column 32 with Drive - Lifting range +/- 25 mm, load capacity max. 5 kg - 2x M8 thread for adaptation of illuminator carriers - Adjustable ease of motion by twisting the knobs Item no.: 435424-9301-000 SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular tube S 35° Binocular tube S 35° Item no.: 435114-0000-000 Binocular tube S 35° for 48-75mm eye distance Item no.: 435114-0000-000 Objective Achromat S 1.25x FWD 50mm Objective Achromat S 1.25x FWD 50mm Item no.: 435220-0000-000 Objective Achromat S 1.25x FWD 50mm (93 mm parfocal length) Item no.: 435220-0000-000 Stand N with Column 32/450 mm Stand N with Column 32/450 mm Item no.: 435424-9400-000 Stand N with Column 32/450 mm - Stand plate 440x370 mm - B/W plastic plate D=84x4 mm - 2 stage clips, safety-ring Item no.: 435424-9400-000 LED double spot for column 32 (D) LED double spot for column 32 (D) Item no.: 417040-9450-000 LED double spot for column 32 (D) - LED Hi-Power double spot 5500K - goose-neck branches, 2x 570 mm - clamping ring for column 32 - 2-channel control unit - table-top supply unit 100-250V and country-specific mains cord Item no.: 417040-9450-000 Intermediate LED tube S, 38HE GFP Intermediate LED tube S, 38HE GFP Item no.: 435123-9381-000 Intermediate LED tube S, 38HE GFP Intermediate tube for SteREO Discovery incl. - 2 LED modules 470 nm, - 2 filter sets 38HE (EX BP 470/40, BS FT 495, EM BP 525/50), - FL antiglare screen with support, - 2 CAN RJ45 sockets and BNC entry for TTL trigger, - power supply CAN RJ45 DC 24V 30W, EU, GB, USA/J, AUS, - 2 CAN RJ45 cables 0.5m and 1m Item no.: 435123-9381-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular phototube S 20° Binocular phototube S 20° Item no.: 435107-0000-000 Binocular phototube S 20° for 51-75mm eye distance and with 100/100 switchover of the right channel to interface 60N Item no.: 435107-0000-000 Objective Plan S 1.0x FWD 81 mm Objective Plan S 1.0x FWD 81 mm Item no.: 435200-0000-000 Objective Plan S 1.0x FWD 81 mm (137 mm parfocal length) Item no.: 435200-0000-000 Base 300 for epi-illumination Base 300 for epi-illumination Item no.: 435433-9401-000 Base 300 for epi-illumination WxDxH 290x353x25mm stand base with 2x M8 threaded holes and b/w plate D=120mm; compatible to T column 350mm and central column S 490mm; VisiLED transmitted light (417095-9400) mountable from below, in addition glass plate D=120mm (435501-0002); stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435433-9401-000 Coarse/fine drive with column S 490mm Coarse/fine drive with column S 490mm Item no.: 435400-9901-000 Coarse/fine drive with column S 490mm - Lifting range 340 mm, load capacity 10 kg - For stand bases 300/450 Item no.: 435400-9901-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Focusing attachment d=6 mm without filters Focusing attachment d=6 mm without filters Item no.: 435540-9003-000 Focusing attachment d=6 mm without filters Item no.: 435540-9003-000 Illuminator carrier S, M8-M8 (D) Illuminator carrier S, M8-M8 (D) Item no.: 435441-0000-000 Illuminator carrier S, M8-M8 (D) Item no.: 435441-0000-000 Spacing rod S Spacing rod S Item no.: 435440-0000-000 Spacing rod S Item no.: 435440-0000-000 Foot button S (D) Foot button S (D) Item no.: 417095-9020-000 Foot button S (D) - 3 m connection cable, 2.5 mm mono jack - Switches LED light sources between ON/Standby mode - compatible with: Light Sources CL 4500/6000/9000 LED, Controller MC 1500 for VisiLED, Transillumination base 300 Item no.: 417095-9020-000 Drawing intermediate tube S, switchable Drawing intermediate tube S, switchable Item no.: 435111-0000-000 Drawing intermediate tube S, switchable for stereoscopic viewing on specimen or for binocular 2D viewing of specimen and drawing Item no.: 435111-0000-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular phototube S 20° Binocular phototube S 20° Item no.: 435107-0000-000 Binocular phototube S 20° for 51-75mm eye distance and with 100/100 switchover of the right channel to interface 60N Item no.: 435107-0000-000 Objective Plan S 1.0x FWD 81 mm Objective Plan S 1.0x FWD 81 mm Item no.: 435200-0000-000 Objective Plan S 1.0x FWD 81 mm (137 mm parfocal length) Item no.: 435200-0000-000 Objective Achromat S 1.25x FWD 50mm Objective Achromat S 1.25x FWD 50mm Item no.: 435220-0000-000 Objective Achromat S 1.25x FWD 50mm (93 mm parfocal length) Item no.: 435220-0000-000 Base 300 for epi-illumination Base 300 for epi-illumination Item no.: 435433-9401-000 Base 300 for epi-illumination WxDxH 290x353x25mm stand base with 2x M8 threaded holes and b/w plate D=120mm; compatible to T column 350mm and central column S 490mm; VisiLED transmitted light (417095-9400) mountable from below, in addition glass plate D=120mm (435501-0002); stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435433-9401-000 Coarse/fine drive with column S 490mm Coarse/fine drive with column S 490mm Item no.: 435400-9901-000 Coarse/fine drive with column S 490mm - Lifting range 340 mm, load capacity 10 kg - For stand bases 300/450 Item no.: 435400-9901-000 Intermediate Y-tube S mot Intermediate Y-tube S mot Item no.: 435103-9030-000 Intermediate Y-tube S mot motorized change (at push of its button or via CAN command from nosepiece 435302 or 435303-9000) between stereoscopic viewing (3D) and binocular vertical viewing (2D) through the right channel of Discovery body; powersupply by CAN distributor or power supply plug CAN RJ45, 000000-0514-784; incl. 2 cables 0.5m and 1m Item no.: 435103-9030-000 High Power LED Ring Illuminator, segmentable (HPRL) (D) High Power LED Ring Illuminator, segmentable (HPRL) (D) Item no.: 417040-9300-000 High Power LED Ring Illuminator, segmentable (HPRL) (D) - 8 High Power LEDs with ring optics, optics mountable for near- or far WD range - Near WD range position: FWD 45-130 mm, Illuminance typ. 220 klx (@ FWD 50 mm) - Far WD range position: FWD 80-300 mm, Illuminance typ. 170 klx (@ FWD 90 mm) - Correlated color temperature ca. 5800 K, lifetime ca. 25.000 h (lumen maintenance 70 %) - Ergonomic operation integrated in housing: no controller box needed - Encoder 1 for setting of segment modes, turning in 45° steps and auto rotation - Encoder 2 for dimming, storage and recall of one illumination setting - Separate On/Off switch - Segment modes: full, half, quarter circle, two opposite quarter circles - Interface to objective: D=66 mm - ESD socket for controlled discharge of electrostatic load - Thread to mount accessories (Polarization Filter Set, Diffusor) - incl. wide-range power supply and 4 adapters EU, US, CH, JP Item no.: 417040-9300-000 Objective nosepiece S, coax 3x2 cod Objective nosepiece S, coax 3x2 cod Item no.: 435303-9000-000 Objective nosepiece S, coax 3x2 cod for stereo and axial mode with 3 objectives on SteREO Discovery, switchable coaxial epi-illumination incl. light guide 1500, 2x 4.5/1000mm, to mount at focus drive with profile column as an alternative of 435402 carrier S or 435116 co-observer equipment Item no.: 435303-9000-000 Power supply plug CAN RJ45 DC 24V 30W (D) Power supply plug CAN RJ45 DC 24V 30W (D) Item no.: 000000-0514-784 Power supply plug CAN RJ45 DC 24V 30W (D) for power supply of any coupled CAN items S; incl. mains input plug EU, GB, USA/J, AUS in cardboard box Item no.: 000000-0514-784 Lambda/4 Cap S, d=66 mm Lambda/4 Cap S, d=66 mm Item no.: 435112-9010-000 Lambda/4 Cap S, d=66 mm for objectives S or Z, D=66 mm, reduces FWD by 7 mm; required to coaxial epi-illuminator S working in axial mode or to Epi-illuminator Z if specular samples are existing Item no.: 435112-9010-000	Stereomicroscopes SteREO Discovery.V8 microscope body SteREO Discovery.V8 microscope body Item no.: 435000-0000-000 SteREO Discovery.V8 microscope body Apochromatic stereo telescope system with 76 mm mount diameter, with 8:1 zoom (1.0x ... 8.0x) manually operable on both sides and switchable click stops at 1x-1.25x-1.6x-2x-2.5x-3.2x-4x-5x-6.3x-8x Item no.: 435000-0000-000 Binocular phototube S 20° Binocular phototube S 20° Item no.: 435107-0000-000 Binocular phototube S 20° for 51-75mm eye distance and with 100/100 switchover of the right channel to interface 60N Item no.: 435107-0000-000 Objective Achromat S 1.0x FWD 63 mm Objective Achromat S 1.0x FWD 63 mm Item no.: 435217-9901-000 Objective Achromat S 1.0x FWD 63 mm (93 mm parfocal length) Item no.: 435217-9901-000 Motor focus 3 with column S 490mm Motor focus 3 with column S 490mm Item no.: 435403-9001-000 Motor focus 3 with column S 490mm - Lifting range 340 mm, load capacity 18 kg - For stand bases 300/450 Item no.: 435403-9001-000 Base 300 for epi-illumination Base 300 for epi-illumination Item no.: 435433-9401-000 Base 300 for epi-illumination WxDxH 290x353x25mm stand base with 2x M8 threaded holes and b/w plate D=120mm; compatible to T column 350mm and central column S 490mm; VisiLED transmitted light (417095-9400) mountable from below, in addition glass plate D=120mm (435501-0002); stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435433-9401-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Cable EMS3/CMD - focus motor 3 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000 Adapter frame S 160x116 epi-illumination (D) Adapter frame S 160x116 epi-illumination (D) Item no.: 435465-9050-000 Adapter frame S 160x116 epi-illumination (D) holding frames and plates 160x116 of Axio Imager are adapted to stages S 150x100, using together with transillumination top 450 mot (435500-9000) is not allowed Item no.: 435465-9050-000 Objective slider S /doc (D) Objective slider S /doc (D) Item no.: 435301-0000-000 Objective slider S /doc (D) on SteREO Discovery for vertical imaging through right (axial mode) or left channel with one tandem mono or one stereo objective and for stereo observation with last mentioned one in central position of slider Item no.: 435301-0000-000 Controller EMS 3 Controller EMS 3 Item no.: 435610-9011-000 Controller EMS 3 includes 150 W wide-range power supply, on/off button, on rear side mains switch and interfaces: - 5x CAN-RJ45 for CL 9000 LED CAN, SteREO or Axio Zoom components, - 1x Power/CAN, cable 435403-9030 to focus motor 3 or 435610-5003 to motor 2 additionally required, - 1x SYCOP 3, 2x KL 2500 LCD, 2x footswitch, - 2x CAN-HD15 for Axio accessories (motor stage, light sources), - 1x USB to work station, 1x RS232 (D-Sub DE9), incl. USB cable 2m and country-specific power cable Item no.: 435610-9011-000 Measuring stage S 150x100 mot; CAN (D) Measuring stage S 150x100 mot; CAN (D) Item no.: 435465-9020-000 Measuring stage S 150x100 mot; CAN (D) - 3-plates mechanical stage (495...530)x(280...390)x(28...95)mm for max. load 3kg, - specimen bearing 340x207mm and 237x157mm support for insert plate S, - stepper motors, encoders and integrated controller, - variable speed up to 17mm/s, - speed up to 100mm/s in automatic find action, - reproducibility +/- 1µm - absolute accuracy +/- 2µm - interface d=120mm, BNC trigger and CAN-HD15, incl. CAN-HD15 cable, - useable with transillumination Item no.: 435465-9020-000 Polarization filter set S, d=66 mm (D) Polarization filter set S, d=66 mm (D) Item no.: 417075-9009-000 Polarization filter set S, d=66 mm (D) consisting of fixed analyzer and rotary, annular polarizer Item no.: 417075-9009-000
Packing and dust protection	Packing and dust protection Dust cover K L300xW190xH400 mm Dust cover K L300xW190xH400 mm Item no.: 459300-0000-000 Dust cover K L300xW190xH400 mm Item no.: 459300-0000-000	Packing and dust protection Dust protection Set L Dust protection Set L Item no.: 434304-0000-000 Dust protection Set L consisting of dust cover (L670xW460xH775 mm), eyepiece cover and protection cap for luminous-field diaphragm Item no.: 434304-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust cover K L300xW190xH500 mm Dust cover K L300xW190xH500 mm Item no.: 459325-0000-000 Dust cover K L300xB190xH500 mm Item no.: 459325-0000-000	Packing and dust protection Dust cover K L300xW190xH400 mm Dust cover K L300xW190xH400 mm Item no.: 459300-0000-000 Dust cover K L300xW190xH400 mm Item no.: 459300-0000-000	Packing and dust protection Dust cover K L300xW190xH500 mm Dust cover K L300xW190xH500 mm Item no.: 459325-0000-000 Dust cover K L300xB190xH500 mm Item no.: 459325-0000-000	Packing and dust protection Dust cover K L300xW190xH400 mm Dust cover K L300xW190xH400 mm Item no.: 459300-0000-000 Dust cover K L300xW190xH400 mm Item no.: 459300-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust cover G L570xW135xH650 mm Dust cover G L570xW135xH650 mm Item no.: 459306-0000-000 Dust cover G L570xW135xH650 mm Item no.: 459306-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000
Lamps and Lamp housings	Lamps and Lamp housings	Lamps and Lamp housings	Lamps and Lamp housings	Lamps and Lamp housings	Lamps and Lamp housings	Lamps and Lamp housings Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Item no.: 435540-9005-000 Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Item no.: 435540-9005-000 Cold light source CL 1500 HAL Cold light source CL 1500 HAL Item no.: 435710-9000-000 Cold light source CL 1500 HAL - up to 600lm light flux at 9mm optical output dia., continuous electronically dimming, - LCD display for brightness in % or color temperature in K or power-on hours, - incl. bulb 15V 150W halogen reflector, lifetime ca. 150h at 80%=450lm, - 10mm clamping nut with sensor for light guide 1500, - filter slider for one filter d=28mm and with free opening, - max. 180W wide-range supply for flicker free light, silent axial fan, - country-specific mains cord Item no.: 435710-9000-000 Conversion filter, d=28 mm (D) Conversion filter, d=28 mm (D) Item no.: 000000-1063-317 Conversion filter, d=28 mm (D) Item no.: 000000-1063-317	Lamps and Lamp housings Conversion filter, d=28 mm (D) Conversion filter, d=28 mm (D) Item no.: 000000-1063-317 Conversion filter, d=28 mm (D) Item no.: 000000-1063-317 Cold light source CL 1500 HAL Cold light source CL 1500 HAL Item no.: 435710-9000-000 Cold light source CL 1500 HAL - up to 600lm light flux at 9mm optical output dia., continuous electronically dimming, - LCD display for brightness in % or color temperature in K or power-on hours, - incl. bulb 15V 150W halogen reflector, lifetime ca. 150h at 80%=450lm, - 10mm clamping nut with sensor for light guide 1500, - filter slider for one filter d=28mm and with free opening, - max. 180W wide-range supply for flicker free light, silent axial fan, - country-specific mains cord Item no.: 435710-9000-000 Clamp S to light guide (D) Clamp S to light guide (D) Item no.: 435442-0000-000 Clamp S to light guide (D) Item no.: 435442-0000-000 Flexible light guide 1500 ECO, 2x 4.5/1000 mm (D) Flexible light guide 1500 ECO, 2x 4.5/1000 mm (D) Item no.: 435540-9002-000 Flexible light guide 1500 ECO, 2x 4.5/1000 mm (D) Item no.: 435540-9002-000	Lamps and Lamp housings	Lamps and Lamp housings	Lamps and Lamp housings	Lamps and Lamp housings Cold-light source CL 6000 LED (D) Cold-light source CL 6000 LED (D) Item no.: 435700-9101-000 Cold-light source CL 6000 LED (D) - up to 600 lm light flux at 9 mm fiber output dia., ca. 6200K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35x26x4 mm and with free opening - max. 70W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S, USB socket - country-specific mains cord - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9101-000	Lamps and Lamp housings Cold-light source CL 6000 LED (D) Cold-light source CL 6000 LED (D) Item no.: 435700-9101-000 Cold-light source CL 6000 LED (D) - up to 600 lm light flux at 9 mm fiber output dia., ca. 6200K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35x26x4 mm and with free opening - max. 70W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S, USB socket - country-specific mains cord - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9101-000 Gooseneck Light Guide 1500-90°, 2x 4.5/620 mm Gooseneck Light Guide 1500-90°, 2x 4.5/620 mm Item no.: 417075-9040-000 Gooseneck Light Guide 1500-90°, 2x 4.5/620 mm Item no.: 417075-9040-000	Lamps and Lamp housings Cold-light source CL 6000 LED (D) Cold-light source CL 6000 LED (D) Item no.: 435700-9101-000 Cold-light source CL 6000 LED (D) - up to 600 lm light flux at 9 mm fiber output dia., ca. 6200K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35x26x4 mm and with free opening - max. 70W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S, USB socket - country-specific mains cord - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9101-000 Flexible light guide 1500 ECO, 2x 4.5/1000 mm (D) Flexible light guide 1500 ECO, 2x 4.5/1000 mm (D) Item no.: 435540-9002-000 Flexible light guide 1500 ECO, 2x 4.5/1000 mm (D) Item no.: 435540-9002-000 Clamp S to light guide (D) Clamp S to light guide (D) Item no.: 435442-0000-000 Clamp S to light guide (D) Item no.: 435442-0000-000	Lamps and Lamp housings Flexible light guide, 2 branches 4.5/1000 mm (D) Flexible light guide, 2 branches 4.5/1000 mm (D) Item no.: 417075-9004-000 Flexible light guide, 2 branches 4.5/1000 mm (D) for KL 1500 / 2500 Item no.: 417075-9004-000 Cold-light source CL 6000 LED (D) Cold-light source CL 6000 LED (D) Item no.: 435700-9101-000 Cold-light source CL 6000 LED (D) - up to 600 lm light flux at 9 mm fiber output dia., ca. 6200K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35x26x4 mm and with free opening - max. 70W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S, USB socket - country-specific mains cord - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9101-000	Lamps and Lamp housings Cold-light source CL 6000 LED (D) Cold-light source CL 6000 LED (D) Item no.: 435700-9101-000 Cold-light source CL 6000 LED (D) - up to 600 lm light flux at 9 mm fiber output dia., ca. 6200K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35x26x4 mm and with free opening - max. 70W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S, USB socket - country-specific mains cord - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9101-000 Clamp S to light guide (D) Clamp S to light guide (D) Item no.: 435442-0000-000 Clamp S to light guide (D) Item no.: 435442-0000-000 Flexible light guide 1500 ECO, 2x 4.5/1000 mm (D) Flexible light guide 1500 ECO, 2x 4.5/1000 mm (D) Item no.: 435540-9002-000 Flexible light guide 1500 ECO, 2x 4.5/1000 mm (D) Item no.: 435540-9002-000 Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Item no.: 435540-9005-000 Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Item no.: 435540-9005-000	Lamps and Lamp housings	Lamps and Lamp housings Cold-light source CL 6000 LED (D) Cold-light source CL 6000 LED (D) Item no.: 435700-9101-000 Cold-light source CL 6000 LED (D) - up to 600 lm light flux at 9 mm fiber output dia., ca. 6200K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35x26x4 mm and with free opening - max. 70W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S, USB socket - country-specific mains cord - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9101-000 Clamp S to light guide (D) Clamp S to light guide (D) Item no.: 435442-0000-000 Clamp S to light guide (D) Item no.: 435442-0000-000 Flexible light guide 1500 ECO, 2x 4.5/1000 mm (D) Flexible light guide 1500 ECO, 2x 4.5/1000 mm (D) Item no.: 435540-9002-000 Flexible light guide 1500 ECO, 2x 4.5/1000 mm (D) Item no.: 435540-9002-000 Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Item no.: 435540-9005-000 Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Item no.: 435540-9005-000	Lamps and Lamp housings Cold-light source CL 6000 LED (D) Cold-light source CL 6000 LED (D) Item no.: 435700-9101-000 Cold-light source CL 6000 LED (D) - up to 600 lm light flux at 9 mm fiber output dia., ca. 6200K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35x26x4 mm and with free opening - max. 70W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S, USB socket - country-specific mains cord - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9101-000	Lamps and Lamp housings Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Item no.: 435540-9005-000 Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Item no.: 435540-9005-000 Cold-light source CL 9000 LED CAN (D) Cold-light source CL 9000 LED CAN (D) Item no.: 435700-9000-000 Cold-light source CL 9000 LED CAN (D) - up to 900 lm light flux at 9 mm fiber output dia., ca. 6500K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35 x 26 x 4 mm and with free aperture - max. 80W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S - BNC socket for trigger input - 2 CAN RJ45 sockets for light control by EMS 3 - CAN RJ45 cable 1 m, country-specific power cable - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9000-000 Halogen Light Filter CL LED (D) Halogen Light Filter CL LED (D) Item no.: 435700-9020-000 Halogen Light Filter CL LED (D) Item no.: 435700-9020-000 Day Light Filter CL LED (D) Day Light Filter CL LED (D) Item no.: 435700-9021-000 Day Light Filter CL LED (D) Item no.: 435700-9021-000
Bulbs	Bulbs	Bulbs	Bulbs	Bulbs	Bulbs	Bulbs Bulb 15V 150W Halogen Reflector (D) Bulb 15V 150W Halogen Reflector (D) Item no.: 417053-0000-000 Bulb 15V 150W Halogen Reflector (D) Item no.: 417053-0000-000	Bulbs Bulb 15V 150W Halogen Reflector (D) Bulb 15V 150W Halogen Reflector (D) Item no.: 417053-0000-000 Bulb 15V 150W Halogen Reflector (D) Item no.: 417053-0000-000	Bulbs	Bulbs	Bulbs	Bulbs	Bulbs	Bulbs	Bulbs	Bulbs	Bulbs	Bulbs	Bulbs	Bulbs
Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories Linkam Stage Adapter Plate (D) Linkam Stage Adapter Plate (D) Item no.: 000000-1510-344 Linkam Stage Adapter Plate (D) for stages LTS120, LTS420, THMS600, TS1500 and Axio Imager, Axio Scope.A1, Axio Scope Vario, Axioskop 2, Axioskop 40 Item no.: 000000-1510-344	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories Mounting frame for one holder TCA (D) Mounting frame for one holder TCA (D) Item no.: 432321-9902-000 Mounting frame for one holder TCA (D) The mounting frame is accessory for technical cleanliness and applicable for: - holder TCA for filter membranes with diameter 47 mm; - holder TCA for filter membranes with diameter 50 mm; - holder TCA for the test standard. Item no.: 432321-9902-000 Holder TCA for filter membrane, DM 47 (D) Holder TCA for filter membrane, DM 47 (D) Item no.: 432320-9902-000 Holder TCA for filter membrane, DM 47 (D) Holder for filter membrane, diameter 47 mm. Accessory for analysis of particulate contamination on filter membranes. Item no.: 432320-9902-000
Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices Camera Adapter 60N-C 2/3" 0.63x; rotating +/- 2° Camera Adapter 60N-C 2/3" 0.63x; rotating +/- 2° Item no.: 426113-9010-000 Camera Adapter 60N-C 2/3" 0.63x; rotating +/- 2° for fine adjustment of camera rotation. - adjustment range: +/- 2° - maximum weight load: 2 kg Item no.: 426113-9010-000
Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components Stage micrometer for reflected light 5 + 100/100y d=0mm Stage micrometer for reflected light 5 + 100/100y d=0mm Item no.: 474027-0000-000 Stage micrometer for reflected light 5 + 100/100y d=0mm - 5 lines with 1mm intervals in y-direction - 100 lines with 1/100mm intervals in y-direction Item no.: 474027-0000-000
Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices Joystick XY; CAN (D) Joystick XY; CAN (D) Item no.: 432903-9011-000 Joystick XY; CAN (D) for mechanical stages mot; CAN, scanning stages; CAN and stage controller XY STEP SMC 2009 - 2 speed ranges selectable - direct cable connection to CAN stage or to stage controller XY STEP SMC 2009 Item no.: 432903-9011-000
Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing Microscopy Workstation Compact HP Z2 G9 (O) Microscopy Workstation Compact HP Z2 G9 (O) Item no.: 410201-9913-000 Microscopy Workstation Compact HP Z2 G9 (O) - HP Z2 Tower G9 Workstation - Chipset: Intel W680 - Memory Expansion Slots: 4 x DDR5-RAM modules, 4400MHz - Memory: max. 128 GB RAM - PCI Express Connectors: 1x PCI Express Generation 5 x16 1x PCIExpress Generation 3 x4 (x16 connector) 1x PCI Express Generation 3 x4 1x PCI Express Generation 3 x1 (x4 connector) - Graphics Card onboard: Intel UHD Graphics 770 2 x Display Port 1.4 (max. 3840 x 2160 Pixel) - SSD: 1 x 512 GB M.2 NVMe - Hard disks: 1 x 8 TB SATA 7200 rpm - Network controller: 1 x GbE LAN interface (RJ 45) - USB: 4 x Type-A SuperSpeed USB 10 Gbps (front) 2 x Type-A SuperSpeed USB 10 Gbps, 1 x Type-A SuperSpeed USB 5 Gbps, 3 x Hi-Speed USB 480 Mbps (rear) - Certifications and Declarations: CE, CSA, UL, FCC, CCC, KCC - Power Supply 700W, wide-ranging with country specific plug - Chassis Dimensions: (H x W x D): 356 x 169 x 385 mm - USB Mouse - Rescue Kit Item no.: 410201-9913-000 Processor Intel Core i7-12700K (HP Z2 G9) (O) Processor Intel Core i7-12700K (HP Z2 G9) (O) Item no.: 410220-0500-000 Processor Intel Core i7-12700K (HP Z2 G9) (O) High performance processor configuration - Intel Core i7-12700K (3.6 GHz 25 MB cache 12 cores (8 performance + 4 efficient) 20 threads) - only for 410201-9913-000 Microscopy Workstation Compact HP Z2 G9 Item no.: 410220-0500-000 System Configuration 2 for HP Z2 G9 (O) System Configuration 2 for HP Z2 G9 (O) Item no.: 000000-2548-754 System Configuration 2 for HP Z2 G9 (O) Installation of Windows 10 IoT Enterprise LTSC 2021 x64 incl. Windows 10 License - with system integration and ZEN software installation for respective system - only for 410201-9913-000 Microscopy Workstation Compact HP Z2 G9 Item no.: 000000-2548-754 Graphics Card NVIDIA RTX A4000 16 GB DP (O) Graphics Card NVIDIA RTX A4000 16 GB DP (O) Item no.: 410331-2800-000 Graphics Card NVIDIA RTX A4000 16 GB DP (O) Professional graphics card for Microscopy Workstation - 16 GB GDDR6 memory - PCI Express 4.0 Interface x16 - Hardware acceleration of DirectX 12.07, OpenGL 4.68 and CUDA - Support for up to four displays - Display outputs: 4 x DisplayPort 1.4a (DP) - DisplayPort support for 4 x 32" Display (3840 x 2160 Pixel) Item no.: 410331-2800-000 Memory 64 GB (2x32) DDR5-4800 (HP Z2 G9) (O) Memory 64 GB (2x32) DDR5-4800 (HP Z2 G9) (O) Item no.: 410201-6401-000 Memory 64 GB (2x32) DDR5-4800 (HP Z2 G9) (O) consisting of 2 x 32 GB modules - DDR5 4800 MHz nonECC unbuffered DIMM - can be extended to max. 128 GB (2 x 410201-6401-000) - only for 410201-9913-000 Microscopy Workstation Compact HP Z2 G9 Item no.: 410201-6401-000 Language Pack English US (O) Language Pack English US (O) Item no.: 410380-0200-000 Language Pack English US (O) - Keyboard with English (US) layout Item no.: 410380-0200-000 Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O) Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O) Item no.: 410350-2408-000 Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O) Visible diagonal: 61 cm, 16:10 Maximum resolution: 1920 x 1200 pixel @ 100 Hz Brightness: 350 nits Contrast: 1500:1 Viewing angle: horizontal 178 degree, vertical 178 degree Video input: DisplayPort1.2, HDMI 1.4 Data connectors: 4 x USB Type-A 5Gbps Power consumption: Maximum 69 W, Typical 36 W, Standby 0.5 W Dimensions incl. stand (H x W x D): 52.14 cm x 53.17 cm x 19.5 cm Weight incl. stand: 4.8 kg Ergonomic features:Tilt: -5°to +20°, Swivel:-45° to +45°, Height adjustable 15 cm, Pivot rotation: -90° to +90° Certification and compliance: CE, CB, GS, TÜV, FCC, TCO Operating voltage: 100-240 V, country-specific power cable Item no.: 410350-2408-000 Microscopy Camera Axiocam 705 pol R2 (D) Microscopy Camera Axiocam 705 pol R2 (D) Item no.: 426560-9071-000 Microscopy Camera Axiocam 705 pol R2 (D) High Performance microscopy camera incl. driver software 64 bit USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and protection glass (wideband coated) Sensor Type: SONY IMX250 MZ Exmor CMOS, SONY Pregius Global Shutter Monochrome with 2x2 pixel specific polarization filter mask (90°, 45°, 135°, 0°) Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel Pixel Size: 3.45 µm x 3.45 µm Chip Size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral Range: With protection glass approx. 350 nm to 1000 nm Full Well Capacity: Approx. 11,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (1x1) 2464 x 2056 1x1 Basic Resolution 816 x 684 3x3 480 x 410 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) Live Frame Rates: (1 ms exposure, default setting, simplified color coding) H x V Frame Rate (fps) 2464 x 2056 25 (1ms exposure time, ROI 1920 x 1080, standard color coding) H x V Frame Rate (fps) 1920 x 1080 5,5 Read Noise Full Well Capacity Dynamic Range (at gain) 2.20 e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000 e 1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600 Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, adjustable over or under-exposure mode, optional measurement on defined target area (spot- meter) Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: <0.5 e/p/s @ 18 °C sensor temperature Cooling: Stabilized temperature to 18 °C (for ambient temperatures from 18 °C to 30 °C) Exposure Time Range: 0.1ms to 60 s Hardware Trigger: Trigger-In for exposure time control, Trigger-Out for exposure time, readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: USB 3.0 (Optional operation withUSB 2.0 at reduced frame rate) Optical Interface: C-Mount Thread Depth for Objectives: max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 5,1 cm (2.3"x 3.2" x 2,0") / 580 g Housing: blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by USB 3.0 und USB 2.0, max. 7 W consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The required application software is available via the ZEISS Download Center. Item no.: 426560-9071-000 Cable Dual USB 3.0/USB 2.0 angled 3 m (D) Cable Dual USB 3.0/USB 2.0 angled 3 m (D) Item no.: 426557-0100-000 Cable Dual USB 3.0/USB 2.0 angled 3 m (D) one side angled for use on Axiocam 5xx/7xx Item no.: 426557-0100-000
Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing ZEN core 3.9 ZEN core 3.9 Item no.: 410135-0011-390 ZEN core 3.9 Software suite for microscope image acquisition, processing, analysis, and data connectivity. - Configurable graphical user interface including workbench concept for customized routine jobs and workflows - Full integration of the ZEISS microscopes (incl. Visioner 1) that can be configured in MicroToolbox, Axiocam cameras and additional components - Interactive and automatic control of the individual motorized microscope components and transfer of information from encoded components into the software - Image acquisition with b/w, rgb, high-resolution and high-sensitivity cameras - HDR, Panorama, and manual Extended Depth of Focus (EDF) acquisitions - Basic image acquisition on electron microscopes - Image processing: standard operations for image optimization (contrast, brightness, gamma, colors, smoothing, sharpening, geometric corrections...) - Interactive/dimensional measurements, including online measurements on the live image - Input Form Designer with automated customer data import - Report creation and modification of Microsoft Word report templates using ZEN Word add-in - Data Archive for managing and maintaining documents: searching, filtering, tagging, viewing, re-opening, structuring, exporting, importing (any file format via drag n drop) - User Management for multi-user environment incl. full integration into the Windows multi-user functionality - Connectivity to ZEN Data Storage image database - Contains ZEN Connect basic functionality, 2D CAD overlay, topography viewer for 2.5D visualization of EDF Images incl. profile line measurement, QUAL Data Export - arivis Cloud connector enables the execution of customized solutions by integrating modules from the arivis Cloud platform Supported operating systems: Windows 10 (64-Bit) Item no.: 410135-0011-390 ZEN Module Technical Cleanliness Analysis ZEN Module Technical Cleanliness Analysis Item no.: 410136-0128-350 ZEN Module Technical Cleanliness Analysis Software module for evaluation of particulate contamination on prepared specimen. The following standards for component cleanliness, oil cleanliness, air cleanliness and cleanliness of medical products are supported: VDA 19.1, ISO 16232, ISO 4406, ISO 4407, NAS 1638, SAE AS 4059,VDA 19.2, VDI 2083 (Sheet 21). The scope of delivery includes preconfigured automated workflows for technical cleanliness analysis and rating of single or multiple specimen for the user roles Supervisor and Operator. Provided job templates (I-V): Workflow Creator Wizard for application guided selection and auto-generation of the following job templates for technical cleanliness analysis: - The workflows I - III are operable with acquired or loaded images. - The correlative workflows IV - V require image acquisition. (I) automated workflow for acquisition of multichannel images with different polarization directions in combination with Axiocam 705 pol mainly for the evaluation of component cleanliness and the rating of technical cleanliness of medical products. The use of latest camera sensor technology with on-chip polarization enables a workflow with one single specimen acquisition instead of double image acquisition of the complete specimen area with different contrast methods. This leads to a significant time saving. (II) automated workflow for acquisition of single channel images mainly for oil analysis. (III) automated workflow for component cleanliness testing with AI-based object classification. Contains trainable, pre-trained models for AI- based analysis of multichannel images with different polarization directions. Training of the delivered machine learning models requires ZEN Toolkit AI . (IV) light microscope workflow for correlative technical cleanliness analysis (component and oil cleanliness) with automated and/or manual particle selection for subsequent SEM/EDS analysis in Free Mode. Requires in addition ZEN Toolkit Connect. (V) light microscope workflow for correlative component cleanliness analysis with AI-based object classification. Contains trainable, pre- trained models for AI-based analysis of multichannel images with different polarization directions. Supports automated and/or manual particle selection for subsequent SEM/EDS analysis in Free Mode. Training of the delivered machine learning models requires ZEN Toolkit AI. Requires in addition ZEN Toolkit Connect. The job templates cover image acquisition, image analysis and image processing, result presentation in interactive views for fast inspection and revision of detected particles, reports with results of characteristic values and standard specific methods per tested specimen. Automated storage of generated results and inspection views in the data archive. Inspection and export of archived data. (VI) post analysis workflow from archived data for calculation and interpretation of results to monitor air particles using particle traps supporting VDA 19.2 The job templates cover image acquisition, image analysis and image processing, result presentation in interactive views for fast inspection and revision of detected particles, reports with results of characteristic values and standard specific methods per tested specimen. Automated storage of generated results and inspection views in the data archive. Inspection and export of archived data. Item no.: 410136-0128-350 ZEN Toolkit Motorized Acquisition ZEN Toolkit Motorized Acquisition Item no.: 410136-0165-390 ZEN Toolkit Motorized Acquisition Acquire images and control motorized components in multi-dimensional experiments. This package allows to acquire tiles, multi-position and z-stack images using motorized components. These can be combined with the included autofocus and direct processing. z-stack and enhanced depth of focus functionality: - definition of the Z-stack in "Start/Stop" and "Center" mode - size of the configurable Z-stack and number of possible Z-planes only limited by the travel range of the system and the minimum increment - "Optimal" button to automatically set the correct increment to satisfy the Nyquist criterion - integrated Z-drive backlash compensation for maximum precision and reproducibility - extraction of the sharp details from individual images at various focus positions and combination into an image with high depth of field Tiles <(>&<)> Positions - automatic scanning of predefined sample areas - acquisition of images according to a position list - support of focus correction maps, stitching and shading correction - compatible with software autofocus Software Autofocus: - determination of the optimal focus position in the sample - the autofocus works with transmitted, reflected and fluorescence light - definition of an autofocus region in the camera image Item no.: 410136-0165-390
