Axio Zoom.V16

Axio Zoom.V16

Axio Zoom.V16

Axio Zoom.V16

Axio Zoom.V16

Axio Zoom.V16

Axio Zoom.V16

ZEISS Axio Zoom.V16 for Materials Research - Product Trailer

ZEISS Axio Zoom.V16 - Product Trailer

Axio Zoom.V16

+10

Variants Axio Zoom.V16 You can customize this list by removing one or more columns. Show all variants (10) Show all Hide all	Zoom microscope Axio Zoom.V16 (11x ... 179x) Item no.: 495010-0001-000	Zoom microscope Axio Zoom.V16 (11x ... 179x) Item no.: 495010-0002-000	Zoom microscope Axio Zoom.V16 (7x ... 112x) Item no.: 495010-0008-000	Fluorescence zoom microscope Axio Zoom.V16 (7x ... 112x) Item no.: 495010-0004-000	Zoom microscope Axio Zoom.V16 (5.6x ... 179x) Item no.: 495010-0007-000	Zoom microscope Axio Zoom.V16 (0.35...11.2 : 1) Item no.: 495010-0003-000	Fluorescence zoom microscope Axio Zoom.V16 (11x ... 412x) Item no.: 495010-0005-000	Axio Zoom.V16 complete system for Correlative Microscopy Item no.: 495010-0016-000	Microscope Axio Zoom.V16 Item no.: 495010-0029-000	Fluorescence zoom microscope Axio Zoom.V16 (11x ... 412x) Item no.: 495010-0019-000

Variants Axio Zoom.V16 You can customize this list by removing one or more columns. Show all variants (10) Show all Hide all	example picture Zoom microscope Axio Zoom.V16 (11x ... 179x) Item no.: 495010-0001-000 Zoom microscope Axio Zoom.V16 (11x ... 179x) Item no.: 495010-0001-000 Zoom microscope Axio Zoom.V16 (11x ... 179x) basic configuration without illumination Zoom microscope Axio Zoom.V16 (11x ... 179x) basic configura...	example picture Zoom microscope Axio Zoom.V16 (11x ... 179x) Item no.: 495010-0002-000 Zoom microscope Axio Zoom.V16 (11x ... 179x) Item no.: 495010-0002-000 Zoom microscope Axio Zoom.V16 (11x ... 179x) with integrated transillumination-contrast illumination Zoom microscope Axio Zoom.V16 (11x ... 179x) with integrated...	example picture Zoom microscope Axio Zoom.V16 (7x ... 112x) Item no.: 495010-0008-000 Zoom microscope Axio Zoom.V16 (7x ... 112x) Item no.: 495010-0008-000 Zoom microscope Axio Zoom.V16 (7x ... 112x) for polarized epi-illumination with VisiLED ring light Zoom microscope Axio Zoom.V16 (7x ... 112x) for polarized ep...	example picture Fluorescence zoom microscope Axio Zoom.V16 (7x ... 112x) Item no.: 495010-0004-000 Fluorescence zoom microscope Axio Zoom.V16 (7x ... 112x) Item no.: 495010-0004-000 Fluorescence zoom microscope Axio Zoom.V16 (7x ... 112x) for bright-fluorescence screening Fluorescence zoom microscope Axio Zoom.V16 (7x ... 112x) for...	example picture Zoom microscope Axio Zoom.V16 (5.6x ... 179x) Item no.: 495010-0007-000 Zoom microscope Axio Zoom.V16 (5.6x ... 179x) Item no.: 495010-0007-000 Zoom microscope Axio Zoom.V16 (5.6x ... 179x) for coaxial incident light Zoom microscope Axio Zoom.V16 (5.6x ... 179x) for coaxial in...	example picture Zoom microscope Axio Zoom.V16 (0.35...11.2 : 1) Item no.: 495010-0003-000 Zoom microscope Axio Zoom.V16 (0.35...11.2 : 1) Item no.: 495010-0003-000 Zoom microscope Axio Zoom.V16 (0.35...11.2 : 1) incident-light photo configuration with measuring stage S mot Zoom microscope Axio Zoom.V16 (0.35...11.2 : 1) incident-lig...	example picture Fluorescence zoom microscope Axio Zoom.V16 (11x ... 412x) Item no.: 495010-0005-000 Fluorescence zoom microscope Axio Zoom.V16 (11x ... 412x) Item no.: 495010-0005-000 Fluorescence zoom microscope Axio Zoom.V16 (11x ... 412x) for detail imaging Fluorescence zoom microscope Axio Zoom.V16 (11x ... 412x) fo...	example picture Axio Zoom.V16 complete system for Correlative Microscopy Item no.: 495010-0016-000 Axio Zoom.V16 complete system for Correlative Microscopy Item no.: 495010-0016-000 Axio Zoom.V16 complete system for Correlative Microscopy in materials analysis with coaxial incident-light Axio Zoom.V16 complete system for Correlative Microscopy in ...	example picture Microscope Axio Zoom.V16 Item no.: 495010-0029-000 Microscope Axio Zoom.V16 Item no.: 495010-0029-000 Microscope Axio Zoom.V16 complete system for Technical Cleanliness Analysis Microscope Axio Zoom.V16 complete system for Technical Clean...	example picture Fluorescence zoom microscope Axio Zoom.V16 (11x ... 412x) Item no.: 495010-0019-000 Fluorescence zoom microscope Axio Zoom.V16 (11x ... 412x) Item no.: 495010-0019-000 Fluorescence zoom microscope Axio Zoom.V16 (11x ... 412x) for detail imaging with Apotome 3 ZEN Fluorescence zoom microscope Axio Zoom.V16 (11x ... 412x) fo...
Eyepieces	Eyepieces Eyepiece PL 16x/16 Br. foc. Eyepiece PL 16x/16 Br. foc. Item no.: 444054-9000-000 Eyepiece PL 16x/16 Br. foc. Item no.: 444054-9000-000	Eyepieces Eyepiece PL 16x/16 Br. foc. Eyepiece PL 16x/16 Br. foc. Item no.: 444054-9000-000 Eyepiece PL 16x/16 Br. foc. Item no.: 444054-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 16x/16 Br. foc. Eyepiece PL 16x/16 Br. foc. Item no.: 444054-9000-000 Eyepiece PL 16x/16 Br. foc. Item no.: 444054-9000-000	Eyepieces	Eyepieces Eyepiece PL 16x/16 Br. foc. Eyepiece PL 16x/16 Br. foc. Item no.: 444054-9000-000 Eyepiece PL 16x/16 Br. foc. Item no.: 444054-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 16x/16 Br. foc. Eyepiece PL 16x/16 Br. foc. Item no.: 444054-9000-000 Eyepiece PL 16x/16 Br. foc. Item no.: 444054-9000-000
Eyepiece accessories	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000
Stereomicroscopes	Stereomicroscopes Microscope body Axio Zoom.V16 Microscope body Axio Zoom.V16 Item no.: 435080-9031-000 Microscope body Axio Zoom.V16 - apochromatic motor zoom 16:1 (0.7x ... 11.2x), with more than twice the aperture of stereo zoom, - motorized aperture diaphragm with scroll wheel and 3 variable control modes: 1. "Brightness" for maximum of image brightness with 10x eyepieces or maximum of resolution with 16x or 25x eyepieces, 2. "Camera" for constant brightness and resolution along zoom range fitted to high-resolution image sensor, 3. "Eyepiece" for large depth of field in lower zoom range and resolution fitted to 10x eyepieces; - objective support M55x1.5, removeable for nosepiece assembling, - position sensors for objective nosepiece Z, - 76mm support dia. Fitting 435402 carrier S or 435380-9000 nosepiece Z, - additionally required HIP for supply and operation (in Brightness mode only) or EMS 3 + SYCOP 3 for mode control and USB interface Item no.: 435080-9031-000 Human Interface Panel HIP Human Interface Panel HIP Item no.: 435601-0000-000 Human Interface Panel HIP with plug-in power unit CAN RJ45 DC 24V 30W, mains input plug EU, GB, USA/J, AUS Item no.: 435601-0000-000 Binocular phototube Z 15° Binocular phototube Z 15° Item no.: 435180-9010-000 Binocular phototube Z 15° manual switching 100 vis : 100 doc Item no.: 435180-9010-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Item no.: 435281-9100-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm with resolution of 100 ... 740 LP/mm or smallest detail 5.0 ... 0.7 µm; 133mm parfocal length; M62x0.75 thread at front Item no.: 435281-9100-000 Spacer tube Z 40mm Spacer tube Z 40mm Item no.: 435180-9040-000 Spacer tube Z 40mm to increase the viewing height when no illuminator Z is used Item no.: 435180-9040-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Base 300 for epi-illumination Base 300 for epi-illumination Item no.: 435433-9401-000 Base 300 for epi-illumination WxDxH 290x353x25mm stand base with 2x M8 threaded holes and b/w plate D=120mm; compatible to T column 350mm and central column S 490mm; VisiLED transmitted light (417095-9400) mountable from below, in addition glass plate D=120mm (435501-0002); stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435433-9401-000	Stereomicroscopes Microscope body Axio Zoom.V16 Microscope body Axio Zoom.V16 Item no.: 435080-9031-000 Microscope body Axio Zoom.V16 - apochromatic motor zoom 16:1 (0.7x ... 11.2x), with more than twice the aperture of stereo zoom, - motorized aperture diaphragm with scroll wheel and 3 variable control modes: 1. "Brightness" for maximum of image brightness with 10x eyepieces or maximum of resolution with 16x or 25x eyepieces, 2. "Camera" for constant brightness and resolution along zoom range fitted to high-resolution image sensor, 3. "Eyepiece" for large depth of field in lower zoom range and resolution fitted to 10x eyepieces; - objective support M55x1.5, removeable for nosepiece assembling, - position sensors for objective nosepiece Z, - 76mm support dia. Fitting 435402 carrier S or 435380-9000 nosepiece Z, - additionally required HIP for supply and operation (in Brightness mode only) or EMS 3 + SYCOP 3 for mode control and USB interface Item no.: 435080-9031-000 Human Interface Panel HIP Human Interface Panel HIP Item no.: 435601-0000-000 Human Interface Panel HIP with plug-in power unit CAN RJ45 DC 24V 30W, mains input plug EU, GB, USA/J, AUS Item no.: 435601-0000-000 Binocular phototube Z 15° Binocular phototube Z 15° Item no.: 435180-9010-000 Binocular phototube Z 15° manual switching 100 vis : 100 doc Item no.: 435180-9010-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Item no.: 435281-9100-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm with resolution of 100 ... 740 LP/mm or smallest detail 5.0 ... 0.7 µm; 133mm parfocal length; M62x0.75 thread at front Item no.: 435281-9100-000 Spacer tube Z 40mm Spacer tube Z 40mm Item no.: 435180-9040-000 Spacer tube Z 40mm to increase the viewing height when no illuminator Z is used Item no.: 435180-9040-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Coarse/Fine Drive, T Column 350 mm Coarse/Fine Drive, T Column 350 mm Item no.: 435433-9002-000 Coarse/Fine Drive, T Column 350 mm - Lifting range 220 mm, load capacity 10 kg - For stand bases 300/450 - Stand base 450 from version -9902, only without nosepiece Item no.: 435433-9002-000 Transillumination base 300 Transillumination base 300 Item no.: 435533-9500-000 Transillumination base 300 WxDxH 322x373x42mm stand base with 2x M8 threaded holes, 90 white-light LED transmitted light, brightness knob, socket for footswitch S, straightly movable diaphragm and 3 position turret for: 1. Bright Field plus and oblique-light contrast by shiftable diaphragm 2. homogenous bright field with 67mm dia. 3. all-side dark field, also unilateral by movable diaphragm; incl. glass plate D=120mm, DF insert diaphragm 28/84, table-top supply 24V 60W and country-specific mains cord; compatible to T column 350mm and central profile column 490mm; stage d=84mm or d=120mm needs additionally adapter 84+120 (435533-9510) except gliding stage S 110x110 Item no.: 435533-9500-000	Stereomicroscopes Microscope body Axio Zoom.V16 Microscope body Axio Zoom.V16 Item no.: 435080-9031-000 Microscope body Axio Zoom.V16 - apochromatic motor zoom 16:1 (0.7x ... 11.2x), with more than twice the aperture of stereo zoom, - motorized aperture diaphragm with scroll wheel and 3 variable control modes: 1. "Brightness" for maximum of image brightness with 10x eyepieces or maximum of resolution with 16x or 25x eyepieces, 2. "Camera" for constant brightness and resolution along zoom range fitted to high-resolution image sensor, 3. "Eyepiece" for large depth of field in lower zoom range and resolution fitted to 10x eyepieces; - objective support M55x1.5, removeable for nosepiece assembling, - position sensors for objective nosepiece Z, - 76mm support dia. Fitting 435402 carrier S or 435380-9000 nosepiece Z, - additionally required HIP for supply and operation (in Brightness mode only) or EMS 3 + SYCOP 3 for mode control and USB interface Item no.: 435080-9031-000 Human Interface Panel HIP Human Interface Panel HIP Item no.: 435601-0000-000 Human Interface Panel HIP with plug-in power unit CAN RJ45 DC 24V 30W, mains input plug EU, GB, USA/J, AUS Item no.: 435601-0000-000 Binocular phototube Z 15° Binocular phototube Z 15° Item no.: 435180-9010-000 Binocular phototube Z 15° manual switching 100 vis : 100 doc Item no.: 435180-9010-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Item no.: 435281-9100-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm with resolution of 100 ... 740 LP/mm or smallest detail 5.0 ... 0.7 µm; 133mm parfocal length; M62x0.75 thread at front Item no.: 435281-9100-000 Spacer tube Z 40mm Spacer tube Z 40mm Item no.: 435180-9040-000 Spacer tube Z 40mm to increase the viewing height when no illuminator Z is used Item no.: 435180-9040-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Coarse/Fine Drive, T Column 350 mm Coarse/Fine Drive, T Column 350 mm Item no.: 435433-9002-000 Coarse/Fine Drive, T Column 350 mm - Lifting range 220 mm, load capacity 10 kg - For stand bases 300/450 - Stand base 450 from version -9902, only without nosepiece Item no.: 435433-9002-000 Base 300 for epi-illumination Base 300 for epi-illumination Item no.: 435433-9401-000 Base 300 for epi-illumination WxDxH 290x353x25mm stand base with 2x M8 threaded holes and b/w plate D=120mm; compatible to T column 350mm and central column S 490mm; VisiLED transmitted light (417095-9400) mountable from below, in addition glass plate D=120mm (435501-0002); stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435433-9401-000 VisiLED ring light S 80-55 BF, d=66 mm (D) VisiLED ring light S 80-55 BF, d=66 mm (D) Item no.: 417095-9255-000 VisiLED ring light S 80-55 BF, d=66 mm (D) for bright field, working distance 45...95 mm Item no.: 417095-9255-000 Power supply 100...240V, 50...60Hz (D) Power supply 100...240V, 50...60Hz (D) Item no.: 417095-9050-000 Power supply 100...240V, 50...60Hz (D) for VisiLED Item no.: 417095-9050-000 Polarization filter set VisiLED/EasyLED (D) Polarization filter set VisiLED/EasyLED (D) Item no.: 417095-9550-000 Polarization filter set VisiLED/EasyLED (D) fits 417095-9255 or 417096-9200/-9300 Item no.: 417095-9550-000	Stereomicroscopes Microscope body Axio Zoom.V16 Microscope body Axio Zoom.V16 Item no.: 435080-9031-000 Microscope body Axio Zoom.V16 - apochromatic motor zoom 16:1 (0.7x ... 11.2x), with more than twice the aperture of stereo zoom, - motorized aperture diaphragm with scroll wheel and 3 variable control modes: 1. "Brightness" for maximum of image brightness with 10x eyepieces or maximum of resolution with 16x or 25x eyepieces, 2. "Camera" for constant brightness and resolution along zoom range fitted to high-resolution image sensor, 3. "Eyepiece" for large depth of field in lower zoom range and resolution fitted to 10x eyepieces; - objective support M55x1.5, removeable for nosepiece assembling, - position sensors for objective nosepiece Z, - 76mm support dia. Fitting 435402 carrier S or 435380-9000 nosepiece Z, - additionally required HIP for supply and operation (in Brightness mode only) or EMS 3 + SYCOP 3 for mode control and USB interface Item no.: 435080-9031-000 Human Interface Panel HIP Human Interface Panel HIP Item no.: 435601-0000-000 Human Interface Panel HIP with plug-in power unit CAN RJ45 DC 24V 30W, mains input plug EU, GB, USA/J, AUS Item no.: 435601-0000-000 Binocular phototube Z 15° Binocular phototube Z 15° Item no.: 435180-9010-000 Binocular phototube Z 15° manual switching 100 vis : 100 doc Item no.: 435180-9010-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Item no.: 435281-9100-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm with resolution of 100 ... 740 LP/mm or smallest detail 5.0 ... 0.7 µm; 133mm parfocal length; M62x0.75 thread at front Item no.: 435281-9100-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Coarse/fine drive with column S 490mm Coarse/fine drive with column S 490mm Item no.: 435400-9901-000 Coarse/fine drive with column S 490mm - Lifting range 340 mm, load capacity 10 kg - For stand bases 300/450 Item no.: 435400-9901-000 Transillumination base 300 Transillumination base 300 Item no.: 435533-9500-000 Transillumination base 300 WxDxH 322x373x42mm stand base with 2x M8 threaded holes, 90 white-light LED transmitted light, brightness knob, socket for footswitch S, straightly movable diaphragm and 3 position turret for: 1. Bright Field plus and oblique-light contrast by shiftable diaphragm 2. homogenous bright field with 67mm dia. 3. all-side dark field, also unilateral by movable diaphragm; incl. glass plate D=120mm, DF insert diaphragm 28/84, table-top supply 24V 60W and country-specific mains cord; compatible to T column 350mm and central profile column 490mm; stage d=84mm or d=120mm needs additionally adapter 84+120 (435533-9510) except gliding stage S 110x110 Item no.: 435533-9500-000 High Power LED Ring Illuminator, segmentable (HPRL) (D) High Power LED Ring Illuminator, segmentable (HPRL) (D) Item no.: 417040-9300-000 High Power LED Ring Illuminator, segmentable (HPRL) (D) - 8 High Power LEDs with ring optics, optics mountable for near- or far WD range - Near WD range position: FWD 45-130 mm, Illuminance typ. 220 klx (@ FWD 50 mm) - Far WD range position: FWD 80-300 mm, Illuminance typ. 170 klx (@ FWD 90 mm) - Correlated color temperature ca. 5800 K, lifetime ca. 25.000 h (lumen maintenance 70 %) - Ergonomic operation integrated in housing: no controller box needed - Encoder 1 for setting of segment modes, turning in 45° steps and auto rotation - Encoder 2 for dimming, storage and recall of one illumination setting - Separate On/Off switch - Segment modes: full, half, quarter circle, two opposite quarter circles - Interface to objective: D=66 mm - ESD socket for controlled discharge of electrostatic load - Thread to mount accessories (Polarization Filter Set, Diffusor) - incl. wide-range power supply and 4 adapters EU, US, CH, JP Item no.: 417040-9300-000 Foot button S (D) Foot button S (D) Item no.: 417095-9020-000 Foot button S (D) - 3 m connection cable, 2.5 mm mono jack - Switches LED light sources between ON/Standby mode - compatible with: Light Sources CL 4500/6000/9000 LED, Controller MC 1500 for VisiLED, Transillumination base 300 Item no.: 417095-9020-000 Reflector module Z FL P&C Reflector module Z FL P&C Item no.: 435180-9260-000 Reflector module Z FL P&C to Fluar Illuminator Z mot on Axio Zoom.V16 Item no.: 435180-9260-000 Fluar Illuminator Z mot Fluar Illuminator Z mot Item no.: 435180-9061-000 Fluar Illuminator Z mot Fluorescence intermediate tube for Axio Zoom.V16 - Reflector turret 4x mot ACR for reflector modules Z FL P&C, - Slider support for field diaphragm mot/man or ApoTome.2 - Support for light guide with liquid core of 3mm dia. from HXP 120V/200C, - Shutter mot synchronizable with HXP 120V/200C shutter, - Left-side button panel for choice+display of filter set and shutter position, - Anti-glare shield with carrier and receptacle for 6 reflector modules Z FL P&C, - Socket CAN RJ45 and 2 cables CAN RJ45 0.5m and 1.0m, - Plug-in power unit CAN RJ45 DC 24V 30W, mains input plug EU, GB, USA/J, AUS Item no.: 435180-9061-000	Stereomicroscopes Microscope body Axio Zoom.V16 Microscope body Axio Zoom.V16 Item no.: 435080-9031-000 Microscope body Axio Zoom.V16 - apochromatic motor zoom 16:1 (0.7x ... 11.2x), with more than twice the aperture of stereo zoom, - motorized aperture diaphragm with scroll wheel and 3 variable control modes: 1. "Brightness" for maximum of image brightness with 10x eyepieces or maximum of resolution with 16x or 25x eyepieces, 2. "Camera" for constant brightness and resolution along zoom range fitted to high-resolution image sensor, 3. "Eyepiece" for large depth of field in lower zoom range and resolution fitted to 10x eyepieces; - objective support M55x1.5, removeable for nosepiece assembling, - position sensors for objective nosepiece Z, - 76mm support dia. Fitting 435402 carrier S or 435380-9000 nosepiece Z, - additionally required HIP for supply and operation (in Brightness mode only) or EMS 3 + SYCOP 3 for mode control and USB interface Item no.: 435080-9031-000 System Control Panel SYCOP 3 System Control Panel SYCOP 3 Item no.: 435611-9010-000 System Control Panel SYCOP 3 5.7" color touch screen with LED back illumination, joystick, 2 scroll wheels and 6 freely configurable keys; incl. 2 m cable to EMS 3 Item no.: 435611-9010-000 Controller EMS 3 Controller EMS 3 Item no.: 435610-9011-000 Controller EMS 3 includes 150 W wide-range power supply, on/off button, on rear side mains switch and interfaces: - 5x CAN-RJ45 for CL 9000 LED CAN, SteREO or Axio Zoom components, - 1x Power/CAN, cable 435403-9030 to focus motor 3 or 435610-5003 to motor 2 additionally required, - 1x SYCOP 3, 2x KL 2500 LCD, 2x footswitch, - 2x CAN-HD15 for Axio accessories (motor stage, light sources), - 1x USB to work station, 1x RS232 (D-Sub DE9), incl. USB cable 2m and country-specific power cable Item no.: 435610-9011-000 Binocular phototube Z 15° Binocular phototube Z 15° Item no.: 435180-9010-000 Binocular phototube Z 15° manual switching 100 vis : 100 doc Item no.: 435180-9010-000 Objective PlanApo Z 0.5x/0.125 FWD 114mm Objective PlanApo Z 0.5x/0.125 FWD 114mm Item no.: 435280-9050-000 Objective PlanApo Z 0.5x/0.125 FWD 114mm with resolution of 50 ... 370 LP/mm or smallest detail 10 ... 1.4 µm; 164mm parfocal length; M62x0.75 thread at front Item no.: 435280-9050-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Item no.: 435281-9100-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm with resolution of 100 ... 740 LP/mm or smallest detail 5.0 ... 0.7 µm; 133mm parfocal length; M62x0.75 thread at front Item no.: 435281-9100-000 Motor focus 3 with column S 490mm Motor focus 3 with column S 490mm Item no.: 435403-9001-000 Motor focus 3 with column S 490mm - Lifting range 340 mm, load capacity 18 kg - For stand bases 300/450 Item no.: 435403-9001-000 Stand base 450 Stand base 450 Item no.: 435430-9903-000 Stand base 450 WxDxH 449x346x30mm stand base with 3x M8 threaded holes, insert plate 450 and b/w plate D=120mm; compatible with column S 490/800 mm or T column 350mm and with transmitted light unit 450 or 450 mot or VisiLED transmitted light; stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435430-9903-000 Epi-illuminator Z Epi-illuminator Z Item no.: 435180-9050-000 Epi-illuminator Z switchable epi-illumination intermediate tube suitable with objective Z 0.5x or 1.0x; incl. light guide 1500 and EpiRel contrast slider for relief images of specimen profiles; specular samples require lambda/4 cap S (435112-9010) additionally Item no.: 435180-9050-000 Foot button S (D) Foot button S (D) Item no.: 417095-9020-000 Foot button S (D) - 3 m connection cable, 2.5 mm mono jack - Switches LED light sources between ON/Standby mode - compatible with: Light Sources CL 4500/6000/9000 LED, Controller MC 1500 for VisiLED, Transillumination base 300 Item no.: 417095-9020-000 Objective nosepiece Z, 2x cod Objective nosepiece Z, 2x cod Item no.: 435380-9000-000 Objective nosepiece Z, 2x cod carrier of Axio Zoom.V16 body (containing position sensors for objective nosepiece) and support of 2 objectives and optionally 2 ring illuminators (435506), to mount at focus drive as alternative of carrier S, d=76 mm (435402) Item no.: 435380-9000-000 Cable EMS3/CMD - focus motor 3 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000 Mechanical stage S 150x100 mot; CAN (D) Mechanical stage S 150x100 mot; CAN (D) Item no.: 435465-9000-000 Mechanical stage S 150x100 mot; CAN (D) - 3-plates mechanical stage (495...530)x(280...390)x(28...95)mm for max. load 3kg, - specimen bearing 340x207mm and 237x157mm support for insert plate S, - stepper motors and integrated controller, - variable speed up to 17mm/s, - speed up to 100mm/s in automatic find action, - reproducibility +/- 2µm - absolute accuracy +/- 30µm - interface d=120mm and CAN-HD15, incl. CAN-HD15 cable, - useable with transillumination Item no.: 435465-9000-000 Insert plate S, metal 237x157x3mm (D) Insert plate S, metal 237x157x3mm (D) Item no.: 435465-9052-000 Insert plate S, metal 237x157x3mm (D) needed to mechanical stages S 150x100 Item no.: 435465-9052-000 Lambda/4 Cap S, d=66 mm Lambda/4 Cap S, d=66 mm Item no.: 435112-9010-000 Lambda/4 Cap S, d=66 mm for objectives S or Z, D=66 mm, reduces FWD by 7 mm; required to coaxial epi-illuminator S working in axial mode or to Epi-illuminator Z if specular samples are existing Item no.: 435112-9010-000	Stereomicroscopes Microscope body Axio Zoom.V16 Microscope body Axio Zoom.V16 Item no.: 435080-9031-000 Microscope body Axio Zoom.V16 - apochromatic motor zoom 16:1 (0.7x ... 11.2x), with more than twice the aperture of stereo zoom, - motorized aperture diaphragm with scroll wheel and 3 variable control modes: 1. "Brightness" for maximum of image brightness with 10x eyepieces or maximum of resolution with 16x or 25x eyepieces, 2. "Camera" for constant brightness and resolution along zoom range fitted to high-resolution image sensor, 3. "Eyepiece" for large depth of field in lower zoom range and resolution fitted to 10x eyepieces; - objective support M55x1.5, removeable for nosepiece assembling, - position sensors for objective nosepiece Z, - 76mm support dia. Fitting 435402 carrier S or 435380-9000 nosepiece Z, - additionally required HIP for supply and operation (in Brightness mode only) or EMS 3 + SYCOP 3 for mode control and USB interface Item no.: 435080-9031-000 System Control Panel SYCOP 3 System Control Panel SYCOP 3 Item no.: 435611-9010-000 System Control Panel SYCOP 3 5.7" color touch screen with LED back illumination, joystick, 2 scroll wheels and 6 freely configurable keys; incl. 2 m cable to EMS 3 Item no.: 435611-9010-000 Controller EMS 3 Controller EMS 3 Item no.: 435610-9011-000 Controller EMS 3 includes 150 W wide-range power supply, on/off button, on rear side mains switch and interfaces: - 5x CAN-RJ45 for CL 9000 LED CAN, SteREO or Axio Zoom components, - 1x Power/CAN, cable 435403-9030 to focus motor 3 or 435610-5003 to motor 2 additionally required, - 1x SYCOP 3, 2x KL 2500 LCD, 2x footswitch, - 2x CAN-HD15 for Axio accessories (motor stage, light sources), - 1x USB to work station, 1x RS232 (D-Sub DE9), incl. USB cable 2m and country-specific power cable Item no.: 435610-9011-000 Objective PlanApo Z 0.5x/0.125 FWD 114mm Objective PlanApo Z 0.5x/0.125 FWD 114mm Item no.: 435280-9050-000 Objective PlanApo Z 0.5x/0.125 FWD 114mm with resolution of 50 ... 370 LP/mm or smallest detail 10 ... 1.4 µm; 164mm parfocal length; M62x0.75 thread at front Item no.: 435280-9050-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Item no.: 435281-9100-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm with resolution of 100 ... 740 LP/mm or smallest detail 5.0 ... 0.7 µm; 133mm parfocal length; M62x0.75 thread at front Item no.: 435281-9100-000 Motor focus 3 with column S 490mm Motor focus 3 with column S 490mm Item no.: 435403-9001-000 Motor focus 3 with column S 490mm - Lifting range 340 mm, load capacity 18 kg - For stand bases 300/450 Item no.: 435403-9001-000 Stand base 450 Stand base 450 Item no.: 435430-9903-000 Stand base 450 WxDxH 449x346x30mm stand base with 3x M8 threaded holes, insert plate 450 and b/w plate D=120mm; compatible with column S 490/800 mm or T column 350mm and with transmitted light unit 450 or 450 mot or VisiLED transmitted light; stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435430-9903-000 Spacing ring M62, d=66x16 mm Spacing ring M62, d=66x16 mm Item no.: 435307-0000-000 Spacing ring M62, d=66x16 mm required with 435506 ring illuminator and PlanApo Z 0.5x or Achromat S 0.3x/0.5x/0.63x/1.0x in -9901 version with M62 Item no.: 435307-0000-000 Objective nosepiece Z, 2x cod Objective nosepiece Z, 2x cod Item no.: 435380-9000-000 Objective nosepiece Z, 2x cod carrier of Axio Zoom.V16 body (containing position sensors for objective nosepiece) and support of 2 objectives and optionally 2 ring illuminators (435506), to mount at focus drive as alternative of carrier S, d=76 mm (435402) Item no.: 435380-9000-000 Cable EMS3/CMD - focus motor 3 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000 Measuring stage S 150x100 mot; CAN (D) Measuring stage S 150x100 mot; CAN (D) Item no.: 435465-9020-000 Measuring stage S 150x100 mot; CAN (D) - 3-plates mechanical stage (495...530)x(280...390)x(28...95)mm for max. load 3kg, - specimen bearing 340x207mm and 237x157mm support for insert plate S, - stepper motors, encoders and integrated controller, - variable speed up to 17mm/s, - speed up to 100mm/s in automatic find action, - reproducibility +/- 1µm - absolute accuracy +/- 2µm - interface d=120mm, BNC trigger and CAN-HD15, incl. CAN-HD15 cable, - useable with transillumination Item no.: 435465-9020-000 Insert plate S, metal 237x157x3mm (D) Insert plate S, metal 237x157x3mm (D) Item no.: 435465-9052-000 Insert plate S, metal 237x157x3mm (D) needed to mechanical stages S 150x100 Item no.: 435465-9052-000 Phototube Z 100:0 Phototube Z 100:0 Item no.: 435180-9020-000 Phototube Z 100:0 for a microscope Axio Zoom.V16 without eyepieces Item no.: 435180-9020-000	Stereomicroscopes Microscope body Axio Zoom.V16 Microscope body Axio Zoom.V16 Item no.: 435080-9031-000 Microscope body Axio Zoom.V16 - apochromatic motor zoom 16:1 (0.7x ... 11.2x), with more than twice the aperture of stereo zoom, - motorized aperture diaphragm with scroll wheel and 3 variable control modes: 1. "Brightness" for maximum of image brightness with 10x eyepieces or maximum of resolution with 16x or 25x eyepieces, 2. "Camera" for constant brightness and resolution along zoom range fitted to high-resolution image sensor, 3. "Eyepiece" for large depth of field in lower zoom range and resolution fitted to 10x eyepieces; - objective support M55x1.5, removeable for nosepiece assembling, - position sensors for objective nosepiece Z, - 76mm support dia. Fitting 435402 carrier S or 435380-9000 nosepiece Z, - additionally required HIP for supply and operation (in Brightness mode only) or EMS 3 + SYCOP 3 for mode control and USB interface Item no.: 435080-9031-000 System Control Panel SYCOP 3 System Control Panel SYCOP 3 Item no.: 435611-9010-000 System Control Panel SYCOP 3 5.7" color touch screen with LED back illumination, joystick, 2 scroll wheels and 6 freely configurable keys; incl. 2 m cable to EMS 3 Item no.: 435611-9010-000 Controller EMS 3 Controller EMS 3 Item no.: 435610-9011-000 Controller EMS 3 includes 150 W wide-range power supply, on/off button, on rear side mains switch and interfaces: - 5x CAN-RJ45 for CL 9000 LED CAN, SteREO or Axio Zoom components, - 1x Power/CAN, cable 435403-9030 to focus motor 3 or 435610-5003 to motor 2 additionally required, - 1x SYCOP 3, 2x KL 2500 LCD, 2x footswitch, - 2x CAN-HD15 for Axio accessories (motor stage, light sources), - 1x USB to work station, 1x RS232 (D-Sub DE9), incl. USB cable 2m and country-specific power cable Item no.: 435610-9011-000 Binocular ergo phototube Z 0-30° mot Binocular ergo phototube Z 0-30° mot Item no.: 435180-9001-000 Binocular ergo phototube Z 0-30° mot - motorized switching 100 vis : 100 doc by push button or CAN command; - manually switchable half-stops after Abbe for stereoscopic effect; - low-positioned binocular tube shifted to observer; - optimized for transillumination top 450 mot; - recommended for high configurations incl. Fluar-illuminator Z or epi-illuminator Z or due to high samples; - incl. cable CAN RJ45 0.5m and 1.0m Item no.: 435180-9001-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Item no.: 435281-9100-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm with resolution of 100 ... 740 LP/mm or smallest detail 5.0 ... 0.7 µm; 133mm parfocal length; M62x0.75 thread at front Item no.: 435281-9100-000 Objective PlanNeoFluar Z 2.3x/0.57 FWD 10.6mm Objective PlanNeoFluar Z 2.3x/0.57 FWD 10.6mm Item no.: 435281-9230-000 Objective PlanNeoFluar Z 2.3x/0.57 FWD 10.6mm with resolution of 230 ... 1700 LP/mm or smallest detail 2.3 ... 0.3 µm; 105mm transfer length Item no.: 435281-9230-000 Stand base 450 Stand base 450 Item no.: 435430-9903-000 Stand base 450 WxDxH 449x346x30mm stand base with 3x M8 threaded holes, insert plate 450 and b/w plate D=120mm; compatible with column S 490/800 mm or T column 350mm and with transmitted light unit 450 or 450 mot or VisiLED transmitted light; stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435430-9903-000 Motor focus 3 with column S 490mm Motor focus 3 with column S 490mm Item no.: 435403-9001-000 Motor focus 3 with column S 490mm - Lifting range 340 mm, load capacity 18 kg - For stand bases 300/450 Item no.: 435403-9001-000 Transmitted-light equipment S Transmitted-light equipment S Item no.: 435501-0000-000 Transmitted-light equipment S ergonomic console with light guide and 2 shiftable and tiltable reflectors for bright field/dark field and for variable oblique light, usable on stand base 450 Item no.: 435501-0000-000 Foot button S (D) Foot button S (D) Item no.: 417095-9020-000 Foot button S (D) - 3 m connection cable, 2.5 mm mono jack - Switches LED light sources between ON/Standby mode - compatible with: Light Sources CL 4500/6000/9000 LED, Controller MC 1500 for VisiLED, Transillumination base 300 Item no.: 417095-9020-000 Reflector module Z FL ACR P&C Reflector module Z FL ACR P&C Item no.: 435180-9160-000 Reflector module Z FL ACR P&C to Fluar Illuminator Z mot on Axio Zoom.V16 and SYCOP 3 Item no.: 435180-9160-000 Fluar Illuminator Z mot Fluar Illuminator Z mot Item no.: 435180-9061-000 Fluar Illuminator Z mot Fluorescence intermediate tube for Axio Zoom.V16 - Reflector turret 4x mot ACR for reflector modules Z FL P&C, - Slider support for field diaphragm mot/man or ApoTome.2 - Support for light guide with liquid core of 3mm dia. from HXP 120V/200C, - Shutter mot synchronizable with HXP 120V/200C shutter, - Left-side button panel for choice+display of filter set and shutter position, - Anti-glare shield with carrier and receptacle for 6 reflector modules Z FL P&C, - Socket CAN RJ45 and 2 cables CAN RJ45 0.5m and 1.0m, - Plug-in power unit CAN RJ45 DC 24V 30W, mains input plug EU, GB, USA/J, AUS Item no.: 435180-9061-000 Objective nosepiece Z, 2x cod Objective nosepiece Z, 2x cod Item no.: 435380-9000-000 Objective nosepiece Z, 2x cod carrier of Axio Zoom.V16 body (containing position sensors for objective nosepiece) and support of 2 objectives and optionally 2 ring illuminators (435506), to mount at focus drive as alternative of carrier S, d=76 mm (435402) Item no.: 435380-9000-000 Cable EMS3/CMD - focus motor 3 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000	Stereomicroscopes Microscope body Axio Zoom.V16 Microscope body Axio Zoom.V16 Item no.: 435080-9031-000 Microscope body Axio Zoom.V16 - apochromatic motor zoom 16:1 (0.7x ... 11.2x), with more than twice the aperture of stereo zoom, - motorized aperture diaphragm with scroll wheel and 3 variable control modes: 1. "Brightness" for maximum of image brightness with 10x eyepieces or maximum of resolution with 16x or 25x eyepieces, 2. "Camera" for constant brightness and resolution along zoom range fitted to high-resolution image sensor, 3. "Eyepiece" for large depth of field in lower zoom range and resolution fitted to 10x eyepieces; - objective support M55x1.5, removeable for nosepiece assembling, - position sensors for objective nosepiece Z, - 76mm support dia. Fitting 435402 carrier S or 435380-9000 nosepiece Z, - additionally required HIP for supply and operation (in Brightness mode only) or EMS 3 + SYCOP 3 for mode control and USB interface Item no.: 435080-9031-000 Manual Rotary Control MARC Manual Rotary Control MARC Item no.: 435604-0000-000 Manual Rotary Control MARC - focusing by coaxial coarse/fine knobs, sensibility corresponds to optical data or 1x objective without data, - button pair for accelerated focusing, - button for reproducing of one focus position or selection of rotation sense; - second button pair for accelerated zooming or changing between given zoom steps which coincident with display exactly (without rounding) and reproduce positions with digital accuracy; - mountable instead of HIP or on 435604-9010 table-top base in interest of left/right hand use and free positioning; - operating with focus motor 2 or 3, - incl. cable CAN RJ45 0.5m Item no.: 435604-0000-000 System Control Panel SYCOP 3 System Control Panel SYCOP 3 Item no.: 435611-9010-000 System Control Panel SYCOP 3 5.7" color touch screen with LED back illumination, joystick, 2 scroll wheels and 6 freely configurable keys; incl. 2 m cable to EMS 3 Item no.: 435611-9010-000 Controller EMS 3 Controller EMS 3 Item no.: 435610-9011-000 Controller EMS 3 includes 150 W wide-range power supply, on/off button, on rear side mains switch and interfaces: - 5x CAN-RJ45 for CL 9000 LED CAN, SteREO or Axio Zoom components, - 1x Power/CAN, cable 435403-9030 to focus motor 3 or 435610-5003 to motor 2 additionally required, - 1x SYCOP 3, 2x KL 2500 LCD, 2x footswitch, - 2x CAN-HD15 for Axio accessories (motor stage, light sources), - 1x USB to work station, 1x RS232 (D-Sub DE9), incl. USB cable 2m and country-specific power cable Item no.: 435610-9011-000 Human Interface Panel HIP Human Interface Panel HIP Item no.: 435601-0000-000 Human Interface Panel HIP with plug-in power unit CAN RJ45 DC 24V 30W, mains input plug EU, GB, USA/J, AUS Item no.: 435601-0000-000 Binocular phototube Z 15° Binocular phototube Z 15° Item no.: 435180-9010-000 Binocular phototube Z 15° manual switching 100 vis : 100 doc Item no.: 435180-9010-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Item no.: 435281-9100-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm with resolution of 100 ... 740 LP/mm or smallest detail 5.0 ... 0.7 µm; 133mm parfocal length; M62x0.75 thread at front Item no.: 435281-9100-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Motor focus 3 with column S 490mm Motor focus 3 with column S 490mm Item no.: 435403-9001-000 Motor focus 3 with column S 490mm - Lifting range 340 mm, load capacity 18 kg - For stand bases 300/450 Item no.: 435403-9001-000 Stand base 450 Stand base 450 Item no.: 435430-9903-000 Stand base 450 WxDxH 449x346x30mm stand base with 3x M8 threaded holes, insert plate 450 and b/w plate D=120mm; compatible with column S 490/800 mm or T column 350mm and with transmitted light unit 450 or 450 mot or VisiLED transmitted light; stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435430-9903-000 Epi-illuminator Z Epi-illuminator Z Item no.: 435180-9050-000 Epi-illuminator Z switchable epi-illumination intermediate tube suitable with objective Z 0.5x or 1.0x; incl. light guide 1500 and EpiRel contrast slider for relief images of specimen profiles; specular samples require lambda/4 cap S (435112-9010) additionally Item no.: 435180-9050-000 Foot button S (D) Foot button S (D) Item no.: 417095-9020-000 Foot button S (D) - 3 m connection cable, 2.5 mm mono jack - Switches LED light sources between ON/Standby mode - compatible with: Light Sources CL 4500/6000/9000 LED, Controller MC 1500 for VisiLED, Transillumination base 300 Item no.: 417095-9020-000 Cable EMS3/CMD - focus motor 3 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000 Measuring stage S 150x100 mot; CAN (D) Measuring stage S 150x100 mot; CAN (D) Item no.: 435465-9020-000 Measuring stage S 150x100 mot; CAN (D) - 3-plates mechanical stage (495...530)x(280...390)x(28...95)mm for max. load 3kg, - specimen bearing 340x207mm and 237x157mm support for insert plate S, - stepper motors, encoders and integrated controller, - variable speed up to 17mm/s, - speed up to 100mm/s in automatic find action, - reproducibility +/- 1µm - absolute accuracy +/- 2µm - interface d=120mm, BNC trigger and CAN-HD15, incl. CAN-HD15 cable, - useable with transillumination Item no.: 435465-9020-000 Insert plate S, metal 237x157x3mm (D) Insert plate S, metal 237x157x3mm (D) Item no.: 435465-9052-000 Insert plate S, metal 237x157x3mm (D) needed to mechanical stages S 150x100 Item no.: 435465-9052-000 Adapter frame S 160x116 epi-illumination (D) Adapter frame S 160x116 epi-illumination (D) Item no.: 435465-9050-000 Adapter frame S 160x116 epi-illumination (D) holding frames and plates 160x116 of Axio Imager are adapted to stages S 150x100, using together with transillumination top 450 mot (435500-9000) is not allowed Item no.: 435465-9050-000 Lambda/4 Cap S, d=66 mm Lambda/4 Cap S, d=66 mm Item no.: 435112-9010-000 Lambda/4 Cap S, d=66 mm for objectives S or Z, D=66 mm, reduces FWD by 7 mm; required to coaxial epi-illuminator S working in axial mode or to Epi-illuminator Z if specular samples are existing Item no.: 435112-9010-000	Stereomicroscopes Microscope body Axio Zoom.V16 Microscope body Axio Zoom.V16 Item no.: 435080-9031-000 Microscope body Axio Zoom.V16 - apochromatic motor zoom 16:1 (0.7x ... 11.2x), with more than twice the aperture of stereo zoom, - motorized aperture diaphragm with scroll wheel and 3 variable control modes: 1. "Brightness" for maximum of image brightness with 10x eyepieces or maximum of resolution with 16x or 25x eyepieces, 2. "Camera" for constant brightness and resolution along zoom range fitted to high-resolution image sensor, 3. "Eyepiece" for large depth of field in lower zoom range and resolution fitted to 10x eyepieces; - objective support M55x1.5, removeable for nosepiece assembling, - position sensors for objective nosepiece Z, - 76mm support dia. Fitting 435402 carrier S or 435380-9000 nosepiece Z, - additionally required HIP for supply and operation (in Brightness mode only) or EMS 3 + SYCOP 3 for mode control and USB interface Item no.: 435080-9031-000 Controller EMS 3 Controller EMS 3 Item no.: 435610-9011-000 Controller EMS 3 includes 150 W wide-range power supply, on/off button, on rear side mains switch and interfaces: - 5x CAN-RJ45 for CL 9000 LED CAN, SteREO or Axio Zoom components, - 1x Power/CAN, cable 435403-9030 to focus motor 3 or 435610-5003 to motor 2 additionally required, - 1x SYCOP 3, 2x KL 2500 LCD, 2x footswitch, - 2x CAN-HD15 for Axio accessories (motor stage, light sources), - 1x USB to work station, 1x RS232 (D-Sub DE9), incl. USB cable 2m and country-specific power cable Item no.: 435610-9011-000 System Control Panel SYCOP 3 System Control Panel SYCOP 3 Item no.: 435611-9010-000 System Control Panel SYCOP 3 5.7" color touch screen with LED back illumination, joystick, 2 scroll wheels and 6 freely configurable keys; incl. 2 m cable to EMS 3 Item no.: 435611-9010-000 Binocular phototube Z 15° Binocular phototube Z 15° Item no.: 435180-9010-000 Binocular phototube Z 15° manual switching 100 vis : 100 doc Item no.: 435180-9010-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Item no.: 435281-9100-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm with resolution of 100 ... 740 LP/mm or smallest detail 5.0 ... 0.7 µm; 133mm parfocal length; M62x0.75 thread at front Item no.: 435281-9100-000 Mount S with diam. 76 mm support Mount S with diam. 76 mm support Item no.: 435402-0000-000 Mount S with diam. 76 mm support Item no.: 435402-0000-000 Motor focus 3 with column S 490mm Motor focus 3 with column S 490mm Item no.: 435403-9001-000 Motor focus 3 with column S 490mm - Lifting range 340 mm, load capacity 18 kg - For stand bases 300/450 Item no.: 435403-9001-000 Stand base 450 Stand base 450 Item no.: 435430-9903-000 Stand base 450 WxDxH 449x346x30mm stand base with 3x M8 threaded holes, insert plate 450 and b/w plate D=120mm; compatible with column S 490/800 mm or T column 350mm and with transmitted light unit 450 or 450 mot or VisiLED transmitted light; stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435430-9903-000 Polarization filter set S, d=66 mm (D) Polarization filter set S, d=66 mm (D) Item no.: 417075-9009-000 Polarization filter set S, d=66 mm (D) consisting of fixed analyzer and rotary, annular polarizer Item no.: 417075-9009-000 Cable EMS3/CMD - focus motor 3 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000 Measuring stage S 150x100 mot; CAN (D) Measuring stage S 150x100 mot; CAN (D) Item no.: 435465-9020-000 Measuring stage S 150x100 mot; CAN (D) - 3-plates mechanical stage (495...530)x(280...390)x(28...95)mm for max. load 3kg, - specimen bearing 340x207mm and 237x157mm support for insert plate S, - stepper motors, encoders and integrated controller, - variable speed up to 17mm/s, - speed up to 100mm/s in automatic find action, - reproducibility +/- 1µm - absolute accuracy +/- 2µm - interface d=120mm, BNC trigger and CAN-HD15, incl. CAN-HD15 cable, - useable with transillumination Item no.: 435465-9020-000 Adapter frame S 160x116 epi-illumination (D) Adapter frame S 160x116 epi-illumination (D) Item no.: 435465-9050-000 Adapter frame S 160x116 epi-illumination (D) holding frames and plates 160x116 of Axio Imager are adapted to stages S 150x100, using together with transillumination top 450 mot (435500-9000) is not allowed Item no.: 435465-9050-000	Stereomicroscopes Microscope body Axio Zoom.V16 Microscope body Axio Zoom.V16 Item no.: 435080-9031-000 Microscope body Axio Zoom.V16 - apochromatic motor zoom 16:1 (0.7x ... 11.2x), with more than twice the aperture of stereo zoom, - motorized aperture diaphragm with scroll wheel and 3 variable control modes: 1. "Brightness" for maximum of image brightness with 10x eyepieces or maximum of resolution with 16x or 25x eyepieces, 2. "Camera" for constant brightness and resolution along zoom range fitted to high-resolution image sensor, 3. "Eyepiece" for large depth of field in lower zoom range and resolution fitted to 10x eyepieces; - objective support M55x1.5, removeable for nosepiece assembling, - position sensors for objective nosepiece Z, - 76mm support dia. Fitting 435402 carrier S or 435380-9000 nosepiece Z, - additionally required HIP for supply and operation (in Brightness mode only) or EMS 3 + SYCOP 3 for mode control and USB interface Item no.: 435080-9031-000 System Control Panel SYCOP 3 System Control Panel SYCOP 3 Item no.: 435611-9010-000 System Control Panel SYCOP 3 5.7" color touch screen with LED back illumination, joystick, 2 scroll wheels and 6 freely configurable keys; incl. 2 m cable to EMS 3 Item no.: 435611-9010-000 Controller EMS 3 Controller EMS 3 Item no.: 435610-9011-000 Controller EMS 3 includes 150 W wide-range power supply, on/off button, on rear side mains switch and interfaces: - 5x CAN-RJ45 for CL 9000 LED CAN, SteREO or Axio Zoom components, - 1x Power/CAN, cable 435403-9030 to focus motor 3 or 435610-5003 to motor 2 additionally required, - 1x SYCOP 3, 2x KL 2500 LCD, 2x footswitch, - 2x CAN-HD15 for Axio accessories (motor stage, light sources), - 1x USB to work station, 1x RS232 (D-Sub DE9), incl. USB cable 2m and country-specific power cable Item no.: 435610-9011-000 Binocular ergo phototube Z 0-30° mot Binocular ergo phototube Z 0-30° mot Item no.: 435180-9001-000 Binocular ergo phototube Z 0-30° mot - motorized switching 100 vis : 100 doc by push button or CAN command; - manually switchable half-stops after Abbe for stereoscopic effect; - low-positioned binocular tube shifted to observer; - optimized for transillumination top 450 mot; - recommended for high configurations incl. Fluar-illuminator Z or epi-illuminator Z or due to high samples; - incl. cable CAN RJ45 0.5m and 1.0m Item no.: 435180-9001-000 Objective PlanNeoFluar Z 2.3x/0.57 FWD 10.6mm Objective PlanNeoFluar Z 2.3x/0.57 FWD 10.6mm Item no.: 435281-9230-000 Objective PlanNeoFluar Z 2.3x/0.57 FWD 10.6mm with resolution of 230 ... 1700 LP/mm or smallest detail 2.3 ... 0.3 µm; 105mm transfer length Item no.: 435281-9230-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm Item no.: 435281-9100-000 Objective PlanNeoFluar Z 1.0x/0.25 FWD 56mm with resolution of 100 ... 740 LP/mm or smallest detail 5.0 ... 0.7 µm; 133mm parfocal length; M62x0.75 thread at front Item no.: 435281-9100-000 Stand base 450 Stand base 450 Item no.: 435430-9903-000 Stand base 450 WxDxH 449x346x30mm stand base with 3x M8 threaded holes, insert plate 450 and b/w plate D=120mm; compatible with column S 490/800 mm or T column 350mm and with transmitted light unit 450 or 450 mot or VisiLED transmitted light; stage d=84mm needs adapter 84/120 (435430-9010) additionally Item no.: 435430-9903-000 Motor focus 3 with column S 490mm Motor focus 3 with column S 490mm Item no.: 435403-9001-000 Motor focus 3 with column S 490mm - Lifting range 340 mm, load capacity 18 kg - For stand bases 300/450 Item no.: 435403-9001-000 Transmitted-light equipment S Transmitted-light equipment S Item no.: 435501-0000-000 Transmitted-light equipment S ergonomic console with light guide and 2 shiftable and tiltable reflectors for bright field/dark field and for variable oblique light, usable on stand base 450 Item no.: 435501-0000-000 Foot button S (D) Foot button S (D) Item no.: 417095-9020-000 Foot button S (D) - 3 m connection cable, 2.5 mm mono jack - Switches LED light sources between ON/Standby mode - compatible with: Light Sources CL 4500/6000/9000 LED, Controller MC 1500 for VisiLED, Transillumination base 300 Item no.: 417095-9020-000 Reflector module Z FL ACR P&C Reflector module Z FL ACR P&C Item no.: 435180-9160-000 Reflector module Z FL ACR P&C to Fluar Illuminator Z mot on Axio Zoom.V16 and SYCOP 3 Item no.: 435180-9160-000 Fluar Illuminator Z mot Fluar Illuminator Z mot Item no.: 435180-9061-000 Fluar Illuminator Z mot Fluorescence intermediate tube for Axio Zoom.V16 - Reflector turret 4x mot ACR for reflector modules Z FL P&C, - Slider support for field diaphragm mot/man or ApoTome.2 - Support for light guide with liquid core of 3mm dia. from HXP 120V/200C, - Shutter mot synchronizable with HXP 120V/200C shutter, - Left-side button panel for choice+display of filter set and shutter position, - Anti-glare shield with carrier and receptacle for 6 reflector modules Z FL P&C, - Socket CAN RJ45 and 2 cables CAN RJ45 0.5m and 1.0m, - Plug-in power unit CAN RJ45 DC 24V 30W, mains input plug EU, GB, USA/J, AUS Item no.: 435180-9061-000 Objective nosepiece Z, 2x cod Objective nosepiece Z, 2x cod Item no.: 435380-9000-000 Objective nosepiece Z, 2x cod carrier of Axio Zoom.V16 body (containing position sensors for objective nosepiece) and support of 2 objectives and optionally 2 ring illuminators (435506), to mount at focus drive as alternative of carrier S, d=76 mm (435402) Item no.: 435380-9000-000 Cable EMS3/CMD - focus motor 3 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000 Cable EMS3/CMD - focus motor 3 Item no.: 435403-9030-000
Packing and dust protection	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set L Dust protection Set L Item no.: 434304-0000-000 Dust protection Set L consisting of dust cover (L670xW460xH775 mm), eyepiece cover and protection cap for luminous-field diaphragm Item no.: 434304-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set L Dust protection Set L Item no.: 434304-0000-000 Dust protection Set L consisting of dust cover (L670xW460xH775 mm), eyepiece cover and protection cap for luminous-field diaphragm Item no.: 434304-0000-000
Lamps and Lamp housings	Lamps and Lamp housings	Lamps and Lamp housings	Lamps and Lamp housings Controller MC 1100 for VisiLED (D) Controller MC 1100 for VisiLED (D) Item no.: 417095-9041-000 Controller MC 1100 for VisiLED (D) with 3 rotating knobs for dimming, segmentation (5 modes) and its rotation, for control of one VisiLED illuminator Item no.: 417095-9041-000	Lamps and Lamp housings Illuminator HXP 200C (D) Illuminator HXP 200C (D) Item no.: 435716-0000-000 Illuminator HXP 200C (D) inclusive built-in power supply 310W, lamp module, infrared filter, CAN-BUS cable and country-specific mains cord. Fluorescence light source with integrated shutter with trigger capability (5V TTL), that works stepper motor controlled, fast and vibration free. With CAN interface for remote control of the shutter Item no.: 435716-0000-000 Lightguide HXP with liquid fill, 2m (D) Lightguide HXP with liquid fill, 2m (D) Item no.: 000000-0482-760 Lightguide HXP with liquid fill, 2m (D) ø3mm x 2000mm Item no.: 000000-0482-760 Shutter remote control for HXP C Shutter remote control for HXP C Item no.: 000000-0496-214 Shutter remote control for HXP C incl. connecting cable 2 m. Usable as knuckle switch or pedal switch. Item no.: 000000-0496-214	Lamps and Lamp housings Cold-light source CL 9000 LED CAN (D) Cold-light source CL 9000 LED CAN (D) Item no.: 435700-9000-000 Cold-light source CL 9000 LED CAN (D) - up to 900 lm light flux at 9 mm fiber output dia., ca. 6500K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35 x 26 x 4 mm and with free aperture - max. 80W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S - BNC socket for trigger input - 2 CAN RJ45 sockets for light control by EMS 3 - CAN RJ45 cable 1 m, country-specific power cable - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9000-000 Day Light Filter CL LED (D) Day Light Filter CL LED (D) Item no.: 435700-9021-000 Day Light Filter CL LED (D) Item no.: 435700-9021-000	Lamps and Lamp housings Flexible light guide 1500, 8/1000 mm (D) Flexible light guide 1500, 8/1000 mm (D) Item no.: 417063-9901-000 Flexible light guide 1500, 8/1000 mm (D) Item no.: 417063-9901-000 Cold-light source CL 9000 LED CAN (D) Cold-light source CL 9000 LED CAN (D) Item no.: 435700-9000-000 Cold-light source CL 9000 LED CAN (D) - up to 900 lm light flux at 9 mm fiber output dia., ca. 6500K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35 x 26 x 4 mm and with free aperture - max. 80W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S - BNC socket for trigger input - 2 CAN RJ45 sockets for light control by EMS 3 - CAN RJ45 cable 1 m, country-specific power cable - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9000-000 Day Light Filter CL LED (D) Day Light Filter CL LED (D) Item no.: 435700-9021-000 Day Light Filter CL LED (D) Item no.: 435700-9021-000 Light-conducting rod 13 mm (D) Light-conducting rod 13 mm (D) Item no.: 435511-0000-000 Light-conducting rod 13 mm (D) required with 435506 ring illuminator and Plan Apo Z 0.5x / S 1.0x / S 3.5x mono or Achromat S 1.5x or PlanNeoFluar Z 1.0x, to that 2 light-conducting rods are required Item no.: 435511-0000-000 Light-conducting rod 51 mm (D) Light-conducting rod 51 mm (D) Item no.: 435512-0000-000 Light-conducting rod 51 mm (D) required with 435506 ring illuminator and Plan Apo Z 1.0x / Z 1.5x / S 1,5x or converter S 1.5x mono Item no.: 435512-0000-000 Slit-ring illuminator d=66 mm without light guide (D) Slit-ring illuminator d=66 mm without light guide (D) Item no.: 435506-0000-000 Slit-ring illuminator d=66 mm without light guide (D) useable with 417063-9901 light guide 8/1000mm and objective nosepiece S/doc 435302 or Z 435380-9000 Item no.: 435506-0000-000	Lamps and Lamp housings Cold-light source CL 9000 LED CAN (D) Cold-light source CL 9000 LED CAN (D) Item no.: 435700-9000-000 Cold-light source CL 9000 LED CAN (D) - up to 900 lm light flux at 9 mm fiber output dia., ca. 6500K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35 x 26 x 4 mm and with free aperture - max. 80W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S - BNC socket for trigger input - 2 CAN RJ45 sockets for light control by EMS 3 - CAN RJ45 cable 1 m, country-specific power cable - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9000-000 Illuminator HXP 200C (D) Illuminator HXP 200C (D) Item no.: 435716-0000-000 Illuminator HXP 200C (D) inclusive built-in power supply 310W, lamp module, infrared filter, CAN-BUS cable and country-specific mains cord. Fluorescence light source with integrated shutter with trigger capability (5V TTL), that works stepper motor controlled, fast and vibration free. With CAN interface for remote control of the shutter Item no.: 435716-0000-000 Lightguide HXP with liquid fill, 2m (D) Lightguide HXP with liquid fill, 2m (D) Item no.: 000000-0482-760 Lightguide HXP with liquid fill, 2m (D) ø3mm x 2000mm Item no.: 000000-0482-760 Shutter remote control for HXP C Shutter remote control for HXP C Item no.: 000000-0496-214 Shutter remote control for HXP C incl. connecting cable 2 m. Usable as knuckle switch or pedal switch. Item no.: 000000-0496-214 Yellow filter for CL LED (D) Yellow filter for CL LED (D) Item no.: 435700-9024-000 Yellow filter for CL LED (D) Item no.: 435700-9024-000 Day Light Filter CL LED (D) Day Light Filter CL LED (D) Item no.: 435700-9021-000 Day Light Filter CL LED (D) Item no.: 435700-9021-000	Lamps and Lamp housings Cold-light source CL 9000 LED CAN (D) Cold-light source CL 9000 LED CAN (D) Item no.: 435700-9000-000 Cold-light source CL 9000 LED CAN (D) - up to 900 lm light flux at 9 mm fiber output dia., ca. 6500K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35 x 26 x 4 mm and with free aperture - max. 80W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S - BNC socket for trigger input - 2 CAN RJ45 sockets for light control by EMS 3 - CAN RJ45 cable 1 m, country-specific power cable - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9000-000 Day Light Filter CL LED (D) Day Light Filter CL LED (D) Item no.: 435700-9021-000 Day Light Filter CL LED (D) Item no.: 435700-9021-000	Lamps and Lamp housings Cold-light source CL 9000 LED CAN (D) Cold-light source CL 9000 LED CAN (D) Item no.: 435700-9000-000 Cold-light source CL 9000 LED CAN (D) - up to 900 lm light flux at 9 mm fiber output dia., ca. 6500K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35 x 26 x 4 mm and with free aperture - max. 80W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S - BNC socket for trigger input - 2 CAN RJ45 sockets for light control by EMS 3 - CAN RJ45 cable 1 m, country-specific power cable - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9000-000 Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Item no.: 435540-9005-000 Slit-ring illuminator 1500 ECO, d=66 mm, 9/1000 mm (D) Item no.: 435540-9005-000 Halogen Light Filter CL LED (D) Halogen Light Filter CL LED (D) Item no.: 435700-9020-000 Halogen Light Filter CL LED (D) Item no.: 435700-9020-000 Day Light Filter CL LED (D) Day Light Filter CL LED (D) Item no.: 435700-9021-000 Day Light Filter CL LED (D) Item no.: 435700-9021-000	Lamps and Lamp housings Cold-light source CL 9000 LED CAN (D) Cold-light source CL 9000 LED CAN (D) Item no.: 435700-9000-000 Cold-light source CL 9000 LED CAN (D) - up to 900 lm light flux at 9 mm fiber output dia., ca. 6500K color temperature - min. 50,000 operating hours until intensity drop to 70% - control of intensity and 6 memory cells by rotary push knob and LCD - 10 mm collet chuck with sensor for 1500 light guides - filter slider for 2 mounted filters 35 x 26 x 4 mm and with free aperture - max. 80W wide-range supply for flicker free light, silent fan - 2.5 mm jack bush for on/off via optional foot button S - BNC socket for trigger input - 2 CAN RJ45 sockets for light control by EMS 3 - CAN RJ45 cable 1 m, country-specific power cable - Dimensions D241xW192xH118 mm, weight 3.1 kg Item no.: 435700-9000-000 Illuminator HXP 200C (D) Illuminator HXP 200C (D) Item no.: 435716-0000-000 Illuminator HXP 200C (D) inclusive built-in power supply 310W, lamp module, infrared filter, CAN-BUS cable and country-specific mains cord. Fluorescence light source with integrated shutter with trigger capability (5V TTL), that works stepper motor controlled, fast and vibration free. With CAN interface for remote control of the shutter Item no.: 435716-0000-000 Lightguide HXP with liquid fill, 2m (D) Lightguide HXP with liquid fill, 2m (D) Item no.: 000000-0482-760 Lightguide HXP with liquid fill, 2m (D) ø3mm x 2000mm Item no.: 000000-0482-760 Day Light Filter CL LED (D) Day Light Filter CL LED (D) Item no.: 435700-9021-000 Day Light Filter CL LED (D) Item no.: 435700-9021-000 Yellow filter for CL LED (D) Yellow filter for CL LED (D) Item no.: 435700-9024-000 Yellow filter for CL LED (D) Item no.: 435700-9024-000 Shutter remote control for HXP C Shutter remote control for HXP C Item no.: 000000-0496-214 Shutter remote control for HXP C incl. connecting cable 2 m. Usable as knuckle switch or pedal switch. Item no.: 000000-0496-214
Bulbs	Bulbs	Bulbs	Bulbs	Bulbs Lamp HXP 200, spare (D) Lamp HXP 200, spare (D) Item no.: 000000-0525-316 Lamp HXP 200, spare (D) average lifetime 2000h Item no.: 000000-0525-316	Bulbs	Bulbs	Bulbs Lamp HXP 200, spare (D) Lamp HXP 200, spare (D) Item no.: 000000-0525-316 Lamp HXP 200, spare (D) average lifetime 2000h Item no.: 000000-0525-316	Bulbs	Bulbs	Bulbs Lamp HXP 200, spare (D) Lamp HXP 200, spare (D) Item no.: 000000-0525-316 Lamp HXP 200, spare (D) average lifetime 2000h Item no.: 000000-0525-316

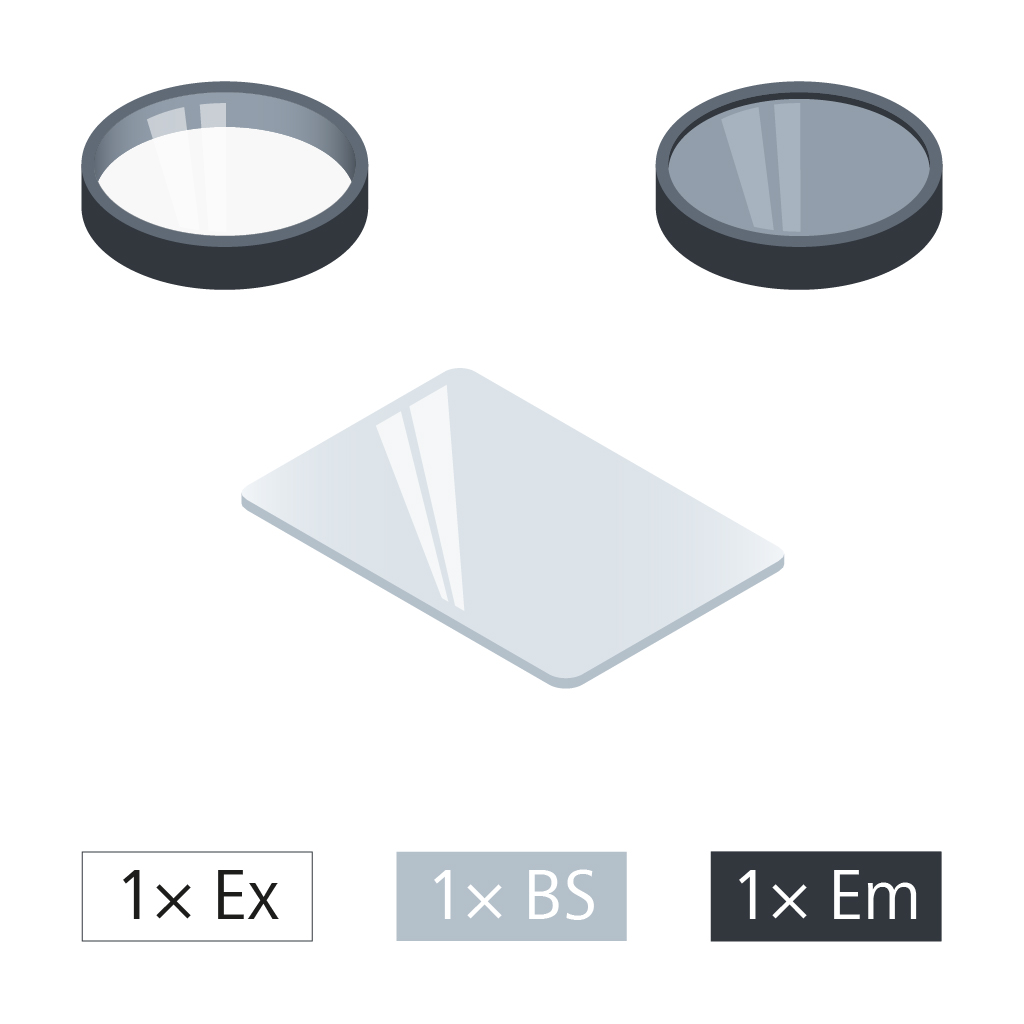

Filters	Filters	Filters	Filters	Filters Filter set 38 HE eGFP shift free (E) Filter set 38 HE eGFP shift free (E) Item no.: 489038-9901-000 Filter set 38 HE eGFP shift free (E) EX BP 470/40, BS FT 495, EM BP 525/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 489038-9901-000	Filters	Filters	Filters Filter set 49 DAPI shift free (E) Filter set 49 DAPI shift free (E) Item no.: 488049-9901-000 Filter set 49 DAPI shift free (E) EX G 365, BS FT 395, EM BP 445/50 Item no.: 488049-9901-000 Filter set 38 HE eGFP shift free (E) Filter set 38 HE eGFP shift free (E) Item no.: 489038-9901-000 Filter set 38 HE eGFP shift free (E) EX BP 470/40, BS FT 495, EM BP 525/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 489038-9901-000 Filter set 63 HE mRFP shift free (E) Filter set 63 HE mRFP shift free (E) Item no.: 489063-0000-000 Filter set 63 HE mRFP shift free (E) EX BP 572/25, BS FT 590, EM BP 629/62 Item no.: 489063-0000-000	Filters	Filters	Filters Filter set 63 HE mRFP shift free (E) Filter set 63 HE mRFP shift free (E) Item no.: 489063-0000-000 Filter set 63 HE mRFP shift free (E) EX BP 572/25, BS FT 590, EM BP 629/62 Item no.: 489063-0000-000 Filter set 38 HE eGFP shift free (E) Filter set 38 HE eGFP shift free (E) Item no.: 489038-9901-000 Filter set 38 HE eGFP shift free (E) EX BP 470/40, BS FT 495, EM BP 525/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 489038-9901-000 Filter set 49 DAPI shift free (E) Filter set 49 DAPI shift free (E) Item no.: 488049-9901-000 Filter set 49 DAPI shift free (E) EX G 365, BS FT 395, EM BP 445/50 Item no.: 488049-9901-000
Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices Camera Adapter 60N-C 1" 1.0x Camera Adapter 60N-C 1" 1.0x Item no.: 426114-0000-000 Camera Adapter 60N-C 1" 1.0x Item no.: 426114-0000-000	Video devices	Video devices Camera Adapter 60N-C 2/3" 0.63x; rotating +/- 2° Camera Adapter 60N-C 2/3" 0.63x; rotating +/- 2° Item no.: 426113-9010-000 Camera Adapter 60N-C 2/3" 0.63x; rotating +/- 2° for fine adjustment of camera rotation. - adjustment range: +/- 2° - maximum weight load: 2 kg Item no.: 426113-9010-000	Video devices Camera Adapter 60N-C 2/3" 0.63x; rotating +/- 2° Camera Adapter 60N-C 2/3" 0.63x; rotating +/- 2° Item no.: 426113-9010-000 Camera Adapter 60N-C 2/3" 0.63x; rotating +/- 2° for fine adjustment of camera rotation. - adjustment range: +/- 2° - maximum weight load: 2 kg Item no.: 426113-9010-000	Video devices Camera Adapter 60N-C 1" 1.0x Camera Adapter 60N-C 1" 1.0x Item no.: 426114-0000-000 Camera Adapter 60N-C 1" 1.0x Item no.: 426114-0000-000
Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing Trigger Cable Set Axiocam 5xx/7xx (D) Trigger Cable Set Axiocam 5xx/7xx (D) Item no.: 426557-0001-000 Trigger Cable Set Axiocam 5xx/7xx/8xx (D) for direct shutter synchronization using trigger board with signal distribution box, Colibri or HXP 120 V Item no.: 426557-0001-000 Microscopy Camera Axiocam 807 color (D) Microscopy Camera Axiocam 807 color (D) Item no.: 426560-9150-000 Microscopy Camera Axiocam 807 color (D) High performance microscopy color camera incl. driver software 64bit, interface card USB 3.1 Gen2 PCIe x4, dual USB 3.0 cable 3 m Sensor Type: CMOS, Color filter array, Global Shutter, Sony IMX420 Number of Pixels: 3216 (H) x 2208 (V) = 7.1 Mega Pixels Pixel Size: 4.5 µm x 4.5 µm Chip Size: 14.5 mm x 9.9 mm, equivalent to 1.1" (17,6 mm diagonal) Spectral Range: With IR barrier filter approx. 400 nm to 720 nm Full Well Capacity: Approx. 25,000 e- at gain 1x(typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (digital) 3216 x 2208 1x1 basic pixel count 1608 x 1104 2x2 1072 x 736 3x3 884 x 552 4x4 643 x 441 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor (full field of view) 3216 x 2208 1x1 1608 x 1104 2x2 Live frame rates (depending on hardware and software configuration): Exp. Time 1ms H x V Frame Rate 3216 x 2208 >30 fps (High Res mode) 1602 x 1104 >30 fps (Fast Mode,reducedCPUload) Frame rates for time series recording (1 ms exposure, further depending on Sensor ROI, hardware and software configuration) H x V (ROI) Frame Rate (fps) 3216 x 2208 73 1929 x 1080 145 1602 x 1104 260 (2x2 subsampling; full field of view) 1024 x 1024 151 512 x 512 282 1920 x 256 487 Read Noise Full Well Capacity Dynamic Range (at gain) 5.7 e (1x) 25,000 e 1:4420 4.6 e (2x) 12,500 e 1:2730 3.9 e (4x) 6,250 e 1:1610 3.4 e (8x) 3,125 e 1:..930 2.9 e (16x) 1,500 e 1: 530 Low Noise Mode: 4.0 e 25,000 e 1:6230 Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, Adjustable over or under-exposure mode, Optional measurement on defined target area (spot-meter), Adjustable color saturation, White balance adjustment interactive or automatic mode with selectable target white balance color (warmer / colder), Image sharpening, Dark current compensation, Single pixel noise correction Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.3 e/p/s@ 25 °C sensor temperature Cooling: Stabilized temperature to 25 °C (mounted on microscope, free air flow, ambient temp. 22 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure timecontrol Trigger-Out for exposure time Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: Dual USB 3.0 SuperSpeed, 2 x 5 Gbit/s for data and power supply (optional single USB 3.0 at lower frame rates and withoutcooling) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 6.1 cm (4.2" x 3.1" x 2.4") / 620 g Housing: Blue anodizedaluminum, with cooling fins on top 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by Dual USB 3.0, 5V, max. 7 W power consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported OperatingSystems: for ZEN: Windows 10 x64 Enterprise Supported Application Software: ZEN 3.6 (blue edition) or higher, ZEN 3.5 core or higher The required application software is provided via ZEISS Microscopy Installer or ZEISS Download Center. Item no.: 426560-9150-000	Image processing	Image processing Microscopy Camera Axiocam 705 color R2 (D) Microscopy Camera Axiocam 705 color R2 (D) Item no.: 426560-9051-000 Microscopy Camera Axiocam 705 color R2 (D) High Performance microscopy camera incl. driver software 64 bit USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and IR barrier filter (coated) Sensor Type: SONY IMX250 Exmor CMOS, SONY Pregius Global Shutter Color filter array Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel Pixel Size: 3.45 µm x 3.45 µm Chip Size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral Range: With IR barrier filter approx. 400 nm to 720 nm Full Well Capacity: Approx. 11,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution (color and monochrome): H x V Binning Factor (1x1 to 5x5 digital) 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 816 x 684 3x3 608 x 514 4x4 480 x 410 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor 2464 x 2056 1x1 1232 x 1028 2x2 Live Frame Rate: (1 ms exposure, default setting Fast Mode) H x V Frame Rate (fps) 1232 x 1028 30 Frame Ratesfor TimeSeries Recording: (1 ms exposure, further depending on hardware and software configuration) H x V (ROI) Frame Rate (fps) 2464 x 2056 60 1920 x 1080 115 1232 x 1028 173 (2x2 subsampling, full field of view) 1024 x 1024 121 512 x 512 235 1920 x 256 436 Read Noise Full Well Capacity Dynamic Range (at gain) 2.20e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000 e 1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600 HDR Mode Dynamic Range 1:25,000 Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, adjustable over or under-exposure mode, optional measurement on defined target area (spot-meter), adjustable color saturation, White balance adjustment interactive or automatic mode with selectable target white balance color (warmer / colder) Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.5 e/p/s @ 18 °C sensor temperature Cooling: Stabilized temperature to 18 °C (for ambient temperatures from 18 °C to 30 ° C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control, Trigger-Out for exposure time, Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: USB 3.0 (Optional operation with USB 2.0 at reduced frame rate) Optical Interface: C-Mount Thread Depth for Objectives: max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 5,1 cm (2.3" x 3.2" x 2,0") / 580 g Housing: Blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by USB 3.0 and USB 2.0, max. 7 W consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The required application software is available via the ZEISS Download Center. Item no.: 426560-9051-000 Microscopy Workstation Premium (HP Z8 G5) (O) Microscopy Workstation Premium (HP Z8 G5) (O) Item no.: 410203-9914-000 Microscopy Workstation Premium (HP Z8 G5) (O) HP Z8 Fury G5 Workstation - Chipset: Intel W790 - Memory Expansion Slots: 16 x DDR5, RDIMM, ECC, 4800 MHz Modules - Memory: max. 1024 GB RAM - PCI Express Connectors: 2 x PCI Express Generation5 x16 1 x PCI Express Generation 5 x4 2 x PCI Express Generation 4 x16 2 x PCI Express Generation 4 x4 1 x PCI Express Generation 3 x8 - SSD: 1 x 2 TB M.2 NVMe - Hard Drives: 2 x 12 TB SATA 7200 rpm (configured as 10 TB RAID 1hard drive) - Network Controller: 2 x GbE LAN interface (RJ 45) - USB: 2 x USB 3.2 Gen2x2 type C (front), 8 x USB 3.1 Gen 1 type A (2 x front, 6 x rear) - Certifications <(>&<)> Declarations: CE, CSA, UL, CCC, KCC - Power Supply: 100 - 240 V / 50 - 60 Hz / 1450 W with country specific plug - Chassis Dimensions: (H x W x D): 445 x 216 x 555 mm - USB Mouse, Recovery kit Item no.: 410203-9914-000 System Configuration 2 for HP Z8 G5 (O) System Configuration 2 for HP Z8 G5 (O) Item no.: 000000-2615-590 System Configuration 2 for HP Z8 G5 (O) Installation of Windows 10 IoT Enterprise LTSC 2021 x64 incl. Windows 10 License - with ZEN software installation and system integration of respective system - for Celldiscoverer 7, LSM 900, LSM 980, Elyra 7, Lattice SIM, Axioscan 7, Lattice Lightsheet - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 000000-2615-590 Processor Intel Xeon W5-3425 (HP Z8 G5) (O) Processor Intel Xeon W5-3425 (HP Z8 G5) (O) Item no.: 410330-1100-000 Processor Intel Xeon W5-3425 (HP Z8 G5) (O) Default processor configuration - Intel Xeon W5-3425 (3.2 GHz, 30 MB cache, 12 cores) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 410330-1100-000 Graphics Card NVIDIA RTX A4000 16 GB DP (O) Graphics Card NVIDIA RTX A4000 16 GB DP (O) Item no.: 410331-2800-000 Graphics Card NVIDIA RTX A4000 16 GB DP (O) Professional graphics card for Microscopy Workstation - 16 GB GDDR6 memory - PCI Express 4.0 Interface x16 - Hardware acceleration of DirectX 12.07, OpenGL 4.68 and CUDA - Support for up to four displays - Display outputs: 4 x DisplayPort 1.4a (DP) - DisplayPort support for 4 x 32" Display (3840 x 2160 Pixel) Item no.: 410331-2800-000 Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) Item no.: 410303-3206-000 Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) consisting of 1 x 32 GB module - DDR5 4800 MHz ECC registered DIMM - can be extended to 64 GB (2 x 410303-3206-000), 128 GB (4 x 410303- 3206-000) or 256 GB (8 x 410303-3206-000) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 410303-3206-000 Language Pack English US (O) Language Pack English US (O) Item no.: 410380-0200-000 Language Pack English US (O) - Keyboard with English (US) layout Item no.: 410380-0200-000 Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O) Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O) Item no.: 410350-2408-000 Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O) Visible diagonal: 61 cm, 16:10 Maximum resolution: 1920 x 1200 pixel @ 100 Hz Brightness: 350 nits Contrast: 1500:1 Viewing angle: horizontal 178 degree, vertical 178 degree Video input: DisplayPort1.2, HDMI 1.4 Data connectors: 4 x USB Type-A 5Gbps Power consumption: Maximum 69 W, Typical 36 W, Standby 0.5 W Dimensions incl. stand (H x W x D): 52.14 cm x 53.17 cm x 19.5 cm Weight incl. stand: 4.8 kg Ergonomic features:Tilt: -5°to +20°, Swivel:-45° to +45°, Height adjustable 15 cm, Pivot rotation: -90° to +90° Certification and compliance: CE, CB, GS, TÜV, FCC, TCO Operating voltage: 100-240 V, country-specific power cable Item no.: 410350-2408-000	Image processing Microscopy Camera Axiocam 705 pol R2 (D) Microscopy Camera Axiocam 705 pol R2 (D) Item no.: 426560-9071-000 Microscopy Camera Axiocam 705 pol R2 (D) High Performance microscopy camera incl. driver software 64 bit USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and protection glass (wideband coated) Sensor Type: SONY IMX250 MZ Exmor CMOS, SONY Pregius Global Shutter Monochrome with 2x2 pixel specific polarization filter mask (90°, 45°, 135°, 0°) Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel Pixel Size: 3.45 µm x 3.45 µm Chip Size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral Range: With protection glass approx. 350 nm to 1000 nm Full Well Capacity: Approx. 11,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (1x1) 2464 x 2056 1x1 Basic Resolution 816 x 684 3x3 480 x 410 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) Live Frame Rates: (1 ms exposure, default setting, simplified color coding) H x V Frame Rate (fps) 2464 x 2056 25 (1ms exposure time, ROI 1920 x 1080, standard color coding) H x V Frame Rate (fps) 1920 x 1080 5,5 Read Noise Full Well Capacity Dynamic Range (at gain) 2.20 e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000 e 1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600 Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, adjustable over or under-exposure mode, optional measurement on defined target area (spot- meter) Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: <0.5 e/p/s @ 18 °C sensor temperature Cooling: Stabilized temperature to 18 °C (for ambient temperatures from 18 °C to 30 °C) Exposure Time Range: 0.1ms to 60 s Hardware Trigger: Trigger-In for exposure time control, Trigger-Out for exposure time, readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: USB 3.0 (Optional operation withUSB 2.0 at reduced frame rate) Optical Interface: C-Mount Thread Depth for Objectives: max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 5,1 cm (2.3"x 3.2" x 2,0") / 580 g Housing: blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by USB 3.0 und USB 2.0, max. 7 W consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The required application software is available via the ZEISS Download Center. Item no.: 426560-9071-000 Microscopy Workstation Premium (HP Z8 G5) (O) Microscopy Workstation Premium (HP Z8 G5) (O) Item no.: 410203-9914-000 Microscopy Workstation Premium (HP Z8 G5) (O) HP Z8 Fury G5 Workstation - Chipset: Intel W790 - Memory Expansion Slots: 16 x DDR5, RDIMM, ECC, 4800 MHz Modules - Memory: max. 1024 GB RAM - PCI Express Connectors: 2 x PCI Express Generation5 x16 1 x PCI Express Generation 5 x4 2 x PCI Express Generation 4 x16 2 x PCI Express Generation 4 x4 1 x PCI Express Generation 3 x8 - SSD: 1 x 2 TB M.2 NVMe - Hard Drives: 2 x 12 TB SATA 7200 rpm (configured as 10 TB RAID 1hard drive) - Network Controller: 2 x GbE LAN interface (RJ 45) - USB: 2 x USB 3.2 Gen2x2 type C (front), 8 x USB 3.1 Gen 1 type A (2 x front, 6 x rear) - Certifications <(>&<)> Declarations: CE, CSA, UL, CCC, KCC - Power Supply: 100 - 240 V / 50 - 60 Hz / 1450 W with country specific plug - Chassis Dimensions: (H x W x D): 445 x 216 x 555 mm - USB Mouse, Recovery kit Item no.: 410203-9914-000 Processor Intel Xeon W5-3425 (HP Z8 G5) (O) Processor Intel Xeon W5-3425 (HP Z8 G5) (O) Item no.: 410330-1100-000 Processor Intel Xeon W5-3425 (HP Z8 G5) (O) Default processor configuration - Intel Xeon W5-3425 (3.2 GHz, 30 MB cache, 12 cores) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 410330-1100-000 Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) Item no.: 410303-3206-000 Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) consisting of 1 x 32 GB module - DDR5 4800 MHz ECC registered DIMM - can be extended to 64 GB (2 x 410303-3206-000), 128 GB (4 x 410303- 3206-000) or 256 GB (8 x 410303-3206-000) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 410303-3206-000 Graphics Card NVIDIA RTX A2000 12 GB (O) Graphics Card NVIDIA RTX A2000 12 GB (O) Item no.: 410331-3000-000 Graphics Card NVIDIA RTX A2000 12 GB (O) Professional graphics card for Microscopy Workstation - 12 GB GDDR6 memory - PCI Express 4.0 Interface x16 - Hardware acceleration of DirectX 12.07, OpenGL 4.68 and CUDA - Support for up to four displays - Display outputs: 4 x MiniDisplayPort 1.4 (mDP) - DisplayPort support for 4 x 32" Display (3840 x 2160 Pixel) Item no.: 410331-3000-000 System Configuration 2 for HP Z8 G5 (O) System Configuration 2 for HP Z8 G5 (O) Item no.: 000000-2615-590 System Configuration 2 for HP Z8 G5 (O) Installation of Windows 10 IoT Enterprise LTSC 2021 x64 incl. Windows 10 License - with ZEN software installation and system integration of respective system - for Celldiscoverer 7, LSM 900, LSM 980, Elyra 7, Lattice SIM, Axioscan 7, Lattice Lightsheet - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 000000-2615-590 Language Pack English US (O) Language Pack English US (O) Item no.: 410380-0200-000 Language Pack English US (O) - Keyboard with English (US) layout Item no.: 410380-0200-000 Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O) Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O) Item no.: 410350-2408-000 Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O) Visible diagonal: 61 cm, 16:10 Maximum resolution: 1920 x 1200 pixel @ 100 Hz Brightness: 350 nits Contrast: 1500:1 Viewing angle: horizontal 178 degree, vertical 178 degree Video input: DisplayPort1.2, HDMI 1.4 Data connectors: 4 x USB Type-A 5Gbps Power consumption: Maximum 69 W, Typical 36 W, Standby 0.5 W Dimensions incl. stand (H x W x D): 52.14 cm x 53.17 cm x 19.5 cm Weight incl. stand: 4.8 kg Ergonomic features:Tilt: -5°to +20°, Swivel:-45° to +45°, Height adjustable 15 cm, Pivot rotation: -90° to +90° Certification and compliance: CE, CB, GS, TÜV, FCC, TCO Operating voltage: 100-240 V, country-specific power cable Item no.: 410350-2408-000	Image processing Microscopy Camera Axiocam 807 mono (D) Microscopy Camera Axiocam 807 mono (D) Item no.: 426560-9160-000 Microscopy Camera Axiocam 807 mono (D) High performance microscopy monochrome camera incl. driver software 64bit, Interface card USB 3.1 Gen2 PCIe x4, dual USB 3.0 cable 3 m Sensor Type: CMOS, monochrome, Global Shutter, Sony IMX420 Number of Pixels: 3216 (H) x 2208 (V) = 7.1 Mega Pixels Pixel Size: 4.5 µm x 4.5 µm Chip Size: 14.5 mm x 9.9 mm, equivalent to 1.1" (17,6 mm diagonal) Spectral Range: With protection glass, 350 nm to 1000 nm Peak QE: 78% @ 520 nm (typ.) Full Well Capacity: Approx. 25,000 e- at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (digital) 3216 x 2208 1x1 basic pixel count 1608 x 11042x2 1072 x 991 3x3 884 x 743 4x4 643 x 594 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor (full field of view) 3216x2208 1x1 1608 x 1104 2x2 Live frame rates (depending on hardware and software configuration): Exp. Time 1ms H x V Frame Rate 3216 x 2208 >30 fps (High Res mode) 1602 x 1104>30 fps (Fast Mode, reduced CPU load) Frame rates for time series recording (1 ms exposure, further depending on sensor ROI, hardware and software configuration) H x V (ROI) Frame Rate (fps) 3216 x 2208 73 1929 x 1080 145 1608 x 1104 260 (2x2 subsampling; full field of view) 1024 x 1024 151 512 x 512 282 1920 x 256 487 Read Noise Full Well Capacity Dynamic Range (at gain) 5.7 e (1x) 25,000 e 1:4420 4.6 e (2x) 12,500 e 1:2730 3.9 e (4x) 6,250 e 1:1610 3.4 e (8x) 3,125 e 1: 930 2.9 e (16x) 1,500 e 1: 530 Low Noise Mode: 4.0 e 25,000 e 1:25,000 SoftwareSupported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, Adjustable over or under-exposure mode, Optional measurement on defined target area (spot-meter), Image sharpening, Dark current compensation, Single pixel noise correction Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.3 e/p/s @ 25 °C sensor temperature Cooling: Stabilized temperature to 25 °C (mounted on microscope, free air flow, ambient temp. 22 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control Trigger-Out for exposure time Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: Dual USB 3.0 SuperSpeed,2 x 5 Gbit/s for data and power supply (optional single USB 3.0 at lower frame rates and without cooling) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 6.1 cm (4.2"x 3.1" x 2.4")/ 620 g Housing: Blue anodized aluminum, with cooling fins on top 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by Dual USB 3.0, 5V, max. 7 W powerconsumption Environmental Conditions: 5 °C to 35 °C, max.80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Enterprise Supported Application Software: ZEN 3.6 (blue edition) or higher, ZEN 3.5 core or higher The required application software is provided via ZEISS Microscopy Installer or ZEISS Download Center. Item no.: 426560-9160-000 Trigger Cable Set Axiocam 5xx/7xx (D) Trigger Cable Set Axiocam 5xx/7xx (D) Item no.: 426557-0001-000 Trigger Cable Set Axiocam 5xx/7xx/8xx (D) for direct shutter synchronization using trigger board with signal distribution box, Colibri or HXP 120 V Item no.: 426557-0001-000
Reflected-light illumination	Reflected-light illumination	Reflected-light illumination	Reflected-light illumination	Reflected-light illumination	Reflected-light illumination	Reflected-light illumination	Reflected-light illumination Stop slider mot. with centerable luminous-field diaphragm Stop slider mot. with centerable luminous-field diaphragm Item no.: 423612-9901-000 Stop slider mot. with centerable luminous-field diaphragm Item no.: 423612-9901-000	Reflected-light illumination	Reflected-light illumination	Reflected-light illumination Stop slider mot. with centerable luminous-field diaphragm Stop slider mot. with centerable luminous-field diaphragm Item no.: 423612-9901-000 Stop slider mot. with centerable luminous-field diaphragm Item no.: 423612-9901-000
Stand accessories	Stand accessories	Stand accessories	Stand accessories	Stand accessories	Stand accessories	Stand accessories	Stand accessories	Stand accessories Table-top base for MARC Table-top base for MARC Item no.: 435604-9010-000 Table-top base for MARC to accept Coaxial MARC, allows positioning on the desk as required; incl. cable CAN RJ45 1.0m Item no.: 435604-9010-000	Stand accessories	Stand accessories
Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories	Stages and accessories Specimen holder CorrMic MAT Universal B Rev.2 (D) Specimen holder CorrMic MAT Universal B Rev.2 (D) Item no.: 432335-9102-000 Specimen holder CorrMic MAT Universal B Rev.2 (D) for mounting various specimens. Mount for three metallurgical specimens: - 1 specimen d=40 mm or 1x d=30 mm via adapter - 2 specimens d=1" or 1x d=1" and via adapter 1x d=1/2" Holder for thin specimens: - mount for 2 SEM stubs with 1" surface and 1/8" pin Delivery content: - incl. SEM stubs with 1" surface and 1/8" pin, 10 pc. - incl. 3 calibration markers for Correlative Microscopy - incl. SEM adapter - incl. Adapter plate 96x86 and installation aid Compatibility: - compatible with airlock 80 mm - compatible with AURIGA Laser 4" Kleinstage Item no.: 432335-9102-000 Mounting frame for Specimen holder CorrMic MAT; 96x86 (D) Mounting frame for Specimen holder CorrMic MAT; 96x86 (D) Item no.: 432335-9080-000 Mounting frame for Specimen holder CorrMic MAT; 96x86 (D) - frame size 160x116 Item no.: 432335-9080-000 Adapter plate CorrMic with SEM interface; 160x116 (D) Adapter plate CorrMic with SEM interface; 160x116 (D) Item no.: 432335-9181-000 Adapter plate CorrMic with SEM interface; 160x116 (D) - for mounting of specimen holders CorrMic MAT with SEM adapter - plate size 160x116 Item no.: 432335-9181-000	Stages and accessories Mounting frame and specimen holder four samples (D) Mounting frame and specimen holder four samples (D) Item no.: 432321-9130-000 Mounting frame and specimen holder four samples (D) The mounting frame with integrated sample holder is accessory for technical cleanliness and applicable for four filter membranes with diameter 47 mm. Item no.: 432321-9130-000	Stages and accessories
Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components	Measuring and counting components Stage micrometer for reflected light 5 + 100/100y d=0mm Stage micrometer for reflected light 5 + 100/100y d=0mm Item no.: 474027-0000-000 Stage micrometer for reflected light 5 + 100/100y d=0mm - 5 lines with 1mm intervals in y-direction - 100 lines with 1/100mm intervals in y-direction Item no.: 474027-0000-000	Measuring and counting components
Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices	Control devices Joystick XY; CAN (D) Joystick XY; CAN (D) Item no.: 432903-9011-000 Joystick XY; CAN (D) for mechanical stages mot; CAN, scanning stages; CAN and stage controller XY STEP SMC 2009 - 2 speed ranges selectable - direct cable connection to CAN stage or to stage controller XY STEP SMC 2009 Item no.: 432903-9011-000	Control devices
Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing ZEN core 3.9 ZEN core 3.9 Item no.: 410135-0011-390 ZEN core 3.9 Software suite for microscope image acquisition, processing, analysis, and data connectivity. - Configurable graphical user interface including workbench concept for customized routine jobs and workflows - Full integration of the ZEISS microscopes (incl. Visioner 1) that can be configured in MicroToolbox, Axiocam cameras and additional components - Interactive and automatic control of the individual motorized microscope components and transfer of information from encoded components into the software - Image acquisition with b/w, rgb, high-resolution and high-sensitivity cameras - HDR, Panorama, and manual Extended Depth of Focus (EDF) acquisitions - Basic image acquisition on electron microscopes - Image processing: standard operations for image optimization (contrast, brightness, gamma, colors, smoothing, sharpening, geometric corrections...) - Interactive/dimensional measurements, including online measurements on the live image - Input Form Designer with automated customer data import - Report creation and modification of Microsoft Word report templates using ZEN Word add-in - Data Archive for managing and maintaining documents: searching, filtering, tagging, viewing, re-opening, structuring, exporting, importing (any file format via drag n drop) - User Management for multi-user environment incl. full integration into the Windows multi-user functionality - Connectivity to ZEN Data Storage image database - Contains ZEN Connect basic functionality, 2D CAD overlay, topography viewer for 2.5D visualization of EDF Images incl. profile line measurement, QUAL Data Export - arivis Cloud connector enables the execution of customized solutions by integrating modules from the arivis Cloud platform Supported operating systems: Windows 10 (64-Bit) Item no.: 410135-0011-390 ZEN Module Technical Cleanliness Analysis ZEN Module Technical Cleanliness Analysis Item no.: 410136-0128-350 ZEN Module Technical Cleanliness Analysis Software module for evaluation of particulate contamination on prepared specimen. The following standards for component cleanliness, oil cleanliness, air cleanliness and cleanliness of medical products are supported: VDA 19.1, ISO 16232, ISO 4406, ISO 4407, NAS 1638, SAE AS 4059,VDA 19.2, VDI 2083 (Sheet 21). The scope of delivery includes preconfigured automated workflows for technical cleanliness analysis and rating of single or multiple specimen for the user roles Supervisor and Operator. Provided job templates (I-V): Workflow Creator Wizard for application guided selection and auto-generation of the following job templates for technical cleanliness analysis: - The workflows I - III are operable with acquired or loaded images. - The correlative workflows IV - V require image acquisition. (I) automated workflow for acquisition of multichannel images with different polarization directions in combination with Axiocam 705 pol mainly for the evaluation of component cleanliness and the rating of technical cleanliness of medical products. The use of latest camera sensor technology with on-chip polarization enables a workflow with one single specimen acquisition instead of double image acquisition of the complete specimen area with different contrast methods. This leads to a significant time saving. (II) automated workflow for acquisition of single channel images mainly for oil analysis. (III) automated workflow for component cleanliness testing with AI-based object classification. Contains trainable, pre-trained models for AI- based analysis of multichannel images with different polarization directions. Training of the delivered machine learning models requires ZEN Toolkit AI . (IV) light microscope workflow for correlative technical cleanliness analysis (component and oil cleanliness) with automated and/or manual particle selection for subsequent SEM/EDS analysis in Free Mode. Requires in addition ZEN Toolkit Connect. (V) light microscope workflow for correlative component cleanliness analysis with AI-based object classification. Contains trainable, pre- trained models for AI-based analysis of multichannel images with different polarization directions. Supports automated and/or manual particle selection for subsequent SEM/EDS analysis in Free Mode. Training of the delivered machine learning models requires ZEN Toolkit AI. Requires in addition ZEN Toolkit Connect. The job templates cover image acquisition, image analysis and image processing, result presentation in interactive views for fast inspection and revision of detected particles, reports with results of characteristic values and standard specific methods per tested specimen. Automated storage of generated results and inspection views in the data archive. Inspection and export of archived data. (VI) post analysis workflow from archived data for calculation and interpretation of results to monitor air particles using particle traps supporting VDA 19.2 The job templates cover image acquisition, image analysis and image processing, result presentation in interactive views for fast inspection and revision of detected particles, reports with results of characteristic values and standard specific methods per tested specimen. Automated storage of generated results and inspection views in the data archive. Inspection and export of archived data. Item no.: 410136-0128-350 ZEN Toolkit Motorized Acquisition ZEN Toolkit Motorized Acquisition Item no.: 410136-0165-390 ZEN Toolkit Motorized Acquisition Acquire images and control motorized components in multi-dimensional experiments. This package allows to acquire tiles, multi-position and z-stack images using motorized components. These can be combined with the included autofocus and direct processing. z-stack and enhanced depth of focus functionality: - definition of the Z-stack in "Start/Stop" and "Center" mode - size of the configurable Z-stack and number of possible Z-planes only limited by the travel range of the system and the minimum increment - "Optimal" button to automatically set the correct increment to satisfy the Nyquist criterion - integrated Z-drive backlash compensation for maximum precision and reproducibility - extraction of the sharp details from individual images at various focus positions and combination into an image with high depth of field Tiles <(>&<)> Positions - automatic scanning of predefined sample areas - acquisition of images according to a position list - support of focus correction maps, stitching and shading correction - compatible with software autofocus Software Autofocus: - determination of the optimal focus position in the sample - the autofocus works with transmitted, reflected and fluorescence light - definition of an autofocus region in the camera image Item no.: 410136-0165-390	Software for image processing ZEN 3.11 ZEN 3.11 Item no.: 410135-0002-311 ZEN 3.11 Image acquisition and processing under Windows 10 / Windows 11 x64 User interface configurable, control of the ZEISS microscope systems and components, extensive acquisition and analysis, CZI image format The following functions are included: - Basic 3D viewing - Colocalization - Connect basic - Direct processing - Manual EDF - Measurement - Panorama - Spectral unmixing - ZEN Data Storage Client - Acquisition Base (time series and multichannel) Item no.: 410135-0002-311
Apotome	Apotome	Apotome	Apotome	Apotome	Apotome	Apotome	Apotome	Apotome	Apotome	Apotome Slider assembly Apotome 3 for Axio Zoom.V16 Slider assembly Apotome 3 for Axio Zoom.V16 Item no.: 423667-9210-000 Slider assembly Apotome 3 for Axio Zoom.V16 consisting of: slider with control electronics and transmission grids with 3 frequencies, reflector module calibration Apotome ACR P&C for LED and white light source, mirror and fluorescence test slides, cable CAN-BUS, case. Item no.: 423667-9210-000
