Microscope Axio Imager.Z2 for transmitted-light bright field, with phototube 30°/25. With motorized convenience.
Microscope Axio Imager.Z2 for transmitted-light bright field...
example picture
Microscope Axio Imager.Z2
Item no.:
490016-0002-000
Microscope Axio Imager.Z2
Item no.:
490016-0002-000
Microscope Axio Imager.Z2 for epi-fluorescence in combination with transmitted-light bright field and phase contrast, with phototube 30°/25. With motorized convenience.
Microscope Axio Imager.Z2 for epi-fluorescence in combinatio...
example picture
Microscope Axio Imager.Z2 ACR
Item no.:
490016-0003-000
Microscope Axio Imager.Z2 ACR
Item no.:
490016-0003-000
Microscope Axio Imager.Z2 ACR for epi-fluorescence in combination with transmitted-light bright field and DIC. Phototube 30°/25 with motorized eyepiece shutter. With motorized convenience.
Microscope Axio Imager.Z2 ACR for epi-fluorescence in combin...
example picture
Axio Imager.Z2 complete system for Correlative Microscopy
Item no.:
490016-0012-000
Axio Imager.Z2 complete system for Correlative Microscopy
Item no.:
490016-0012-000
Axio Imager.Z2 complete system for Correlative Microscopy in Life Sciences with epi-fluorescence in combination with transmitted-light bright field and DIC
Axio Imager.Z2 complete system for Correlative Microscopy in...
example picture
Axio Imager.Z2 complete system for Correlative Array Tomography (CAT)
Item no.:
490016-0011-000
Axio Imager.Z2 complete system for Correlative Array Tomography (CAT)
Item no.:
490016-0011-000
Axio Imager.Z2 complete system for Correlative Array Tomography (CAT) with epi-fluorescence in combination with transmitted light bright field and phase contrast
Axio Imager.Z2 complete system for Correlative Array Tomogra...
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Item no.:
430000-9902-000
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor - heavy duty focusing drive motorized, stepsize 10 nm, with fine drive knob and fine drive disk, flat with scale, changeable - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - transmitted-light illumination mot. - external power unit 12V DC 100W, stabilized, 100V...240V AC/50...60Hz/230VA, - USB cable and country-specific line cable
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Item no.:
430000-9902-000
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor - heavy duty focusing drive motorized, stepsize 10 nm, with fine drive knob and fine drive disk, flat with scale, changeable - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - transmitted-light illumination mot. - external power unit 12V DC 100W, stabilized, 100V...240V AC/50...60Hz/230VA, - USB cable and country-specific line cable
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Item no.:
430000-9902-000
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor - heavy duty focusing drive motorized, stepsize 10 nm, with fine drive knob and fine drive disk, flat with scale, changeable - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - transmitted-light illumination mot. - external power unit 12V DC 100W, stabilized, 100V...240V AC/50...60Hz/230VA, - USB cable and country-specific line cable
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Item no.:
430000-9902-000
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor - heavy duty focusing drive motorized, stepsize 10 nm, with fine drive knob and fine drive disk, flat with scale, changeable - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - transmitted-light illumination mot. - external power unit 12V DC 100W, stabilized, 100V...240V AC/50...60Hz/230VA, - USB cable and country-specific line cable
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Item no.:
430000-9902-000
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor - heavy duty focusing drive motorized, stepsize 10 nm, with fine drive knob and fine drive disk, flat with scale, changeable - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - transmitted-light illumination mot. - external power unit 12V DC 100W, stabilized, 100V...240V AC/50...60Hz/230VA, - USB cable and country-specific line cable
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Item no.:
430000-9902-000
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor - heavy duty focusing drive motorized, stepsize 10 nm, with fine drive knob and fine drive disk, flat with scale, changeable - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - transmitted-light illumination mot. - external power unit 12V DC 100W, stabilized, 100V...240V AC/50...60Hz/230VA, - USB cable and country-specific line cable
Item no.:
430000-9902-000
Fine drive disk, flat with scala for Axio Imager 2, changeable
Fine drive disk, flat with scala for Axio Imager 2, changeable
Item no.:
430051-9010-000
Fine drive disk, flat with scala for Axio Imager 2, changeable
Item no.:
430051-9010-000
Camera path deflection on the left side, mot., interface 60N
Camera path deflection on the left side, mot., interface 60N
Item no.:
425104-0000-000
Camera path deflection on the left side, mot., interface 60N motorized slider with 2 switching positions, pos. 1 = 100% vis, pos. 2 for the optional mounting of path-deflecting mirror 100% = 100% doc or beam splitter 50% = 50% vis : 50% doc
Item no.:
425104-0000-000
Path deflecting mirror 100% for camera deflection, 34x46x4 mm
Path deflecting mirror 100% for camera deflection, 34x46x4 mm
Item no.:
425110-9110-000
Path deflecting mirror 100% for camera deflection, 34x46x4 mm
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Item no.:
430000-9902-000
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor - heavy duty focusing drive motorized, stepsize 10 nm, with fine drive knob and fine drive disk, flat with scale, changeable - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - transmitted-light illumination mot. - external power unit 12V DC 100W, stabilized, 100V...240V AC/50...60Hz/230VA, - USB cable and country-specific line cable
Item no.:
430000-9902-000
Fine drive disk, flat with scala for Axio Imager 2, changeable
Fine drive disk, flat with scala for Axio Imager 2, changeable
Item no.:
430051-9010-000
Fine drive disk, flat with scala for Axio Imager 2, changeable
Item no.:
430051-9010-000
Camera path deflection on the left side, interface 60N
Camera path deflection on the left side, interface 60N
Item no.:
425103-0000-000
Camera path deflection on the left side, interface 60N slider with 2 switching positions, pos. 1 = 100% vis, pos. 2 for the optional mounting of path-deflecting mirror 100% = 100% doc or beam splitter 50% = 50% vis : 50% doc
Item no.:
425103-0000-000
Path deflecting mirror 100% for camera deflection, 34x46x4 mm
Path deflecting mirror 100% for camera deflection, 34x46x4 mm
Item no.:
425110-9110-000
Path deflecting mirror 100% for camera deflection, 34x46x4 mm
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Item no.:
430000-9902-000
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor - heavy duty focusing drive motorized, stepsize 10 nm, with fine drive knob and fine drive disk, flat with scale, changeable - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - transmitted-light illumination mot. - external power unit 12V DC 100W, stabilized, 100V...240V AC/50...60Hz/230VA, - USB cable and country-specific line cable
Item no.:
430000-9902-000
Fine drive disk, flat with scala for Axio Imager 2, changeable
Fine drive disk, flat with scala for Axio Imager 2, changeable
Item no.:
430051-9010-000
Fine drive disk, flat with scala for Axio Imager 2, changeable
Item no.:
430051-9010-000
Camera path deflection on the left side, mot., interface 60N
Camera path deflection on the left side, mot., interface 60N
Item no.:
425104-0000-000
Camera path deflection on the left side, mot., interface 60N motorized slider with 2 switching positions, pos. 1 = 100% vis, pos. 2 for the optional mounting of path-deflecting mirror 100% = 100% doc or beam splitter 50% = 50% vis : 50% doc
Item no.:
425104-0000-000
Path deflecting mirror 100% for camera deflection, 34x46x4 mm
Path deflecting mirror 100% for camera deflection, 34x46x4 mm
Item no.:
425110-9110-000
Path deflecting mirror 100% for camera deflection, 34x46x4 mm
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor
Item no.:
430000-9902-000
Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor - heavy duty focusing drive motorized, stepsize 10 nm, with fine drive knob and fine drive disk, flat with scale, changeable - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - transmitted-light illumination mot. - external power unit 12V DC 100W, stabilized, 100V...240V AC/50...60Hz/230VA, - USB cable and country-specific line cable
Double filter wheel, discrete, mot., 2x4 positions each to accept neutral-density filter set and dia. 25 mm color filters. For use in transmitted-light and reflected-light equipments mot.
Double filter wheel, discrete, mot., 2x4 positions each to accept neutral-density filter set and dia. 25 mm color filters. For use in transmitted-light and reflected-light equipments mot.
Item no.:
428301-9901-000
10-position reflector turret mot. ACR, for P&C modules
10-position reflector turret mot. ACR, for P&C modules
Item no.:
424913-0000-000
10-position reflector turret mot. ACR, for P&C modules with automatic filter set and contrast module recognition
Double filter wheel, discrete, mot., 2x4 positions each to accept neutral-density filter set and dia. 25 mm color filters. For use in transmitted-light and reflected-light equipments mot.
Item no.:
428301-9901-000
10-position reflector turret mot. ACR, for P&C modules
10-position reflector turret mot. ACR, for P&C modules
Item no.:
424913-0000-000
10-position reflector turret mot. ACR, for P&C modules with automatic filter set and contrast module recognition
Double filter wheel, discrete, mot., 2x4 positions each to accept neutral-density filter set and dia. 25 mm color filters. For use in transmitted-light and reflected-light equipments mot.
Item no.:
428301-9901-000
10-position reflector turret mot. ACR, for P&C modules
10-position reflector turret mot. ACR, for P&C modules
Item no.:
424913-0000-000
10-position reflector turret mot. ACR, for P&C modules with automatic filter set and contrast module recognition
Double filter wheel, discrete, mot., 2x4 positions each to accept neutral-density filter set and dia. 25 mm color filters. For use in transmitted-light and reflected-light equipments mot.
Item no.:
428301-9901-000
10-position reflector turret mot. ACR, for P&C modules
10-position reflector turret mot. ACR, for P&C modules
Item no.:
424913-0000-000
10-position reflector turret mot. ACR, for P&C modules with automatic filter set and contrast module recognition
Stage carrier, detachable with condenser carrier for Axio Imager
Stage carrier, detachable with condenser carrier for Axio Imager
Item no.:
430707-0000-000
Stage carrier, detachable with condenser carrier for Axio Imager suitable for sample heights from 0 mm up to 25 mm
Item no.:
430707-0000-000

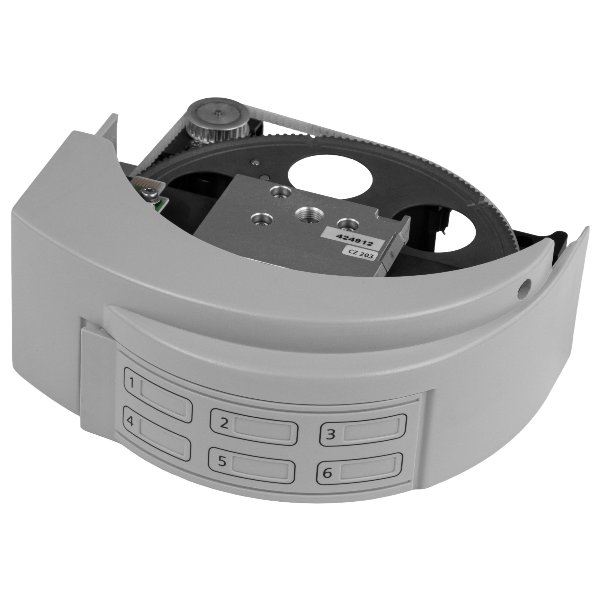

6-position reflector turret mot. for P&C modules
6-position reflector turret mot. for P&C modules
Item no.:
424907-0000-000
6-position reflector turret mot. for P&C modules
Item no.:
424907-0000-000
Docking station for TFT-Display
Docking station for TFT-Display
Item no.:
432907-9901-000
Docking station for TFT-Display upgrading module for the TFT-Display of motorized stands Axio Imager and Axio Observer - free positioning on desktop - Control of z-drive and circular operation key unit - mechanical interface to attach Electronic Coaxial Drive - TFT-Display 30°-45° tiltable
Stage carrier, detachable with condenser carrier for Axio Imager
Stage carrier, detachable with condenser carrier for Axio Imager
Item no.:
430707-0000-000
Stage carrier, detachable with condenser carrier for Axio Imager suitable for sample heights from 0 mm up to 25 mm
Item no.:
430707-0000-000
6-position reflector turret mot. for P&C modules
6-position reflector turret mot. for P&C modules
Item no.:
424907-0000-000
6-position reflector turret mot. for P&C modules
Item no.:
424907-0000-000
Docking station for TFT-Display
Docking station for TFT-Display
Item no.:
432907-9901-000
Docking station for TFT-Display upgrading module for the TFT-Display of motorized stands Axio Imager and Axio Observer - free positioning on desktop - Control of z-drive and circular operation key unit - mechanical interface to attach Electronic Coaxial Drive - TFT-Display 30°-45° tiltable
Transmitted-light/reflected-light stage carrier, detachable for Axio Imager suitable for sample heights from 0 mm up to 45 mm
Item no.:
430704-9901-000
10-position reflector turret mot. ACR, for P&C modules
10-position reflector turret mot. ACR, for P&C modules
Item no.:
424913-0000-000
10-position reflector turret mot. ACR, for P&C modules with automatic filter set and contrast module recognition
Item no.:
424913-0000-000
Docking station for TFT-Display
Docking station for TFT-Display
Item no.:
432907-9901-000
Docking station for TFT-Display upgrading module for the TFT-Display of motorized stands Axio Imager and Axio Observer - free positioning on desktop - Control of z-drive and circular operation key unit - mechanical interface to attach Electronic Coaxial Drive - TFT-Display 30°-45° tiltable
Item no.:
432907-9901-000
Condenser carrier with vertical adjustment on both sides
Condenser carrier with vertical adjustment on both sides
Item no.:
430705-0000-000
Condenser carrier with vertical adjustment on both sides for use with attachable stage carrier, adjustable height stop
Double filter wheel, discrete, mot., 2x4 positions each to accept neutral-density filter set and dia. 25 mm color filters. For use in transmitted-light and reflected-light equipments mot.
Item no.:
428301-9901-000
10-position reflector turret mot. ACR, for P&C modules
10-position reflector turret mot. ACR, for P&C modules
Item no.:
424913-0000-000
10-position reflector turret mot. ACR, for P&C modules with automatic filter set and contrast module recognition
Item no.:
424913-0000-000
Docking station for TFT-Display
Docking station for TFT-Display
Item no.:
432907-9901-000
Docking station for TFT-Display upgrading module for the TFT-Display of motorized stands Axio Imager and Axio Observer - free positioning on desktop - Control of z-drive and circular operation key unit - mechanical interface to attach Electronic Coaxial Drive - TFT-Display 30°-45° tiltable
Illuminator VIS-LED for mounting on the transmitted-light, reflected-light illuminator, included LED lamp module for VIS-LED - color temperature 5600 K - average lifetime > 10,000 hours - control signals: Trigger-input (BNC) for controlling, max. trigger frequency ca. 100 Hz - usable for objectives from 2.5x - incl. neutral-density filter 0.12 D=25x2 for use with digital microscopy cameras
Illuminator VIS-LED for mounting on the transmitted-light, reflected-light illuminator, included LED lamp module for VIS-LED - color temperature 5600 K - average lifetime > 10,000 hours - control signals: Trigger-input (BNC) for controlling, max. trigger frequency ca. 100 Hz - usable for objectives from 2.5x - incl. neutral-density filter 0.12 D=25x2 for use with digital microscopy cameras
Illuminator VIS-LED for mounting on the transmitted-light, reflected-light illuminator, included LED lamp module for VIS-LED - color temperature 5600 K - average lifetime > 10,000 hours - control signals: Trigger-input (BNC) for controlling, max. trigger frequency ca. 100 Hz - usable for objectives from 2.5x - incl. neutral-density filter 0.12 D=25x2 for use with digital microscopy cameras
Illuminator VIS-LED for mounting on the transmitted-light, reflected-light illuminator, included LED lamp module for VIS-LED - color temperature 5600 K - average lifetime > 10,000 hours - control signals: Trigger-input (BNC) for controlling, max. trigger frequency ca. 100 Hz - usable for objectives from 2.5x - incl. neutral-density filter 0.12 D=25x2 for use with digital microscopy cameras
Illuminator VIS-LED for mounting on the transmitted-light, reflected-light illuminator, included LED lamp module for VIS-LED - color temperature 5600 K - average lifetime > 10,000 hours - control signals: Trigger-input (BNC) for controlling, max. trigger frequency ca. 100 Hz - usable for objectives from 2.5x - incl. neutral-density filter 0.12 D=25x2 for use with digital microscopy cameras
Illuminator VIS-LED for mounting on the transmitted-light, reflected-light illuminator, included LED lamp module for VIS-LED - color temperature 5600 K - average lifetime > 10,000 hours - control signals: Trigger-input (BNC) for controlling, max. trigger frequency ca. 100 Hz - usable for objectives from 2.5x - incl. neutral-density filter 0.12 D=25x2 for use with digital microscopy cameras
Mechanical stage 75x50/240° R with hardcoat anodized surface
Mechanical stage 75x50/240° R with hardcoat anodized surface
Item no.:
432001-9902-000
Mechanical stage 75x50/240° R with hardcoat anodized surface - 240 x 170 x 18 mm stage plate - coaxial drive right 150 mm, extendable in length by 15 mm, friction setting without any tools
Item no.:
432001-9902-000
Specimen holder for slide 76x26 mm for one-hand operation
Specimen holder for slide 76x26 mm for one-hand operation
Item no.:
432301-0000-000
Specimen holder for slide 76x26 mm for one-hand operation
Mechanical stage 75x50/240° R with hardcoat anodized surface
Mechanical stage 75x50/240° R with hardcoat anodized surface
Item no.:
432001-9902-000
Mechanical stage 75x50/240° R with hardcoat anodized surface - 240 x 170 x 18 mm stage plate - coaxial drive right 150 mm, extendable in length by 15 mm, friction setting without any tools
Item no.:
432001-9902-000
Specimen holder 76x26, one-hand operation for immersion
Specimen holder 76x26, one-hand operation for immersion
Item no.:
432308-0000-000
Specimen holder 76x26, one-hand operation for immersion (particularly for immersion objectives)
Specimen holder for slide 76x26 mm for one-hand operation
Specimen holder for slide 76x26 mm for one-hand operation
Item no.:
432301-0000-000
Specimen holder for slide 76x26 mm for one-hand operation
Item no.:
432301-0000-000
Scanning Stage 130x85 PIEZO (D)
Scanning Stage 130x85 PIEZO (D)
Item no.:
432022-9903-000
Scanning Stage 130x85 PIEZO (D) for Axio Imager - with linear encoders and piezo drive - travel range 130 mm x 85 mm - max speed 100 mm/s - resolution: 0.1 µm - reproducibility: +/- 0.6 µm - absolute accuracy: +/- 3 µm - travel range adjustable - for mounting frames 160 x 116 mm and Z-PIEZO
Specimen holder CorrMic LS for cover glasses 22x22 mm (D)
Specimen holder CorrMic LS for cover glasses 22x22 mm (D)
Item no.:
432335-9300-000
Specimen holder CorrMic LS for cover glasses 22x22 mm (D) - dimension 76 mm x 26 mm - mounting for cover glasses 22 mm x 22 mm - 3 calibration reference points - incl. cover glasses high performance, D=0.17mm, 22 x 22 mm, box with 200 pc.
Item no.:
432335-9300-000
Mounting frame for two slides 76x26 (D)
Mounting frame for two slides 76x26 (D)
Item no.:
432318-0000-000
Mounting frame for two slides 76x26 (D) - frame size 160x116
Item no.:
432318-0000-000
Scanning Stage 130x85 STEP (D)
Scanning Stage 130x85 STEP (D)
Item no.:
432033-9902-000
Scanning Stage 130x85 STEP (D) for Axio Imager - stepper motor with 2 mm spindle pitch - connection to stepper controller - travel range 130 mm x 85 mm - max speed 50 mm/s - resolution: 0.1 µm - reproducibility: +/- 1 µm - absolute accuracy: +/- 5 µm - travel range adjustable - fixed motor cable with exit on stage back side; left - for mounting frames 160 x 116 mm and Z-PIEZO
Specimen holder CorrMic LS for cover glasses 22x22 mm (D)
Specimen holder CorrMic LS for cover glasses 22x22 mm (D)
Item no.:
432335-9300-000
Specimen holder CorrMic LS for cover glasses 22x22 mm (D) - dimension 76 mm x 26 mm - mounting for cover glasses 22 mm x 22 mm - 3 calibration reference points - incl. cover glasses high performance, D=0.17mm, 22 x 22 mm, box with 200 pc.
Item no.:
432335-9300-000
Mounting frame for two slides 76x26 (D)
Mounting frame for two slides 76x26 (D)
Item no.:
432318-0000-000
Mounting frame for two slides 76x26 (D) - frame size 160x116
Item no.:
432318-0000-000
Scanning Stage 130x85 STEP (D)
Scanning Stage 130x85 STEP (D)
Item no.:
432033-9902-000
Scanning Stage 130x85 STEP (D) for Axio Imager - stepper motor with 2 mm spindle pitch - connection to stepper controller - travel range 130 mm x 85 mm - max speed 50 mm/s - resolution: 0.1 µm - reproducibility: +/- 1 µm - absolute accuracy: +/- 5 µm - travel range adjustable - fixed motor cable with exit on stage back side; left - for mounting frames 160 x 116 mm and Z-PIEZO
Scanning Stage 130x85 STEP (D) for Axio Imager - stepper motor with 2 mm spindle pitch - connection to stepper controller - travel range 130 mm x 85 mm - max speed 50 mm/s - resolution: 0.1 µm - reproducibility: +/- 1 µm - absolute accuracy: +/- 5 µm - travel range adjustable - fixed motor cable with exit on stage back side; left - for mounting frames 160 x 116 mm and Z-PIEZO
Mounting frame for 8 slides 76x26 mm (D) - frame size 313x148
Item no.:
432306-0000-000
Scanning Stage 225x85; PIEZO (D)
Scanning Stage 225x85; PIEZO (D)
Item no.:
432023-9902-000
Scanning Stage 225x85; PIEZO (D) for Axio Imager and SteREO - with linear encoders and piezo drive - travel range 225 mm x 85 mm - max speed 100 mm/s - resolution: 0.1 µm - reproducibility: +/- 0.6 µm - absolute accuracy: +/- 3 µm - for mounting frames 313 x 148
Mounting frame for 8 slides 76x26 mm (D) - frame size 313x148
Item no.:
432306-0000-000
Scanning Stage 225x85; PIEZO (D)
Scanning Stage 225x85; PIEZO (D)
Item no.:
432023-9902-000
Scanning Stage 225x85; PIEZO (D) for Axio Imager and SteREO - with linear encoders and piezo drive - travel range 225 mm x 85 mm - max speed 100 mm/s - resolution: 0.1 µm - reproducibility: +/- 0.6 µm - absolute accuracy: +/- 3 µm - for mounting frames 313 x 148
Mechanical stage 75x50/240° R with hardcoat anodized surface
Mechanical stage 75x50/240° R with hardcoat anodized surface
Item no.:
432001-9902-000
Mechanical stage 75x50/240° R with hardcoat anodized surface - 240 x 170 x 18 mm stage plate - coaxial drive right 150 mm, extendable in length by 15 mm, friction setting without any tools
Item no.:
432001-9902-000
Specimen holder, special, for 2 slides 76x26 mm
Specimen holder, special, for 2 slides 76x26 mm
Item no.:
432303-0000-000
Specimen holder, special, for 2 slides 76x26 mm particularly for use with immersion objectives
Item no.:
432303-0000-000
Cryo microscopy stage CMS196 set for Axio Imager (D)
Cryo microscopy stage CMS196 set for Axio Imager (D)
Item no.:
000000-2362-357
Cryo microscopy stage CMS196 set for Axio Imager (D) Microscope stage set motorized for Cryo CLEM imaging - Travel range: approx. 10.8 mm x 2.8 mm - Measuring system: absolute coding - Resolution: 1 µm - Sample holder: standard EM grids, Autogrid - Glass window for transmitted light PMT imaging, exchangeable with integrated LED fixed-Köhler transmitted light illumination - Temperature range: hold at -196°C - N2 liquid: holding time: 28 min - 3 L Auto Dewar flask, holding time: 4-6 h - Holder for Dewar Flask - Max. objective diameter: 30 mm - Min. free working distance: 1 mm - Stage carrier transmitted-light/reflected-light - Condenser carrier with vertical adjustment on both sides - Adapter plate for Axio Imager - 6x bellows for objectives - Test sample - Control unit for stage - Power supply: universal - Power cord: country specific
Neutral-density filter set D/A, d=25 attenuation up to 0.0028 % possible. For integration in filter wheels, discrete, man. or mot. Not usable for HBO/XBO
Filter set transm. light with neutral-density and color filters, d=25
Filter set transm. light with neutral-density and color filters, d=25
Item no.:
487935-9010-000
Filter set transm. light with neutral-density and color filters, d=25 consisting of 4 neutral-density filters with 1x 25%, 2x 6% and 1x 1.5% transmission, as well as 1x green filter and 1x conversion filter 3200-5500K. For integration in filter wheels, discrete, man. or mot. Not usable for HBO/XBO
Item no.:
487935-9010-000
Filter set 91 HE LED (E)
Filter set 91 HE LED (E)
Item no.:
489091-9110-000
Filter set 91 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like CFP, YFP and mCherry with excitation wavelengths 430, 508 and 590 nm. Contains beam splitter TBS 450 + 538 + 610 and emission filter TBP 467/24 + 555/25 + 687/145.
Item no.:
489091-9110-000
Filter Set 112 HE LED (E)
Filter Set 112 HE LED (E)
Item no.:
489112-9110-000
Filter Set 112 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like DAPI, FITC, DsRed, Cy5 and Cy7 with excitation wavelengths 385, 475, 555, 630 and 735 nm. Contains beam splitter PBS 405 + 493 + 575 + 654 + 761 and emission filter PBP 425/30 + 514/31 + 592/25 + 681/45 + 785/38.
Neutral-density filter set D/A, d=25 attenuation up to 0.0028 % possible. For integration in filter wheels, discrete, man. or mot. Not usable for HBO/XBO
Item no.:
487931-9901-000
Filter Set 112 HE LED (E)
Filter Set 112 HE LED (E)
Item no.:
489112-9110-000
Filter Set 112 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like DAPI, FITC, DsRed, Cy5 and Cy7 with excitation wavelengths 385, 475, 555, 630 and 735 nm. Contains beam splitter PBS 405 + 493 + 575 + 654 + 761 and emission filter PBP 425/30 + 514/31 + 592/25 + 681/45 + 785/38.
Item no.:
489112-9110-000
Filter set 91 HE LED (E)
Filter set 91 HE LED (E)
Item no.:
489091-9110-000
Filter set 91 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like CFP, YFP and mCherry with excitation wavelengths 430, 508 and 590 nm. Contains beam splitter TBS 450 + 538 + 610 and emission filter TBP 467/24 + 555/25 + 687/145.
Neutral-density filter set D/A, d=25 attenuation up to 0.0028 % possible. For integration in filter wheels, discrete, man. or mot. Not usable for HBO/XBO
Item no.:
487931-9901-000
Filter set 38 Endow GFP shift free (E)
Filter set 38 Endow GFP shift free (E)
Item no.:
000000-1031-346
Filter set 38 Endow GFP shift free (E) EX BP 470/40, BS FT 495, EM BP 525/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
000000-1031-346
Filter set 20 Rhodamin shift free (F)
Filter set 20 Rhodamin shift free (F)
Item no.:
488020-9901-000
Filter set 20 Rhodamin shift free (F) EX BP 546/12, BS FT 560, EM BP 575-640
Item no.:
488020-9901-000
Filter set 49 DAPI shift free (E)
Filter set 49 DAPI shift free (E)
Item no.:
488049-9901-000
Filter set 49 DAPI shift free (E) EX G 365, BS FT 395, EM BP 445/50
Item no.:
488049-9901-000
Conversion filter 5700-3200 K, d=25 mm
Conversion filter 5700-3200 K, d=25 mm
Item no.:
427809-9010-000
Conversion filter 5700-3200 K, d=25 mm for adapting the LED light to the color impression of halogen light
Neutral-density filter set D/A, d=25 attenuation up to 0.0028 % possible. For integration in filter wheels, discrete, man. or mot. Not usable for HBO/XBO
Item no.:
487931-9901-000
Filter set 38 Endow GFP shift free (E)
Filter set 38 Endow GFP shift free (E)
Item no.:
000000-1031-346
Filter set 38 Endow GFP shift free (E) EX BP 470/40, BS FT 495, EM BP 525/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
000000-1031-346
Filter set 20 Rhodamin shift free (F)
Filter set 20 Rhodamin shift free (F)
Item no.:
488020-9901-000
Filter set 20 Rhodamin shift free (F) EX BP 546/12, BS FT 560, EM BP 575-640
Item no.:
488020-9901-000
Filter set 49 DAPI shift free (E)
Filter set 49 DAPI shift free (E)
Item no.:
488049-9901-000
Filter set 49 DAPI shift free (E) EX G 365, BS FT 395, EM BP 445/50
Item no.:
488049-9901-000
Conversion filter 5700-3200 K, d=25 mm
Conversion filter 5700-3200 K, d=25 mm
Item no.:
427809-9010-000
Conversion filter 5700-3200 K, d=25 mm for adapting the LED light to the color impression of halogen light
Filter set 38 HE eGFP shift free (E) EX BP 470/40, BS FT 495, EM BP 525/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
489038-9901-000
Filter set 64 HE mPlum shift free (E)
Filter set 64 HE mPlum shift free (E)
Item no.:
489064-0000-000
Filter set 64 HE mPlum shift free (E) EX BP 587/25, BS FT 605, EM BP 647/70, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
489064-0000-000
Filter Set 96 HE BFP shift free (E)
Filter Set 96 HE BFP shift free (E)
Item no.:
489096-9100-000
Filter Set 96 HE BFP shift free (E) EX BP 390/40, BS FT 420, EM BP 450/40, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
489096-9100-000
Filter set 43 HE Cy 3 shift free (E)
Filter set 43 HE Cy 3 shift free (E)
Item no.:
489043-9901-000
Filter set 43 HE Cy 3 shift free (E) EX BP 550/25, BS FT 570, EM BP 605/70, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
489043-9901-000
Filter set 90 HE LED (E)
Filter set 90 HE LED (E)
Item no.:
489090-9110-000
Filter set 90 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like DAPI, FITC, TRITC and Cy5 with excitation wavelengths 385, 475, 555 and 630 nm. Contains beam splitter QBS 405 + 493 + 575 + 653 and emission filter QBP 425/30 + 514/30 + 592/25 + 709/100.
Filter Set 96 HE BFP shift free (E) EX BP 390/40, BS FT 420, EM BP 450/40, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
489096-9100-000
Filter set 90 HE LED (E)
Filter set 90 HE LED (E)
Item no.:
489090-9110-000
Filter set 90 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like DAPI, FITC, TRITC and Cy5 with excitation wavelengths 385, 475, 555 and 630 nm. Contains beam splitter QBS 405 + 493 + 575 + 653 and emission filter QBP 425/30 + 514/30 + 592/25 + 709/100.
Item no.:
489090-9110-000
Filter set 38 HE eGFP shift free (E)
Filter set 38 HE eGFP shift free (E)
Item no.:
489038-9901-000
Filter set 38 HE eGFP shift free (E) EX BP 470/40, BS FT 495, EM BP 525/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
489038-9901-000
Filter set 43 HE Cy 3 shift free (E)
Filter set 43 HE Cy 3 shift free (E)
Item no.:
489043-9901-000
Filter set 43 HE Cy 3 shift free (E) EX BP 550/25, BS FT 570, EM BP 605/70, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
489043-9901-000
Filter set 64 HE mPlum shift free (E)
Filter set 64 HE mPlum shift free (E)
Item no.:
489064-0000-000
Filter set 64 HE mPlum shift free (E) EX BP 587/25, BS FT 605, EM BP 647/70, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Filter set 70 HE Alexa 430 shift free (E) EX BP 430/60, BS FT 500, EM BP 550/100, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
489070-0000-000
Filter Set 96 HE BFP shift free (E)
Filter Set 96 HE BFP shift free (E)
Item no.:
489096-9100-000
Filter Set 96 HE BFP shift free (E) EX BP 390/40, BS FT 420, EM BP 450/40, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
489096-9100-000
Filter set 43 HE Cy 3 shift free (E)
Filter set 43 HE Cy 3 shift free (E)
Item no.:
489043-9901-000
Filter set 43 HE Cy 3 shift free (E) EX BP 550/25, BS FT 570, EM BP 605/70, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
489043-9901-000
Filter set 38 HE eGFP shift free (E)
Filter set 38 HE eGFP shift free (E)
Item no.:
489038-9901-000
Filter set 38 HE eGFP shift free (E) EX BP 470/40, BS FT 495, EM BP 525/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
489038-9901-000
Filter set 50 Cy 5 shift free (E)
Filter set 50 Cy 5 shift free (E)
Item no.:
488050-9901-000
Filter set 50 Cy 5 shift free (E) EX BP 640/30, BS FT 660, EM BP 690/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
488050-9901-000
Filter set 64 HE mPlum shift free (E)
Filter set 64 HE mPlum shift free (E)
Item no.:
489064-0000-000
Filter set 64 HE mPlum shift free (E) EX BP 587/25, BS FT 605, EM BP 647/70, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
489064-0000-000
Filter Set 112 HE LED (E)
Filter Set 112 HE LED (E)
Item no.:
489112-9110-000
Filter Set 112 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like DAPI, FITC, DsRed, Cy5 and Cy7 with excitation wavelengths 385, 475, 555, 630 and 735 nm. Contains beam splitter PBS 405 + 493 + 575 + 654 + 761 and emission filter PBP 425/30 + 514/31 + 592/25 + 681/45 + 785/38.
Neutral-density filter set D/A, d=25 attenuation up to 0.0028 % possible. For integration in filter wheels, discrete, man. or mot. Not usable for HBO/XBO
Item no.:
487931-9901-000
Filter set 38 Endow GFP shift free (E)
Filter set 38 Endow GFP shift free (E)
Item no.:
000000-1031-346
Filter set 38 Endow GFP shift free (E) EX BP 470/40, BS FT 495, EM BP 525/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
000000-1031-346
Filter set 43 Cy 3, d=25 shift free (E)
Filter set 43 Cy 3, d=25 shift free (E)
Item no.:
000000-1114-101
Filter set 43 Cy 3, d=25 shift free (E) EX BP 545/25, BS FT 570, EM BP 605/70, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Item no.:
000000-1114-101
Filter set 90 HE LED (E)
Filter set 90 HE LED (E)
Item no.:
489090-9110-000
Filter set 90 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like DAPI, FITC, TRITC and Cy5 with excitation wavelengths 385, 475, 555 and 630 nm. Contains beam splitter QBS 405 + 493 + 575 + 653 and emission filter QBP 425/30 + 514/30 + 592/25 + 709/100.
Item no.:
489090-9110-000
Filter set 92 HE LED (E)
Filter set 92 HE LED (E)
Item no.:
489092-9110-000
Filter set 92 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like DAPI, GFP and mCherry with excitation wavelengths 385, 475 and 590 nm. Contains beam splitter TBS 405 + 493 + 610 and emission filter TBP 425/30 + 524/50 + 688/145.
Item no.:
489092-9110-000
Filter Set 96 HE BFP shift free (E)
Filter Set 96 HE BFP shift free (E)
Item no.:
489096-9100-000
Filter Set 96 HE BFP shift free (E) EX BP 390/40, BS FT 420, EM BP 450/40, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources.
Objective C-Apochromat 63x/1.20 W Corr M27 (CG=0.14-0.19mm) (FWD=0.28mm at CG=0.17mm), UV-VIS-IR incl. Immersol W, bottle 20 ml and Cover glasses, high performance, CG=0.17mm, box with 100 pc.
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Item no.:
424201-9903-000
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Item no.:
424201-9903-000
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Item no.:
424201-9903-000
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Item no.:
424201-9903-000
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Item no.:
424201-9903-000
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Item no.:
424201-9903-000
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Item no.:
424201-9903-000
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot.
Item no.:
424201-9903-000
Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm
Reflected-light illuminator mot. for FL and HD for Axio Imager
Reflected-light illuminator mot. for FL and HD for Axio Imager
Item no.:
423601-9901-000
Reflected-light illuminator mot. for FL and HD for Axio Imager with shutter and with openings for motorized and manual stop sliders and filter wheels. Transmission range 340-1100 nm. With 340 nm and 1100 nm ~40%.
Item no.:
423601-9901-000
Shutter for transmitted-light illumination
Shutter for transmitted-light illumination
Item no.:
423621-9901-000
Shutter for transmitted-light illumination switching time < 200 ms switching frequency max. 2 Hz
Item no.:
423621-9901-000
Shutter high speed, reflected-light for Axio Imager M and Z
Shutter high speed, reflected-light for Axio Imager M and Z
Item no.:
423622-9901-000
Shutter high speed, reflected-light for Axio Imager M and Z switching time < 20 ms switching frequency max. 5 Hz firmware version 06.008 or higher required
Item no.:
423622-9901-000
Antiglare screen
Antiglare screen
Item no.:
452163-0000-000
Antiglare screen
Item no.:
452163-0000-000
FL attenuator, discrete, mot.
FL attenuator, discrete, mot.
Item no.:
423617-0000-000
FL attenuator, discrete, mot. Motorized insert for the aperture stop plane of reflected-light illuminators. Filter wheel with 6 positions. Pos. 1: clear aperture. Pos. 2-6: attenuation with 70, 50, 40, 20 and 2% transmission.
Item no.:
423617-0000-000
Stop slider mot. with centerable luminous-field diaphragm
Stop slider mot. with centerable luminous-field diaphragm
Item no.:
423612-9901-000
Stop slider mot. with centerable luminous-field diaphragm
Item no.:
423612-9901-000
Reflector module FL EC ACR P&C
Reflector module FL EC ACR P&C
Item no.:
424933-0000-000
Reflector module FL EC ACR P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm
Reflected-light illuminator mot. for FL and HD for Axio Imager
Reflected-light illuminator mot. for FL and HD for Axio Imager
Item no.:
423601-9901-000
Reflected-light illuminator mot. for FL and HD for Axio Imager with shutter and with openings for motorized and manual stop sliders and filter wheels. Transmission range 340-1100 nm. With 340 nm and 1100 nm ~40%.
Item no.:
423601-9901-000
Shutter for transmitted-light illumination
Shutter for transmitted-light illumination
Item no.:
423621-9901-000
Shutter for transmitted-light illumination switching time < 200 ms switching frequency max. 2 Hz
Item no.:
423621-9901-000
Shutter high speed, reflected-light for Axio Imager M and Z
Shutter high speed, reflected-light for Axio Imager M and Z
Item no.:
423622-9901-000
Shutter high speed, reflected-light for Axio Imager M and Z switching time < 20 ms switching frequency max. 5 Hz firmware version 06.008 or higher required
Item no.:
423622-9901-000
Antiglare screen
Antiglare screen
Item no.:
452163-0000-000
Antiglare screen
Item no.:
452163-0000-000
Stop slider mot. with centerable luminous-field diaphragm
Stop slider mot. with centerable luminous-field diaphragm
Item no.:
423612-9901-000
Stop slider mot. with centerable luminous-field diaphragm
Item no.:
423612-9901-000
FL attenuator, discrete, mot.
FL attenuator, discrete, mot.
Item no.:
423617-0000-000
FL attenuator, discrete, mot. Motorized insert for the aperture stop plane of reflected-light illuminators. Filter wheel with 6 positions. Pos. 1: clear aperture. Pos. 2-6: attenuation with 70, 50, 40, 20 and 2% transmission.
Item no.:
423617-0000-000
Reflector module FL EC ACR P&C
Reflector module FL EC ACR P&C
Item no.:
424933-0000-000
Reflector module FL EC ACR P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm
Shutter for transmitted-light illumination switching time < 200 ms switching frequency max. 2 Hz
Item no.:
423621-9901-000
Antiglare screen
Antiglare screen
Item no.:
452163-0000-000
Antiglare screen
Item no.:
452163-0000-000
Stop slider with centerable aperture stop
Stop slider with centerable aperture stop
Item no.:
423613-0000-000
Stop slider with centerable aperture stop
Item no.:
423613-0000-000
Stop slider man. with centerable luminous-field diaphragm
Stop slider man. with centerable luminous-field diaphragm
Item no.:
423611-0000-000
Stop slider man. with centerable luminous-field diaphragm slider stop position can be set
Item no.:
423611-0000-000
Reflector module FL EC P&C
Reflector module FL EC P&C
Item no.:
424931-0000-000
Reflector module FL EC P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm
Item no.:
424931-0000-000
Reflected-light illuminator for FL and HD for Axio Imager
Reflected-light illuminator for FL and HD for Axio Imager
Item no.:
423600-0000-000
Reflected-light illuminator for FL and HD for Axio Imager with shutter and with openings for manual stop sliders and filter wheels. Transmission range 340-1100 nm. With 340 nm and 1100 nm ~40%.
Shutter for transmitted-light illumination switching time < 200 ms switching frequency max. 2 Hz
Item no.:
423621-9901-000
Antiglare screen
Antiglare screen
Item no.:
452163-0000-000
Antiglare screen
Item no.:
452163-0000-000
Stop slider with centerable aperture stop
Stop slider with centerable aperture stop
Item no.:
423613-0000-000
Stop slider with centerable aperture stop
Item no.:
423613-0000-000
Slider man. with variable rectangular diaphragm
Slider man. with variable rectangular diaphragm
Item no.:
423615-0000-000
Slider man. with variable rectangular diaphragm Operation via lever adjustment, max. opening = 28 x 28 mm, min. opening = 0.3 x 0.3 mm
Item no.:
423615-0000-000
Reflector module FL EC P&C
Reflector module FL EC P&C
Item no.:
424931-0000-000
Reflector module FL EC P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm
Item no.:
424931-0000-000
Reflected-light illuminator for FL and HD for Axio Imager
Reflected-light illuminator for FL and HD for Axio Imager
Item no.:
423600-0000-000
Reflected-light illuminator for FL and HD for Axio Imager with shutter and with openings for manual stop sliders and filter wheels. Transmission range 340-1100 nm. With 340 nm and 1100 nm ~40%.
Reflector module FL EC P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm
Item no.:
424931-0000-000
Reflected-light illuminator for FL and HD for Axio Imager
Reflected-light illuminator for FL and HD for Axio Imager
Item no.:
423600-0000-000
Reflected-light illuminator for FL and HD for Axio Imager with shutter and with openings for manual stop sliders and filter wheels. Transmission range 340-1100 nm. With 340 nm and 1100 nm ~40%.
Shutter for transmitted-light illumination switching time < 200 ms switching frequency max. 2 Hz
Item no.:
423621-9901-000
Stop slider man. with centerable luminous-field diaphragm
Stop slider man. with centerable luminous-field diaphragm
Item no.:
423611-0000-000
Stop slider man. with centerable luminous-field diaphragm slider stop position can be set
Item no.:
423611-0000-000
Stop slider with centerable aperture stop
Stop slider with centerable aperture stop
Item no.:
423613-0000-000
Stop slider with centerable aperture stop
Item no.:
423613-0000-000
Reflector module FL EC P&C
Reflector module FL EC P&C
Item no.:
424931-0000-000
Reflector module FL EC P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm
Item no.:
424931-0000-000
Reflected-light illuminator for FL and HD for Axio Imager
Reflected-light illuminator for FL and HD for Axio Imager
Item no.:
423600-0000-000
Reflected-light illuminator for FL and HD for Axio Imager with shutter and with openings for manual stop sliders and filter wheels. Transmission range 340-1100 nm. With 340 nm and 1100 nm ~40%.
Reflected-light illuminator mot. for FL and HD for Axio Imager
Reflected-light illuminator mot. for FL and HD for Axio Imager
Item no.:
423601-9901-000
Reflected-light illuminator mot. for FL and HD for Axio Imager with shutter and with openings for motorized and manual stop sliders and filter wheels. Transmission range 340-1100 nm. With 340 nm and 1100 nm ~40%.
Item no.:
423601-9901-000
Shutter for transmitted-light illumination
Shutter for transmitted-light illumination
Item no.:
423621-9901-000
Shutter for transmitted-light illumination switching time < 200 ms switching frequency max. 2 Hz
Item no.:
423621-9901-000
Reflector module FL EC P&C
Reflector module FL EC P&C
Item no.:
424931-0000-000
Reflector module FL EC P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm
Reflected-light illuminator mot. for FL and HD for Axio Imager
Reflected-light illuminator mot. for FL and HD for Axio Imager
Item no.:
423601-9901-000
Reflected-light illuminator mot. for FL and HD for Axio Imager with shutter and with openings for motorized and manual stop sliders and filter wheels. Transmission range 340-1100 nm. With 340 nm and 1100 nm ~40%.
Item no.:
423601-9901-000
Shutter for transmitted-light illumination
Shutter for transmitted-light illumination
Item no.:
423621-9901-000
Shutter for transmitted-light illumination switching time < 200 ms switching frequency max. 2 Hz
Item no.:
423621-9901-000
Antiglare screen
Antiglare screen
Item no.:
452163-0000-000
Antiglare screen
Item no.:
452163-0000-000
Stop slider mot. with centerable aperture stop
Stop slider mot. with centerable aperture stop
Item no.:
423614-9901-000
Stop slider mot. with centerable aperture stop
Item no.:
423614-9901-000
Stop slider mot. with centerable luminous-field diaphragm
Stop slider mot. with centerable luminous-field diaphragm
Item no.:
423612-9901-000
Stop slider mot. with centerable luminous-field diaphragm
Item no.:
423612-9901-000
Reflector module FL EC ACR P&C
Reflector module FL EC ACR P&C
Item no.:
424933-0000-000
Reflector module FL EC ACR P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm
Light Source Viluma 7 FR-R[G/Y]BV-UV 7-channel fluorescence light source with integrated control unit for continuous brightness adjustment, quickly switchable and stable on the long term. With integrated monitor diode for repetitious brightness adjustment. Equipped with 7 excitation lines. Far Red (735 nm) for excitation of Cy7 and similar dyes Red (631 nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Yellow (591 nm) for excitation of mCherry, Alexa 568, mPlum and similar dyes Green(555 nm) for excitation of Cy3, TRITC, DsRed and similar dyes Blue (469 nm) for excitation of eGFP, Fluo4, FITC and similar dyes Violet (423 nm) for excitation of eCFP, Lucifer Yellow, Alexa 430 and similar dyes UV (385 nm) for excitation of DAPI, Alexa 405,Hoechst 33258 and similar dyes A country-specific power cable and a desktop power supply are included in delivery.
Light Source Viluma 7 FR-R[G/Y]BV-UV 7-channel fluorescence light source with integrated control unit for continuous brightness adjustment, quickly switchable and stable on the long term. With integrated monitor diode for repetitious brightness adjustment. Equipped with 7 excitation lines. Far Red (735 nm) for excitation of Cy7 and similar dyes Red (631 nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Yellow (591 nm) for excitation of mCherry, Alexa 568, mPlum and similar dyes Green(555 nm) for excitation of Cy3, TRITC, DsRed and similar dyes Blue (469 nm) for excitation of eGFP, Fluo4, FITC and similar dyes Violet (423 nm) for excitation of eCFP, Lucifer Yellow, Alexa 430 and similar dyes UV (385 nm) for excitation of DAPI, Alexa 405,Hoechst 33258 and similar dyes A country-specific power cable and a desktop power supply are included in delivery.
Illuminator microLED 3 for mounting on the lamp interface for transmitted-light or reflected-light illumination - colour temperature 5700 K - colour rendering index >90
Item no.:
423053-9074-000
Illumination adapter for light guide (D)
Illumination adapter for light guide (D)
Item no.:
423302-0000-000
Illumination adapter for light guide (D) Suitable for HXP 120 and X-Cite 120, coupling diameter of light guide 5 mm
Item no.:
423302-0000-000
Illuminator HXP 120 V (D)
Illuminator HXP 120 V (D)
Item no.:
423013-9010-000
Illuminator HXP 120 V (D) inclusive built in power supply, lamp module and infrared filter. Fluorescence light source with motorized brightness switch and integrated motorized shutter, that works stepper motor controlled, fast and vibration free. With CAN connection for switching the shutter and the motorized brightness switch via ZEN (blue edition) and ZEN 2 (black edition). Interfaces: - 1x CAN (CAN-HD15) - 1x Trigger in (BNC) - 1x Trigger out (BNC) - 1x EXT (BNC) for remote control unit The package includes light guide, cable BNC and cable CAN.
Illuminator microLED 3 for mounting on the lamp interface for transmitted-light or reflected-light illumination - colour temperature 5700 K - colour rendering index >90
Item no.:
423053-9074-000
Illumination adapter for light guide (D)
Illumination adapter for light guide (D)
Item no.:
423302-0000-000
Illumination adapter for light guide (D) Suitable for HXP 120 and X-Cite 120, coupling diameter of light guide 5 mm
Item no.:
423302-0000-000
Illuminator HXP 120 V (D)
Illuminator HXP 120 V (D)
Item no.:
423013-9010-000
Illuminator HXP 120 V (D) inclusive built in power supply, lamp module and infrared filter. Fluorescence light source with motorized brightness switch and integrated motorized shutter, that works stepper motor controlled, fast and vibration free. With CAN connection for switching the shutter and the motorized brightness switch via ZEN (blue edition) and ZEN 2 (black edition). Interfaces: - 1x CAN (CAN-HD15) - 1x Trigger in (BNC) - 1x Trigger out (BNC) - 1x EXT (BNC) for remote control unit The package includes light guide, cable BNC and cable CAN.
Light Source Viluma 7 R[G/Y]B-UV 5-channel fluorescence light source with integrated control unit for continuous brightness adjustment, quickly switchable and stable on the long term. With integrated monitor diode for repetitious brightness adjustment. Equipped with 5 excitation lines. Red (631 nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Yellow (591 nm) for excitation of mCherry, Alexa 568, mPlum and similar dyes Green (555 nm) for excitation of Cy3, TRITC, DsRed andsimilar dyes Blue (469 nm) for excitation of eGFP, Fluo4, FITC and similar dyes UV (385 nm) for excitation of DAPI, Alexa 405, Hoechst 33258 and similar dyes A country-specific power cable and a desktop power supply are included in delivery.
Light Source Viluma 7 R[G/Y]B-UV 5-channel fluorescence light source with integrated control unit for continuous brightness adjustment, quickly switchable and stable on the long term. With integrated monitor diode for repetitious brightness adjustment. Equipped with 5 excitation lines. Red (631 nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Yellow (591 nm) for excitation of mCherry, Alexa 568, mPlum and similar dyes Green (555 nm) for excitation of Cy3, TRITC, DsRed andsimilar dyes Blue (469 nm) for excitation of eGFP, Fluo4, FITC and similar dyes UV (385 nm) for excitation of DAPI, Alexa 405, Hoechst 33258 and similar dyes A country-specific power cable and a desktop power supply are included in delivery.
Light Source Viluma 7 FR-R[G/Y]BV-UV 7-channel fluorescence light source with integrated control unit for continuous brightness adjustment, quickly switchable and stable on the long term. With integrated monitor diode for repetitious brightness adjustment. Equipped with 7 excitation lines. Far Red (735 nm) for excitation of Cy7 and similar dyes Red (631 nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Yellow (591 nm) for excitation of mCherry, Alexa 568, mPlum and similar dyes Green(555 nm) for excitation of Cy3, TRITC, DsRed and similar dyes Blue (469 nm) for excitation of eGFP, Fluo4, FITC and similar dyes Violet (423 nm) for excitation of eCFP, Lucifer Yellow, Alexa 430 and similar dyes UV (385 nm) for excitation of DAPI, Alexa 405,Hoechst 33258 and similar dyes A country-specific power cable and a desktop power supply are included in delivery.
Light Source Viluma 7 R[G/Y]CBV-UV 7-channel fluorescence light source with integrated control unit for continuous brightness adjustment, quickly switchable and stable on the long term. With integrated monitor diode for repetitious brightnessadjustment. Equipped with 7 excitation lines. Red (631 nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Yellow (591 nm) for excitation of mCherry, Alexa 568, mPlum and similar dyes Green (555nm) for excitation of Cy3, TRITC, DsRed and similar dyes Cyan (508 nm) for excitation of eYFP, Eosin, TOTO-1 and similar dyes Blue (469 nm) for excitation of eGFP, Fluo4, FITC and similar dyes Violet (423 nm) for excitation of eCFP, Lucifer Yellow, Alexa 430 and similar dyes UV (385 nm) for excitationof DAPI,Alexa 405, Hoechst 33258 and similar dyes A country-specific power cable and a desktop power supply are included in delivery.
Item no.:
423052-9742-000
Illuminator microLED 3
Illuminator microLED 3
Item no.:
423053-9074-000
Illuminator microLED 3 for mounting on the lamp interface for transmitted-light or reflected-light illumination - colour temperature 5700 K - colour rendering index >90
Item no.:
423053-9074-000
Control Panel for Colibri 5/7 and Viluma 5/7
Control Panel for Colibri 5/7 and Viluma 5/7
Item no.:
423052-9751-000
Control Panel for Colibri 5/7 and Viluma 5/7 with LCD to display the operating state. For LED selection and brightness setting.
4-position modulator turret mot. for transmitted-light DIC
4-position modulator turret mot. for transmitted-light DIC
Item no.:
424707-9001-000
4-position modulator turret mot. for transmitted-light DIC 3 positions for DIC prisms, 1 position for bright field
Item no.:
424707-9001-000
Compensator mount 6x20
Compensator mount 6x20
Item no.:
424705-0000-000
Compensator mount 6x20
Item no.:
424705-0000-000
DIC prism 0, I and II; 5x, 10x, 20x for modulator turret
DIC prism 0, I and II; 5x, 10x, 20x for modulator turret
Item no.:
426924-9000-000
DIC prism 0, I and II; 5x, 10x, 20x for modulator turret for objectives EC PN 5x/0.16 DIC 0, EC PN 10x/0.3 DIC I, EC PN 20x/0.5 DIC II, PA 20x/0.8 DIC II
Item no.:
426924-9000-000
DIC prism III HR 100x for modulator turret
DIC prism III HR 100x for modulator turret
Item no.:
426924-9040-000
DIC prism III HR 100x for modulator turret for objective alpha Plan-Apochromat 100x/1.46
Item no.:
426924-9040-000
DIC prism III 40x for modulator turret
DIC prism III 40x for modulator turret
Item no.:
426924-9010-000
DIC prism III 40x for modulator turret for objectives EC PN 40x/0.75, EC PN 40x/1.30, PA 40x/1.30, PA 40x/0.95, W PA 40x/1.0, PA 40x/1.0
DIC slider EC PN and Fluar 40x/1.30 III, PA 40x/0.95 III
DIC slider EC PN and Fluar 40x/1.30 III, PA 40x/0.95 III
Item no.:
426944-0000-000
DIC slider EC PN and Fluar 40x/1.30 III, PA 40x/0.95 III
Item no.:
426944-0000-000
DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III
DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III
Item no.:
426945-0000-000
DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III
Item no.:
426945-0000-000
Analyzer module DIC ACR P&C shift free for transmitted light
Analyzer module DIC ACR P&C shift free for transmitted light
Item no.:
424932-9901-000
Analyzer module DIC ACR P&C shift free for transmitted light optimized for DIC in transmitted light, not suitable for polarization. Pol filter for imaging free from pixel shift, almost without wedge error.
Item no.:
424932-9901-000
DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II
DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II
Item no.:
426940-0000-000
DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II
Cover glasses with fiducials 20 pc. (YB) Special designed cover glasses with reference markers for correlative microscopy including a 6-digit serial number on each cover glass for a clear assignment of the sample carrier. - Cover glasses coated with indium tin oxide (ITO) - substrate: glass (D263M) - format: 22 +/- 0.1 mm x 22 +/- 0.1 mm x 0.170 +/-0.005 mm - Chromium reference markers covered with ITO - Chrom thickness: 50 +/- 10 nm - size tolerance of the small L marker: +/- 0.003 mm - precision of the distance between chromium structure and edge of the cover glass: +/- 0.1 mm - ITO Rsq = 170 +/- 30 Ohm/sq - ITO Tavg >= 87% for 450-780 nm - Cover glasses compatible with ZEISS specimen holder CorrMic LS for cover glasses 22 x 22 mm Packaging unit: 20 pcs
Stage controller XY PIEZO WSB CAN (D) for scanning stages with PIEZO drive Interfaces: CAN, USB, RS232, Trigger IN, Trigger OUT incl. USB cable, CAN cable and stage cable 90 - 240 V / 40 - 60 Hz; 250 VA, country specific power cord
Item no.:
432901-9904-000
Joystick XY; CAN (D)
Joystick XY; CAN (D)
Item no.:
432903-9011-000
Joystick XY; CAN (D) for mechanical stages mot; CAN, scanning stages; CAN and stage controller XY STEP SMC 2009 - 2 speed ranges selectable - direct cable connection to CAN stage or to stage controller XY STEP SMC 2009
Stage Controller XY STEP SMC 2009 Control unit for Maerzhaeuser XY-Stages with stepper motors. - bidirectional communication to microscopes with CAN - position display on microscopes with TFT display and option for objective depended travel speed - 2 CAN interfaces - alternative connection through USB or RS232 - power supply 100...240V AC/50...60Hz - incl. USB-cable, CAN-cable and plug-in power unit with country specific power cord
Item no.:
432929-9011-000
Joystick XY; CAN (D)
Joystick XY; CAN (D)
Item no.:
432903-9011-000
Joystick XY; CAN (D) for mechanical stages mot; CAN, scanning stages; CAN and stage controller XY STEP SMC 2009 - 2 speed ranges selectable - direct cable connection to CAN stage or to stage controller XY STEP SMC 2009
Stage Controller XY STEP SMC 2009 Control unit for Maerzhaeuser XY-Stages with stepper motors. - bidirectional communication to microscopes with CAN - position display on microscopes with TFT display and option for objective depended travel speed - 2 CAN interfaces - alternative connection through USB or RS232 - power supply 100...240V AC/50...60Hz - incl. USB-cable, CAN-cable and plug-in power unit with country specific power cord
Item no.:
432929-9011-000
Joystick XY; CAN (D)
Joystick XY; CAN (D)
Item no.:
432903-9011-000
Joystick XY; CAN (D) for mechanical stages mot; CAN, scanning stages; CAN and stage controller XY STEP SMC 2009 - 2 speed ranges selectable - direct cable connection to CAN stage or to stage controller XY STEP SMC 2009
Stage Controller XY STEP SMC 2009 Control unit for Maerzhaeuser XY-Stages with stepper motors. - bidirectional communication to microscopes with CAN - position display on microscopes with TFT display and option for objective depended travel speed - 2 CAN interfaces - alternative connection through USB or RS232 - power supply 100...240V AC/50...60Hz - incl. USB-cable, CAN-cable and plug-in power unit with country specific power cord
Item no.:
432929-9011-000
Joystick XY; CAN (D)
Joystick XY; CAN (D)
Item no.:
432903-9011-000
Joystick XY; CAN (D) for mechanical stages mot; CAN, scanning stages; CAN and stage controller XY STEP SMC 2009 - 2 speed ranges selectable - direct cable connection to CAN stage or to stage controller XY STEP SMC 2009
Item no.:
432903-9011-000
Extension cable for stage control 1.6 m (D)
Extension cable for stage control 1.6 m (D)
Item no.:
000000-2121-749
Extension cable for stage control 1.6 m (D) for usage with joystick, trackball or coaxial drive. Recommended for adaptation of cable length when a docking station is used.
Stage controller XY PIEZO WSB CAN (D) for scanning stages with PIEZO drive Interfaces: CAN, USB, RS232, Trigger IN, Trigger OUT incl. USB cable, CAN cable and stage cable 90 - 240 V / 40 - 60 Hz; 250 VA, country specific power cord
Item no.:
432901-9904-000
Joystick XY; CAN (D)
Joystick XY; CAN (D)
Item no.:
432903-9011-000
Joystick XY; CAN (D) for mechanical stages mot; CAN, scanning stages; CAN and stage controller XY STEP SMC 2009 - 2 speed ranges selectable - direct cable connection to CAN stage or to stage controller XY STEP SMC 2009
Item no.:
432903-9011-000
Extension cable for stage control 1.6 m (D)
Extension cable for stage control 1.6 m (D)
Item no.:
000000-2121-749
Extension cable for stage control 1.6 m (D) for usage with joystick, trackball or coaxial drive. Recommended for adaptation of cable length when a docking station is used.
Stage controller XY PIEZO WSB CAN (D) for scanning stages with PIEZO drive Interfaces: CAN, USB, RS232, Trigger IN, Trigger OUT incl. USB cable, CAN cable and stage cable 90 - 240 V / 40 - 60 Hz; 250 VA, country specific power cord
Item no.:
432901-9904-000
Joystick XY; CAN (D)
Joystick XY; CAN (D)
Item no.:
432903-9011-000
Joystick XY; CAN (D) for mechanical stages mot; CAN, scanning stages; CAN and stage controller XY STEP SMC 2009 - 2 speed ranges selectable - direct cable connection to CAN stage or to stage controller XY STEP SMC 2009
Item no.:
432903-9011-000
Extension cable for stage control 1.6 m (D)
Extension cable for stage control 1.6 m (D)
Item no.:
000000-2121-749
Extension cable for stage control 1.6 m (D) for usage with joystick, trackball or coaxial drive. Recommended for adaptation of cable length when a docking station is used.
Microscopy Workstation Compact HP Z2 G9 Rev. 2 (O) - HP Z2 Tower G9 Workstation - Chipset: Intel W680 - Memory Expansion Slots: 4 x DDR5-RAM modules, 4400MHz - Memory: max. 128 / 192 GB RAM - PCI Express Connectors: 1x PCI Express Generation 5 x16 1x PCI Express Generation 3 x4 (x16 connector) 1x PCI Express Generation 3 x4 1x PCI Express Generation 3 x1 (x4 connector) - Graphics Card onboard: Intel UHD Graphics 770 2 x Display Port 1.4 (max. 3840 x 2160 Pixel) - SSD: 1 x 512 GB M.2 NVMe - Hard disks: 1 x 8 TB SATA 7200 rpm - Network controller: 1 x GbE LAN interface (RJ 45) - USB: 4 x Type-A SuperSpeed USB 10 Gbps (front) 2 x Type-A SuperSpeed USB 10 Gbps, 1 x Type-A SuperSpeed USB 5 Gbps, 3 x Hi-Speed USB 480 Mbps (rear) - Certifications and Declarations: CE, CSA, UL, FCC, CCC, KCC - TPM BIOS selectable, default off - Power Supply 700W, wide-ranging with country specific plug - Chassis Dimensions: (H x W x D): 356 x 169 x 385 mm - USB Mouse - Rescue Kit
Item no.:
410201-9914-000
Memory 16 GB (1x16) DDR5-4800 (HP Z2 G9) (O)
Memory 16 GB (1x16) DDR5-4800 (HP Z2 G9) (O)
Item no.:
410201-1606-000
Memory 16 GB (1x16) DDR5-4800 (HP Z2 G9) (O) consisting of 1 x 16 GB module - DDR5 4800 MHz nonECC unbuffered DIMM - can be extended to 32GB (2 x 410201-1606-000) or 64 GB (4 x 410201-1606-000) - only for 410201-9913-000 Microscopy Workstation Compact HP Z2 G9
Item no.:
410201-1606-000
Language Pack English US (O)
Language Pack English US (O)
Item no.:
410380-0200-000
Language Pack English US (O) - Keyboard with English (US) layout
Item no.:
410380-0200-000
System Configuration 2 for HP Z2 G9 (O)
System Configuration 2 for HP Z2 G9 (O)
Item no.:
000000-2548-754
System Configuration 2 for HP Z2 G9 (O) Installation of Windows 10 IoT Enterprise LTSC 2021 x64 incl. Windows 10 License - with system integration and ZEN software installation for respective system - only for 410201-9913-000 Microscopy Workstation Compact HP Z2 G9
Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O) Visible diagonal: 61 cm, 16:10 Maximum resolution: 1920 x 1200 pixel @ 100 Hz Brightness: 350 nits Contrast: 1500:1 Viewing angle: horizontal 178 degree, vertical 178 degree Video input: DisplayPort1.2, HDMI 1.4 Data connectors: 4 x USB Type-A 5Gbps Power consumption: Maximum 69 W, Typical 36 W, Standby 0.5 W Dimensions incl. stand (H x W x D): 52.14 cm x 53.17 cm x 19.5 cm Weight incl. stand: 4.8 kg Ergonomic features:Tilt: -5°to +20°, Swivel:-45° to +45°, Height adjustable 15 cm, Pivot rotation: -90° to +90° Certification and compliance: CE, CB, GS, TÜV, FCC, TCO Operating voltage: 100-240 V, country-specific power cable
Item no.:
410350-2408-000
Microscopy Camera Axiocam 705 mono R2 (D)
Microscopy Camera Axiocam 705 mono R2 (D)
Item no.:
426560-9061-000
Microscopy Camera Axiocam 705 mono R2 (D) High Performance microscopy camera incl. driver software 64 bit USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and protection glass (wideband coated) Sensor Type: SONY IMX250 Exmor CMOS, SONY Pregius GlobalShutter Monochrome Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel Pixel Size: 3.45 µm x 3.45 µm Chip Size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral Range: With protection glass approx. 350 nm to 1000 nm Full Well Capacity: Approx. 11,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (1x1 to 5x5 digital) 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 816 x 684 3x3 608 x 514 4x4 480 x 410 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor 2464 x 2056 1x1 1232 x 1028 2x2 Live Frame Rates: (1 ms, exposure, default setting) H x V Frame Rate (fps) 2464 x 2056 30 Frame Rates for Time Series Recording: (at 1 ms exposure, further depending hardware and software configuration) H x V (ROI) Frame Rate (fps) 2464 x 2056 60 1920 x 1080 115 1232 x 1028 173 (2x2 subsampling, full field of view) 1024 x 1024 121 512 x 512 235 1920 x 256 436 Read Noise Full Well Capacity Dynamic Range (at gain) 2.20e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000 e 1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600 HDR Mode Dynamic Range 1:25.000 # Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, adjustable over or under-exposure mode, optional measurement on defined target area (spot-meter) Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.5 e/p/s @ 18 °C sensor temperature Cooling: Stabilized temperature to 18 °C (for ambient temperatures from 18 °C to 30 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control, Trigger-Out for exposure time, Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: USB 3.0 (Optional operation with USB 2.0 at reduced frame rate) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 5,1 cm (2.3" x 3.2" x 2,4") / 580 g Housing: Blue anodized aluminum, with cooling fins on top, 1/4" photothread for tripod mount Registration: CE Power Supply: Provided by USB 3.0 and USB 2.0, max. 7 W consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The required application software is available via the ZEISS Download Center.
Microscopy Workstation Premium (HP Z8 G5) (O) HP Z8 Fury G5 Workstation - Chipset: Intel W790 - Memory Expansion Slots: 16 x DDR5, RDIMM, ECC, 4800 MHz Modules - Memory: max. 1024 GB RAM - PCI Express Connectors: 2 x PCI Express Generation5 x16 1 x PCI Express Generation 5 x4 2 x PCI Express Generation 4 x16 2 x PCI Express Generation 4 x4 1 x PCI Express Generation 3 x8 - SSD: 1 x 2 TB M.2 NVMe - Hard Drives: 2 x 12 TB SATA 7200 rpm (configured as 10 TB RAID 1hard drive) - Network Controller: 2 x GbE LAN interface (RJ 45) - USB: 2 x USB 3.2 Gen2x2 type C (front), 8 x USB 3.1 Gen 1 type A (2 x front, 6 x rear) - Certifications <(>&<)> Declarations: CE, CSA, UL, CCC, KCC - Power Supply: 100 - 240 V / 50 - 60 Hz / 1450 W with country specific plug - Chassis Dimensions: (H x W x D): 445 x 216 x 555 mm - USB Mouse, Recovery kit
Item no.:
410203-9914-000
System Configuration 2 for HP Z8 G5 (O)
System Configuration 2 for HP Z8 G5 (O)
Item no.:
000000-2615-590
System Configuration 2 for HP Z8 G5 (O) Installation of Windows 10 IoT Enterprise LTSC 2021 x64 incl. Windows 10 License - with ZEN software installation and system integration of respective system - for Celldiscoverer 7, LSM 900, LSM 980, Elyra 7, Lattice SIM, Axioscan 7, Lattice Lightsheet - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) consisting of 1 x 32 GB module - DDR5 4800 MHz ECC registered DIMM - can be extended to 64 GB (2 x 410303-3206-000), 128 GB (4 x 410303- 3206-000) or 256 GB (8 x 410303-3206-000) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Item no.:
410303-3206-000
Graphics Card NVIDIA RTX A4000 16 GB DP (O)
Graphics Card NVIDIA RTX A4000 16 GB DP (O)
Item no.:
410331-2800-000
Graphics Card NVIDIA RTX A4000 16 GB DP (O) Professional graphics card for Microscopy Workstation - 16 GB GDDR6 memory - PCI Express 4.0 Interface x16 - Hardware acceleration of DirectX 12.07, OpenGL 4.68 and CUDA - Support for up to four displays - Display outputs: 4 x DisplayPort 1.4a (DP) - DisplayPort support for 4 x 32" Display (3840 x 2160 Pixel)
Item no.:
410331-2800-000
Language Pack English US (O)
Language Pack English US (O)
Item no.:
410380-0200-000
Language Pack English US (O) - Keyboard with English (US) layout
Item no.:
410380-0200-000
Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O)
Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O)
Item no.:
410350-2408-000
Monitor TFT 24" HP Series 7 Pro 724pn (61 cm) (O) Visible diagonal: 61 cm, 16:10 Maximum resolution: 1920 x 1200 pixel @ 100 Hz Brightness: 350 nits Contrast: 1500:1 Viewing angle: horizontal 178 degree, vertical 178 degree Video input: DisplayPort1.2, HDMI 1.4 Data connectors: 4 x USB Type-A 5Gbps Power consumption: Maximum 69 W, Typical 36 W, Standby 0.5 W Dimensions incl. stand (H x W x D): 52.14 cm x 53.17 cm x 19.5 cm Weight incl. stand: 4.8 kg Ergonomic features:Tilt: -5°to +20°, Swivel:-45° to +45°, Height adjustable 15 cm, Pivot rotation: -90° to +90° Certification and compliance: CE, CB, GS, TÜV, FCC, TCO Operating voltage: 100-240 V, country-specific power cable
Item no.:
410350-2408-000
Microscopy Camera Axiocam 705 mono R2 (D)
Microscopy Camera Axiocam 705 mono R2 (D)
Item no.:
426560-9061-000
Microscopy Camera Axiocam 705 mono R2 (D) High Performance microscopy camera incl. driver software 64 bit USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and protection glass (wideband coated) Sensor Type: SONY IMX250 Exmor CMOS, SONY Pregius GlobalShutter Monochrome Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel Pixel Size: 3.45 µm x 3.45 µm Chip Size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral Range: With protection glass approx. 350 nm to 1000 nm Full Well Capacity: Approx. 11,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (1x1 to 5x5 digital) 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 816 x 684 3x3 608 x 514 4x4 480 x 410 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor 2464 x 2056 1x1 1232 x 1028 2x2 Live Frame Rates: (1 ms, exposure, default setting) H x V Frame Rate (fps) 2464 x 2056 30 Frame Rates for Time Series Recording: (at 1 ms exposure, further depending hardware and software configuration) H x V (ROI) Frame Rate (fps) 2464 x 2056 60 1920 x 1080 115 1232 x 1028 173 (2x2 subsampling, full field of view) 1024 x 1024 121 512 x 512 235 1920 x 256 436 Read Noise Full Well Capacity Dynamic Range (at gain) 2.20e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000 e 1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600 HDR Mode Dynamic Range 1:25.000 # Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, adjustable over or under-exposure mode, optional measurement on defined target area (spot-meter) Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.5 e/p/s @ 18 °C sensor temperature Cooling: Stabilized temperature to 18 °C (for ambient temperatures from 18 °C to 30 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control, Trigger-Out for exposure time, Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: USB 3.0 (Optional operation with USB 2.0 at reduced frame rate) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 5,1 cm (2.3" x 3.2" x 2,4") / 580 g Housing: Blue anodized aluminum, with cooling fins on top, 1/4" photothread for tripod mount Registration: CE Power Supply: Provided by USB 3.0 and USB 2.0, max. 7 W consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The required application software is available via the ZEISS Download Center.
Monitor TFT 27" HP Series 7 Pro 727pk (68 cm) (O) Visible diagonal: 68 cm, 16:9 Maximum resolution: 3840 x 2160 pixel @ 60 Hz Brightness: 400 nits Contrast: 2000:1 Viewing angle: horizontal 178 degree, vertical 178 degree Video input: DisplayPort 1.4, HDMI 2.0, USB-C Data connectors: 1 x USB Type-C 10Gbps (upstream), 1 x USB Type-C 10Gbps, 5 x USB Type-A 10Gbps Power consumption: Maximum 215 W, Typical 43 W, Standby 0.5 W Dimensions incl. stand (H x W x D): 54.05 cm x 61.34 cm x 22.52 cm Weightincl. stand: 6.5 kg Ergonomic features: Tilt: -5°to +20°, Swivel: -45° to +45°, Height adjustable 15 cm, Pivot rotation: -90° to +90° Certification and compliance: CE, CB, GS, TÜV, FCC, TCO Operating voltage: 100-240 V, country-specific power cable
Item no.:
410350-2704-000
Language Pack English US (O)
Language Pack English US (O)
Item no.:
410380-0200-000
Language Pack English US (O) - Keyboard with English (US) layout
Item no.:
410380-0200-000
Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O)
Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O)
Item no.:
410358-0505-000
Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O) - Additional network adapter 2 x 10 GbE RJ45 (HP Z8 G5) e.g. for connection of storage systems - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Item no.:
410358-0505-000
Graphics Card NVIDIA RTX A5000 24 GB DP (O)
Graphics Card NVIDIA RTX A5000 24 GB DP (O)
Item no.:
410331-2900-000
Graphics Card NVIDIA RTX A5000 24 GB DP (O) Professional graphics card for Microscopy Workstation - 24 GB GDDR6 memory - PCI Express 4.0 Interface x16 - Hardware acceleration of DirectX 12.07, OpenGL 4.68 and CUDA - Support for up to four displays - Display outputs: 4 x DisplayPort 1.4a (DP) - DisplayPort support for 4 x 32" Display (3840 x 2160 Pixel)
System Configuration 2 for HP Z8 G5 (O) Installation of Windows 10 IoT Enterprise LTSC 2021 x64 incl. Windows 10 License - with ZEN software installation and system integration of respective system - for Celldiscoverer 7, LSM 900, LSM 980, Elyra 7, Lattice SIM, Axioscan 7, Lattice Lightsheet - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Item no.:
000000-2615-590
Microscopy Workstation Premium (HP Z8 G5) (O)
Microscopy Workstation Premium (HP Z8 G5) (O)
Item no.:
410203-9914-000
Microscopy Workstation Premium (HP Z8 G5) (O) HP Z8 Fury G5 Workstation - Chipset: Intel W790 - Memory Expansion Slots: 16 x DDR5, RDIMM, ECC, 4800 MHz Modules - Memory: max. 1024 GB RAM - PCI Express Connectors: 2 x PCI Express Generation5 x16 1 x PCI Express Generation 5 x4 2 x PCI Express Generation 4 x16 2 x PCI Express Generation 4 x4 1 x PCI Express Generation 3 x8 - SSD: 1 x 2 TB M.2 NVMe - Hard Drives: 2 x 12 TB SATA 7200 rpm (configured as 10 TB RAID 1hard drive) - Network Controller: 2 x GbE LAN interface (RJ 45) - USB: 2 x USB 3.2 Gen2x2 type C (front), 8 x USB 3.1 Gen 1 type A (2 x front, 6 x rear) - Certifications <(>&<)> Declarations: CE, CSA, UL, CCC, KCC - Power Supply: 100 - 240 V / 50 - 60 Hz / 1450 W with country specific plug - Chassis Dimensions: (H x W x D): 445 x 216 x 555 mm - USB Mouse, Recovery kit
Item no.:
410203-9914-000
Trigger Cable Set Axiocam 5xx/7xx (D)
Trigger Cable Set Axiocam 5xx/7xx (D)
Item no.:
426557-0001-000
Trigger Cable Set Axiocam 5xx/7xx/8xx (D) for direct shutter synchronization using trigger board with signal distribution box, Colibri or HXP 120 V
Item no.:
426557-0001-000
Microscopy Camera Axiocam 807 mono (D)
Microscopy Camera Axiocam 807 mono (D)
Item no.:
426560-9160-000
Microscopy Camera Axiocam 807 mono (D) High performance microscopy monochrome camera incl. driver software 64bit, Interface card USB 3.1 Gen2 PCIe x4, dual USB 3.0 cable 3 m Sensor Type: CMOS, monochrome, Global Shutter, Sony IMX420 Number of Pixels: 3216 (H) x 2208 (V) = 7.1 Mega Pixels Pixel Size: 4.5 µm x 4.5 µm Chip Size: 14.5 mm x 9.9 mm, equivalent to 1.1" (17,6 mm diagonal) Spectral Range: With protection glass, 350 nm to 1000 nm Peak QE: 78% @ 520 nm (typ.) Full Well Capacity: Approx. 25,000 e- at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (digital) 3216 x 2208 1x1 basic pixel count 1608 x 11042x2 1072 x 991 3x3 884 x 743 4x4 643 x 594 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor (full field of view) 3216x2208 1x1 1608 x 1104 2x2 Live frame rates (depending on hardware and software configuration): Exp. Time 1ms H x V Frame Rate 3216 x 2208 >30 fps (High Res mode) 1602 x 1104>30 fps (Fast Mode, reduced CPU load) Frame rates for time series recording (1 ms exposure, further depending on sensor ROI, hardware and software configuration) H x V (ROI) Frame Rate (fps) 3216 x 2208 73 1929 x 1080 145 1608 x 1104 260 (2x2 subsampling; full field of view) 1024 x 1024 151 512 x 512 282 1920 x 256 487 Read Noise Full Well Capacity Dynamic Range (at gain) 5.7 e (1x) 25,000 e 1:4420 4.6 e (2x) 12,500 e 1:2730 3.9 e (4x) 6,250 e 1:1610 3.4 e (8x) 3,125 e 1: 930 2.9 e (16x) 1,500 e 1: 530 Low Noise Mode: 4.0 e 25,000 e 1:25,000 SoftwareSupported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, Adjustable over or under-exposure mode, Optional measurement on defined target area (spot-meter), Image sharpening, Dark current compensation, Single pixel noise correction Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.3 e/p/s @ 25 °C sensor temperature Cooling: Stabilized temperature to 25 °C (mounted on microscope, free air flow, ambient temp. 22 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control Trigger-Out for exposure time Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: Dual USB 3.0 SuperSpeed,2 x 5 Gbit/s for data and power supply (optional single USB 3.0 at lower frame rates and without cooling) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 6.1 cm (4.2"x 3.1" x 2.4")/ 620 g Housing: Blue anodized aluminum, with cooling fins on top 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by Dual USB 3.0, 5V, max. 7 W powerconsumption Environmental Conditions: 5 °C to 35 °C, max.80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Enterprise Supported Application Software: ZEN 3.6 (blue edition) or higher, ZEN 3.5 core or higher The required application software is provided via ZEISS Microscopy Installer or ZEISS Download Center.
System Configuration 2 for HP Z8 G5 (O) Installation of Windows 10 IoT Enterprise LTSC 2021 x64 incl. Windows 10 License - with ZEN software installation and system integration of respective system - for Celldiscoverer 7, LSM 900, LSM 980, Elyra 7, Lattice SIM, Axioscan 7, Lattice Lightsheet - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Item no.:
000000-2615-590
Monitor TFT 27" HP Series 7 Pro 727pk (68 cm) (O)
Monitor TFT 27" HP Series 7 Pro 727pk (68 cm) (O)
Item no.:
410350-2704-000
Monitor TFT 27" HP Series 7 Pro 727pk (68 cm) (O) Visible diagonal: 68 cm, 16:9 Maximum resolution: 3840 x 2160 pixel @ 60 Hz Brightness: 400 nits Contrast: 2000:1 Viewing angle: horizontal 178 degree, vertical 178 degree Video input: DisplayPort 1.4, HDMI 2.0, USB-C Data connectors: 1 x USB Type-C 10Gbps (upstream), 1 x USB Type-C 10Gbps, 5 x USB Type-A 10Gbps Power consumption: Maximum 215 W, Typical 43 W, Standby 0.5 W Dimensions incl. stand (H x W x D): 54.05 cm x 61.34 cm x 22.52 cm Weightincl. stand: 6.5 kg Ergonomic features: Tilt: -5°to +20°, Swivel: -45° to +45°, Height adjustable 15 cm, Pivot rotation: -90° to +90° Certification and compliance: CE, CB, GS, TÜV, FCC, TCO Operating voltage: 100-240 V, country-specific power cable
Item no.:
410350-2704-000
Language Pack English US (O)
Language Pack English US (O)
Item no.:
410380-0200-000
Language Pack English US (O) - Keyboard with English (US) layout
Item no.:
410380-0200-000
Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O)
Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O)
Item no.:
410358-0505-000
Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O) - Additional network adapter 2 x 10 GbE RJ45 (HP Z8 G5) e.g. for connection of storage systems - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Item no.:
410358-0505-000
Graphics Card NVIDIA RTX A4000 16 GB DP (O)
Graphics Card NVIDIA RTX A4000 16 GB DP (O)
Item no.:
410331-2800-000
Graphics Card NVIDIA RTX A4000 16 GB DP (O) Professional graphics card for Microscopy Workstation - 16 GB GDDR6 memory - PCI Express 4.0 Interface x16 - Hardware acceleration of DirectX 12.07, OpenGL 4.68 and CUDA - Support for up to four displays - Display outputs: 4 x DisplayPort 1.4a (DP) - DisplayPort support for 4 x 32" Display (3840 x 2160 Pixel)
Microscopy Workstation Premium (HP Z8 G5) (O) HP Z8 Fury G5 Workstation - Chipset: Intel W790 - Memory Expansion Slots: 16 x DDR5, RDIMM, ECC, 4800 MHz Modules - Memory: max. 1024 GB RAM - PCI Express Connectors: 2 x PCI Express Generation5 x16 1 x PCI Express Generation 5 x4 2 x PCI Express Generation 4 x16 2 x PCI Express Generation 4 x4 1 x PCI Express Generation 3 x8 - SSD: 1 x 2 TB M.2 NVMe - Hard Drives: 2 x 12 TB SATA 7200 rpm (configured as 10 TB RAID 1hard drive) - Network Controller: 2 x GbE LAN interface (RJ 45) - USB: 2 x USB 3.2 Gen2x2 type C (front), 8 x USB 3.1 Gen 1 type A (2 x front, 6 x rear) - Certifications <(>&<)> Declarations: CE, CSA, UL, CCC, KCC - Power Supply: 100 - 240 V / 50 - 60 Hz / 1450 W with country specific plug - Chassis Dimensions: (H x W x D): 445 x 216 x 555 mm - USB Mouse, Recovery kit
Item no.:
410203-9914-000
Trigger Cable Set Axiocam 5xx/7xx (D)
Trigger Cable Set Axiocam 5xx/7xx (D)
Item no.:
426557-0001-000
Trigger Cable Set Axiocam 5xx/7xx/8xx (D) for direct shutter synchronization using trigger board with signal distribution box, Colibri or HXP 120 V
Item no.:
426557-0001-000
Microscopy Camera Axiocam 305 color (D)
Microscopy Camera Axiocam 305 color (D)
Item no.:
426560-9030-000
Microscopy Camera Axiocam 305 color (D) Microscopy camera incl. Driver software 64bit, USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and IR barrier filter Hoya C5000 (coated) Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel color Sensor type: SONY IMX264 Exmor Pregius Global Shutter CMOS Pixel size: 3.45 #m x 3.45 #m Chip size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral range: With IR barrier filter app. 400 nm to 720 nm Full Well Capacity: Approx. 10,500 e Selectable Resolution: H x V Binning Factor 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 816 x 684 3x3 608 x 514 4x4 480 x 410 5x5 H x V Subsampling Factor 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 Live frame rates (depending on hardware and software configuration): H x V Frame Rate@1ms 2464 x 2056 36 fps 1232 x 1028 88 fps (2x2 Subsampling) Frame rates for time series recording (depending on computer hardware and software configuration) H x V (ROI) Frame Rate 2464 x 2056 36 fps 2048 x 2048 36 fps 1920 x 1080 67 fps 1024 x 1024 70 fps 512 x 512 136 fps 256 x 256 255 fps 128 x 128 456 fps Readout of Sensor Sub-Regions ("ROI"): Adjustable Digitization: 8 and 12 Bit / Pixel Dynamic Range: Typical > 4800 : 1 (>73 dB) at typ. 2.2 e readout noise Dark current: < 1.0 e/p/s @ 25°C Integration Time: 0.1 ms to to 4 s Cooling: Temperature stable @ 25°C for ambient temperatures between 18°C and 30°C Status-LED for Camera: color coded operation status, dimmable, Interface (camera): USB 3.0 interface Optional operation with USB 2.0 connection at reduced frame rate Optical Interface: C-Mount Thread depth for objectives: max. 5 mm Size / Weight: approx. App. 10.8 cm x 7.8 cm x 4.3 cm (2.3"x3.2"x1.7") / 580 g Housing: blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Max. 4W, power supply provided by USB 3.0 bus for camera electronics Environmental conditions: 5° … +35° Celsius, max 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 for Labscope: Windows 10 x64 Supported Application Software: ZEN 2.3 (blue edition) or higher, ZEN core v2.5 or higher Labscope v3.3 (Windows) or higher The required application software is available via the ZEISS Download Center.
Item no.:
426560-9030-000
Microscopy Camera Axiocam 807 mono (D)
Microscopy Camera Axiocam 807 mono (D)
Item no.:
426560-9160-000
Microscopy Camera Axiocam 807 mono (D) High performance microscopy monochrome camera incl. driver software 64bit, Interface card USB 3.1 Gen2 PCIe x4, dual USB 3.0 cable 3 m Sensor Type: CMOS, monochrome, Global Shutter, Sony IMX420 Number of Pixels: 3216 (H) x 2208 (V) = 7.1 Mega Pixels Pixel Size: 4.5 µm x 4.5 µm Chip Size: 14.5 mm x 9.9 mm, equivalent to 1.1" (17,6 mm diagonal) Spectral Range: With protection glass, 350 nm to 1000 nm Peak QE: 78% @ 520 nm (typ.) Full Well Capacity: Approx. 25,000 e- at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (digital) 3216 x 2208 1x1 basic pixel count 1608 x 11042x2 1072 x 991 3x3 884 x 743 4x4 643 x 594 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor (full field of view) 3216x2208 1x1 1608 x 1104 2x2 Live frame rates (depending on hardware and software configuration): Exp. Time 1ms H x V Frame Rate 3216 x 2208 >30 fps (High Res mode) 1602 x 1104>30 fps (Fast Mode, reduced CPU load) Frame rates for time series recording (1 ms exposure, further depending on sensor ROI, hardware and software configuration) H x V (ROI) Frame Rate (fps) 3216 x 2208 73 1929 x 1080 145 1608 x 1104 260 (2x2 subsampling; full field of view) 1024 x 1024 151 512 x 512 282 1920 x 256 487 Read Noise Full Well Capacity Dynamic Range (at gain) 5.7 e (1x) 25,000 e 1:4420 4.6 e (2x) 12,500 e 1:2730 3.9 e (4x) 6,250 e 1:1610 3.4 e (8x) 3,125 e 1: 930 2.9 e (16x) 1,500 e 1: 530 Low Noise Mode: 4.0 e 25,000 e 1:25,000 SoftwareSupported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, Adjustable over or under-exposure mode, Optional measurement on defined target area (spot-meter), Image sharpening, Dark current compensation, Single pixel noise correction Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.3 e/p/s @ 25 °C sensor temperature Cooling: Stabilized temperature to 25 °C (mounted on microscope, free air flow, ambient temp. 22 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control Trigger-Out for exposure time Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: Dual USB 3.0 SuperSpeed,2 x 5 Gbit/s for data and power supply (optional single USB 3.0 at lower frame rates and without cooling) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 6.1 cm (4.2"x 3.1" x 2.4")/ 620 g Housing: Blue anodized aluminum, with cooling fins on top 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by Dual USB 3.0, 5V, max. 7 W powerconsumption Environmental Conditions: 5 °C to 35 °C, max.80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Enterprise Supported Application Software: ZEN 3.6 (blue edition) or higher, ZEN 3.5 core or higher The required application software is provided via ZEISS Microscopy Installer or ZEISS Download Center.
Graphics Card NVIDIA RTX A4000 16 GB DP (O) Professional graphics card for Microscopy Workstation - 16 GB GDDR6 memory - PCI Express 4.0 Interface x16 - Hardware acceleration of DirectX 12.07, OpenGL 4.68 and CUDA - Support for up to four displays - Display outputs: 4 x DisplayPort 1.4a (DP) - DisplayPort support for 4 x 32" Display (3840 x 2160 Pixel)
Item no.:
410331-2800-000
Monitor TFT 27" HP Series 7 Pro 727pk (68 cm) (O)
Monitor TFT 27" HP Series 7 Pro 727pk (68 cm) (O)
Item no.:
410350-2704-000
Monitor TFT 27" HP Series 7 Pro 727pk (68 cm) (O) Visible diagonal: 68 cm, 16:9 Maximum resolution: 3840 x 2160 pixel @ 60 Hz Brightness: 400 nits Contrast: 2000:1 Viewing angle: horizontal 178 degree, vertical 178 degree Video input: DisplayPort 1.4, HDMI 2.0, USB-C Data connectors: 1 x USB Type-C 10Gbps (upstream), 1 x USB Type-C 10Gbps, 5 x USB Type-A 10Gbps Power consumption: Maximum 215 W, Typical 43 W, Standby 0.5 W Dimensions incl. stand (H x W x D): 54.05 cm x 61.34 cm x 22.52 cm Weightincl. stand: 6.5 kg Ergonomic features: Tilt: -5°to +20°, Swivel: -45° to +45°, Height adjustable 15 cm, Pivot rotation: -90° to +90° Certification and compliance: CE, CB, GS, TÜV, FCC, TCO Operating voltage: 100-240 V, country-specific power cable
Item no.:
410350-2704-000
Language Pack English US (O)
Language Pack English US (O)
Item no.:
410380-0200-000
Language Pack English US (O) - Keyboard with English (US) layout
Item no.:
410380-0200-000
Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O)
Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O)
Item no.:
410358-0505-000
Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O) - Additional network adapter 2 x 10 GbE RJ45 (HP Z8 G5) e.g. for connection of storage systems - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) consisting of 1 x 32 GB module - DDR5 4800 MHz ECC registered DIMM - can be extended to 64 GB (2 x 410303-3206-000), 128 GB (4 x 410303- 3206-000) or 256 GB (8 x 410303-3206-000) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Item no.:
410303-3206-000
Processor Intel Xeon W7-3455 (HP Z8 G5) (O)
Processor Intel Xeon W7-3455 (HP Z8 G5) (O)
Item no.:
410330-1200-000
Processor Intel Xeon W7-3455 (HP Z8 G5) (O) High performance processor configuration - Intel Xeon W7-3455 (2.5 GHz, 67.5 MB cache, 24 cores) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Item no.:
410330-1200-000
System Configuration 2 for HP Z8 G5 (O)
System Configuration 2 for HP Z8 G5 (O)
Item no.:
000000-2615-590
System Configuration 2 for HP Z8 G5 (O) Installation of Windows 10 IoT Enterprise LTSC 2021 x64 incl. Windows 10 License - with ZEN software installation and system integration of respective system - for Celldiscoverer 7, LSM 900, LSM 980, Elyra 7, Lattice SIM, Axioscan 7, Lattice Lightsheet - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Item no.:
000000-2615-590
Microscopy Workstation Premium (HP Z8 G5) (O)
Microscopy Workstation Premium (HP Z8 G5) (O)
Item no.:
410203-9914-000
Microscopy Workstation Premium (HP Z8 G5) (O) HP Z8 Fury G5 Workstation - Chipset: Intel W790 - Memory Expansion Slots: 16 x DDR5, RDIMM, ECC, 4800 MHz Modules - Memory: max. 1024 GB RAM - PCI Express Connectors: 2 x PCI Express Generation5 x16 1 x PCI Express Generation 5 x4 2 x PCI Express Generation 4 x16 2 x PCI Express Generation 4 x4 1 x PCI Express Generation 3 x8 - SSD: 1 x 2 TB M.2 NVMe - Hard Drives: 2 x 12 TB SATA 7200 rpm (configured as 10 TB RAID 1hard drive) - Network Controller: 2 x GbE LAN interface (RJ 45) - USB: 2 x USB 3.2 Gen2x2 type C (front), 8 x USB 3.1 Gen 1 type A (2 x front, 6 x rear) - Certifications <(>&<)> Declarations: CE, CSA, UL, CCC, KCC - Power Supply: 100 - 240 V / 50 - 60 Hz / 1450 W with country specific plug - Chassis Dimensions: (H x W x D): 445 x 216 x 555 mm - USB Mouse, Recovery kit
Item no.:
410203-9914-000
Microscopy Camera Axiocam 305 color (D)
Microscopy Camera Axiocam 305 color (D)
Item no.:
426560-9030-000
Microscopy Camera Axiocam 305 color (D) Microscopy camera incl. Driver software 64bit, USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and IR barrier filter Hoya C5000 (coated) Number of Pixels: 2464 (H) x 2056 (V) = 5.07 Mega pixel color Sensor type: SONY IMX264 Exmor Pregius Global Shutter CMOS Pixel size: 3.45 #m x 3.45 #m Chip size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm) Spectral range: With IR barrier filter app. 400 nm to 720 nm Full Well Capacity: Approx. 10,500 e Selectable Resolution: H x V Binning Factor 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 816 x 684 3x3 608 x 514 4x4 480 x 410 5x5 H x V Subsampling Factor 2464 x 2056 1x1 Basic Resolution 1232 x 1028 2x2 Live frame rates (depending on hardware and software configuration): H x V Frame Rate@1ms 2464 x 2056 36 fps 1232 x 1028 88 fps (2x2 Subsampling) Frame rates for time series recording (depending on computer hardware and software configuration) H x V (ROI) Frame Rate 2464 x 2056 36 fps 2048 x 2048 36 fps 1920 x 1080 67 fps 1024 x 1024 70 fps 512 x 512 136 fps 256 x 256 255 fps 128 x 128 456 fps Readout of Sensor Sub-Regions ("ROI"): Adjustable Digitization: 8 and 12 Bit / Pixel Dynamic Range: Typical > 4800 : 1 (>73 dB) at typ. 2.2 e readout noise Dark current: < 1.0 e/p/s @ 25°C Integration Time: 0.1 ms to to 4 s Cooling: Temperature stable @ 25°C for ambient temperatures between 18°C and 30°C Status-LED for Camera: color coded operation status, dimmable, Interface (camera): USB 3.0 interface Optional operation with USB 2.0 connection at reduced frame rate Optical Interface: C-Mount Thread depth for objectives: max. 5 mm Size / Weight: approx. App. 10.8 cm x 7.8 cm x 4.3 cm (2.3"x3.2"x1.7") / 580 g Housing: blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Max. 4W, power supply provided by USB 3.0 bus for camera electronics Environmental conditions: 5° … +35° Celsius, max 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 for Labscope: Windows 10 x64 Supported Application Software: ZEN 2.3 (blue edition) or higher, ZEN core v2.5 or higher Labscope v3.3 (Windows) or higher The required application software is available via the ZEISS Download Center.
Item no.:
426560-9030-000
Microscopy Camera Axiocam 820 mono
Microscopy Camera Axiocam 820 mono
Item no.:
426560-9190-000
Microscopy Camera Axiocam 820 mono High performance microscopy monochrome camera incl. driver software 64bit, Interface card USB 3.1 Gen2 PCIe x4, dual USB 3.0 cable 3 m Sensor Type: SONY IMX541 CMOS, monochrome, Global Shutter "Backside Illuminated" Number of Pixels: 4512 (H) x 4512 (V) = 20.3 Mega Pixels Pixel Size: 2.74 µm x 2.74 µm Chip Size: 12.4 mm x 12.4 mm, (square field of view), equivalent to 1.1" (17,4 mm diagonal) Spectral Range: With protection glass. 350 nm to 1000 nm Peak QE: 86% @ 520 nm (typ.), "backside illuminated" design Full Well Capacity: Approx. 10,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (digital) 4512 x 4512 1x1 basic pixelcount 2256 x 2256 2x2 1504 x 1504 3x3 1128 x 1128 4x4 902 x 902 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor(full field of view) 4512 x 4512 1x1 2256 x 2256 2x2 Live frame rates (depending on hardware and software configuration): Exp. Time 1ms H x V Frame Rate 4512 x 4512 >20 fps (High Res mode, high CPU load) 2256 x 2256 >30 fps (default: Fast Mode, reduced CPU load) Frame rates for time series recording (1 ms exposure, further depending on Sensor ROI, hardware and software configuration) H x V (ROI) FrameRate (fps) 4512 x 4512 28 2256 x 2256 75 (2x2 subsampling; full field of view) 2248 x 1504 82 1920 x 1080 110 1024 x 1024 115 512x x 512 207 1920 x 256 346 1920 x 128 447 Read Noise Full Well Capacity Dynamic Range (at gain) 2.3 e (1x) 10,000 e 1:4440 1.8 e (2x) 5,500 e 1:2720 1.6 e (4x) 2,500 e 1:1540 1.5 e (8x) 1,250 e 1: 850 1.3 e (16x) 625 e 1: 470 HDR Mode: 1,6 e 40,000 e 1:25,000 Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, Adjustable over or under-exposure mode, Optional measurement on defined target area (spot-meter), Image sharpening, Dark current compensation, Single pixel noise correction Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.1 e/p/s @ 25 °C sensor temperature Cooling: Stabilized temperature to 25 °C (mounted on microscope, free air flow, ambient temp. 22 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure timecontrol Trigger-Out for exposure time Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: Dual USB 3.0 SuperSpeed, 2 x 5 Gbit/s for data and power supply (optional single USB 3.0 at lower framerates and without cooling) OpticalInterface: C-Mount Thread Depth for Objectives: Max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 6.1 cm (4.2" x 3.1" x 2.4") / 620 g Housing: Blue anodized aluminum, with cooling fins on top 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by Dual USB 3.0, 5V, max. 7 W power consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Enterprise Supported Application Software: ZEN 3.6 (blue edition) or higher, ZEN 3.5 core or higher The required application software is provided via ZEISS Microscopy Installer or ZEISS Download Center.
Monitor TFT 31,5" HP Series 7 Pro 732pk (80 cm) (O)
Monitor TFT 31,5" HP Series 7 Pro 732pk (80 cm) (O)
Item no.:
410350-3205-000
Monitor TFT 31,5" HP Series 7 Pro 732pk (80 cm) (O) Visible diagonal: 80 cm, 16:9 Maximum resolution: 3840 x 2160 Pixel @ 60 Hz Brightness: 400 nits Contrast: 2000:1 Viewing angle: horizontal 178 degree, vertical 178 degree Video input: DisplayPort1.4, HDMI 2.0, Thunderbolt 4.0 Data connectors: 1 x USB Type-C 5Gbps, 4 x USB Type-A 5Gbps, 1 x Ethernet RJ45 Power consumption: Maximum 205 W, Typical 48 W, Standby 0.5 W Dimensions incl. stand (H x W x D): 60.49 cm x 71.35 cm x 21.7 cm Weight incl.stand: 8.77 kg Ergonomic features: Tilt: -5° to +20°, Swivel: -45° to +45°, Height adjustable 15 cm, Pivot rotation: -90° to +90° Certification and compliance: CE, CB, GS, TÜV, FCC, TCO Operating voltage: 100-240 V, country-specific power cable
Item no.:
410350-3205-000
Microscopy Workstation Premium (HP Z8 G5) (O)
Microscopy Workstation Premium (HP Z8 G5) (O)
Item no.:
410203-9914-000
Microscopy Workstation Premium (HP Z8 G5) (O) HP Z8 Fury G5 Workstation - Chipset: Intel W790 - Memory Expansion Slots: 16 x DDR5, RDIMM, ECC, 4800 MHz Modules - Memory: max. 1024 GB RAM - PCI Express Connectors: 2 x PCI Express Generation5 x16 1 x PCI Express Generation 5 x4 2 x PCI Express Generation 4 x16 2 x PCI Express Generation 4 x4 1 x PCI Express Generation 3 x8 - SSD: 1 x 2 TB M.2 NVMe - Hard Drives: 2 x 12 TB SATA 7200 rpm (configured as 10 TB RAID 1hard drive) - Network Controller: 2 x GbE LAN interface (RJ 45) - USB: 2 x USB 3.2 Gen2x2 type C (front), 8 x USB 3.1 Gen 1 type A (2 x front, 6 x rear) - Certifications <(>&<)> Declarations: CE, CSA, UL, CCC, KCC - Power Supply: 100 - 240 V / 50 - 60 Hz / 1450 W with country specific plug - Chassis Dimensions: (H x W x D): 445 x 216 x 555 mm - USB Mouse, Recovery kit
Item no.:
410203-9914-000
System Configuration 2 for HP Z8 G5 (O)
System Configuration 2 for HP Z8 G5 (O)
Item no.:
000000-2615-590
System Configuration 2 for HP Z8 G5 (O) Installation of Windows 10 IoT Enterprise LTSC 2021 x64 incl. Windows 10 License - with ZEN software installation and system integration of respective system - for Celldiscoverer 7, LSM 900, LSM 980, Elyra 7, Lattice SIM, Axioscan 7, Lattice Lightsheet - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Item no.:
000000-2615-590
Processor Intel Xeon W7-3455 (HP Z8 G5) (O)
Processor Intel Xeon W7-3455 (HP Z8 G5) (O)
Item no.:
410330-1200-000
Processor Intel Xeon W7-3455 (HP Z8 G5) (O) High performance processor configuration - Intel Xeon W7-3455 (2.5 GHz, 67.5 MB cache, 24 cores) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) consisting of 1 x 32 GB module - DDR5 4800 MHz ECC registered DIMM - can be extended to 64 GB (2 x 410303-3206-000), 128 GB (4 x 410303- 3206-000) or 256 GB (8 x 410303-3206-000) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Item no.:
410303-3206-000
Graphics Card NVIDIA RTX A4000 16 GB DP (O)
Graphics Card NVIDIA RTX A4000 16 GB DP (O)
Item no.:
410331-2800-000
Graphics Card NVIDIA RTX A4000 16 GB DP (O) Professional graphics card for Microscopy Workstation - 16 GB GDDR6 memory - PCI Express 4.0 Interface x16 - Hardware acceleration of DirectX 12.07, OpenGL 4.68 and CUDA - Support for up to four displays - Display outputs: 4 x DisplayPort 1.4a (DP) - DisplayPort support for 4 x 32" Display (3840 x 2160 Pixel)
Item no.:
410331-2800-000
Hard Drive Extension to 20TB RAID10 (HP Z8 G5)
Hard Drive Extension to 20TB RAID10 (HP Z8 G5)
Item no.:
410324-0020-000
Hard Drive Extension to 20TB RAID10 (HP Z8 G5) - Extension of default RAID system - Increase capacity from 10 TB (RAID 1) to 20 TB (RAID 10) - Speed up write and read transfer rates - Recommended for applications generating large amount of data and / or high data transfer rates, e.g. processing of large datasets or driving detector systems at full bandwidth - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Item no.:
410324-0020-000
Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O)
Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O)
Item no.:
410358-0505-000
Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O) - Additional network adapter 2 x 10 GbE RJ45 (HP Z8 G5) e.g. for connection of storage systems - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5
Item no.:
410358-0505-000
Language Pack English US (O)
Language Pack English US (O)
Item no.:
410380-0200-000
Language Pack English US (O) - Keyboard with English (US) layout
Item no.:
410380-0200-000
Microscopy Camera Axiocam 712 mono R2 (D)
Microscopy Camera Axiocam 712 mono R2 (D)
Item no.:
426560-9091-000
Microscopy Camera Axiocam 712 mono R2 (D) High Performance microscopy camera incl. driver software 64 bit USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and protection glass (wideband coated) Sensor Type: SONY IMX304 Exmor CMOS, SONY Pregius GlobalShutter Monochrome Number of Pixels: 4096 (H) x 3008 (V) = 12 Mega pixel Pixel Size: 3.45 µm x 3.45 µm Chip Size: 14.1 mm x 10.4 mm, equivalent to 1" (diagonal 17.5 mm) Spectral Range: With protection glass approx. 350 nm to 1000 nm Full Well Capacity: Approx. 11,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (1x1 to 5x5 digital) 4096 x 3008 1x1 Basic Resolution 2048 x 1504 2x2 1365 x 1002 3x3 1024 x 752 4x4 819 x 601 5x5 H x V Subsampling Factor 4096 x 3008 1x1 2048 x 1504 2x2 Live FrameRates: (1 ms exposure, default setting) H x V Frame Rate (fps) 4096 x 3008 23 Frame Rates for Time Series Recording: (1 ms exposure, further depending on hardware and software configuration) H x V (ROI) Frame Rate (fps) 4096 x 3008 23 2048 x 1504 46 (2x2 subsampling, full field of view) 1920 x 1080 63 1024 x 1024 66 1920 x 256 241 1920 x 128 431 Read Noise Full Well Capacity Dynamic Range (at gain) 2.20 e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000 e 1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600 HDR Mode Dynamic Range 1:25,000 # Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, adjustable over or under-exposure mode, optional measurement on defined target area (spot- meter) Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.5 e/p/s @18 °C sensor temperature Cooling: Stabilized temperature to 18 °C (for ambient temperatures from 18 °C to 30 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control, Trigger-Out for exposure time, Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: USB3.0 (Optional operation with USB 2.0 at reduced frame rate) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 5,1 cm (2.3" x 3.2" x 2,0") / 580 g Housing: Blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by USB 3.0 and USB 2.0, max. 7 W consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The required application software is available via the ZEISS Download Center.
ZEN 3.8 Image acquisition and processing under Windows 10 x64 User interface configurable, control of the ZEISS microscope systems and components, extensive acquisition and analysis, CZI image format The following functions are included: - Apeer onsite advanced - Basic 3D viewing - Colocalization - Connect basic - Direct processing - Manual EDF - Measurement - Panorama - Spectral unmixing - ZEN Data Storage Client - Acquisition Base (time series and multichannel)
Item no.:
410135-0002-380
ZEN Toolkit Connect
ZEN Toolkit Connect
Item no.:
410136-0170-360
ZEN Toolkit Connect This package contains the full ZEN Connect functionality for 2D- and 3D- workflows. It supports single system workflows as well as workflows between multiple systems (with or without correlative sample holders). It extends the functionality of ZEN Connect basic by the following functions: - Interactive control of stage movement from the ZEN Connect workspace* - Advanced 2D alignment functionality - Measurements in the ZEN Connect workspace - Export of merged project view as image (single and multi-channel) - Export of project views as fly-through movie - Export to SerialEM file format - Import of 3rd-party microscopy images powered by Bio-Formats - Semiautomatic calibration of sample holders for correlative microscopy -Definition of regions of interest in the correlative workspace - Easy retrieval of marked regions - Control of the displayed z-position in ZEN Connect - Alignment of images in z-dimension - View two 3D stacks (requires 3D Toolkit)** - Manual Alignment of two 3D stacks (requires 3D Toolkit)** - Import FIB stacks** (*not ZEN lite and ZEN starter; motorized stage required) (**not available in ZEN core)
ZEN 3.8 Image acquisition and processing under Windows 10 x64 User interface configurable, control of the ZEISS microscope systems and components, extensive acquisition and analysis, CZI image format The following functions are included: - Apeer onsite advanced - Basic 3D viewing - Colocalization - Connect basic - Direct processing - Manual EDF - Measurement - Panorama - Spectral unmixing - ZEN Data Storage Client - Acquisition Base (time series and multichannel)
Item no.:
410135-0002-380
ZEN Module Correlative Array Tomography (CAT)
ZEN Module Correlative Array Tomography (CAT)
Item no.:
410136-0061-370
ZEN Module Correlative Array Tomography (CAT) Module for automated image acquisition of ultrathin sections in widefield microscopes. The software module includes image acquisition, the Z-stack alignment and the correlation of the Z-stacks. - Wizard-based workflow solution - Precise correlative calibration in widefield microscopes - Hierarchical image acquisition using the full range of magnification - Definition and imaging of regions of interest and even imaging of complete sections - Automated large area imaging - 3D reconstruction of 3D datasets (Z-stacks) - Registration of correlative 3D datasets - Using the full potential of the ZEN imaging software on the light microscope - Can be used as a non-correlative array tomography module
ZEN Toolkit Bio Apps Easy-to-use image analysis for standard life science applications. Choose from the selection of Bio Apps the one, that fits your application. Simply adapt the preconfigured Bio App with just a few clicks to your data if necessary. The Toolkit provides the following Bio Apps: - Cell counting: quantify fluorescently labeled nuclei - Confluency: quantify the area covered by cells - Gene- and protein expression: quantify gene and protein expression levels - Automated spot detection: count and quantify spots inside cell nuclei and/or cytoplasm - Translocation: quantify the intensity ratio between cytoplasm and cell nuclei Make use of fast, classical segmentation methods or powerful AI models to detect your cells even more accurately. This toolkit is "AI-ready", meaning you can use previously trained AI models without needing another license. Simply load an AI model trained with the ZEN Toolkit AI or a deep learning model trained on arivis Cloud for semantic or instance segmentation in the Bio App. In the dedicated result view, the segmented images are displayed along with customized results tables and diagrams to give you a quick overview of your sample. Tables, charts, and images are interlinked so that you can explore the results interactively. All Bio Apps offer a heatmap view, making them particularly suitable for analyzing experiments in multi-well plates. They support both 2D endpoint and live cell assays. - Get started fast with a Bio App tailored to your application - Predefined parameters allow for easy operation - Choose between fast classical segmentation or powerful AI-models for challenging segmentation tasks: use AI models trained with the ZEN Toolkit AI or deep learning models trained on arivis Cloud with semantic or instance* segmentation (*not Confluency) - Visualize your results with dedicated and interactive result displays (table, heatmap, timeseries, xy-scatterplot, histogram) - Export your results, plots, and processing settings - Supports 2Dfixed timepoint and time-series analysis Requirements: - The use of AI semantic segmentation requires an installation of ZeissPython. - The use of AI instance segmentation requires an installation of Docker Desktop For the use of AI models the recommended hardware configuration is 8 GB GPU and 64 GB RAM. Only CPU and Nvidia GPUs are supported.
Item no.:
410136-0175-310
ZEN 3.11
ZEN 3.11
Item no.:
410135-0002-311
ZEN 3.11 Image acquisition and processing under Windows 10 / Windows 11 x64 User interface configurable, control of the ZEISS microscope systems and components, extensive acquisition and analysis, CZI image format The following functions are included: - Basic 3D viewing - Colocalization - Connect basic - Direct processing - Manual EDF - Measurement - Panorama - Spectral unmixing - ZEN Data Storage Client - Acquisition Base (time series and multichannel)
Item no.:
410135-0002-311
ZEN Toolkit Motorized Acquisition
ZEN Toolkit Motorized Acquisition
Item no.:
410136-0165-311
ZEN Toolkit Motorized Acquisition Acquire images and control motorized components in multi-dimensional experiments. This package allows to acquire tiles, multi-position and z-stack images using motorized components. These can be combined with the included autofocus and direct processing. Z-stack and enhanced depth of focus functionality: - definition of the Z-stack in "Start/Stop" and "Center" mode - size of the configurable Z-stack and number of possible Z-planes only limited by the travel range of the system and the minimum increment - "Optimal" button to automatically set the correct increment to satisfy the Nyquist criterion - integrated Z-drive backlash compensation for maximum precision and reproducibility - extraction of the sharp details from individual images at various focus positions and combination into an image with high depth of field Tiles <(>&<)> Positions - automatic scanning of predefined sample areas - acquisition of images according to a position list - support of focus correction maps, stitching and shading correction - compatible with software autofocus Software Autofocus: - determination of the optimal focus position in the sample - the autofocus works with transmitted, reflected and fluorescence light - definitionof an autofocus region in the camera image
Item no.:
410136-0165-311
ZEN Toolkit Deconvolution
ZEN Toolkit Deconvolution
Item no.:
410136-0173-370
ZEN Toolkit Deconvolution Sharpen your images with mathematically exact deconvolution and make previously unknown structures visible by increasing your image contrast and resolution. Execute the underlying iterative 3D DCV algorithms by leveraging multi-GPU in just minutes. You have the choice between preset parameters and free parameter selection in expert mode.
ZEN 3.11 Image acquisition and processing under Windows 10 / Windows 11 x64 User interface configurable, control of the ZEISS microscope systems and components, extensive acquisition and analysis, CZI image format The following functions are included: - Basic 3D viewing - Colocalization - Connect basic - Direct processing - Manual EDF - Measurement - Panorama - Spectral unmixing - ZEN Data Storage Client - Acquisition Base (time series and multichannel)
Item no.:
410135-0002-311
ZEN Toolkit Motorized Acquisition
ZEN Toolkit Motorized Acquisition
Item no.:
410136-0165-311
ZEN Toolkit Motorized Acquisition Acquire images and control motorized components in multi-dimensional experiments. This package allows to acquire tiles, multi-position and z-stack images using motorized components. These can be combined with the included autofocus and direct processing. Z-stack and enhanced depth of focus functionality: - definition of the Z-stack in "Start/Stop" and "Center" mode - size of the configurable Z-stack and number of possible Z-planes only limited by the travel range of the system and the minimum increment - "Optimal" button to automatically set the correct increment to satisfy the Nyquist criterion - integrated Z-drive backlash compensation for maximum precision and reproducibility - extraction of the sharp details from individual images at various focus positions and combination into an image with high depth of field Tiles <(>&<)> Positions - automatic scanning of predefined sample areas - acquisition of images according to a position list - support of focus correction maps, stitching and shading correction - compatible with software autofocus Software Autofocus: - determination of the optimal focus position in the sample - the autofocus works with transmitted, reflected and fluorescence light - definitionof an autofocus region in the camera image
Item no.:
410136-0165-311
ZEN Toolkit Deconvolution
ZEN Toolkit Deconvolution
Item no.:
410136-0173-370
ZEN Toolkit Deconvolution Sharpen your images with mathematically exact deconvolution and make previously unknown structures visible by increasing your image contrast and resolution. Execute the underlying iterative 3D DCV algorithms by leveraging multi-GPU in just minutes. You have the choice between preset parameters and free parameter selection in expert mode.
ZEN 3.11 Image acquisition and processing under Windows 10 / Windows 11 x64 User interface configurable, control of the ZEISS microscope systems and components, extensive acquisition and analysis, CZI image format The following functions are included: - Basic 3D viewing - Colocalization - Connect basic - Direct processing - Manual EDF - Measurement - Panorama - Spectral unmixing - ZEN Data Storage Client - Acquisition Base (time series and multichannel)
Item no.:
410135-0002-311
ZEN Toolkit Bio Apps
ZEN Toolkit Bio Apps
Item no.:
410136-0175-310
ZEN Toolkit Bio Apps Easy-to-use image analysis for standard life science applications. Choose from the selection of Bio Apps the one, that fits your application. Simply adapt the preconfigured Bio App with just a few clicks to your data if necessary. The Toolkit provides the following Bio Apps: - Cell counting: quantify fluorescently labeled nuclei - Confluency: quantify the area covered by cells - Gene- and protein expression: quantify gene and protein expression levels - Automated spot detection: count and quantify spots inside cell nuclei and/or cytoplasm - Translocation: quantify the intensity ratio between cytoplasm and cell nuclei Make use of fast, classical segmentation methods or powerful AI models to detect your cells even more accurately. This toolkit is "AI-ready", meaning you can use previously trained AI models without needing another license. Simply load an AI model trained with the ZEN Toolkit AI or a deep learning model trained on arivis Cloud for semantic or instance segmentation in the Bio App. In the dedicated result view, the segmented images are displayed along with customized results tables and diagrams to give you a quick overview of your sample. Tables, charts, and images are interlinked so that you can explore the results interactively. All Bio Apps offer a heatmap view, making them particularly suitable for analyzing experiments in multi-well plates. They support both 2D endpoint and live cell assays. - Get started fast with a Bio App tailored to your application - Predefined parameters allow for easy operation - Choose between fast classical segmentation or powerful AI-models for challenging segmentation tasks: use AI models trained with the ZEN Toolkit AI or deep learning models trained on arivis Cloud with semantic or instance* segmentation (*not Confluency) - Visualize your results with dedicated and interactive result displays (table, heatmap, timeseries, xy-scatterplot, histogram) - Export your results, plots, and processing settings - Supports 2Dfixed timepoint and time-series analysis Requirements: - The use of AI semantic segmentation requires an installation of ZeissPython. - The use of AI instance segmentation requires an installation of Docker Desktop For the use of AI models the recommended hardware configuration is 8 GB GPU and 64 GB RAM. Only CPU and Nvidia GPUs are supported.
Item no.:
410136-0175-310
ZEN Toolkit Motorized Acquisition
ZEN Toolkit Motorized Acquisition
Item no.:
410136-0165-311
ZEN Toolkit Motorized Acquisition Acquire images and control motorized components in multi-dimensional experiments. This package allows to acquire tiles, multi-position and z-stack images using motorized components. These can be combined with the included autofocus and direct processing. Z-stack and enhanced depth of focus functionality: - definition of the Z-stack in "Start/Stop" and "Center" mode - size of the configurable Z-stack and number of possible Z-planes only limited by the travel range of the system and the minimum increment - "Optimal" button to automatically set the correct increment to satisfy the Nyquist criterion - integrated Z-drive backlash compensation for maximum precision and reproducibility - extraction of the sharp details from individual images at various focus positions and combination into an image with high depth of field Tiles <(>&<)> Positions - automatic scanning of predefined sample areas - acquisition of images according to a position list - support of focus correction maps, stitching and shading correction - compatible with software autofocus Software Autofocus: - determination of the optimal focus position in the sample - the autofocus works with transmitted, reflected and fluorescence light - definitionof an autofocus region in the camera image
Item no.:
410136-0165-311
ZEN Toolkit Smart Acquisition
ZEN Toolkit Smart Acquisition
Item no.:
410136-0167-360
ZEN Toolkit Smart Acquisition This package includes functions for creating flexible and intelligent image acquisitions workflows with the Experiment Designer, Guided Acquisition and Experiment Feedback tools. Experiment designer allows to configure inhomogeneous acquisition experiments: time series, multitime series, Z-stacks, tiles/multiposition images and channels in any order. Note: The image acquisition using this toolkit requires the Motorized or Advanced acquisition package. Please note that some parameters of Definite focus are currently not transferred between experiment blocks. Guided Acquisition allows automatic and targeted acquisition of objects of interest (e.g. for rare events): 1st step: acquisition of an overview image of the sample 2nd step: automatic 2D image analysis to detect objects of interest 3rd step: acquire detailed images for the detected objects Experiment Feedback provides the ability to respond to changes in the sample, the microscope or external triggers during an image acquisition and to modify an ongoing acquisition via powerful Python scripts (not available in ZEN core).
Item no.:
410136-0167-360
ZEN Toolkit 2D
ZEN Toolkit 2D
Item no.:
410136-0168-360
ZEN Toolkit 2D Create flexible automatic measurement programs for the analysis of your 2D images. Set up an automatic measurement program for analyzing your data sets (e.g., time series, tile images and multiscene images) in just a few steps. A user-friendly wizard guides you through all the necessary settings, starting with the definition of the classes and the segmentation of objects, to the selection of measurement parameters. Create simple measurement programs consisting of a single class or set up powerful measurement programs with multiple classes, which you can also arrange hierarchically (objects within objects) or use the predefined zone-of-influence* measurement program if you want to detect objects in the periphery of other objects. Flexibly choose between different classical and AI-based segmentation methods for each class. You can improve your results using AI models (semantic or instance segmentation) especially for datasets which are particularly difficult to segment. This toolkit is "AI-ready", which means you can use any trained AI model in the analysis program without requiring another license. Simply load a model previously trained with the ZEN Toolkit AI in ZEN or ZEN core into the Image Analysis Wizard, or use DNNs trained on arivis Cloud. Subsequently, you can further refine the segmentation results, e.g., by using algorithms for object separation or by applying region filters, if necessary. To quantify the detected objects, a variety of measurement features are available, such as different geometrical (size, shape,...) or intensity features as well as user-defined measurement parameters*. After the analysis, the segmented images are displayed along with result tables and diagrams (e.g., scatterplot or heatmaps). Tables, diagrams, and images are linked so that you can interactively explore your results. You can also use the created image analysis programs for batch processing of multiple data sets. In addition, this toolkit also includes the Bio App Cell Counting*. (*not available in ZEN core) For preprocessing of your image data, the toolkit additionally provides a number of special image processing functions belonging to the Edges (e.g. Highpass, Sobel, Laplace,…), Arithmetic (e.g. Addition, Multiply Constant,…), Morphology (e.g. Erode, Dilate, TopHat,…), Segmentation (e.g. Canny, Marr…) and Binary (e.g. Fill Holes, And, Or,…) Operations groups. Requirements: - The use of AI semantic segmentation requires an installation of Zeiss Python - The use of AI instance segmentation requires an installation of Docker Desktop For the use of AI models the recommended hardware configuration is 8GB GPU and 64GB RAM. Only the CPU and Nvidia GPUs are supported.
Item no.:
410136-0168-360
ZEN Toolkit AI
ZEN Toolkit AI
Item no.:
410136-0169-380
ZEN Toolkit AI Make use of powerful AI tools. With this package, you can train AI models in ZEN and ZEN core for various applications: - Solve your most challenging segmentation tasks within ZEN and ZEN core image analysis workflows. - Classify segmented objects with ZEN Toolkit 2D using powerful AI models - De-noise your images using deep learning methods based on Noise2Void Train your AI models in a tool optimized specifically for each workflow. The ease of use allows even non-experts to fully utilize the training tools and benefit from powerful AI methods. Thanks to a seamless integration in ZEN and ZEN core, you can use your models directly in the different toolkits (e.g. 2D Toolkit, Bio Apps Toolkit, Smart Acquisition Toolkit, Technical Cleanliness Analysis, Materials Apps Toolkit) and thus easily process multidimensional datasets such as Z-stacks, time series, multichannel and tiled images. The package supports all image data formats that can be opened in ZEN and ZEN core, meaning you can also process file formats from other vendors imported via the 3rd party import. The complete ZEN platform is "AI ready", i.e. you can run the once trained models in all supported toolkits in ZEN and ZEN core. As an alternative to an own training with the ZEN Toolkit AI, you can let annotation of your data sets and training of a Deep Neural Network be performed as part of a custom solution (SCS) and just use the specifically trained networks in the various toolkits. Requirements: - The use of AI semantic segmentation requires an installation of Zeiss Python. Recommended hardware configuration is 8GB GPU and 64GB RAM. Only the CPU and Nvidia-GPUs are supported. A one-year subscription for the arivis Cloud platform is included allowing to train AI models for ZEN and ZEN core using arivis AI services.
ZEN 3.11 Image acquisition and processing under Windows 10 / Windows 11 x64 User interface configurable, control of the ZEISS microscope systems and components, extensive acquisition and analysis, CZI image format The following functions are included: - Basic 3D viewing - Colocalization - Connect basic - Direct processing - Manual EDF - Measurement - Panorama - Spectral unmixing - ZEN Data Storage Client - Acquisition Base (time series and multichannel)
Item no.:
410135-0002-311
ZEN Toolkit Motorized Acquisition
ZEN Toolkit Motorized Acquisition
Item no.:
410136-0165-311
ZEN Toolkit Motorized Acquisition Acquire images and control motorized components in multi-dimensional experiments. This package allows to acquire tiles, multi-position and z-stack images using motorized components. These can be combined with the included autofocus and direct processing. Z-stack and enhanced depth of focus functionality: - definition of the Z-stack in "Start/Stop" and "Center" mode - size of the configurable Z-stack and number of possible Z-planes only limited by the travel range of the system and the minimum increment - "Optimal" button to automatically set the correct increment to satisfy the Nyquist criterion - integrated Z-drive backlash compensation for maximum precision and reproducibility - extraction of the sharp details from individual images at various focus positions and combination into an image with high depth of field Tiles <(>&<)> Positions - automatic scanning of predefined sample areas - acquisition of images according to a position list - support of focus correction maps, stitching and shading correction - compatible with software autofocus Software Autofocus: - determination of the optimal focus position in the sample - the autofocus works with transmitted, reflected and fluorescence light - definitionof an autofocus region in the camera image
Item no.:
410136-0165-311
ZEN Toolkit Connect
ZEN Toolkit Connect
Item no.:
410136-0170-360
ZEN Toolkit Connect This package contains the full ZEN Connect functionality for 2D- and 3D- workflows. It supports single system workflows as well as workflows between multiple systems (with or without correlative sample holders). It extends the functionality of ZEN Connect basic by the following functions: - Interactive control of stage movement from the ZEN Connect workspace* - Advanced 2D alignment functionality - Measurements in the ZEN Connect workspace - Export of merged project view as image (single and multi-channel) - Export of project views as fly-through movie - Export to SerialEM file format - Import of 3rd-party microscopy images powered by Bio-Formats - Semiautomatic calibration of sample holders for correlative microscopy -Definition of regions of interest in the correlative workspace - Easy retrieval of marked regions - Control of the displayed z-position in ZEN Connect - Alignment of images in z-dimension - View two 3D stacks (requires 3D Toolkit)** - Manual Alignment of two 3D stacks (requires 3D Toolkit)** - Import FIB stacks** (*not ZEN lite and ZEN starter; motorized stage required) (**not available in ZEN core)
Item no.:
410136-0170-360
ZEN Toolkit 2D
ZEN Toolkit 2D
Item no.:
410136-0168-360
ZEN Toolkit 2D Create flexible automatic measurement programs for the analysis of your 2D images. Set up an automatic measurement program for analyzing your data sets (e.g., time series, tile images and multiscene images) in just a few steps. A user-friendly wizard guides you through all the necessary settings, starting with the definition of the classes and the segmentation of objects, to the selection of measurement parameters. Create simple measurement programs consisting of a single class or set up powerful measurement programs with multiple classes, which you can also arrange hierarchically (objects within objects) or use the predefined zone-of-influence* measurement program if you want to detect objects in the periphery of other objects. Flexibly choose between different classical and AI-based segmentation methods for each class. You can improve your results using AI models (semantic or instance segmentation) especially for datasets which are particularly difficult to segment. This toolkit is "AI-ready", which means you can use any trained AI model in the analysis program without requiring another license. Simply load a model previously trained with the ZEN Toolkit AI in ZEN or ZEN core into the Image Analysis Wizard, or use DNNs trained on arivis Cloud. Subsequently, you can further refine the segmentation results, e.g., by using algorithms for object separation or by applying region filters, if necessary. To quantify the detected objects, a variety of measurement features are available, such as different geometrical (size, shape,...) or intensity features as well as user-defined measurement parameters*. After the analysis, the segmented images are displayed along with result tables and diagrams (e.g., scatterplot or heatmaps). Tables, diagrams, and images are linked so that you can interactively explore your results. You can also use the created image analysis programs for batch processing of multiple data sets. In addition, this toolkit also includes the Bio App Cell Counting*. (*not available in ZEN core) For preprocessing of your image data, the toolkit additionally provides a number of special image processing functions belonging to the Edges (e.g. Highpass, Sobel, Laplace,…), Arithmetic (e.g. Addition, Multiply Constant,…), Morphology (e.g. Erode, Dilate, TopHat,…), Segmentation (e.g. Canny, Marr…) and Binary (e.g. Fill Holes, And, Or,…) Operations groups. Requirements: - The use of AI semantic segmentation requires an installation of Zeiss Python - The use of AI instance segmentation requires an installation of Docker Desktop For the use of AI models the recommended hardware configuration is 8GB GPU and 64GB RAM. Only the CPU and Nvidia GPUs are supported.
Item no.:
410136-0168-360
ZEN Toolkit 3D
ZEN Toolkit 3D
Item no.:
410136-0172-360
ZEN Toolkit 3D Unlock the full 3D potential with the Toolkit 3D. Equip yourself with a collection of rendering methods, tools for sophisticated visualization and data navigation as well as 3D image analysis. The 3D Toolkit offers multiple types of rendering methods allowing you to choose the visualization that best fits your application. A sophisticated 3D rendering can be overwhelming when exploring a data set. With the viewer available with ZEN 3D Toolkit, 3D and 2D views are placed side-by-side so you may navigate in the 3D space seamless through your sample. Analyze your 3D data – a user-friendly wizard guides you through all the necessary settings, starting with the definition of the classes and the segmentation of objects, to the selection of measurement parameters. Segmentation is AI-ready: load your Intellesis models or segment object based on thresholding. The resulting objects are visualized in 3D in glass or opaque mode. The measurements include various geometric and intensity measurements, as well as user-defined measurement parameters* which can be sorted and exported. The 3D viewer requires a dedicated up-to-date graphics card with full OpenGL 4.3+ support. Older AMD graphic cards such as AMD FirePro V4900 1GB or ATI FirePro V5800 1GB are not supported any longer. (*not available in ZEN core)
Item no.:
410136-0172-360
ZEN SW Driver Linkam Cryo Stage
ZEN SW Driver Linkam Cryo Stage
Item no.:
410136-0124-370
ZEN SW Driver Linkam Cryo Stage - Control of motorized x-, y-axis of CMS196M - Readout and storage of the temperature values in the image - Asynchronous temperature log
Slider assembly Apotome 3 for Axio Imager consisting of: slider with control electronics and transmission grids with 3 frequencies, reflector module calibration Apotome ACR P&C for LED and white light source, mirror and fluorescence test slides, cable CAN-BUS, case.
Slider assembly Apotome 3 for Axio Imager consisting of: slider with control electronics and transmission grids with 3 frequencies, reflector module calibration Apotome ACR P&C for LED and white light source, mirror and fluorescence test slides, cable CAN-BUS, case.
