Carl Zeiss AB - Upright microscopes - Axio Imager 2

Axio Imager.M2

Variants Axio Imager.M2 You can customize this list by removing one or more columns. Show all variants (7) Show all Hide all	Microscope Axio Imager.M2p with LED Item no.: 490020-0005-000	Microscope Axio Imager.M2 Item no.: 490020-0002-000	Microscope Axio Imager.M2 Item no.: 490020-0003-000	Microscope Axio Imager.M2 Item no.: 490020-0004-000	Microscope Axio Imager.M2 Item no.: 490020-0006-000	Axio Imager section Advanced Item no.: 000000-2647-164	Microscope Axio Imager.M2 for CCLEM Workflow Item no.: 490020-0012-000

Variants Axio Imager.M2 You can customize this list by removing one or more columns. Show all variants (7) Show all Hide all	example picture Microscope Axio Imager.M2p with LED Item no.: 490020-0005-000 Microscope Axio Imager.M2p with LED Item no.: 490020-0005-000 Microscope Axio Imager.M2p with LED for transmitted-light bright field and simple polarization, with phototube 30°/25. Microscope Axio Imager.M2p with LED for transmitted-light br...	example picture Microscope Axio Imager.M2 Item no.: 490020-0002-000 Microscope Axio Imager.M2 Item no.: 490020-0002-000 Microscope Axio Imager.M2 for transmitted-light bright field and phase contrast, with Ergophototube 20°/23. Microscope Axio Imager.M2 for transmitted-light bright field...	example picture Microscope Axio Imager.M2 Item no.: 490020-0003-000 Microscope Axio Imager.M2 Item no.: 490020-0003-000 Microscope Axio Imager.M2 for transmitted-light bright field and DIC, with Ergophototube 20°/23. Microscope Axio Imager.M2 for transmitted-light bright field...	example picture Microscope Axio Imager.M2 Item no.: 490020-0004-000 Microscope Axio Imager.M2 Item no.: 490020-0004-000 Microscope Axio Imager.M2 for epi-fluorescence in combination with transmitted-light bright field and phase contrast, with Ergophototube 20°/23. Microscope Axio Imager.M2 for epi-fluorescence in combinatio...	example picture Microscope Axio Imager.M2 Item no.: 490020-0006-000 Microscope Axio Imager.M2 Item no.: 490020-0006-000 Microscope Axio Imager.M2 for epi-fluorescence in combination with transmitted-light bright field and DIC, with Ergophototube 20°/23. Microscope Axio Imager.M2 for epi-fluorescence in combinatio...	example picture Axio Imager section Advanced Item no.: 000000-2647-164 Axio Imager section Advanced Item no.: 000000-2647-164 Promotion WF Axio Imager.Z2 for Sectioning - Advanced Apotome 3, Colibri 7 (7 LEDs) , SBP (10xTurret) Axiocam 820m, 2D tools, BioApps EC PN 5x/0.16, PApo 10x/0.45, PApo 20x/0.8, PApo 63x/1.4 Promotion WF Axio Imager.Z2 for Sectioning - Advanced Apotom...	example picture Microscope Axio Imager.M2 for CCLEM Workflow Item no.: 490020-0012-000 Microscope Axio Imager.M2 for CCLEM Workflow Item no.: 490020-0012-000 Microscope Axio Imager.M2 for correlative Cryo Workflow Microscope Axio Imager.M2 for correlative Cryo Workflow
Microscope stands upright	Microscope stands upright Axio Imager.M2p microscope stand with Z-drive mot. and LED Axio Imager.M2p microscope stand with Z-drive mot. and LED Item no.: 430008-0000-000 Axio Imager.M2p microscope stand with Z-drive mot. and LED - 7-position objective nosepiece cod. - LED illuminator for transmitted light - Z-drive mot. basic, stepsize 25 nm, with fine drive knob and fine drive disk, flat with scala, changeable - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - stage/condenser carrier, detachable - external 12V DC 100W power unit, stabilized, 100V...240V AC/ 50...60Hz/230VA - USB cable and country-specific line cable Item no.: 430008-0000-000	Microscope stands upright Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor Item no.: 430004-9902-000 Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor - Z-drive mot. basic, stepsize 25 nm, with fine drive knob and fine drive disk, flat with scala, changeable - transmitted-light illumination mot. - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - stage/condenser carrier, detachable - external 12V DC 100W power unit, stabilized, 100V...240V AC/ 50...60Hz/230VA - USB cable and country-specific line cable Item no.: 430004-9902-000	Microscope stands upright Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor Item no.: 430004-9902-000 Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor - Z-drive mot. basic, stepsize 25 nm, with fine drive knob and fine drive disk, flat with scala, changeable - transmitted-light illumination mot. - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - stage/condenser carrier, detachable - external 12V DC 100W power unit, stabilized, 100V...240V AC/ 50...60Hz/230VA - USB cable and country-specific line cable Item no.: 430004-9902-000	Microscope stands upright Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor Item no.: 430004-9902-000 Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor - Z-drive mot. basic, stepsize 25 nm, with fine drive knob and fine drive disk, flat with scala, changeable - transmitted-light illumination mot. - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - stage/condenser carrier, detachable - external 12V DC 100W power unit, stabilized, 100V...240V AC/ 50...60Hz/230VA - USB cable and country-specific line cable Item no.: 430004-9902-000	Microscope stands upright Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor Item no.: 430004-9902-000 Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor - Z-drive mot. basic, stepsize 25 nm, with fine drive knob and fine drive disk, flat with scala, changeable - transmitted-light illumination mot. - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - stage/condenser carrier, detachable - external 12V DC 100W power unit, stabilized, 100V...240V AC/ 50...60Hz/230VA - USB cable and country-specific line cable Item no.: 430004-9902-000	Microscope stands upright Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor Item no.: 430000-9902-000 Axio Imager.Z2 microscope stand with Z-drive mot. and TFT monitor - heavy duty focusing drive motorized, stepsize 10 nm, with fine drive knob and fine drive disk, flat with scale, changeable - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - transmitted-light illumination mot. - external power unit 12V DC 100W, stabilized, 100V...240V AC/50...60Hz/230VA, - USB cable and country-specific line cable Item no.: 430000-9902-000 Fine drive disk, flat with scala for Axio Imager 2, changeable Fine drive disk, flat with scala for Axio Imager 2, changeable Item no.: 430051-9010-000 Fine drive disk, flat with scala for Axio Imager 2, changeable Item no.: 430051-9010-000 Path deflecting mirror 100% for camera deflection, 34x46x4 mm Path deflecting mirror 100% for camera deflection, 34x46x4 mm Item no.: 425110-9110-000 Path deflecting mirror 100% for camera deflection, 34x46x4 mm Item no.: 425110-9110-000 Camera path deflection on the left side, mot., interface 60N Camera path deflection on the left side, mot., interface 60N Item no.: 425104-0000-000 Camera path deflection on the left side, mot., interface 60N motorized slider with 2 switching positions, pos. 1 = 100% vis, pos. 2 for the optional mounting of path-deflecting mirror 100% = 100% doc or beam splitter 50% = 50% vis : 50% doc Item no.: 425104-0000-000	Microscope stands upright Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor Item no.: 430004-9902-000 Axio Imager.M2 microscope stand with Z-drive mot. and TFT monitor - Z-drive mot. basic, stepsize 25 nm, with fine drive knob and fine drive disk, flat with scala, changeable - transmitted-light illumination mot. - Light Control mot. - main controller incl. USB-A, USB-C and TCP/IP interface - stage/condenser carrier, detachable - external 12V DC 100W power unit, stabilized, 100V...240V AC/ 50...60Hz/230VA - USB cable and country-specific line cable Item no.: 430004-9902-000
Polarization	Polarization Compensator mount 6x20 Compensator mount 6x20 Item no.: 424705-0000-000 Compensator mount 6x20 Item no.: 424705-0000-000 Polarizer slider for LED illumination transmitted light Polarizer slider for LED illumination transmitted light Item no.: 427708-9901-000 Polarizer slider for LED illumination transmitted light including diffusion disk with 10° divergence angle. The slider can also be used as shutter against interfering autofluorescence of the LEDs in epi-fluorescence applications. Item no.: 427708-9901-000 Compensator Lambda, 6x20 Compensator Lambda, 6x20 Item no.: 473704-0000-000 Compensator Lambda, 6x20 Item no.: 473704-0000-000 Analyzer slider D/A, 360° rotatable Analyzer slider D/A, 360° rotatable Item no.: 428103-0000-000 Analyzer slider D/A, 360° rotatable position 1 with analyzer, position 2 with clear aperture to allow mounting of filters with dia. 32 mm Item no.: 428103-0000-000	Polarization	Polarization DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II Item no.: 426940-0000-000 DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II Item no.: 426940-0000-000 DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III Item no.: 426945-0000-000 DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III Item no.: 426945-0000-000 Analyzer module DIC ACR P&C shift free for transmitted light Analyzer module DIC ACR P&C shift free for transmitted light Item no.: 424932-9901-000 Analyzer module DIC ACR P&C shift free for transmitted light optimized for DIC in transmitted light, not suitable for polarization. Pol filter for imaging free from pixel shift, almost without wedge error. Item no.: 424932-9901-000	Polarization Compensator mount 6x20 Compensator mount 6x20 Item no.: 424705-0000-000 Compensator mount 6x20 Item no.: 424705-0000-000	Polarization Compensator mount 6x20 Compensator mount 6x20 Item no.: 424705-0000-000 Compensator mount 6x20 Item no.: 424705-0000-000 DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II Item no.: 426940-0000-000 DIC slider EC PN 10x/0.30 I, 20x/0.50 II, PA 20x/0.80 II Item no.: 426940-0000-000 DIC slider EC PN 63x1.25 III, CA 63x/1.2 W III DIC slider EC PN 63x1.25 III, CA 63x/1.2 W III Item no.: 426946-0000-000 DIC slider EC PN 63x1.25 III, CA 63x/1.2 W III Item no.: 426946-0000-000 DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III Item no.: 426945-0000-000 DIC slider EC PN 40x/0.75 II, EC PN 100x/1.30 III Item no.: 426945-0000-000 Analyzer module DIC ACR P&C shift free for transmitted light Analyzer module DIC ACR P&C shift free for transmitted light Item no.: 424932-9901-000 Analyzer module DIC ACR P&C shift free for transmitted light optimized for DIC in transmitted light, not suitable for polarization. Pol filter for imaging free from pixel shift, almost without wedge error. Item no.: 424932-9901-000	Polarization	Polarization Compensator mount 6x20 Compensator mount 6x20 Item no.: 424705-0000-000 Compensator mount 6x20 Item no.: 424705-0000-000
Stages and accessories	Stages and accessories Mechanical stage 75x50/240° R with hardcoat anodized surface Mechanical stage 75x50/240° R with hardcoat anodized surface Item no.: 432001-9902-000 Mechanical stage 75x50/240° R with hardcoat anodized surface - 240 x 170 x 18 mm stage plate - coaxial drive right 150 mm, extendable in length by 15 mm, friction setting without any tools Item no.: 432001-9902-000 Specimen holder for slide 76x26 mm for one-hand operation Specimen holder for slide 76x26 mm for one-hand operation Item no.: 432301-0000-000 Specimen holder for slide 76x26 mm for one-hand operation Item no.: 432301-0000-000	Stages and accessories Specimen holder for slide 76x26 mm for one-hand operation Specimen holder for slide 76x26 mm for one-hand operation Item no.: 432301-0000-000 Specimen holder for slide 76x26 mm for one-hand operation Item no.: 432301-0000-000 Mechanical stage 75x50 mot standard; CAN (D) Mechanical stage 75x50 mot standard; CAN (D) Item no.: 432026-9000-000 Mechanical stage 75x50 mot standard; CAN (D) for Axio Scope, Axio Examiner, Axio Imager and SteREO - with hardcoat anodized surface - stepper motor drive with integrated controller - connection via CAN bus - stage plate 292 x 187 x 18 mm - travel range 75 mm x 50 mm - max speed 100 mm/s - resolution: 0.5 µm - reproducibility: +/- 5 µm - absolute accuracy: +/- 30 µm - max sample weight: 1 kg - incl. CAN cable Item no.: 432026-9000-000	Stages and accessories Mechanical stage 75x50/240° R with hardcoat anodized surface Mechanical stage 75x50/240° R with hardcoat anodized surface Item no.: 432001-9902-000 Mechanical stage 75x50/240° R with hardcoat anodized surface - 240 x 170 x 18 mm stage plate - coaxial drive right 150 mm, extendable in length by 15 mm, friction setting without any tools Item no.: 432001-9902-000 Specimen holder for slide 76x26 mm for one-hand operation Specimen holder for slide 76x26 mm for one-hand operation Item no.: 432301-0000-000 Specimen holder for slide 76x26 mm for one-hand operation Item no.: 432301-0000-000	Stages and accessories Specimen holder for slide 76x26 mm for one-hand operation Specimen holder for slide 76x26 mm for one-hand operation Item no.: 432301-0000-000 Specimen holder for slide 76x26 mm for one-hand operation Item no.: 432301-0000-000 Mechanical stage 75x50 R basic, Axio Imager, hardcoat anodized surface Mechanical stage 75x50 R basic, Axio Imager, hardcoat anodized surface Item no.: 432035-9021-000 Mechanical stage 75x50 R basic, Axio Imager, hardcoat anodized surface 220 x 170 x 18 mm stage plate, covered X-guide positioned at bottom, right drive 135 mm (extendable by 15 mm) with friction setting Item no.: 432035-9021-000	Stages and accessories Universal mounting frame A-K (D) Universal mounting frame A-K (D) Item no.: 410800-1000-000 Universal mounting frame A-K (D) - frame size 160x116mm Item no.: 410800-1000-000 Specimen holder 76x26, one-hand operation for immersion Specimen holder 76x26, one-hand operation for immersion Item no.: 432308-0000-000 Specimen holder 76x26, one-hand operation for immersion (particularly for immersion objectives) Item no.: 432308-0000-000 Scanning Stage 130x85 STEP (D) Scanning Stage 130x85 STEP (D) Item no.: 432033-9902-000 Scanning Stage 130x85 STEP (D) for Axio Imager - stepper motor with 2 mm spindle pitch - connection to stepper controller - travel range 130 mm x 85 mm - max speed 50 mm/s - resolution: 0.1 µm - reproducibility: +/- 1 µm - absolute accuracy: +/- 5 µm - travel range adjustable - fixed motor cable with exit on stage back side; left - for mounting frames 160 x 116 mm and Z-PIEZO Item no.: 432033-9902-000	Stages and accessories Universal mounting frame A-K (D) Universal mounting frame A-K (D) Item no.: 410800-1000-000 Universal mounting frame A-K (D) - frame size 160x116mm Item no.: 410800-1000-000 Scanning Stage 130x85 STEP (D) Scanning Stage 130x85 STEP (D) Item no.: 432033-9902-000 Scanning Stage 130x85 STEP (D) for Axio Imager - stepper motor with 2 mm spindle pitch - connection to stepper controller - travel range 130 mm x 85 mm - max speed 50 mm/s - resolution: 0.1 µm - reproducibility: +/- 1 µm - absolute accuracy: +/- 5 µm - travel range adjustable - fixed motor cable with exit on stage back side; left - for mounting frames 160 x 116 mm and Z-PIEZO Item no.: 432033-9902-000	Stages and accessories Mechanical stage 75x50/240° R with hardcoat anodized surface Mechanical stage 75x50/240° R with hardcoat anodized surface Item no.: 432001-9902-000 Mechanical stage 75x50/240° R with hardcoat anodized surface - 240 x 170 x 18 mm stage plate - coaxial drive right 150 mm, extendable in length by 15 mm, friction setting without any tools Item no.: 432001-9902-000 Specimen holder for slide 76x26 mm for one-hand operation Specimen holder for slide 76x26 mm for one-hand operation Item no.: 432301-0000-000 Specimen holder for slide 76x26 mm for one-hand operation Item no.: 432301-0000-000 Cryo microscopy stage CMS196 set for Axio Imager (D) Cryo microscopy stage CMS196 set for Axio Imager (D) Item no.: 000000-2362-357 Cryo microscopy stage CMS196 set for Axio Imager (D) Microscope stage set motorized for Cryo CLEM imaging - Travel range: approx. 10.8 mm x 2.8 mm - Measuring system: absolute coding - Resolution: 1 µm - Sample holder: standard EM grids, Autogrid - Glass window for transmitted light PMT imaging, exchangeable with integrated LED fixed-Köhler transmitted light illumination - Temperature range: hold at -196°C - N2 liquid: holding time: 28 min - 3 L Auto Dewar flask, holding time: 4-6 h - Holder for Dewar Flask - Max. objective diameter: 30 mm - Min. free working distance: 1 mm - Stage carrier transmitted-light/reflected-light - Condenser carrier with vertical adjustment on both sides - Adapter plate for Axio Imager - 6x bellows for objectives - Test sample - Control unit for stage - Power supply: universal - Power cord: country specific Item no.: 000000-2362-357
Tubes and accessories	Tubes and accessories Binocular phototube 30°/25 (30vis:70doc), reversed image Binocular phototube 30°/25 (30vis:70doc), reversed image Item no.: 425501-0000-000 Binocular phototube 30°/25 (30vis:70doc), reversed image camera port with interface 60N Item no.: 425501-0000-000	Tubes and accessories Binocular Ergophototube 20°/23 (100:0/0:100), reversed image Binocular Ergophototube 20°/23 (100:0/0:100), reversed image Item no.: 425512-0000-000 Binocular Ergophototube 20°/23 (100:0/0:100), reversed image variable, continuous vertical adjustment 44 mm, camera port with interface 60N Item no.: 425512-0000-000	Tubes and accessories Binocular Ergophototube 20°/23 (100:0/0:100), reversed image Binocular Ergophototube 20°/23 (100:0/0:100), reversed image Item no.: 425512-0000-000 Binocular Ergophototube 20°/23 (100:0/0:100), reversed image variable, continuous vertical adjustment 44 mm, camera port with interface 60N Item no.: 425512-0000-000	Tubes and accessories Binocular Ergophototube 20°/23 (100:0/0:100), reversed image Binocular Ergophototube 20°/23 (100:0/0:100), reversed image Item no.: 425512-0000-000 Binocular Ergophototube 20°/23 (100:0/0:100), reversed image variable, continuous vertical adjustment 44 mm, camera port with interface 60N Item no.: 425512-0000-000	Tubes and accessories Binocular Ergophototube 20°/23 (100:0/0:100), reversed image Binocular Ergophototube 20°/23 (100:0/0:100), reversed image Item no.: 425512-0000-000 Binocular Ergophototube 20°/23 (100:0/0:100), reversed image variable, continuous vertical adjustment 44 mm, camera port with interface 60N Item no.: 425512-0000-000	Tubes and accessories Binocular tube 30°/23, reversed image, Axio Imager Binocular tube 30°/23, reversed image, Axio Imager Item no.: 425520-9060-000 Binocular tube 30°/23, reversed image, Axio Imager Item no.: 425520-9060-000	Tubes and accessories Binocular phototube 15°/25 (100:0/0:100), upright image Binocular phototube 15°/25 (100:0/0:100), upright image Item no.: 425503-9901-000 Binocular phototube 15°/25 (100:0/0:100), upright image adjustable stop, camera port with interface 60N Item no.: 425503-9901-000
Eyepieces	Eyepieces Eyepiece PL 10x/25 Br. foc. Eyepiece PL 10x/25 Br. foc. Item no.: 444034-9000-000 Eyepiece PL 10x/25 Br. foc. Item no.: 444034-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Auxiliary microscope, d=30 Auxiliary microscope, d=30 Item no.: 444830-9902-000 Auxiliary microscope, d=30 to adjust the phase rings and darkfield stop in the condenser Item no.: 444830-9902-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Auxiliary microscope, d=30 Auxiliary microscope, d=30 Item no.: 444830-9902-000 Auxiliary microscope, d=30 to adjust the phase rings and darkfield stop in the condenser Item no.: 444830-9902-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/23 Br. foc. Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000 Eyepiece PL 10x/23 Br. foc. Item no.: 444036-9000-000	Eyepieces Eyepiece PL 10x/25 Br. foc. Eyepiece PL 10x/25 Br. foc. Item no.: 444034-9000-000 Eyepiece PL 10x/25 Br. foc. Item no.: 444034-9000-000
Eyepiece accessories	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000	Eyepiece accessories Eyepiece eyecup Eyepiece eyecup Item no.: 444801-0000-000 Eyepiece eyecup Item no.: 444801-0000-000 Crossline graticule, d=26 mm Crossline graticule, d=26 mm Item no.: 474064-0000-000 Crossline graticule d=26 mm Item no.: 474064-0000-000
Transmitted-light objectives	Transmitted-light objectives Objective EC Plan-Neofluar 10x/0.3 M27 Objective EC Plan-Neofluar 10x/0.3 M27 Item no.: 420340-9901-000 Objective EC Plan-Neofluar 10x/0.3 M27 (FWD=5.2mm) Item no.: 420340-9901-000 Objective EC Plan-Neofluar 5x/0.16 M27 Objective EC Plan-Neofluar 5x/0.16 M27 Item no.: 420330-9901-000 Objective EC Plan-Neofluar 5x/0.16 M27 (FWD=18.5mm) Item no.: 420330-9901-000 Objective EC Plan-Neofluar 2.5x/0.085 M27 Objective EC Plan-Neofluar 2.5x/0.085 M27 Item no.: 420320-9902-000 Objective EC Plan-Neofluar 2.5x/0.085 M27 (FWD=8.8mm) Item no.: 420320-9902-000 Objective EC Plan-Neofluar 1.25x/0.03 M27 Objective EC Plan-Neofluar 1.25x/0.03 M27 Item no.: 420310-9901-000 Objective EC Plan-Neofluar 1.25x/0.03 M27 (FWD=4.0mm) Item no.: 420310-9901-000 Objective Plan-Apochromat 20x/0.8 M27 Objective Plan-Apochromat 20x/0.8 M27 Item no.: 420650-9903-000 Objective Plan-Apochromat 20x/0.8 M27 (FWD=0.55mm), incl. Cover glasses, high performance, CG=0.17mm, box with 100 pc Lead-free Item no.: 420650-9903-000 Objective Plan-Apochromat 40x/0.95 Corr M27 Objective Plan-Apochromat 40x/0.95 Corr M27 Item no.: 420660-9970-000 Objective Plan-Apochromat 40x/0.95 Corr M27 (FWD=0.25mm), incl. Cover glasses, high performance, CG=0.17mm, box with 100 pc. Item no.: 420660-9970-000	Transmitted-light objectives Objective EC Plan-Neofluar 2.5x/0.085 M27 Objective EC Plan-Neofluar 2.5x/0.085 M27 Item no.: 420320-9902-000 Objective EC Plan-Neofluar 2.5x/0.085 M27 (FWD=8.8mm) Item no.: 420320-9902-000 Objective EC Plan-Neofluar 5x/0.16 Ph1 M27 Objective EC Plan-Neofluar 5x/0.16 Ph1 M27 Item no.: 420331-9911-000 Objective EC Plan-Neofluar 5x/0.16 Ph1 M27 (FWD=18.5mm) Item no.: 420331-9911-000 Objective EC Plan-Neofluar 10x/0.3 Ph1 M27 Objective EC Plan-Neofluar 10x/0.3 Ph1 M27 Item no.: 420341-9911-000 Objective EC Plan-Neofluar 10x/0.3 Ph1 M27 (FWD=5.2mm) Item no.: 420341-9911-000 Objective EC Plan-Neofluar 20x/0.50 Ph2 M27 Objective EC Plan-Neofluar 20x/0.50 Ph2 M27 Item no.: 420351-9910-000 Objective EC Plan-Neofluar 20x/0.50 Ph2 M27 (FWD=2.0mm) Item no.: 420351-9910-000 Objective EC Plan-Neofluar 40x/0.75 Ph2 M27 Objective EC Plan-Neofluar 40x/0.75 Ph2 M27 Item no.: 420361-9910-000 Objective EC Plan-Neofluar 40x/0.75 Ph2 M27 (FWD=0.71mm), incl. Cover glasses, high performance, CG=0.17 mm, box with 100 pc. Item no.: 420361-9910-000 Objective EC Plan-Neofluar 100x/1.30 Oil Ph3 M27 Objective EC Plan-Neofluar 100x/1.30 Oil Ph3 M27 Item no.: 420491-9910-000 Objective EC Plan-Neofluar 100x/1.30 Oil Ph3 M27 (FWD=0.20mm), incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, CG=0.17mm, box with 100 pc. Item no.: 420491-9910-000	Transmitted-light objectives Objective EC Plan-Neofluar 10x/0.3 M27 Objective EC Plan-Neofluar 10x/0.3 M27 Item no.: 420340-9901-000 Objective EC Plan-Neofluar 10x/0.3 M27 (FWD=5.2mm) Item no.: 420340-9901-000 Objective EC Plan-Neofluar 20x/0.50 M27 Objective EC Plan-Neofluar 20x/0.50 M27 Item no.: 420350-9900-000 Objective EC Plan-Neofluar 20x/0.50 M27 (FWD=2.0mm) Item no.: 420350-9900-000 Objective EC Plan-Neofluar 40x/0.75 M27 Objective EC Plan-Neofluar 40x/0.75 M27 Item no.: 420360-9900-000 Objective EC Plan-Neofluar 40x/0.75 M27 (FWD=0.71mm), incl. Cover glasses, high performance, CG=0.17mm, box with 100 pc. Item no.: 420360-9900-000 Objective EC Plan-Neofluar 100x/1.30 Oil M27 Objective EC Plan-Neofluar 100x/1.30 Oil M27 Item no.: 420490-9900-000 Objective EC Plan-Neofluar 100x/1.30 Oil M27 (FWD=0.20mm), incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, CG=0.17mm, box with 100 pc. Item no.: 420490-9900-000	Transmitted-light objectives Objective EC Plan-Neofluar 2.5x/0.085 M27 Objective EC Plan-Neofluar 2.5x/0.085 M27 Item no.: 420320-9902-000 Objective EC Plan-Neofluar 2.5x/0.085 M27 (FWD=8.8mm) Item no.: 420320-9902-000 Objective EC Plan-Neofluar 5x/0.16 Ph1 M27 Objective EC Plan-Neofluar 5x/0.16 Ph1 M27 Item no.: 420331-9911-000 Objective EC Plan-Neofluar 5x/0.16 Ph1 M27 (FWD=18.5mm) Item no.: 420331-9911-000 Objective EC Plan-Neofluar 10x/0.3 Ph1 M27 Objective EC Plan-Neofluar 10x/0.3 Ph1 M27 Item no.: 420341-9911-000 Objective EC Plan-Neofluar 10x/0.3 Ph1 M27 (FWD=5.2mm) Item no.: 420341-9911-000 Objective EC Plan-Neofluar 20x/0.50 Ph2 M27 Objective EC Plan-Neofluar 20x/0.50 Ph2 M27 Item no.: 420351-9910-000 Objective EC Plan-Neofluar 20x/0.50 Ph2 M27 (FWD=2.0mm) Item no.: 420351-9910-000 Objective EC Plan-Neofluar 40x/0.75 Ph2 M27 Objective EC Plan-Neofluar 40x/0.75 Ph2 M27 Item no.: 420361-9910-000 Objective EC Plan-Neofluar 40x/0.75 Ph2 M27 (FWD=0.71mm), incl. Cover glasses, high performance, CG=0.17 mm, box with 100 pc. Item no.: 420361-9910-000 Objective EC Plan-Neofluar 100x/1.30 Oil Ph3 M27 Objective EC Plan-Neofluar 100x/1.30 Oil Ph3 M27 Item no.: 420491-9910-000 Objective EC Plan-Neofluar 100x/1.30 Oil Ph3 M27 (FWD=0.20mm), incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, CG=0.17mm, box with 100 pc. Item no.: 420491-9910-000	Transmitted-light objectives Objective EC Plan-Neofluar 10x/0.3 M27 Objective EC Plan-Neofluar 10x/0.3 M27 Item no.: 420340-9901-000 Objective EC Plan-Neofluar 10x/0.3 M27 (FWD=5.2mm) Item no.: 420340-9901-000 Objective EC Plan-Neofluar 20x/0.50 M27 Objective EC Plan-Neofluar 20x/0.50 M27 Item no.: 420350-9900-000 Objective EC Plan-Neofluar 20x/0.50 M27 (FWD=2.0mm) Item no.: 420350-9900-000 Objective EC Plan-Neofluar 40x/0.75 M27 Objective EC Plan-Neofluar 40x/0.75 M27 Item no.: 420360-9900-000 Objective EC Plan-Neofluar 40x/0.75 M27 (FWD=0.71mm), incl. Cover glasses, high performance, CG=0.17mm, box with 100 pc. Item no.: 420360-9900-000 Objective EC Plan-Neofluar 63x/1.25 Oil M27 Objective EC Plan-Neofluar 63x/1.25 Oil M27 Item no.: 420480-9901-000 Objective EC Plan-Neofluar 63x/1.25 Oil M27 (FWD=0.10mm), incl. Immersol 518 F, oiler 20ml Item no.: 420480-9901-000 Objective EC Plan-Neofluar 100x/1.30 Oil M27 Objective EC Plan-Neofluar 100x/1.30 Oil M27 Item no.: 420490-9900-000 Objective EC Plan-Neofluar 100x/1.30 Oil M27 (FWD=0.20mm), incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, CG=0.17mm, box with 100 pc. Item no.: 420490-9900-000	Transmitted-light objectives Objective EC Plan-Neofluar 5x/0.16 M27 Objective EC Plan-Neofluar 5x/0.16 M27 Item no.: 420330-9901-000 Objective EC Plan-Neofluar 5x/0.16 M27 (FWD=18.5mm) Item no.: 420330-9901-000 Objective Plan-Apochromat 10x/0.45 M27 Objective Plan-Apochromat 10x/0.45 M27 Item no.: 420640-9900-000 Objective Plan-Apochromat 10x/0.45 M27 (FWD=2.1mm) Item no.: 420640-9900-000 Objective Plan-Apochromat 20x/0.8 M27 Objective Plan-Apochromat 20x/0.8 M27 Item no.: 420650-9903-000 Objective Plan-Apochromat 20x/0.8 M27 (FWD=0.55mm), incl. Cover glasses, high performance, CG=0.17mm, box with 100 pc Lead-free Item no.: 420650-9903-000 Objective Plan-Apochromat 63x/1.4 Oil DIC M27 Objective Plan-Apochromat 63x/1.4 Oil DIC M27 Item no.: 420782-9900-000 Objective Plan-Apochromat 63x/1.4 Oil DIC M27 (FWD=0.19mm), incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, CG=0.17mm, box with 100 pc. Item no.: 420782-9900-000	Transmitted-light objectives Objective EC Plan-Neofluar 10x/0.3 M27 Objective EC Plan-Neofluar 10x/0.3 M27 Item no.: 420340-9901-000 Objective EC Plan-Neofluar 10x/0.3 M27 (FWD=5.2mm) Item no.: 420340-9901-000 Objective Fluar 5x/0.25 M27 Objective Fluar 5x/0.25 M27 Item no.: 420130-9900-000 Objective Fluar 5x/0.25 M27 (FWD=12.5mm) Item no.: 420130-9900-000
Condensers	Condensers Condenser achromatic-aplanatic 0.9 H mot., pathology Condenser achromatic-aplanatic 0.9 H mot., pathology Item no.: 424220-9902-000 Condenser achromatic-aplanatic 0.9 H mot., pathology with motorized front lens. For objective magnifications 1.0x-100x, FWD=1.2mm Item no.: 424220-9902-000	Condensers Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. Item no.: 424201-9903-000 Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm Item no.: 424201-9903-000	Condensers Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. Item no.: 424201-9903-000 Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm Item no.: 424201-9903-000 Condenser module DIC I/0.9 with polarizer Condenser module DIC I/0.9 with polarizer Item no.: 426701-0000-000 Condenser module DIC I/0.9 with polarizer Item no.: 426701-0000-000 Condenser module DIC II/0.9 with polarizer Condenser module DIC II/0.9 with polarizer Item no.: 426702-0000-000 Condenser module DIC II/0.9 with polarizer Item no.: 426702-0000-000 Condenser module DIC III/0.9 with polarizer Condenser module DIC III/0.9 with polarizer Item no.: 426703-0000-000 Condenser module DIC III/0.9 with polarizer Item no.: 426703-0000-000	Condensers Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. Item no.: 424201-9903-000 Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm Item no.: 424201-9903-000	Condensers Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. Item no.: 424201-9903-000 Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm Item no.: 424201-9903-000 Condenser module DIC I/0.9 with polarizer Condenser module DIC I/0.9 with polarizer Item no.: 426701-0000-000 Condenser module DIC I/0.9 with polarizer Item no.: 426701-0000-000 Condenser module DIC II/0.9 with polarizer Condenser module DIC II/0.9 with polarizer Item no.: 426702-0000-000 Condenser module DIC II/0.9 with polarizer Item no.: 426702-0000-000 Condenser module DIC III/0.9 with polarizer Condenser module DIC III/0.9 with polarizer Item no.: 426703-0000-000 Condenser module DIC III/0.9 with polarizer Item no.: 426703-0000-000	Condensers Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. Item no.: 424201-9903-000 Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm Item no.: 424201-9903-000	Condensers Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. Item no.: 424201-9903-000 Universal condenser achromatic-aplanatic 0.9 H D Ph DIC, mot. with motorized front lens, aperture diaphragm and turret disk, with centerable Ph1, Ph2, Ph3 and D stops, already integrated, 3 mounts for DIC condenser modules, 1 separate position for bright field. For objective magnifications 1.0x-100x, FWD=1.2mm Item no.: 424201-9903-000
Packing and dust protection	Packing and dust protection Dust protection Set L Dust protection Set L Item no.: 434304-0000-000 Dust protection Set L consisting of dust cover (L670xW460xH775 mm), eyepiece cover and protection cap for luminous-field diaphragm Item no.: 434304-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set M Dust protection Set M Item no.: 434303-0000-000 Dust protection Set M consisting of dust cover (L650xW200xH570 mm), eyepiece cover and protection cap for luminous-field diaphragm optics Item no.: 434303-0000-000	Packing and dust protection Dust protection Set L Dust protection Set L Item no.: 434304-0000-000 Dust protection Set L consisting of dust cover (L670xW460xH775 mm), eyepiece cover and protection cap for luminous-field diaphragm Item no.: 434304-0000-000	Packing and dust protection Dust protection Set L Dust protection Set L Item no.: 434304-0000-000 Dust protection Set L consisting of dust cover (L670xW460xH775 mm), eyepiece cover and protection cap for luminous-field diaphragm Item no.: 434304-0000-000	Packing and dust protection Dust protection Set L Dust protection Set L Item no.: 434304-0000-000 Dust protection Set L consisting of dust cover (L670xW460xH775 mm), eyepiece cover and protection cap for luminous-field diaphragm Item no.: 434304-0000-000	Packing and dust protection Dust protection Set L Dust protection Set L Item no.: 434304-0000-000 Dust protection Set L consisting of dust cover (L670xW460xH775 mm), eyepiece cover and protection cap for luminous-field diaphragm Item no.: 434304-0000-000
Stand accessories	Stand accessories	Stand accessories 7-position objective nosepiece, HD M27 cod. 7-position objective nosepiece, HD M27 cod. Item no.: 424501-0000-000 7-position objective nosepiece, HD M27 cod. Item no.: 424501-0000-000 Double filter wheel, discrete, mot., 2x4 positions Double filter wheel, discrete, mot., 2x4 positions Item no.: 428301-9901-000 Double filter wheel, discrete, mot., 2x4 positions each to accept neutral-density filter set and dia. 25 mm color filters. For use in transmitted-light and reflected-light equipments mot. Item no.: 428301-9901-000	Stand accessories 6-position objective nosepiece, HD DIC M27 cod. 6-position objective nosepiece, HD DIC M27 cod. Item no.: 424504-0000-000 6-position objective nosepiece, HD DIC M27 cod. Item no.: 424504-0000-000 Double filter wheel, discrete, mot., 2x4 positions Double filter wheel, discrete, mot., 2x4 positions Item no.: 428301-9901-000 Double filter wheel, discrete, mot., 2x4 positions each to accept neutral-density filter set and dia. 25 mm color filters. For use in transmitted-light and reflected-light equipments mot. Item no.: 428301-9901-000 6-position reflector turret man. cod. for P&C modules 6-position reflector turret man. cod. for P&C modules Item no.: 424906-0000-000 6-position reflector turret man. cod. for P&C modules Item no.: 424906-0000-000	Stand accessories 7-position objective nosepiece, HD M27 cod. 7-position objective nosepiece, HD M27 cod. Item no.: 424501-0000-000 7-position objective nosepiece, HD M27 cod. Item no.: 424501-0000-000 Double filter wheel, discrete, mot., 2x4 positions Double filter wheel, discrete, mot., 2x4 positions Item no.: 428301-9901-000 Double filter wheel, discrete, mot., 2x4 positions each to accept neutral-density filter set and dia. 25 mm color filters. For use in transmitted-light and reflected-light equipments mot. Item no.: 428301-9901-000 6-position reflector turret man. cod. for P&C modules 6-position reflector turret man. cod. for P&C modules Item no.: 424906-0000-000 6-position reflector turret man. cod. for P&C modules Item no.: 424906-0000-000	Stand accessories Double filter wheel, discrete, mot., 2x4 positions Double filter wheel, discrete, mot., 2x4 positions Item no.: 428301-9901-000 Double filter wheel, discrete, mot., 2x4 positions each to accept neutral-density filter set and dia. 25 mm color filters. For use in transmitted-light and reflected-light equipments mot. Item no.: 428301-9901-000 6-position objective nosepiece, HD DIC M27 mot. ACR 6-position objective nosepiece, HD DIC M27 mot. ACR Item no.: 424507-0000-000 6-position objective nosepiece, HD DIC M27 mot. ACR with automatic objective recognition Item no.: 424507-0000-000 6-position reflector turret mot. for P&C modules 6-position reflector turret mot. for P&C modules Item no.: 424907-0000-000 6-position reflector turret mot. for P&C modules Item no.: 424907-0000-000	Stand accessories 6-position objective nosepiece, HD DIC M27 mot. 6-position objective nosepiece, HD DIC M27 mot. Item no.: 424505-0000-000 6-position objective nosepiece, HD DIC M27 mot. Item no.: 424505-0000-000 10-position reflector turret mot. ACR, for P&C modules 10-position reflector turret mot. ACR, for P&C modules Item no.: 424913-0000-000 10-position reflector turret mot. ACR, for P&C modules with automatic filter set and contrast module recognition Item no.: 424913-0000-000 Stage carrier, detachable with condenser carrier for Axio Imager Stage carrier, detachable with condenser carrier for Axio Imager Item no.: 430707-0000-000 Stage carrier, detachable with condenser carrier for Axio Imager suitable for sample heights from 0 mm up to 25 mm Item no.: 430707-0000-000 Docking station for TFT-Display Docking station for TFT-Display Item no.: 432907-9901-000 Docking station for TFT-Display upgrading module for the TFT-Display of motorized stands Axio Imager and Axio Observer - free positioning on desktop - Control of z-drive and circular operation key unit - mechanical interface to attach Electronic Coaxial Drive - TFT-Display 30°-45° tiltable Item no.: 432907-9901-000	Stand accessories Double filter wheel, discrete, mot., 2x4 positions Double filter wheel, discrete, mot., 2x4 positions Item no.: 428301-9901-000 Double filter wheel, discrete, mot., 2x4 positions each to accept neutral-density filter set and dia. 25 mm color filters. For use in transmitted-light and reflected-light equipments mot. Item no.: 428301-9901-000 6-position objective nosepiece, HD DIC M27 mot. ACR 6-position objective nosepiece, HD DIC M27 mot. ACR Item no.: 424507-0000-000 6-position objective nosepiece, HD DIC M27 mot. ACR with automatic objective recognition Item no.: 424507-0000-000 6-position reflector turret mot. for P&C modules 6-position reflector turret mot. for P&C modules Item no.: 424907-0000-000 6-position reflector turret mot. for P&C modules Item no.: 424907-0000-000 Docking station for TFT-Display Docking station for TFT-Display Item no.: 432907-9901-000 Docking station for TFT-Display upgrading module for the TFT-Display of motorized stands Axio Imager and Axio Observer - free positioning on desktop - Control of z-drive and circular operation key unit - mechanical interface to attach Electronic Coaxial Drive - TFT-Display 30°-45° tiltable Item no.: 432907-9901-000
Lamps and Lamp housings	Lamps and Lamp housings	Lamps and Lamp housings HAL 100 illuminator with quartz collector HAL 100 illuminator with quartz collector Item no.: 423000-9901-000 HAL 100 illuminator with quartz collector lamp mount and heat-reflecting filter Item no.: 423000-9901-000	Lamps and Lamp housings	Lamps and Lamp housings Light Source Viluma 7 FR-R[G/Y]BV-UV Light Source Viluma 7 FR-R[G/Y]BV-UV Item no.: 423052-9771-000 Light Source Viluma 7 FR-R[G/Y]BV-UV 7-channel fluorescence light source with integrated control unit for continuous brightness adjustment, quickly switchable and stable on the long term. With integrated monitor diode for repetitious brightness adjustment. Equipped with 7 excitation lines. Far Red (735 nm) for excitation of Cy7 and similar dyes Red (631 nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Yellow (591 nm) for excitation of mCherry, Alexa 568, mPlum and similar dyes Green(555 nm) for excitation of Cy3, TRITC, DsRed and similar dyes Blue (469 nm) for excitation of eGFP, Fluo4, FITC and similar dyes Violet (423 nm) for excitation of eCFP, Lucifer Yellow, Alexa 430 and similar dyes UV (385 nm) for excitation of DAPI, Alexa 405,Hoechst 33258 and similar dyes A country-specific power cable and a desktop power supply are included in delivery. Item no.: 423052-9771-000	Lamps and Lamp housings Light Source Viluma 7 FR-R[G/Y]BV-UV Light Source Viluma 7 FR-R[G/Y]BV-UV Item no.: 423052-9771-000 Light Source Viluma 7 FR-R[G/Y]BV-UV 7-channel fluorescence light source with integrated control unit for continuous brightness adjustment, quickly switchable and stable on the long term. With integrated monitor diode for repetitious brightness adjustment. Equipped with 7 excitation lines. Far Red (735 nm) for excitation of Cy7 and similar dyes Red (631 nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Yellow (591 nm) for excitation of mCherry, Alexa 568, mPlum and similar dyes Green(555 nm) for excitation of Cy3, TRITC, DsRed and similar dyes Blue (469 nm) for excitation of eGFP, Fluo4, FITC and similar dyes Violet (423 nm) for excitation of eCFP, Lucifer Yellow, Alexa 430 and similar dyes UV (385 nm) for excitation of DAPI, Alexa 405,Hoechst 33258 and similar dyes A country-specific power cable and a desktop power supply are included in delivery. Item no.: 423052-9771-000	Lamps and Lamp housings Light Source Viluma 7 FR-R[G/Y]BV-UV Light Source Viluma 7 FR-R[G/Y]BV-UV Item no.: 423052-9771-000 Light Source Viluma 7 FR-R[G/Y]BV-UV 7-channel fluorescence light source with integrated control unit for continuous brightness adjustment, quickly switchable and stable on the long term. With integrated monitor diode for repetitious brightness adjustment. Equipped with 7 excitation lines. Far Red (735 nm) for excitation of Cy7 and similar dyes Red (631 nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Yellow (591 nm) for excitation of mCherry, Alexa 568, mPlum and similar dyes Green(555 nm) for excitation of Cy3, TRITC, DsRed and similar dyes Blue (469 nm) for excitation of eGFP, Fluo4, FITC and similar dyes Violet (423 nm) for excitation of eCFP, Lucifer Yellow, Alexa 430 and similar dyes UV (385 nm) for excitation of DAPI, Alexa 405,Hoechst 33258 and similar dyes A country-specific power cable and a desktop power supply are included in delivery. Item no.: 423052-9771-000	Lamps and Lamp housings Illuminator microLED 3 Illuminator microLED 3 Item no.: 423053-9074-000 Illuminator microLED 3 for mounting on the lamp interface for transmitted-light or reflected-light illumination - colour temperature 5700 K - colour rendering index >90 Item no.: 423053-9074-000 Light Source Viluma 7 R[G/Y]CBV-UV Light Source Viluma 7 R[G/Y]CBV-UV Item no.: 423052-9742-000 Light Source Viluma 7 R[G/Y]CBV-UV 7-channel fluorescence light source with integrated control unit for continuous brightness adjustment, quickly switchable and stable on the long term. With integrated monitor diode for repetitious brightnessadjustment. Equipped with 7 excitation lines. Red (631 nm) for excitation of Cy5, Alexa 631, TOTO-3 and similar dyes Yellow (591 nm) for excitation of mCherry, Alexa 568, mPlum and similar dyes Green (555nm) for excitation of Cy3, TRITC, DsRed and similar dyes Cyan (508 nm) for excitation of eYFP, Eosin, TOTO-1 and similar dyes Blue (469 nm) for excitation of eGFP, Fluo4, FITC and similar dyes Violet (423 nm) for excitation of eCFP, Lucifer Yellow, Alexa 430 and similar dyes UV (385 nm) for excitationof DAPI,Alexa 405, Hoechst 33258 and similar dyes A country-specific power cable and a desktop power supply are included in delivery. Item no.: 423052-9742-000 Control Panel for Colibri 5/7 and Viluma 5/7 Control Panel for Colibri 5/7 and Viluma 5/7 Item no.: 423052-9751-000 Control Panel for Colibri 5/7 and Viluma 5/7 with LCD to display the operating state. For LED selection and brightness setting. Item no.: 423052-9751-000
Bulbs	Bulbs	Bulbs Bulb 12V 100W Halogen Rectangular Filament Bulb 12V 100W Halogen Rectangular Filament Item no.: 380059-1660-000 Bulb 12V 100W Halogen Rectangular Filament Item no.: 380059-1660-000	Bulbs	Bulbs	Bulbs	Bulbs	Bulbs
Filters	Filters	Filters Filter set transm. light with neutral-density and color filters, d=25 Filter set transm. light with neutral-density and color filters, d=25 Item no.: 487935-9010-000 Filter set transm. light with neutral-density and color filters, d=25 consisting of 4 neutral-density filters with 1x 25%, 2x 6% and 1x 1.5% transmission, as well as 1x green filter and 1x conversion filter 3200-5500K. For integration in filter wheels, discrete, man. or mot. Not usable for HBO/XBO Item no.: 487935-9010-000	Filters Neutral-density filter set D/A, d=25 Neutral-density filter set D/A, d=25 Item no.: 487931-9901-000 Neutral-density filter set D/A, d=25 attenuation up to 0.0028 % possible. For integration in filter wheels, discrete, man. or mot. Not usable for HBO/XBO Item no.: 487931-9901-000	Filters Filter set transm. light with neutral-density and color filters, d=25 Filter set transm. light with neutral-density and color filters, d=25 Item no.: 487935-9010-000 Filter set transm. light with neutral-density and color filters, d=25 consisting of 4 neutral-density filters with 1x 25%, 2x 6% and 1x 1.5% transmission, as well as 1x green filter and 1x conversion filter 3200-5500K. For integration in filter wheels, discrete, man. or mot. Not usable for HBO/XBO Item no.: 487935-9010-000 Filter set 91 HE LED (E) Filter set 91 HE LED (E) Item no.: 489091-9110-000 Filter set 91 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like CFP, YFP and mCherry with excitation wavelengths 430, 508 and 590 nm. Contains beam splitter TBS 450 + 538 + 610 and emission filter TBP 467/24 + 555/25 + 687/145. Item no.: 489091-9110-000 Filter Set 112 HE LED (E) Filter Set 112 HE LED (E) Item no.: 489112-9110-000 Filter Set 112 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like DAPI, FITC, DsRed, Cy5 and Cy7 with excitation wavelengths 385, 475, 555, 630 and 735 nm. Contains beam splitter PBS 405 + 493 + 575 + 654 + 761 and emission filter PBP 425/30 + 514/31 + 592/25 + 681/45 + 785/38. Item no.: 489112-9110-000	Filters Neutral-density filter set D/A, d=25 Neutral-density filter set D/A, d=25 Item no.: 487931-9901-000 Neutral-density filter set D/A, d=25 attenuation up to 0.0028 % possible. For integration in filter wheels, discrete, man. or mot. Not usable for HBO/XBO Item no.: 487931-9901-000 Filter set 91 HE LED (E) Filter set 91 HE LED (E) Item no.: 489091-9110-000 Filter set 91 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like CFP, YFP and mCherry with excitation wavelengths 430, 508 and 590 nm. Contains beam splitter TBS 450 + 538 + 610 and emission filter TBP 467/24 + 555/25 + 687/145. Item no.: 489091-9110-000 Filter Set 112 HE LED (E) Filter Set 112 HE LED (E) Item no.: 489112-9110-000 Filter Set 112 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like DAPI, FITC, DsRed, Cy5 and Cy7 with excitation wavelengths 385, 475, 555, 630 and 735 nm. Contains beam splitter PBS 405 + 493 + 575 + 654 + 761 and emission filter PBP 425/30 + 514/31 + 592/25 + 681/45 + 785/38. Item no.: 489112-9110-000	Filters Filter set 70 HE Alexa 430 shift free (E) Filter set 70 HE Alexa 430 shift free (E) Item no.: 489070-0000-000 Filter set 70 HE Alexa 430 shift free (E) EX BP 430/60, BS FT 500, EM BP 550/100, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 489070-0000-000 Filter Set 115 Cy7 Filter Set 115 Cy7 Item no.: 489115-9100-000 Filter Set 115 Cy7 Consisting of: EX BP 710/87 BS 760 EM BP 814/91. Recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 489115-9100-000 Filter Set 96 HE BFP shift free (E) Filter Set 96 HE BFP shift free (E) Item no.: 489096-9100-000 Filter Set 96 HE BFP shift free (E) EX BP 390/40, BS FT 420, EM BP 450/40, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 489096-9100-000 Filter set 64 HE mPlum shift free (E) Filter set 64 HE mPlum shift free (E) Item no.: 489064-0000-000 Filter set 64 HE mPlum shift free (E) EX BP 587/25, BS FT 605, EM BP 647/70, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 489064-0000-000 Filter set 43 HE Cy 3 shift free (E) Filter set 43 HE Cy 3 shift free (E) Item no.: 489043-9901-000 Filter set 43 HE Cy 3 shift free (E) EX BP 550/25, BS FT 570, EM BP 605/70, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 489043-9901-000 Filter set 38 HE eGFP shift free (E) Filter set 38 HE eGFP shift free (E) Item no.: 489038-9901-000 Filter set 38 HE eGFP shift free (E) EX BP 470/40, BS FT 495, EM BP 525/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 489038-9901-000 Filter set 50 Cy 5 shift free (E) Filter set 50 Cy 5 shift free (E) Item no.: 488050-9901-000 Filter set 50 Cy 5 shift free (E) EX BP 640/30, BS FT 660, EM BP 690/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 488050-9901-000	Filters Neutral-density filter set D/A, d=25 Neutral-density filter set D/A, d=25 Item no.: 487931-9901-000 Neutral-density filter set D/A, d=25 attenuation up to 0.0028 % possible. For integration in filter wheels, discrete, man. or mot. Not usable for HBO/XBO Item no.: 487931-9901-000 Filter set 38 Endow GFP shift free (E) Filter set 38 Endow GFP shift free (E) Item no.: 000000-1031-346 Filter set 38 Endow GFP shift free (E) EX BP 470/40, BS FT 495, EM BP 525/50, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 000000-1031-346 Filter set 43 Cy 3, d=25 shift free (E) Filter set 43 Cy 3, d=25 shift free (E) Item no.: 000000-1114-101 Filter set 43 Cy 3, d=25 shift free (E) EX BP 545/25, BS FT 570, EM BP 605/70, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 000000-1114-101 Filter set 90 HE LED (E) Filter set 90 HE LED (E) Item no.: 489090-9110-000 Filter set 90 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like DAPI, FITC, TRITC and Cy5 with excitation wavelengths 385, 475, 555 and 630 nm. Contains beam splitter QBS 405 + 493 + 575 + 653 and emission filter QBP 425/30 + 514/30 + 592/25 + 709/100. Item no.: 489090-9110-000 Filter set 92 HE LED (E) Filter set 92 HE LED (E) Item no.: 489092-9110-000 Filter set 92 HE LED (E) for use with ZEISS LED fluorescence light sources. Suitable for fluorescent dyes like DAPI, GFP and mCherry with excitation wavelengths 385, 475 and 590 nm. Contains beam splitter TBS 405 + 493 + 610 and emission filter TBP 425/30 + 524/50 + 688/145. Item no.: 489092-9110-000 Filter Set 96 HE BFP shift free (E) Filter Set 96 HE BFP shift free (E) Item no.: 489096-9100-000 Filter Set 96 HE BFP shift free (E) EX BP 390/40, BS FT 420, EM BP 450/40, recommended for white light fluorescence light sources or ZEISS LED fluorescence light sources. Item no.: 489096-9100-000
Control devices	Control devices	Control devices Joystick XY; CAN (D) Joystick XY; CAN (D) Item no.: 432903-9011-000 Joystick XY; CAN (D) for mechanical stages mot; CAN, scanning stages; CAN and stage controller XY STEP SMC 2009 - 2 speed ranges selectable - direct cable connection to CAN stage or to stage controller XY STEP SMC 2009 Item no.: 432903-9011-000	Control devices	Control devices	Control devices Joystick XY; CAN (D) Joystick XY; CAN (D) Item no.: 432903-9011-000 Joystick XY; CAN (D) for mechanical stages mot; CAN, scanning stages; CAN and stage controller XY STEP SMC 2009 - 2 speed ranges selectable - direct cable connection to CAN stage or to stage controller XY STEP SMC 2009 Item no.: 432903-9011-000 Stage Controller XY STEP SMC 2009 Stage Controller XY STEP SMC 2009 Item no.: 432929-9011-000 Stage Controller XY STEP SMC 2009 Control unit for Maerzhaeuser XY-Stages with stepper motors. - bidirectional communication to microscopes with CAN - position display on microscopes with TFT display and option for objective depended travel speed - 2 CAN interfaces - alternative connection through USB or RS232 - power supply 100...240V AC/50...60Hz - incl. USB-cable, CAN-cable and plug-in power unit with country specific power cord Item no.: 432929-9011-000	Control devices Joystick XY; CAN (D) Joystick XY; CAN (D) Item no.: 432903-9011-000 Joystick XY; CAN (D) for mechanical stages mot; CAN, scanning stages; CAN and stage controller XY STEP SMC 2009 - 2 speed ranges selectable - direct cable connection to CAN stage or to stage controller XY STEP SMC 2009 Item no.: 432903-9011-000 Stage Controller XY STEP SMC 2009 Stage Controller XY STEP SMC 2009 Item no.: 432929-9011-000 Stage Controller XY STEP SMC 2009 Control unit for Maerzhaeuser XY-Stages with stepper motors. - bidirectional communication to microscopes with CAN - position display on microscopes with TFT display and option for objective depended travel speed - 2 CAN interfaces - alternative connection through USB or RS232 - power supply 100...240V AC/50...60Hz - incl. USB-cable, CAN-cable and plug-in power unit with country specific power cord Item no.: 432929-9011-000 Extension cable for stage control 1.6 m (D) Extension cable for stage control 1.6 m (D) Item no.: 000000-2121-749 Extension cable for stage control 1.6 m (D) for usage with joystick, trackball or coaxial drive. Recommended for adaptation of cable length when a docking station is used. Item no.: 000000-2121-749	Control devices
Transmitted-light illumination	Transmitted-light illumination	Transmitted-light illumination	Transmitted-light illumination Attachment lamp VIS-LED with collector Attachment lamp VIS-LED with collector Item no.: 423053-9030-000 Illuminator VIS-LED for mounting on the transmitted-light, reflected-light illuminator, included LED lamp module for VIS-LED - color temperature 5600 K - average lifetime > 10,000 hours - control signals: Trigger-input (BNC) for controlling, max. trigger frequency ca. 100 Hz - usable for objectives from 2.5x - incl. neutral-density filter 0.12 D=25x2 for use with digital microscopy cameras Item no.: 423053-9030-000	Transmitted-light illumination Attachment lamp VIS-LED with collector Attachment lamp VIS-LED with collector Item no.: 423053-9030-000 Illuminator VIS-LED for mounting on the transmitted-light, reflected-light illuminator, included LED lamp module for VIS-LED - color temperature 5600 K - average lifetime > 10,000 hours - control signals: Trigger-input (BNC) for controlling, max. trigger frequency ca. 100 Hz - usable for objectives from 2.5x - incl. neutral-density filter 0.12 D=25x2 for use with digital microscopy cameras Item no.: 423053-9030-000	Transmitted-light illumination Attachment lamp VIS-LED with collector Attachment lamp VIS-LED with collector Item no.: 423053-9030-000 Illuminator VIS-LED for mounting on the transmitted-light, reflected-light illuminator, included LED lamp module for VIS-LED - color temperature 5600 K - average lifetime > 10,000 hours - control signals: Trigger-input (BNC) for controlling, max. trigger frequency ca. 100 Hz - usable for objectives from 2.5x - incl. neutral-density filter 0.12 D=25x2 for use with digital microscopy cameras Item no.: 423053-9030-000	Transmitted-light illumination Attachment lamp VIS-LED with collector Attachment lamp VIS-LED with collector Item no.: 423053-9030-000 Illuminator VIS-LED for mounting on the transmitted-light, reflected-light illuminator, included LED lamp module for VIS-LED - color temperature 5600 K - average lifetime > 10,000 hours - control signals: Trigger-input (BNC) for controlling, max. trigger frequency ca. 100 Hz - usable for objectives from 2.5x - incl. neutral-density filter 0.12 D=25x2 for use with digital microscopy cameras Item no.: 423053-9030-000	Transmitted-light illumination
Reflected-light illumination	Reflected-light illumination	Reflected-light illumination	Reflected-light illumination	Reflected-light illumination Reflected-light illuminator for FL and HD for Axio Imager Reflected-light illuminator for FL and HD for Axio Imager Item no.: 423600-0000-000 Reflected-light illuminator for FL and HD for Axio Imager with shutter and with openings for manual stop sliders and filter wheels. Transmission range 340-1100 nm. With 340 nm and 1100 nm ~40%. Item no.: 423600-0000-000 Shutter for transmitted-light illumination Shutter for transmitted-light illumination Item no.: 423621-9901-000 Shutter for transmitted-light illumination switching time < 200 ms switching frequency max. 2 Hz Item no.: 423621-9901-000 Shutter high speed, reflected-light for Axio Imager M and Z Shutter high speed, reflected-light for Axio Imager M and Z Item no.: 423622-9901-000 Shutter high speed, reflected-light for Axio Imager M and Z switching time < 20 ms switching frequency max. 5 Hz firmware version 06.008 or higher required Item no.: 423622-9901-000 Antiglare screen Antiglare screen Item no.: 452163-0000-000 Antiglare screen Item no.: 452163-0000-000 Stop slider man. with centerable luminous-field diaphragm Stop slider man. with centerable luminous-field diaphragm Item no.: 423611-0000-000 Stop slider man. with centerable luminous-field diaphragm slider stop position can be set Item no.: 423611-0000-000 FL attenuator, discrete FL attenuator, discrete Item no.: 423616-0000-000 FL attenuator, discrete Insert for the aperture stop plane of reflected-light illuminators. Filter wheel with 6 positions. Pos. 1: clear aperture. Pos. 2-6: attenuation with 70, 50, 40, 20 and 2% transmission. Item no.: 423616-0000-000 Reflector module FL EC P&C Reflector module FL EC P&C Item no.: 424931-0000-000 Reflector module FL EC P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm Item no.: 424931-0000-000	Reflected-light illumination Reflected-light illuminator for FL and HD for Axio Imager Reflected-light illuminator for FL and HD for Axio Imager Item no.: 423600-0000-000 Reflected-light illuminator for FL and HD for Axio Imager with shutter and with openings for manual stop sliders and filter wheels. Transmission range 340-1100 nm. With 340 nm and 1100 nm ~40%. Item no.: 423600-0000-000 Shutter for transmitted-light illumination Shutter for transmitted-light illumination Item no.: 423621-9901-000 Shutter for transmitted-light illumination switching time < 200 ms switching frequency max. 2 Hz Item no.: 423621-9901-000 Shutter high speed, reflected-light for Axio Imager M and Z Shutter high speed, reflected-light for Axio Imager M and Z Item no.: 423622-9901-000 Shutter high speed, reflected-light for Axio Imager M and Z switching time < 20 ms switching frequency max. 5 Hz firmware version 06.008 or higher required Item no.: 423622-9901-000 Antiglare screen Antiglare screen Item no.: 452163-0000-000 Antiglare screen Item no.: 452163-0000-000 FL attenuator, discrete FL attenuator, discrete Item no.: 423616-0000-000 FL attenuator, discrete Insert for the aperture stop plane of reflected-light illuminators. Filter wheel with 6 positions. Pos. 1: clear aperture. Pos. 2-6: attenuation with 70, 50, 40, 20 and 2% transmission. Item no.: 423616-0000-000 Stop slider man. with centerable luminous-field diaphragm Stop slider man. with centerable luminous-field diaphragm Item no.: 423611-0000-000 Stop slider man. with centerable luminous-field diaphragm slider stop position can be set Item no.: 423611-0000-000 Reflector module FL EC P&C Reflector module FL EC P&C Item no.: 424931-0000-000 Reflector module FL EC P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm Item no.: 424931-0000-000	Reflected-light illumination Reflected-light illuminator for FL and HD for Axio Imager Reflected-light illuminator for FL and HD for Axio Imager Item no.: 423600-0000-000 Reflected-light illuminator for FL and HD for Axio Imager with shutter and with openings for manual stop sliders and filter wheels. Transmission range 340-1100 nm. With 340 nm and 1100 nm ~40%. Item no.: 423600-0000-000 Shutter for transmitted-light illumination Shutter for transmitted-light illumination Item no.: 423621-9901-000 Shutter for transmitted-light illumination switching time < 200 ms switching frequency max. 2 Hz Item no.: 423621-9901-000 Reflector module FL EC P&C Reflector module FL EC P&C Item no.: 424931-0000-000 Reflector module FL EC P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm Item no.: 424931-0000-000	Reflected-light illumination Reflected-light illuminator for FL and HD for Axio Imager Reflected-light illuminator for FL and HD for Axio Imager Item no.: 423600-0000-000 Reflected-light illuminator for FL and HD for Axio Imager with shutter and with openings for manual stop sliders and filter wheels. Transmission range 340-1100 nm. With 340 nm and 1100 nm ~40%. Item no.: 423600-0000-000 Shutter for transmitted-light illumination Shutter for transmitted-light illumination Item no.: 423621-9901-000 Shutter for transmitted-light illumination switching time < 200 ms switching frequency max. 2 Hz Item no.: 423621-9901-000 Antiglare screen Antiglare screen Item no.: 452163-0000-000 Antiglare screen Item no.: 452163-0000-000 Stop slider with centerable aperture stop Stop slider with centerable aperture stop Item no.: 423613-0000-000 Stop slider with centerable aperture stop Item no.: 423613-0000-000 Stop slider man. with centerable luminous-field diaphragm Stop slider man. with centerable luminous-field diaphragm Item no.: 423611-0000-000 Stop slider man. with centerable luminous-field diaphragm slider stop position can be set Item no.: 423611-0000-000 Reflector module FL EC P&C Reflector module FL EC P&C Item no.: 424931-0000-000 Reflector module FL EC P&C Reflection avoided through tilted mount for emission filters, max. filter thickness: 5 mm Item no.: 424931-0000-000
Accessories for objectives	Accessories for objectives	Accessories for objectives	Accessories for objectives	Accessories for objectives	Accessories for objectives Objective ring ACR for objective sleeve cylindrical short Objective ring ACR for objective sleeve cylindrical short Item no.: 424508-0000-000 Objective ring ACR for objective sleeve cylindrical short Item no.: 424508-0000-000 Objective ring ACR for objective sleeve cylindrical long Objective ring ACR for objective sleeve cylindrical long Item no.: 424511-0000-000 Objective ring ACR for objective sleeve cylindrical long Item no.: 424511-0000-000	Accessories for objectives	Accessories for objectives Objective ring ACR for objective sleeve cylindrical short Objective ring ACR for objective sleeve cylindrical short Item no.: 424508-0000-000 Objective ring ACR for objective sleeve cylindrical short Item no.: 424508-0000-000
Video devices	Video devices	Video devices	Video devices	Video devices	Video devices	Video devices Camera Adapter 60N-C 1" 1.0x Camera Adapter 60N-C 1" 1.0x Item no.: 426114-0000-000 Camera Adapter 60N-C 1" 1.0x Item no.: 426114-0000-000	Video devices Adapter 60N - T2 1.0x Adapter 60N - T2 1.0x Item no.: 426103-0000-000 Adapter 60N - T2 1.0x Item no.: 426103-0000-000 Camera Adapter T2-C 1" 1.0x; adjustable Camera Adapter T2-C 1" 1.0x; adjustable Item no.: 426105-0000-000 Camera Adapter T2-C 1" 1.0x; adjustable (x,y,z and rotation) Item no.: 426105-0000-000
Apotome	Apotome	Apotome	Apotome	Apotome	Apotome	Apotome Slider assembly Apotome 3 for Axio Imager Slider assembly Apotome 3 for Axio Imager Item no.: 423667-9110-000 Slider assembly Apotome 3 for Axio Imager consisting of: slider with control electronics and transmission grids with 3 frequencies, reflector module calibration Apotome ACR P&C for LED and white light source, mirror and fluorescence test slides, cable CAN-BUS, case. Item no.: 423667-9110-000	Apotome
Image processing	Image processing	Image processing	Image processing	Image processing	Image processing	Image processing Microscopy Workstation Premium (HP Z8 G5) (O) Microscopy Workstation Premium (HP Z8 G5) (O) Item no.: 410203-9914-000 Microscopy Workstation Premium (HP Z8 G5) (O) HP Z8 Fury G5 Workstation - Chipset: Intel W790 - Memory Expansion Slots: 16 x DDR5, RDIMM, ECC, 4800 MHz Modules - Memory: max. 1024 GB RAM - PCI Express Connectors: 2 x PCI Express Generation5 x16 1 x PCI Express Generation 5 x4 2 x PCI Express Generation 4 x16 2 x PCI Express Generation 4 x4 1 x PCI Express Generation 3 x8 - SSD: 1 x 2 TB M.2 NVMe - Hard Drives: 2 x 12 TB SATA 7200 rpm (configured as 10 TB RAID 1hard drive) - Network Controller: 2 x GbE LAN interface (RJ 45) - USB: 2 x USB 3.2 Gen2x2 type C (front), 8 x USB 3.1 Gen 1 type A (2 x front, 6 x rear) - Certifications <(>&<)> Declarations: CE, CSA, UL, CCC, KCC - Power Supply: 100 - 240 V / 50 - 60 Hz / 1450 W with country specific plug - Chassis Dimensions: (H x W x D): 445 x 216 x 555 mm - USB Mouse, Recovery kit Item no.: 410203-9914-000 System Configuration 2 for HP Z8 G5 (O) System Configuration 2 for HP Z8 G5 (O) Item no.: 000000-2615-590 System Configuration 2 for HP Z8 G5 (O) Installation of Windows 10 IoT Enterprise LTSC 2021 x64 incl. Windows 10 License - with ZEN software installation and system integration of respective system - for Celldiscoverer 7, LSM 900, LSM 980, Elyra 7, Lattice SIM, Axioscan 7, Lattice Lightsheet - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 000000-2615-590 Processor Intel Xeon W7-3455 (HP Z8 G5) (O) Processor Intel Xeon W7-3455 (HP Z8 G5) (O) Item no.: 410330-1200-000 Processor Intel Xeon W7-3455 (HP Z8 G5) (O) High performance processor configuration - Intel Xeon W7-3455 (2.5 GHz, 67.5 MB cache, 24 cores) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 410330-1200-000 Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) Item no.: 410303-3206-000 Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) consisting of 1 x 32 GB module - DDR5 4800 MHz ECC registered DIMM - can be extended to 64 GB (2 x 410303-3206-000), 128 GB (4 x 410303- 3206-000) or 256 GB (8 x 410303-3206-000) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 410303-3206-000 Graphics Card NVIDIA RTX A4000 16 GB DP (O) Graphics Card NVIDIA RTX A4000 16 GB DP (O) Item no.: 410331-2800-000 Graphics Card NVIDIA RTX A4000 16 GB DP (O) Professional graphics card for Microscopy Workstation - 16 GB GDDR6 memory - PCI Express 4.0 Interface x16 - Hardware acceleration of DirectX 12.07, OpenGL 4.68 and CUDA - Support for up to four displays - Display outputs: 4 x DisplayPort 1.4a (DP) - DisplayPort support for 4 x 32" Display (3840 x 2160 Pixel) Item no.: 410331-2800-000 Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O) Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O) Item no.: 410358-0505-000 Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O) - Additional network adapter 2 x 10 GbE RJ45 (HP Z8 G5) e.g. for connection of storage systems - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 410358-0505-000 Language Pack English US (O) Language Pack English US (O) Item no.: 410380-0200-000 Language Pack English US (O) - Keyboard with English (US) layout Item no.: 410380-0200-000 Monitor TFT 27" HP Series 7 Pro 727pk (68 cm) (O) Monitor TFT 27" HP Series 7 Pro 727pk (68 cm) (O) Item no.: 410350-2704-000 Monitor TFT 27" HP Series 7 Pro 727pk (68 cm) (O) Visible diagonal: 68 cm, 16:9 Maximum resolution: 3840 x 2160 pixel @ 60 Hz Brightness: 400 nits Contrast: 2000:1 Viewing angle: horizontal 178 degree, vertical 178 degree Video input: DisplayPort 1.4, HDMI 2.0, USB-C Data connectors: 1 x USB Type-C 10Gbps (upstream), 1 x USB Type-C 10Gbps, 5 x USB Type-A 10Gbps Power consumption: Maximum 215 W, Typical 43 W, Standby 0.5 W Dimensions incl. stand (H x W x D): 54.05 cm x 61.34 cm x 22.52 cm Weightincl. stand: 6.5 kg Ergonomic features: Tilt: -5°to +20°, Swivel: -45° to +45°, Height adjustable 15 cm, Pivot rotation: -90° to +90° Certification and compliance: CE, CB, GS, TÜV, FCC, TCO Operating voltage: 100-240 V, country-specific power cable Item no.: 410350-2704-000 30m Patch Cable CAT7 30m Patch Cable CAT7 Item no.: 000000-2147-606 30m Patch Cable CAT7 Item no.: 000000-2147-606 Microscopy Camera Axiocam 820 mono Microscopy Camera Axiocam 820 mono Item no.: 426560-9190-000 Microscopy Camera Axiocam 820 mono High performance microscopy monochrome camera incl. driver software 64bit, Interface card USB 3.1 Gen2 PCIe x4, dual USB 3.0 cable 3 m Sensor Type: SONY IMX541 CMOS, monochrome, Global Shutter "Backside Illuminated" Number of Pixels: 4512 (H) x 4512 (V) = 20.3 Mega Pixels Pixel Size: 2.74 µm x 2.74 µm Chip Size: 12.4 mm x 12.4 mm, (square field of view), equivalent to 1.1" (17,4 mm diagonal) Spectral Range: With protection glass. 350 nm to 1000 nm Peak QE: 86% @ 520 nm (typ.), "backside illuminated" design Full Well Capacity: Approx. 10,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (digital) 4512 x 4512 1x1 basic pixelcount 2256 x 2256 2x2 1504 x 1504 3x3 1128 x 1128 4x4 902 x 902 5x5 (at 2x2 combined analog and digital binning for further increase of sensitivity) H x V Subsampling Factor(full field of view) 4512 x 4512 1x1 2256 x 2256 2x2 Live frame rates (depending on hardware and software configuration): Exp. Time 1ms H x V Frame Rate 4512 x 4512 >20 fps (High Res mode, high CPU load) 2256 x 2256 >30 fps (default: Fast Mode, reduced CPU load) Frame rates for time series recording (1 ms exposure, further depending on Sensor ROI, hardware and software configuration) H x V (ROI) FrameRate (fps) 4512 x 4512 28 2256 x 2256 75 (2x2 subsampling; full field of view) 2248 x 1504 82 1920 x 1080 110 1024 x 1024 115 512x x 512 207 1920 x 256 346 1920 x 128 447 Read Noise Full Well Capacity Dynamic Range (at gain) 2.3 e (1x) 10,000 e 1:4440 1.8 e (2x) 5,500 e 1:2720 1.6 e (4x) 2,500 e 1:1540 1.5 e (8x) 1,250 e 1: 850 1.3 e (16x) 625 e 1: 470 HDR Mode: 1,6 e 40,000 e 1:25,000 Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, Adjustable over or under-exposure mode, Optional measurement on defined target area (spot-meter), Image sharpening, Dark current compensation, Single pixel noise correction Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.1 e/p/s @ 25 °C sensor temperature Cooling: Stabilized temperature to 25 °C (mounted on microscope, free air flow, ambient temp. 22 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure timecontrol Trigger-Out for exposure time Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: Dual USB 3.0 SuperSpeed, 2 x 5 Gbit/s for data and power supply (optional single USB 3.0 at lower framerates and without cooling) OpticalInterface: C-Mount Thread Depth for Objectives: Max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 6.1 cm (4.2" x 3.1" x 2.4") / 620 g Housing: Blue anodized aluminum, with cooling fins on top 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by Dual USB 3.0, 5V, max. 7 W power consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Enterprise Supported Application Software: ZEN 3.6 (blue edition) or higher, ZEN 3.5 core or higher The required application software is provided via ZEISS Microscopy Installer or ZEISS Download Center. Item no.: 426560-9190-000 Trigger Cable Set Axiocam 5xx/7xx (D) Trigger Cable Set Axiocam 5xx/7xx (D) Item no.: 426557-0001-000 Trigger Cable Set Axiocam 5xx/7xx/8xx (D) for direct shutter synchronization using trigger board with signal distribution box, Colibri or HXP 120 V Item no.: 426557-0001-000	Image processing Hard Drive Extension to 20TB RAID10 (HP Z8 G5) Hard Drive Extension to 20TB RAID10 (HP Z8 G5) Item no.: 410324-0020-000 Hard Drive Extension to 20TB RAID10 (HP Z8 G5) - Extension of default RAID system - Increase capacity from 10 TB (RAID 1) to 20 TB (RAID 10) - Speed up write and read transfer rates - Recommended for applications generating large amount of data and / or high data transfer rates, e.g. processing of large datasets or driving detector systems at full bandwidth - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 410324-0020-000 Monitor TFT 31,5" HP Series 7 Pro 732pk (80 cm) (O) Monitor TFT 31,5" HP Series 7 Pro 732pk (80 cm) (O) Item no.: 410350-3205-000 Monitor TFT 31,5" HP Series 7 Pro 732pk (80 cm) (O) Visible diagonal: 80 cm, 16:9 Maximum resolution: 3840 x 2160 Pixel @ 60 Hz Brightness: 400 nits Contrast: 2000:1 Viewing angle: horizontal 178 degree, vertical 178 degree Video input: DisplayPort1.4, HDMI 2.0, Thunderbolt 4.0 Data connectors: 1 x USB Type-C 5Gbps, 4 x USB Type-A 5Gbps, 1 x Ethernet RJ45 Power consumption: Maximum 205 W, Typical 48 W, Standby 0.5 W Dimensions incl. stand (H x W x D): 60.49 cm x 71.35 cm x 21.7 cm Weight incl.stand: 8.77 kg Ergonomic features: Tilt: -5° to +20°, Swivel: -45° to +45°, Height adjustable 15 cm, Pivot rotation: -90° to +90° Certification and compliance: CE, CB, GS, TÜV, FCC, TCO Operating voltage: 100-240 V, country-specific power cable Item no.: 410350-3205-000 Language Pack English US (O) Language Pack English US (O) Item no.: 410380-0200-000 Language Pack English US (O) - Keyboard with English (US) layout Item no.: 410380-0200-000 Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O) Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O) Item no.: 410358-0505-000 Network Adapter 2 x 10 GbE RJ45 (HP Z8 G5) (O) - Additional network adapter 2 x 10 GbE RJ45 (HP Z8 G5) e.g. for connection of storage systems - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 410358-0505-000 Graphics Card NVIDIA RTX A4000 16 GB DP (O) Graphics Card NVIDIA RTX A4000 16 GB DP (O) Item no.: 410331-2800-000 Graphics Card NVIDIA RTX A4000 16 GB DP (O) Professional graphics card for Microscopy Workstation - 16 GB GDDR6 memory - PCI Express 4.0 Interface x16 - Hardware acceleration of DirectX 12.07, OpenGL 4.68 and CUDA - Support for up to four displays - Display outputs: 4 x DisplayPort 1.4a (DP) - DisplayPort support for 4 x 32" Display (3840 x 2160 Pixel) Item no.: 410331-2800-000 Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) Item no.: 410303-3206-000 Memory 32 GB (1x32) DDR5 4800 MHz ECC reg RAM (HP Z8 G5) (O) consisting of 1 x 32 GB module - DDR5 4800 MHz ECC registered DIMM - can be extended to 64 GB (2 x 410303-3206-000), 128 GB (4 x 410303- 3206-000) or 256 GB (8 x 410303-3206-000) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 410303-3206-000 Processor Intel Xeon W7-3455 (HP Z8 G5) (O) Processor Intel Xeon W7-3455 (HP Z8 G5) (O) Item no.: 410330-1200-000 Processor Intel Xeon W7-3455 (HP Z8 G5) (O) High performance processor configuration - Intel Xeon W7-3455 (2.5 GHz, 67.5 MB cache, 24 cores) - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 410330-1200-000 System Configuration 2 for HP Z8 G5 (O) System Configuration 2 for HP Z8 G5 (O) Item no.: 000000-2615-590 System Configuration 2 for HP Z8 G5 (O) Installation of Windows 10 IoT Enterprise LTSC 2021 x64 incl. Windows 10 License - with ZEN software installation and system integration of respective system - for Celldiscoverer 7, LSM 900, LSM 980, Elyra 7, Lattice SIM, Axioscan 7, Lattice Lightsheet - only for 410203-9914-000 Microscopy Workstation Premium HP Z8 Fury G5 Item no.: 000000-2615-590 Microscopy Workstation Premium (HP Z8 G5) (O) Microscopy Workstation Premium (HP Z8 G5) (O) Item no.: 410203-9914-000 Microscopy Workstation Premium (HP Z8 G5) (O) HP Z8 Fury G5 Workstation - Chipset: Intel W790 - Memory Expansion Slots: 16 x DDR5, RDIMM, ECC, 4800 MHz Modules - Memory: max. 1024 GB RAM - PCI Express Connectors: 2 x PCI Express Generation5 x16 1 x PCI Express Generation 5 x4 2 x PCI Express Generation 4 x16 2 x PCI Express Generation 4 x4 1 x PCI Express Generation 3 x8 - SSD: 1 x 2 TB M.2 NVMe - Hard Drives: 2 x 12 TB SATA 7200 rpm (configured as 10 TB RAID 1hard drive) - Network Controller: 2 x GbE LAN interface (RJ 45) - USB: 2 x USB 3.2 Gen2x2 type C (front), 8 x USB 3.1 Gen 1 type A (2 x front, 6 x rear) - Certifications <(>&<)> Declarations: CE, CSA, UL, CCC, KCC - Power Supply: 100 - 240 V / 50 - 60 Hz / 1450 W with country specific plug - Chassis Dimensions: (H x W x D): 445 x 216 x 555 mm - USB Mouse, Recovery kit Item no.: 410203-9914-000 Microscopy Camera Axiocam 712 mono R2 (D) Microscopy Camera Axiocam 712 mono R2 (D) Item no.: 426560-9091-000 Microscopy Camera Axiocam 712 mono R2 (D) High Performance microscopy camera incl. driver software 64 bit USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and protection glass (wideband coated) Sensor Type: SONY IMX304 Exmor CMOS, SONY Pregius GlobalShutter Monochrome Number of Pixels: 4096 (H) x 3008 (V) = 12 Mega pixel Pixel Size: 3.45 µm x 3.45 µm Chip Size: 14.1 mm x 10.4 mm, equivalent to 1" (diagonal 17.5 mm) Spectral Range: With protection glass approx. 350 nm to 1000 nm Full Well Capacity: Approx. 11,000 e at gain 1x (typ.) Adjustable Signal Amplification: 1x, 2x, 4x, 8x, 16x Selectable Resolution: H x V Binning Factor (1x1 to 5x5 digital) 4096 x 3008 1x1 Basic Resolution 2048 x 1504 2x2 1365 x 1002 3x3 1024 x 752 4x4 819 x 601 5x5 H x V Subsampling Factor 4096 x 3008 1x1 2048 x 1504 2x2 Live FrameRates: (1 ms exposure, default setting) H x V Frame Rate (fps) 4096 x 3008 23 Frame Rates for Time Series Recording: (1 ms exposure, further depending on hardware and software configuration) H x V (ROI) Frame Rate (fps) 4096 x 3008 23 2048 x 1504 46 (2x2 subsampling, full field of view) 1920 x 1080 63 1024 x 1024 66 1920 x 256 241 1920 x 128 431 Read Noise Full Well Capacity Dynamic Range (at gain) 2.20 e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000 e 1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600 HDR Mode Dynamic Range 1:25,000 # Software Supported Camera Operation: Exposure time adjustment with continuous, automatic or manual mode, adjustable over or under-exposure mode, optional measurement on defined target area (spot- meter) Readout of Sensor Sub Regions ("ROI"): Adjustable Digitization: 8, 12, 14 bit / pixel (8 out of 14 bit or compression mode) Dark Current: < 0.5 e/p/s @18 °C sensor temperature Cooling: Stabilized temperature to 18 °C (for ambient temperatures from 18 °C to 30 °C) Exposure Time Range: 0.1 ms to 60 s Hardware Trigger: Trigger-In for exposure time control, Trigger-Out for exposure time, Readout time and trigger ready status (further accessories required) Status-LED for Camera: Color coded operation status, dimmable Camera Interface: USB3.0 (Optional operation with USB 2.0 at reduced frame rate) Optical Interface: C-Mount Thread Depth for Objectives: Max. 5 mm Size / Weight: Approx. 10.8 cm x 7.8 cm x 5,1 cm (2.3" x 3.2" x 2,0") / 580 g Housing: Blue anodized aluminum, with cooling fins on top, 1/4" photo thread for tripod mount Registration: CE Power Supply: Provided by USB 3.0 and USB 2.0, max. 7 W consumption Environmental Conditions: 5 °C to 35 °C, max. 80% relative air humidity, not condensing, free air circulation required Supported Operating Systems: for ZEN: Windows 10 x64 Supported Application Software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The required application software is available via the ZEISS Download Center. Item no.: 426560-9091-000
Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing	Software for image processing ZEN 3.11 ZEN 3.11 Item no.: 410135-0002-311 ZEN 3.11 Image acquisition and processing under Windows 10 / Windows 11 x64 User interface configurable, control of the ZEISS microscope systems and components, extensive acquisition and analysis, CZI image format The following functions are included: - Basic 3D viewing - Colocalization - Connect basic - Direct processing - Manual EDF - Measurement - Panorama - Spectral unmixing - ZEN Data Storage Client - Acquisition Base (time series and multichannel) Item no.: 410135-0002-311 ZEN Toolkit Motorized Acquisition ZEN Toolkit Motorized Acquisition Item no.: 410136-0165-311 ZEN Toolkit Motorized Acquisition Acquire images and control motorized components in multi-dimensional experiments. This package allows to acquire tiles, multi-position and z-stack images using motorized components. These can be combined with the included autofocus and direct processing. Z-stack and enhanced depth of focus functionality: - definition of the Z-stack in "Start/Stop" and "Center" mode - size of the configurable Z-stack and number of possible Z-planes only limited by the travel range of the system and the minimum increment - "Optimal" button to automatically set the correct increment to satisfy the Nyquist criterion - integrated Z-drive backlash compensation for maximum precision and reproducibility - extraction of the sharp details from individual images at various focus positions and combination into an image with high depth of field Tiles <(>&<)> Positions - automatic scanning of predefined sample areas - acquisition of images according to a position list - support of focus correction maps, stitching and shading correction - compatible with software autofocus Software Autofocus: - determination of the optimal focus position in the sample - the autofocus works with transmitted, reflected and fluorescence light - definitionof an autofocus region in the camera image Item no.: 410136-0165-311 ZEN Toolkit 2D ZEN Toolkit 2D Item no.: 410136-0168-360 ZEN Toolkit 2D Create flexible automatic measurement programs for the analysis of your 2D images. Set up an automatic measurement program for analyzing your data sets (e.g., time series, tile images and multiscene images) in just a few steps. A user-friendly wizard guides you through all the necessary settings, starting with the definition of the classes and the segmentation of objects, to the selection of measurement parameters. Create simple measurement programs consisting of a single class or set up powerful measurement programs with multiple classes, which you can also arrange hierarchically (objects within objects) or use the predefined zone-of-influence* measurement program if you want to detect objects in the periphery of other objects. Flexibly choose between different classical and AI-based segmentation methods for each class. You can improve your results using AI models (semantic or instance segmentation) especially for datasets which are particularly difficult to segment. This toolkit is "AI-ready", which means you can use any trained AI model in the analysis program without requiring another license. Simply load a model previously trained with the ZEN Toolkit AI in ZEN or ZEN core into the Image Analysis Wizard, or use DNNs trained on arivis Cloud. Subsequently, you can further refine the segmentation results, e.g., by using algorithms for object separation or by applying region filters, if necessary. To quantify the detected objects, a variety of measurement features are available, such as different geometrical (size, shape,...) or intensity features as well as user-defined measurement parameters. After the analysis, the segmented images are displayed along with result tables and diagrams (e.g., scatterplot or heatmaps). Tables, diagrams, and images are linked so that you can interactively explore your results. You can also use the created image analysis programs for batch processing of multiple data sets. In addition, this toolkit also includes the Bio App Cell Counting. (*not available in ZEN core) For preprocessing of your image data, the toolkit additionally provides a number of special image processing functions belonging to the Edges (e.g. Highpass, Sobel, Laplace,…), Arithmetic (e.g. Addition, Multiply Constant,…), Morphology (e.g. Erode, Dilate, TopHat,…), Segmentation (e.g. Canny, Marr…) and Binary (e.g. Fill Holes, And, Or,…) Operations groups. Requirements: - The use of AI semantic segmentation requires an installation of Zeiss Python - The use of AI instance segmentation requires an installation of Docker Desktop For the use of AI models the recommended hardware configuration is 8GB GPU and 64GB RAM. Only the CPU and Nvidia GPUs are supported. Item no.: 410136-0168-360	Software for image processing ZEN 3.11 ZEN 3.11 Item no.: 410135-0002-311 ZEN 3.11 Image acquisition and processing under Windows 10 / Windows 11 x64 User interface configurable, control of the ZEISS microscope systems and components, extensive acquisition and analysis, CZI image format The following functions are included: - Basic 3D viewing - Colocalization - Connect basic - Direct processing - Manual EDF - Measurement - Panorama - Spectral unmixing - ZEN Data Storage Client - Acquisition Base (time series and multichannel) Item no.: 410135-0002-311 ZEN Toolkit Motorized Acquisition ZEN Toolkit Motorized Acquisition Item no.: 410136-0165-311 ZEN Toolkit Motorized Acquisition Acquire images and control motorized components in multi-dimensional experiments. This package allows to acquire tiles, multi-position and z-stack images using motorized components. These can be combined with the included autofocus and direct processing. Z-stack and enhanced depth of focus functionality: - definition of the Z-stack in "Start/Stop" and "Center" mode - size of the configurable Z-stack and number of possible Z-planes only limited by the travel range of the system and the minimum increment - "Optimal" button to automatically set the correct increment to satisfy the Nyquist criterion - integrated Z-drive backlash compensation for maximum precision and reproducibility - extraction of the sharp details from individual images at various focus positions and combination into an image with high depth of field Tiles <(>&<)> Positions - automatic scanning of predefined sample areas - acquisition of images according to a position list - support of focus correction maps, stitching and shading correction - compatible with software autofocus Software Autofocus: - determination of the optimal focus position in the sample - the autofocus works with transmitted, reflected and fluorescence light - definitionof an autofocus region in the camera image Item no.: 410136-0165-311 ZEN Toolkit Connect ZEN Toolkit Connect Item no.: 410136-0170-360 ZEN Toolkit Connect This package contains the full ZEN Connect functionality for 2D- and 3D- workflows. It supports single system workflows as well as workflows between multiple systems (with or without correlative sample holders). It extends the functionality of ZEN Connect basic by the following functions: - Interactive control of stage movement from the ZEN Connect workspace* - Advanced 2D alignment functionality - Measurements in the ZEN Connect workspace - Export of merged project view as image (single and multi-channel) - Export of project views as fly-through movie - Export to SerialEM file format - Import of 3rd-party microscopy images powered by Bio-Formats - Semiautomatic calibration of sample holders for correlative microscopy -Definition of regions of interest in the correlative workspace - Easy retrieval of marked regions - Control of the displayed z-position in ZEN Connect - Alignment of images in z-dimension - View two 3D stacks (requires 3D Toolkit) - Manual Alignment of two 3D stacks (requires 3D Toolkit) - Import FIB stacks** (not ZEN lite and ZEN starter; motorized stage required) (not available in ZEN core) Item no.: 410136-0170-360 ZEN Toolkit 2D ZEN Toolkit 2D Item no.: 410136-0168-360* ZEN Toolkit 2D Create flexible automatic measurement programs for the analysis of your 2D images. Set up an automatic measurement program for analyzing your data sets (e.g., time series, tile images and multiscene images) in just a few steps. A user-friendly wizard guides you through all the necessary settings, starting with the definition of the classes and the segmentation of objects, to the selection of measurement parameters. Create simple measurement programs consisting of a single class or set up powerful measurement programs with multiple classes, which you can also arrange hierarchically (objects within objects) or use the predefined zone-of-influence* measurement program if you want to detect objects in the periphery of other objects. Flexibly choose between different classical and AI-based segmentation methods for each class. You can improve your results using AI models (semantic or instance segmentation) especially for datasets which are particularly difficult to segment. This toolkit is "AI-ready", which means you can use any trained AI model in the analysis program without requiring another license. Simply load a model previously trained with the ZEN Toolkit AI in ZEN or ZEN core into the Image Analysis Wizard, or use DNNs trained on arivis Cloud. Subsequently, you can further refine the segmentation results, e.g., by using algorithms for object separation or by applying region filters, if necessary. To quantify the detected objects, a variety of measurement features are available, such as different geometrical (size, shape,...) or intensity features as well as user-defined measurement parameters. After the analysis, the segmented images are displayed along with result tables and diagrams (e.g., scatterplot or heatmaps). Tables, diagrams, and images are linked so that you can interactively explore your results. You can also use the created image analysis programs for batch processing of multiple data sets. In addition, this toolkit also includes the Bio App Cell Counting. (not available in ZEN core) For preprocessing of your image data, the toolkit additionally provides a number of special image processing functions belonging to the Edges (e.g. Highpass, Sobel, Laplace,…), Arithmetic (e.g. Addition, Multiply Constant,…), Morphology (e.g. Erode, Dilate, TopHat,…), Segmentation (e.g. Canny, Marr…) and Binary (e.g. Fill Holes, And, Or,…) Operations groups. Requirements: - The use of AI semantic segmentation requires an installation of Zeiss Python - The use of AI instance segmentation requires an installation of Docker Desktop For the use of AI models the recommended hardware configuration is 8GB GPU and 64GB RAM. Only the CPU and Nvidia GPUs are supported. Item no.: 410136-0168-360 ZEN Toolkit 3D ZEN Toolkit 3D Item no.: 410136-0172-360* ZEN Toolkit 3D Unlock the full 3D potential with the Toolkit 3D. Equip yourself with a collection of rendering methods, tools for sophisticated visualization and data navigation as well as 3D image analysis. The 3D Toolkit offers multiple types of rendering methods allowing you to choose the visualization that best fits your application. A sophisticated 3D rendering can be overwhelming when exploring a data set. With the viewer available with ZEN 3D Toolkit, 3D and 2D views are placed side-by-side so you may navigate in the 3D space seamless through your sample. Analyze your 3D data – a user-friendly wizard guides you through all the necessary settings, starting with the definition of the classes and the segmentation of objects, to the selection of measurement parameters. Segmentation is AI-ready: load your Intellesis models or segment object based on thresholding. The resulting objects are visualized in 3D in glass or opaque mode. The measurements include various geometric and intensity measurements, as well as user-defined measurement parameters* which can be sorted and exported. The 3D viewer requires a dedicated up-to-date graphics card with full OpenGL 4.3+ support. Older AMD graphic cards such as AMD FirePro V4900 1GB or ATI FirePro V5800 1GB are not supported any longer. (not available in ZEN core) Item no.: 410136-0172-360 ZEN SW Driver Linkam Cryo Stage ZEN SW Driver Linkam Cryo Stage Item no.: 410136-0124-370* ZEN SW Driver Linkam Cryo Stage - Control of motorized x-, y-axis of CMS196M - Readout and storage of the temperature values in the image - Asynchronous temperature log Item no.: 410136-0124-370
Accessories for LSM 700 microscope	Accessories for LSM 700 microscope	Accessories for LSM 700 microscope	Accessories for LSM 700 microscope	Accessories for LSM 700 microscope	Accessories for LSM 700 microscope	Accessories for LSM 700 microscope Anti vibration plate Axio Imager and LSM 800/900(D) Anti vibration plate Axio Imager and LSM 800/900(D) Item no.: 400102-8311-000 Anti-vibration plate Axio Imager and LSM 800/900 (D) can be used to set up an Axio Imager or LSM 800/900 on undamped tables. Item no.: 400102-8311-000	Accessories for LSM 700 microscope
Reflected-light objectives	Reflected-light objectives	Reflected-light objectives	Reflected-light objectives	Reflected-light objectives	Reflected-light objectives	Reflected-light objectives	Reflected-light objectives Objective LD EC Epiplan-Neofluar 100x/0.75 DIC M27 Objective LD EC Epiplan-Neofluar 100x/0.75 DIC M27 Item no.: 422492-9900-799 Objective LD EC Epiplan-Neofluar 100x/0.75 DIC M27 (FWD=4.0mm) With serial number. Strehl ratio >90%. Item no.: 422492-9900-799

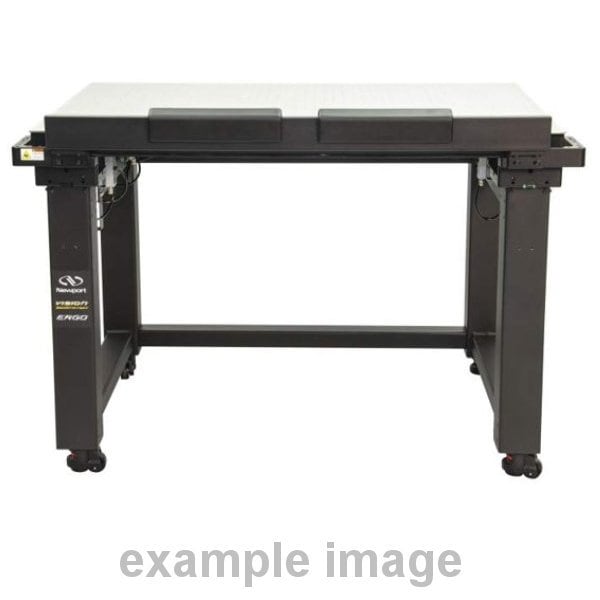

System table	System table	System table	System table	System table	System table	System table	System table System table , small, air damped, level regulated System table , small, air damped, level regulated Item no.: 000000-2147-374 System table, small, air damped, level regulated pressured air supply necessary, long and short side open, with breadboard, 900x750mm Item no.: 000000-2147-374
Accessories Rel. 3.5	Accessories Rel. 3.5	Accessories Rel. 3.5	Accessories Rel. 3.5	Accessories Rel. 3.5	Accessories Rel. 3.5	Accessories Rel. 3.5	Accessories Rel. 3.5 Fastening kit for Axio Imager Fastening kit for Axio Imager Item no.: 000000-1299-420 Fastening kit for Axio Imager Item no.: 000000-1299-420

Axio Imager.M2

Axio Imager.M2

Axio Imager.M2

Axio Imager.M2

Axio Imager.M2

Variants Axio Imager.M2

Microscope Axio Imager.M2p with LED

Microscope Axio Imager.M2

Microscope Axio Imager.M2

Microscope Axio Imager.M2

Microscope Axio Imager.M2

Axio Imager section Advanced

Microscope Axio Imager.M2 for CCLEM Workflow

Variants Axio Imager.M2

Microscope Axio Imager.M2p with LED

Microscope Axio Imager.M2

Microscope Axio Imager.M2

Microscope Axio Imager.M2

Microscope Axio Imager.M2

Axio Imager section Advanced

Microscope Axio Imager.M2 for CCLEM Workflow
