Filter Assistant
Dye

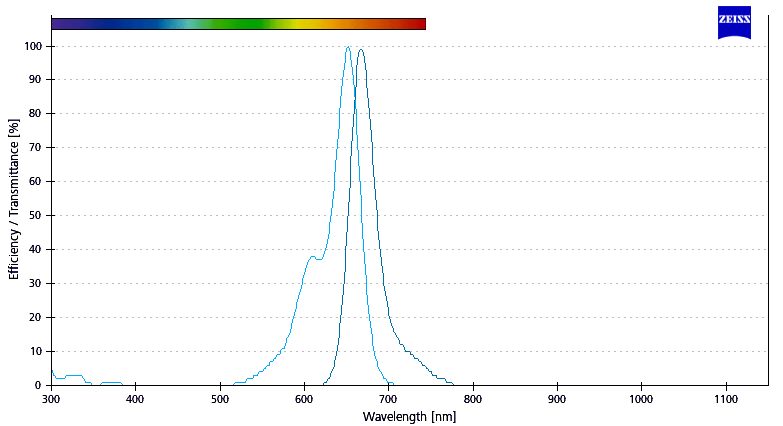

Dye Alexa Fluor 647 antibody conjugate pH 7.2
Excitation
Emission
Important Note
Additional components can influence efficiency.
Selection:
Please note that the given values are typical only and not guaranteed.
12 possible ZEISS filter sets found
Filter Set 50 (488050-9901-000) | ||
---|---|---|
Excitation | Beamsplitter | Emission |
BP 640/30 |
FT 660 |
BP 690/50 |
Filter Set 77 HE (489077-0000-000) | ||
---|---|---|
Excitation | Beamsplitter | Emission |
TBP 483 + 564 + 642 (HE) |
TFT 506 + 582 + 659 (HE) |
TBP 526 + 601 + 688 (HE) |
Filter Set 90 SBP (489090-9010-000) | ||
---|---|---|
Excitation | Beamsplitter | Emission |
BP 385/30 BP 469/38 BP 555/30 BP 631/33 |
QBS 405 + 493 + 575 + 653 |
BP 425/30 BP 514/30 (HE) BP 592/24 BP 681/45 |
Filter Set 90 HE (489090-9100-000) | ||
---|---|---|
Excitation | Beamsplitter | Emission |
BP 385/30 BP 469/38 BP 555/30 BP 631/33 |
QBS 405 + 493 + 575 + 653 |
QBP 425/30+514/30+592/25+709/100 |
Filter Set 90 HE LED (489090-9110-000) | ||
---|---|---|
Excitation | Beamsplitter | Emission |
BP 385/30 BP 469/38 BP 555/30 BP 631/33 |
QBS 405 + 493 + 575 + 653 |
QBP 425/30+514/30+592/25+709/100 |
Filter Set 90 LED SBP (489090-9120-000) | ||
---|---|---|
Excitation | Beamsplitter | Emission |
BP 385/30 BP 469/38 BP 555/30 BP 631/33 |
QBS 405 + 493 + 575 + 653 |
BP 425/30 BP 514/30 (HE) BP 592/24 BP 681/45 |
Filter Set 90 MBP (489090-9130-000) | ||
---|---|---|
Excitation | Beamsplitter | Emission |
BP 385/30 BP 469/38 BP 555/30 BP 631/33 |
QBS 405 + 493 + 575 + 653 |
QBP 425/30+514/30+592/25+709/100 |
Filter Set 112 SBP (489112-9010-000) | ||
---|---|---|
Excitation | Beamsplitter | Emission |
BP 385/30 BP 469/38 BP 555/30 BP 631/33 BP 735/40 |
PBS 405 + 493 + 575 + 654 + 761 |
BP 425/30 BP 514/30 (HE) BP 592/24 BP 681/45 BP 788/38 |
Filter Set 112 HE LED (489112-9110-000) | ||
---|---|---|
Excitation | Beamsplitter | Emission |
BP 385/30 BP 469/38 BP 555/30 BP 631/33 BP 735/40 |
PBS 405 + 493 + 575 + 654 + 761 |
PBP 425/30 + 514/31 + 592/25 + 681/45 + 785/38 |
Filter Set 112 LED SBP (489112-9120-000) | ||
---|---|---|
Excitation | Beamsplitter | Emission |
BP 385/30 BP 469/38 BP 555/30 BP 631/33 BP 735/40 |
PBS 405 + 493 + 575 + 654 + 761 |
BP 425/30 BP 514/30 (HE) BP 592/24 BP 681/45 BP 788/38 |
Filter Set 112 MBP (489112-9130-000) | ||
---|---|---|
Excitation | Beamsplitter | Emission |
BP 385/30 BP 469/38 BP 555/30 BP 631/33 BP 735/40 |
PBS 405 + 493 + 575 + 654 + 761 |
PBP 425/30 + 514/31 + 592/25 + 681/45 + 785/38 |
Filter sets for stereomicroscopes
Filter Set Lumar 50 (485050-0000-000) | ||
---|---|---|
Excitation | Emission | |
BP 640/30 | BP 690/50 |
