Filter Assistant

Dye

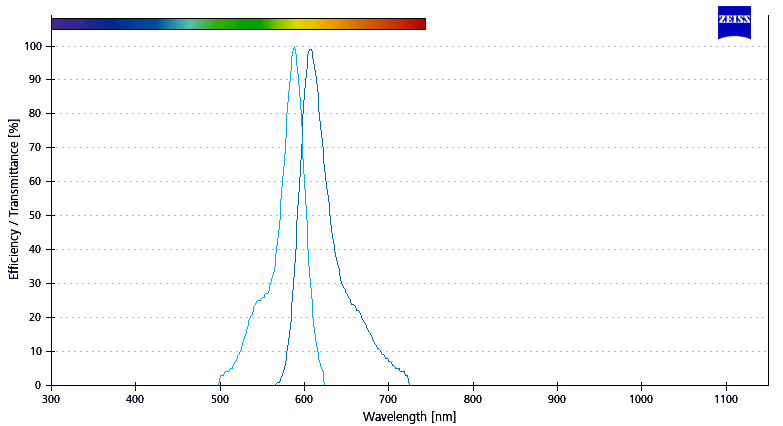

Dye Calcium Crimson

Excitation

Emission

Important Note

Additional components can influence efficiency.

Selection:

Excitation

Beamsplitter

Emission

Please note that the given values are typical only and not guaranteed.

Show total efficiency

24 possible ZEISS filter sets found

Filter Set 00 (488000-0000-000)
Excitation	Beamsplitter	Emission
BP 530-585	FT 600	LP 615

Filter Set 24 (488024-0000-000)
Excitation	Beamsplitter	Emission
DBP 485/20 + 578/14	DFT 500 + 600	BP 515-540 + LP 610

Filter Set 25 (488025-0000-000)
Excitation	Beamsplitter	Emission
TBP 400 + 495 + 570	TFT 410 + 505 + 585	TBP 460 + 530 + 625

Filter Set 95 (488095-9100-000)
Excitation	Beamsplitter	Emission
DBP 475/20+585/25	DBS 495+600	DBP 518-25+625-30

Filter Set 25 HE (489025-0000-000)
Excitation	Beamsplitter	Emission
TBP 405 + 495 + 575 (HE)	TFT 435 + 510 + 600 (HE)	TBP 460 + 530 + 625 (HE)

Filter Set 54 HE (489054-0000-000)
Excitation	Beamsplitter	Emission
BP 427/14 (HE) BP 504/17 (HE) BP 589/21 (HE)	TFT 440 + 520 + 607 (HE)	TBP 464 + 542 + 639 (HE)

Filter Set 60 HE (Colibri) (489060-9901-000)
Excitation	Beamsplitter	Emission
BP 445/25 (HE) BP 510/15 (HE) BP 588/27 (HE)	TFT 460 + 520 + 605 (HE)	TBP 480 + 546 + LP615 (HE)

Filter Set 61 HE (Colibri) (489061-9901-000)
Excitation	Beamsplitter	Emission
BP 474/28 (HE) BP 585/35 (HE)	DFT 495 + 605 (HE)	DBP 527/54 + 645/60 (HE)

Filter Set 62 HE (Colibri) (489062-9901-000)
Excitation	Beamsplitter	Emission
BP 370/40 (HE) BP 474/28 (HE) BP 585/35 (HE)	TFT 395 + 495 + 610 (HE)	TBP 425 + 527 + LP615 (HE)

Filter Set 63 HE (489063-0000-000)
Excitation	Beamsplitter	Emission
BP 572/25 (HE)	FT 590 (HE)	BP 629/62 (HE)

Filter Set 64 HE (489064-0000-000)
Excitation	Beamsplitter	Emission
BP 587/25 (HE)	FT 605 (HE)	BP 647/70 (HE)

Filter Set 91 SBP (489091-9010-000)
Excitation	Beamsplitter	Emission
BP 423/44 BP 508/20 BP 591/27	TBS 450+538+610	BP 467/24 BP 558/25 BP 649/65

Filter Set 91 HE LED (489091-9110-000)
Excitation	Beamsplitter	Emission
BP 423/44 BP 511/44 BP 591/27	TBS 450+538+610	TBP 467/24+555/25+687/145

Filter Set 91 LED SBP (489091-9120-000)
Excitation	Beamsplitter	Emission
BP 423/44 BP 511/44 BP 591/27	TBS 450+538+610	BP 467/24 BP 558/25 BP 649/65

Filter Set 91 MBP (489091-9130-000)
Excitation	Beamsplitter	Emission
BP 423/44 BP 508/20 BP 591/27	TBS 450+538+610	TBP 467/24+555/25+687/145

Filter Set 92 SBP (489092-9010-000)
Excitation	Beamsplitter	Emission
BP 385/30 BP 469/38 BP 591/27	TBS 405+493+610	BP 425/30 BP 525/50 (HE) BP 649/65

Filter Set 92 HE LED (489092-9110-000)
Excitation	Beamsplitter	Emission
BP 385/30 BP 469/38 BP 591/27	TBS 405+493+610	TBP 425/30+524/50+688/145

Filter Set 92 LED SBP (489092-9120-000)
Excitation	Beamsplitter	Emission
BP 385/30 BP 469/38 BP 591/27	TBS 405+493+610	BP 425/30 BP 525/50 (HE) BP 649/65

Filter Set 92 MBP (489092-9130-000)
Excitation	Beamsplitter	Emission
BP 385/30 BP 469/38 BP 591/27	TBS 405+493+610	TBP 425/30+524/50+688/145

Filter Set 110 SBP (489110-9010-000)
Excitation	Beamsplitter	Emission
BP 385/30 BP 469/38 BP 591/27 BP 735/40	QBS 405 + 493 + 611 + 762	BP 425/30 BP 525/50 (HE) BP 649/65 BP 788/38

Filter Set 110 HE LED (489110-9111-000)
Excitation	Beamsplitter	Emission
BP 385/30 BP 469/38 BP 591/27 BP 735/40	QBS 405 + 493 + 611 + 762	QBP 425/30 + 524/51 + 634/38 + 785/38

Filter Set 110 LED SBP (489110-9120-000)
Excitation	Beamsplitter	Emission
BP 385/30 BP 469/38 BP 591/27 BP 735/40	QBS 405 + 493 + 611 + 762	BP 425/30 BP 525/50 (HE) BP 649/65 BP 788/38

Filter Set 110 MBP (489110-9130-000)
Excitation	Beamsplitter	Emission
BP 385/30 BP 469/38 BP 591/27 BP 735/40	QBS 405 + 493 + 611 + 762	QBP 425/30 + 524/51 + 634/38 + 785/38

Filter Set 122 SBP (489122-9010-000)
Excitation	Beamsplitter	Emission
BP 390/19 BP 430/20 BP 499/17 DBP 533/19 + 746/24 BP 596/16 BP 666/18	BS 405 + 515 + 615 BS 465 + 550 + 690 + 770	BP 426/28 DBP 488/25 + 815/74 DBP 535/21 + 713/25 BP 571/20 BP 638/25

Filter sets for stereomicroscopes
