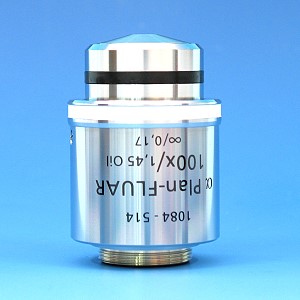

Objective alpha Plan-Fluar 100x/1.45 Oil
  1. Objective alpha Plan-Fluar 100x/1.45 Oil

Objective alpha Plan-Fluar 100x/1.45 Oil

Objective alpha Plan-Fluar 100x/1.45 Oil

Item no.: 000000-1084-514
(no longer available)
Description

Objective alpha Plan-Fluar 100x/1.45 Oil (WD=0.11mm), incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, D=0.17mm, box with 100 pc.

Full Description

Not recommended for operating of Apotome with UV excitation (DAPI).

Magnification 100x
Numerical Aperture 1.45
Free Working Distance [mm] 0.11
Coverglass Thickness [mm] 0.17
Thread Type W0.8x1/36"
Immersion Oil
Field of View [mm] 23
Parfocal Length [mm] 45.06
Long Distance
Correction Ring
Iris
Optical System Infinity Color Corrected System (ICS)
Color Correction achromatic
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
DIC [Differential Interference Contrast]
High Contrast DIC Yes
PlasDIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField
BrightField/DarkField
Reflected Light DIC
High Contrast DIC Yes
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence Yes
Apotome Yes
Microdissection
  • Adapter M 27x0.75 / W 0.8 H "0"
    Adapter M 27x0.75 / W 0.8 H "0"
    Item no.: 000000-1095-168
  • Objective heater 25.5/33 S1 (D)
    Objective heater 25.5/33 S1 (D)
    Item no.: 411860-9065-000
  • Immersion oil Immersol 518 F fluorescence free, bottle 100 ml
    Immersion oil Immersol 518 F fluorescence free, bottle 100 ml
    Item no.: 444962-0000-000
  • Immersion oil Immersol 518 F fluorescence free, bottle 500 ml
    Immersion oil Immersol 518 F fluorescence free, bottle 500 ml
    Item no.: 444964-0000-000
  • Box of lens cleaning paper (300 sheets)
    Box of lens cleaning paper (300 sheets)
    Item no.: 462975-0000-000
  • Cover glasses, high performance, D=0.17mm, box with 1000 pc.
    Cover glasses, high performance, D=0.17mm, box with 1000 pc.
    Item no.: 474030-9000-000

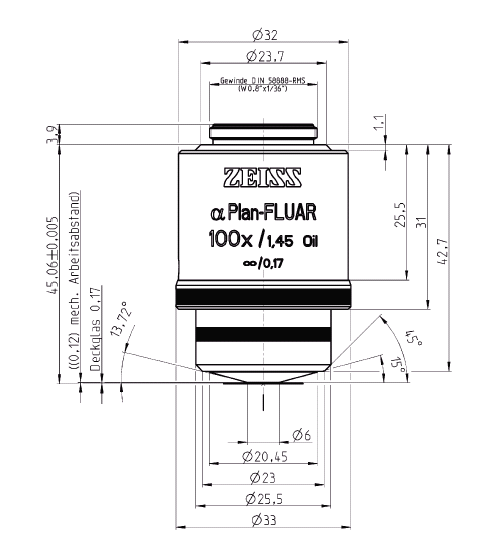

Mechanical Dimensions

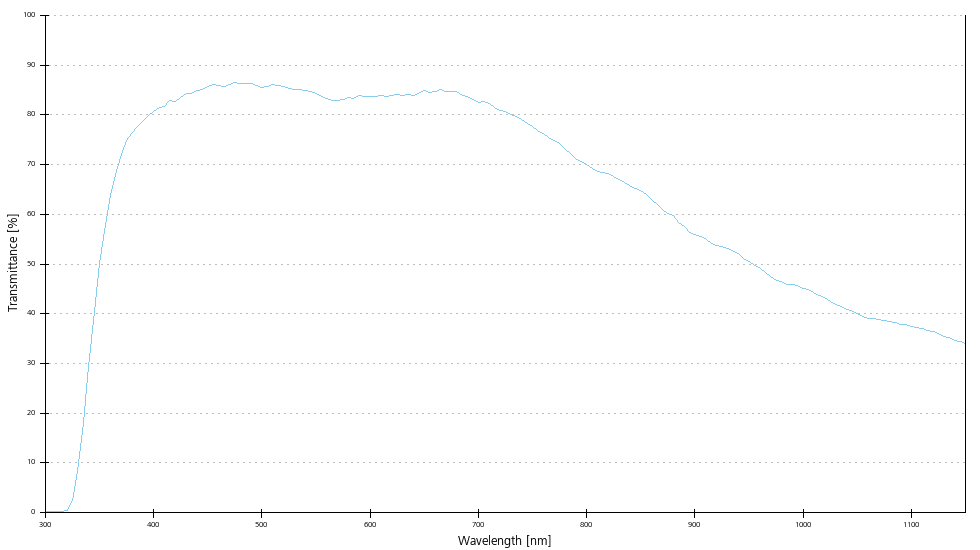

Transmittance curve
alpha Plan-Fluar

The high transmission at 340nm, excellent image flatness up to 23 mm and extremely high numerical aperture makes them suitable for TIRF. Almost apochromatically corrected in the visual range.

Objective alpha Plan-Fluar 100x/1.45 Oil (WD=0.11mm), incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, D=0.17mm, box with 100 pc.
