Carl Zeiss Microscopy, LLC - Objective Assistant - Objective Plan-Apochromat 40x/1.3 Oil DIC M27

Objective Plan-Apochromat 40x/1.3 Oil DIC M27

Item no.: 420762-9800-000

Description

Objective Plan-Apochromat 40x/1.3 Oil DIC M27 (FWD=0.21mm), (UV)VIS-IR, incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, CG=0.17mm, box with 100 pc.

Full Description

Biomedical Applications
Magnification	40x
Numerical Aperture	1.3
Free Working Distance [mm]	0.21
Coverglass Thickness [mm]	0.17
Thread Type	M27x0.75
Immersion	Oil
Field of View [mm]	25
Parfocal Length [mm]	45.06
Long Distance
Correction Ring
Iris
Optical System	Infinity Color Corrected System (ICS)
Color Correction	apochromatic
Fluorescence
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField
DIC [Differential Interference Contrast]
High Contrast DIC
PlasDIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
Apotome
Microdissection

Objective heater 25.5/33 S1 (D)

Item no.: 411860-9065-000

Objective heater 25.5/33 S1 (D)
Item no.: 411860-9065-000

Objective heater 25.5/33 S1 (D) - with oil discharge channel - clamping via front dia. 25.5 mm - max. objective dia. 33 mm - temperature range of room temperature up to +45°C
Objective ring ACR for objective sleeve conical short

Item no.: 424509-0000-000

Objective ring ACR for objective sleeve conical short
Item no.: 424509-0000-000

Objective ring ACR for objective sleeve conical short
Adapter 30mm with optics and DIC slider mount

Item no.: 424516-9041-000

Adapter 30mm with optics and DIC slider mount
Item no.: 424516-9041-000

Adapter 30mm with optics and DIC slider mount for adaptation of objectives M27 with parfocal length of 45mm
DIC slider PA 40x/1.3 III

Item no.: 426965-0000-000

DIC slider PA 40x/1.3 III
Item no.: 426965-0000-000

DIC slider PA 40x/1.3 III
Immersion oil Immersol 518 F fluorescence free, bottle 100 ml

Item no.: 444962-0000-000

Immersion oil Immersol 518 F fluorescence free, bottle 100 ml
Item no.: 444962-0000-000

Immersion oil Immersol 518 F fluorescence free, bottle 100 ml (ISO 8036-1/2, ne=1.518 (23°C), halogen-free)
Immersion oil Immersol 518 F fluorescence free, bottle 500 ml

Item no.: 444964-0000-000

Immersion oil Immersol 518 F fluorescence free, bottle 500 ml
Item no.: 444964-0000-000

Immersion oil Immersol 518 F fluorescence free, bottle 500 ml (ISO 8036-1/2, ne=1.518 (23°C), halogen-free)
Box of lens cleaning paper (300 sheets)

Item no.: 462975-0000-000

Box of lens cleaning paper (300 sheets)
Item no.: 462975-0000-000

Box of lens cleaning paper (300 sheets)
Cover glasses, high performance, D=0.17mm, box with 1000 pc.

Item no.: 474030-9000-000

Cover glasses, high performance, D=0.17mm, box with 1000 pc.
Item no.: 474030-9000-000

Cover glasses, high performance, D=0.17mm, box with 1000 pc. Size 18x18 mm² type 1 1/2 H as per ISO 8255-1 with restricted thickness-related tolerance D=0.17 mm +/- 0.005 mm refractive index = 1.5255 +/- 0.0015, Abbe number = 56 +/-2 recommended for applications with high numerical aperture objectives

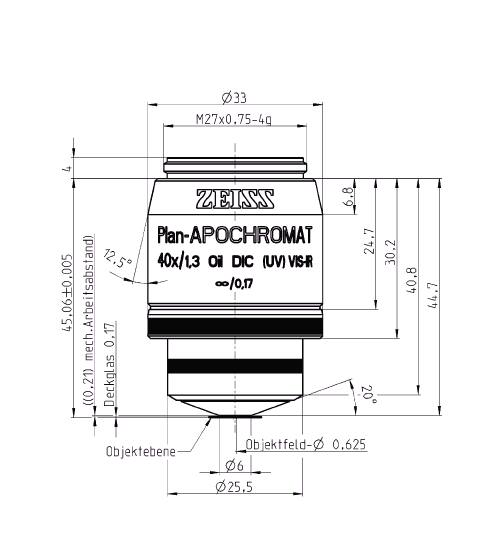

Note:

All measures in [mm]

mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility

Note:

Please note that due to production tolerances, the given values are typical only and not guaranteed.

Plan-Apochromat

This first-class series of objectives with excellent correction and extremely high apertures provide a maximum of resolving power, color purity, contrast and image flatness for observation and photomicrography. The enormous resolving power reveals structures that otherwise can not be discerned. As image brightness in fluorescence microscopy increases with the power of four of numerical aperture, Plan Apochromat objectives are excellently suited to fluorescence applications.

Objective Plan-Apochromat 40x/1.3 Oil DIC M27 (FWD=0.21mm), (UV)VIS-IR, incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, CG=0.17mm, box with 100 pc.
