Objective Plan-Apochromat 100x/1.4 Oil Ph3 M27
Objective Plan-Apochromat 100x/1.4 Oil Ph3 M27
Item no.: 420791-9911-000
Description
Objective Plan-Apochromat 100x/1.4 Oil Ph3 M27 (FWD=0.17mm), incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, CG=0.17mm, box with 100 pc.
Full Description| Magnification | 100x |
| Numerical Aperture | 1.4 |
| Free Working Distance [mm] | 0.17 |
| Coverglass Thickness [mm] | 0.17 |
| Thread Type | M27x0.75 |
| Immersion | Oil |
| Field of View [mm] | 25 |
| Parfocal Length [mm] | 45.06 |
| Long Distance | |
| Correction Ring | |
| Iris | |
| Optical System | Infinity Color Corrected System (ICS) |
| Color Correction | apochromatic |
| Biomedical Applications | |
|---|---|
| Fluorescence |
|
| - Multichannel | |
| - Ultraviolet Transmission | |
| - Infra Red Transmission | |
| BrightField |
|
| DIC [Differential Interference Contrast] | |
| High Contrast DIC | |
| PlasDIC | |
| Phase Contrast | Ph 3 |
| VAREL Contrast | |
| Hoffman Modulation Contrast | |
| Polarization Contrast | |
| Materials (Reflected Light) Applications | |
| BrightField | |
| BrightField/DarkField | |
| Reflected Light DIC | |
| High Contrast DIC | |
| DIC with circular polarized light | |
| Total Interference Contrast | |
| Polarization Contrast | |
| Options | |
| Definite Focus.2 | |
| Confocal Microscopy |
|
| - Ultra Violet | |
| - VIS (visible light) | |
| - NLO-IR / 2 Photon | |
| Total Internal Reflection Fluorescence | |
| Apotome | |
| Microdissection | |
-
Objective heater 22.5/34 S1 (D)
Item no.: 411860-9064-000 -
Objective ring ACR for objective sleeve cylindrical short
Item no.: 424508-0000-000 -
Immersion suction ring d=22.5 (10 pcs.)
Item no.: 444822-0000-000 -
Immersion oil Immersol 518 F fluorescence free, bottle 100 ml
Item no.: 444962-0000-000 -
Immersion oil Immersol 518 F fluorescence free, bottle 500 ml
Item no.: 444964-0000-000 -
Box of lens cleaning paper (300 sheets)
Item no.: 462975-0000-000

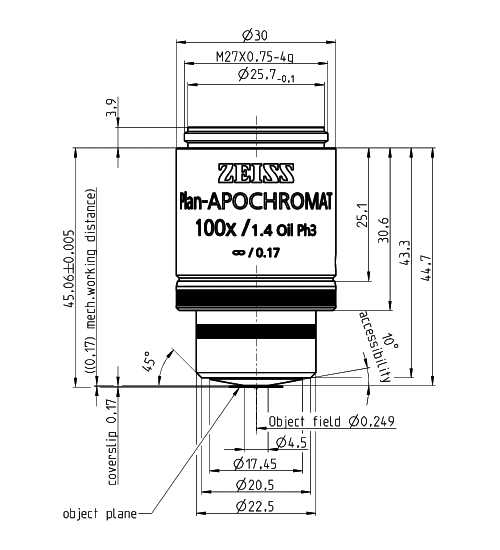

Note:
All measures in [mm]
mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility
Note:
Please note that due to production tolerances, the given values are typical only and not guaranteed.
