Objective LD Plan-Neofluar 20x/0.4 Corr Ph2 M27
Objective LD Plan-Neofluar 20x/0.4 Corr Ph2 M27
Item no.: 421351-9972-000
Description
Objective LD Plan-Neofluar 20x/0.4 Corr Ph2 M27 (CG=0-1.5mm) (FWD=8.4mm at CG=0mm and FWD=7.4mm at CG=1.5mm)
Full Description| Magnification | 20x |
| Numerical Aperture | 0.4 |
| Free Working Distance [mm] | 7.9 at cover glass 0.75 |
| Coverglass Thickness [mm] | 0 - 1.5 |
| Thread Type | M27x0.75 |
| Immersion | Without Immersion |
| Field of View [mm] | 23 |
| Parfocal Length [mm] | 45.06 |
| Long Distance |
|
| Correction Ring |
|
| Iris | |
| Optical System | Infinity Color Corrected System (ICS) |
| Color Correction | semi-apochromatic |
| Biomedical Applications | |
|---|---|
| Fluorescence |
|
| - Multichannel | |
| - Ultraviolet Transmission | |
| - Infra Red Transmission | |
| BrightField |
|
| DIC [Differential Interference Contrast] | |
| High Contrast DIC | |
| PlasDIC |
|
| Phase Contrast | Ph 2 |
| VAREL Contrast | |
| Hoffman Modulation Contrast | |
| Polarization Contrast | |
| Materials (Reflected Light) Applications | |
| BrightField | |
| BrightField/DarkField | |
| Reflected Light DIC | |
| High Contrast DIC | |
| DIC with circular polarized light | |
| Total Interference Contrast | |
| Polarization Contrast | |
| Options | |
| Definite Focus.2 | |
| Confocal Microscopy |
|
| - Ultra Violet | |
| - VIS (visible light) | |
| - NLO-IR / 2 Photon | |
| Total Internal Reflection Fluorescence | |
| Apotome | |
| Microdissection |
|
-
Objective ring ACR for objective sleeve conical short
Item no.: 424509-0000-000 -
Adapter 30mm with optics and DIC slider mount
Item no.: 424516-9041-000 -
DIC slider LD PN 20x/0.40 II
Item no.: 426954-0000-000 -
PlasDIC slider for LD PN 20x/0.40 corr
Item no.: 444504-0000-000

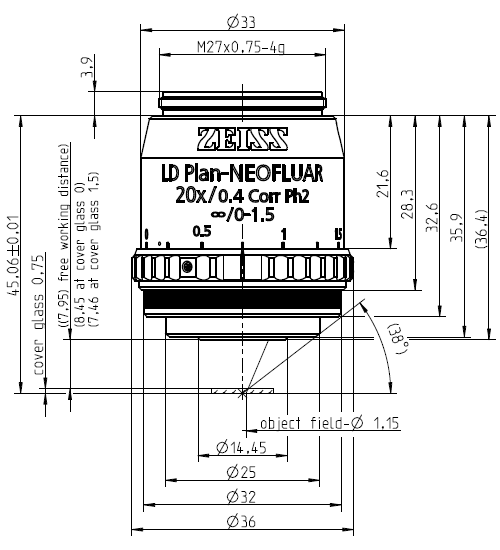

Note:
All measures in [mm]
mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility
Note:
Please note that due to production tolerances, the given values are typical only and not guaranteed.
