Objective LD Plan-Neofluar 63x/0.75 Corr Ph2 M27
  1. Objective LD Plan-Neofluar 63x/0.75 Corr Ph2 M27

Objective LD Plan-Neofluar 63x/0.75 Corr Ph2 M27

Objective LD Plan-Neofluar 63x/0.75 Corr Ph2 M27

Item no.: 421381-9971-000
Description

Objective LD Plan-Neofluar 63x/0.75 Corr Ph2 M27 (CG=0-1.5mm) (FWD=2.2mm at CG=0mm and FWD=1.2mm at CG=1.5mm), incl. Cover glasses, high performance, CG=0.17mm, box with 100 pc.

Full Description
Magnification 63x
Numerical Aperture 0.75
Free Working Distance [mm] 1.7 at cover glass 0.75
Coverglass Thickness [mm] 0 - 1.5
Thread Type M27x0.75
Immersion Without Immersion
Field of View [mm] 23
Parfocal Length [mm] 45.06
Long Distance Yes
Correction Ring Yes
Iris
Optical System Infinity Color Corrected System (ICS)
Color Correction semi-apochromatic
Biomedical Applications
Fluorescence Yes
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField Yes
DIC [Differential Interference Contrast]
High Contrast DIC
PlasDIC Yes
Phase Contrast Ph 2
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy Yes
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
Apotome
Microdissection Yes
  • Objective ring ACR for objective sleeve conical long
    Objective ring ACR for objective sleeve conical long
    Item no.: 424510-0000-000
  • Adapter 30mm with optics and DIC slider mount
    Adapter 30mm with optics and DIC slider mount
    Item no.: 424516-9041-000

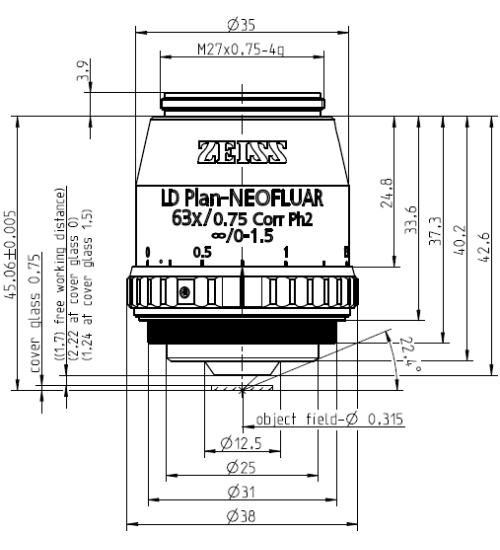

Mechanical Dimensions
Transmittance curve
LD Plan-Neofluar

The version of the EC Plan-Neofluar objectives with extra long working distance to be used at the inverted research microscope Axiovert 200. Beside the well-known, fluorescence of all EC Plan-Neofluar objectives the LD versions have a correction collar to adjust the objective to different cover glass thicknesses from 0 to 1.5 mm. They can of course be used in all known contrast techniques such as Brightfield, Phase contrast, DIC and PlasDIC.

Objective LD Plan-Neofluar 63x/0.75 Corr Ph2 M27 (CG=0-1.5mm) (FWD=2.2mm at CG=0mm and FWD=1.2mm at CG=1.5mm), incl. Cover glasses, high performance, CG=0.17mm, box with 100 pc.
