Objective W Plan-Apochromat 10x/0.5 M27 75mm
Objective W Plan-Apochromat 10x/0.5 M27 75mm
Item no.: 421440-9900-000Objective W Plan-Apochromat 10x/0.5 M27 75mm parfocal length 75mm, (FWD=3.7mm), (UV) VIS-IR
Full DescriptionDue to its large parfocal length this objective can be used with the microscopes "Axio Examiner.D1" and "Axio Examiner.Z1" only .
This objective is designed for dipping into physiologic salt solution.
Magnification | 10x |
Numerical Aperture | 0.5 |
Free Working Distance [mm] | 3.7 |
Coverglass Thickness [mm] | 0 |
Thread Type | M27x0.75 |
Immersion | Water |
Field of View [mm] | 23 |
Parfocal Length [mm] | 75.00 |
Long Distance | |
Correction Ring | |
Iris | |
Optical System | Infinity Color Corrected System (ICS) |
Color Correction | apochromatic |
Biomedical Applications | |
---|---|
Fluorescence | |
- Multichannel | |
- Ultraviolet Transmission | |
- Infra Red Transmission | |
BrightField | |
DIC [Differential Interference Contrast] | |
High Contrast DIC | |
PlasDIC | |
Phase Contrast | |
VAREL Contrast | |
Hoffman Modulation Contrast | |
Polarization Contrast | |
Materials (Reflected Light) Applications | |
BrightField | |
BrightField/DarkField | |
Reflected Light DIC | |
High Contrast DIC | |
DIC with circular polarized light | |
Total Interference Contrast | |
Polarization Contrast | |
Options | |
Definite Focus.2 | |
Confocal Microscopy | |
- Ultra Violet | |
- VIS (visible light) | |
- NLO-IR / 2 Photon | |
Total Internal Reflection Fluorescence | |
Apotome | |
Microdissection |
-
Immersion medium Immersol W 2010, oiler 20 ml
Item no.: 444969-0000-000Immersion medium Immersol W 2010, oiler 20 ml
Item no.: 444969-0000-000Immersion medium Immersol W 2010, oiler 20 ml ne=1.3339 (23°C) for water immersion
-
Box of lens cleaning paper (300 sheets)
Item no.: 462975-0000-000Box of lens cleaning paper (300 sheets)
Item no.: 462975-0000-000Box of lens cleaning paper (300 sheets)
Note:
All measures in [mm]
mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility
Note:
Please note that due to production tolerances, the given values are typical only and not guaranteed.

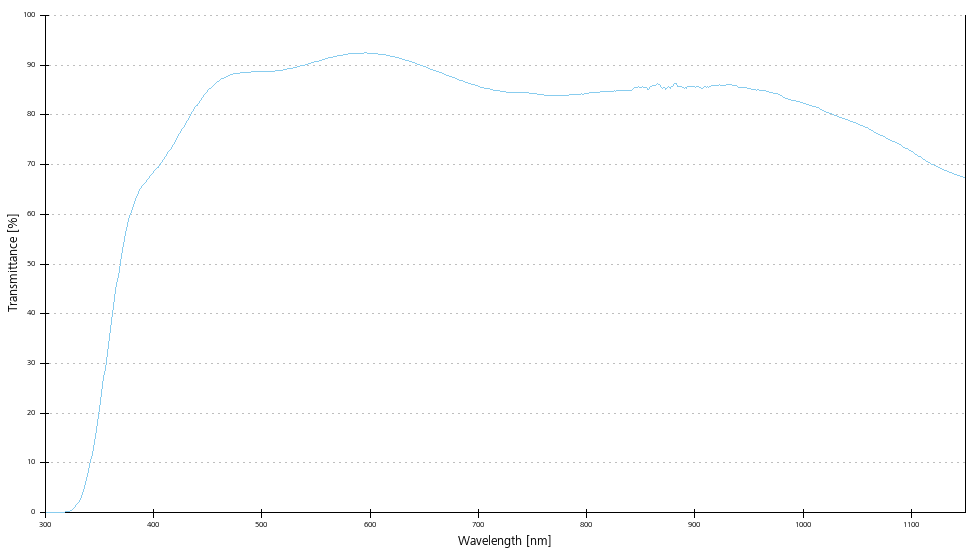

As an addition to the water Achroplan objectives, the water Plan-Apochromat objectives have also become available. They are apochromatically corrected from VIS to IR and designed for use without cover slip. Compared with the water Achroplan 63x/0.9, the new water Plan-Apochromat 63x/1.0 yields 50-100% more light. Between 450 nm and 1000 nm, the typical transmission values of the water Plan-Apochromat are higher than 80%, and higher than 50% at 365 nm. The objectives feature a slim front with a 20 mm diameter and a 36° access angle to the object plane. The front consists of plastic material that was originally developed with the properties required for food technology. Therefore, these objectives are ideal for 2-photon microscopy, electrophysiology and patch clamp applications.
Objective W Plan-Apochromat 10x/0.5 M27 75mm parfocal length 75mm, (FWD=3.7mm), (UV) VIS-IR
