Objective LD C-Apochromat 63x/1.15 W Corr M27
Objective LD C-Apochromat 63x/1.15 W Corr M27
Item no.: 421887-9970-000
Description
Objective LD C-Apochromat 63x/1.15 W Corr M27 (CG=0.14-0.19mm) (FWD=0.60mm at CG=0.17mm), UV-VIS-IR incl. Immersol W, bottle 20 ml and Cover glasses, high performance, CG=0.17mm, box with 100 pc.
Full Description| Magnification | 63x |
| Numerical Aperture | 1.15 |
| Free Working Distance [mm] | 0.60 at cover glass 0.17 |
| Coverglass Thickness [mm] | 0.14 - 0.19 |
| Thread Type | M27x0.75 |
| Immersion | Water and W 2010 |
| Field of View [mm] | 25 |
| Parfocal Length [mm] | 45.06 |
| Long Distance |
|
| Correction Ring |
|
| Iris | |
| Optical System | Infinity Color Corrected System (ICS) |
| Color Correction | apochromatic |
| Biomedical Applications | |
|---|---|
| Fluorescence |
|
| - Multichannel | |
| - Ultraviolet Transmission | |
| - Infra Red Transmission | |
| BrightField |
|
| DIC [Differential Interference Contrast] | |
| High Contrast DIC | |
| PlasDIC | |
| Phase Contrast | |
| VAREL Contrast | |
| Hoffman Modulation Contrast | |
| Polarization Contrast | |
| Materials (Reflected Light) Applications | |
| BrightField | |
| BrightField/DarkField | |
| Reflected Light DIC | |
| High Contrast DIC | |
| DIC with circular polarized light | |
| Total Interference Contrast | |
| Polarization Contrast | |
| Options | |
| Definite Focus.2 | |
| Confocal Microscopy |
|
| - Ultra Violet | |
| - VIS (visible light) | |
| - NLO-IR / 2 Photon | |
| Total Internal Reflection Fluorescence | |
| Apotome |
|
| Microdissection | |
-
Objective heater 33/38 S1 (D)
Item no.: 411860-9067-000 -
Objective ring ACR for objective sleeve conical long
Item no.: 424510-0000-000 -
Adapter 30mm with optics and DIC slider mount
Item no.: 424516-9041-000 -
DIC slider EC PN 63x1.25 III, CA 63x/1.2 W III
Item no.: 426946-0000-000 -
Immersion medium Immersol W 2010, oiler 20 ml
Item no.: 444969-0000-000 -
Box of lens cleaning paper (300 sheets)
Item no.: 462975-0000-000 -
Cover glasses, high performance, D=0.17mm, box with 1000 pc.
Item no.: 474030-9000-000

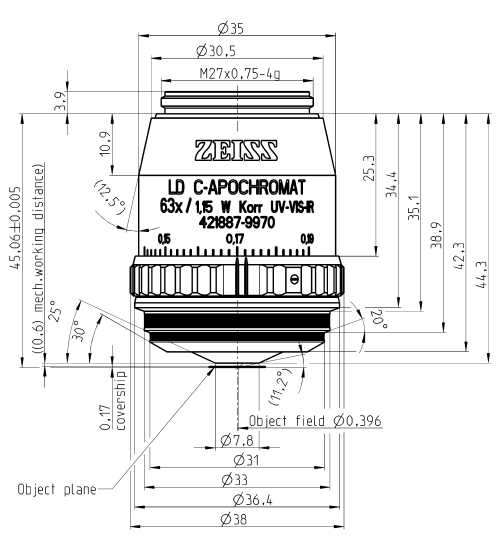

Note:
All measures in [mm]
mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility
Note:
Please note that due to production tolerances, the given values are typical only and not guaranteed.
