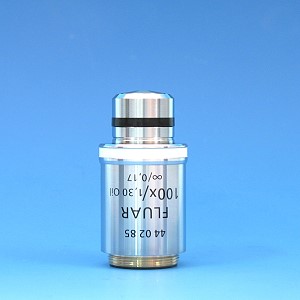

Objective Fluar 100x/1.30 Oil UV

Item no.: 440285-0000-000
(no longer available)

Description

Objective Fluar 100x/1.30 Oil UV (WD=0.17mm), incl. Immersol 518 F, oiler 20ml and Cover glasses, high performance, D=0.17mm, box with 100 pc.

Full Description

Biomedical Applications
Magnification	100x
Numerical Aperture	1.30
Free Working Distance [mm]	0.17
Coverglass Thickness [mm]	0.17
Thread Type	W0.8x1/36"
Immersion	Oil
Field of View [mm]	23
Parfocal Length [mm]	45.06
Long Distance
Correction Ring
Iris
Optical System	Infinity Color Corrected System (ICS)
Color Correction	achromatic
Fluorescence
- Multichannel
- Ultraviolet Transmission
- Infra Red Transmission
BrightField
DIC [Differential Interference Contrast]
High Contrast DIC
PlasDIC
Phase Contrast
VAREL Contrast
Hoffman Modulation Contrast
Polarization Contrast
Materials (Reflected Light) Applications
BrightField
BrightField/DarkField
Reflected Light DIC
High Contrast DIC
DIC with circular polarized light
Total Interference Contrast
Polarization Contrast
Options
Definite Focus.2
Confocal Microscopy
- Ultra Violet
- VIS (visible light)
- NLO-IR / 2 Photon
Total Internal Reflection Fluorescence
Apotome
Microdissection

Adapter M 27x0.75 / W 0.8 H "0"

Item no.: 000000-1095-168

Adapter M 27x0.75 / W 0.8 H "0"
Item no.: 000000-1095-168

Adapter M 27x0.75 / W 0.8 H "0"
Objektive heater 17.5/25 S1 (D)

Item no.: 411860-9062-000

Objektive heater 17.5/25 S1 (D)
Item no.: 411860-9062-000

Objective heater 17.5/25 S1 (D) - with oil discharge channel - clamping via front dia. 17.5 mm - max. objective dia. 25 mm - temperature range of room temperature up to +45°C
Temperable Objective Ring 17.5/25 mm S1 (D)

Item no.: 411882-9080-000

Temperable Objective Ring 17.5/25 mm S1 (D)
Item no.: 411882-9080-000

Temperable Objective Ring 17.5/25 mm S1 (D) clamping via front dia. 17.5 mm, max. objective dia. 25 mm
Immersion oil Immersol 518 F fluorescence free, bottle 100 ml

Item no.: 444962-0000-000

Immersion oil Immersol 518 F fluorescence free, bottle 100 ml
Item no.: 444962-0000-000

Immersion oil Immersol 518 F fluorescence free, bottle 100 ml (ISO 8036-1/2, ne=1.518 (23°C), halogen-free)
Immersion oil Immersol 518 F fluorescence free, bottle 500 ml

Item no.: 444964-0000-000

Immersion oil Immersol 518 F fluorescence free, bottle 500 ml
Item no.: 444964-0000-000

Immersion oil Immersol 518 F fluorescence free, bottle 500 ml (ISO 8036-1/2, ne=1.518 (23°C), halogen-free)
Box of lens cleaning paper (300 sheets)

Item no.: 462975-0000-000

Box of lens cleaning paper (300 sheets)
Item no.: 462975-0000-000

Box of lens cleaning paper (300 sheets)
Cover glasses, high performance, D=0.17mm, box with 1000 pc.

Item no.: 474030-9000-000

Cover glasses, high performance, D=0.17mm, box with 1000 pc.
Item no.: 474030-9000-000

Cover glasses, high performance, D=0.17mm, box with 1000 pc. Size 18x18 mm² type 1 1/2 H as per ISO 8255-1 with restricted thickness-related tolerance D=0.17 mm +/- 0.005 mm refractive index = 1.5255 +/- 0.0015, Abbe number = 56 +/-2 recommended for applications with high numerical aperture objectives

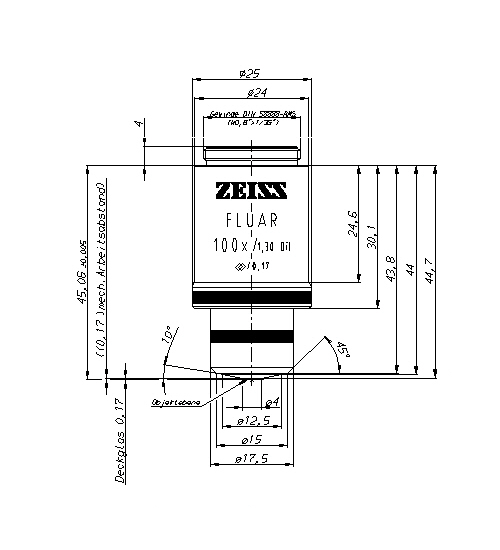

Note:

All measures in [mm]

mech. Arbeitsabstand = mechanical working distance
Deckglas = cover glass
Objektebene = object plane
Objektfeld = object field
Ausleuchtung = illumination
Probenzugänglichkeit = specimen accessibility

Note:

Please note that due to production tolerances, the given values are typical only and not guaranteed.

Fluar

These objectives have been designed especially for qualitative and quantitative analysis of ion movements and for particularly critical fluorescence methods (e.g. chromosome studies in human and cytogenetics). These objectives are distinguished by high numerical apertures and highest transmission at wavelengths even of 340 nm. Field flattening is sufficient up to a field of 20 mm.
